Frigidaire FRIGIDAIRE FEB24S2A User manual

PRODUCT NO. BASE MODEL NO. FACTORY NO. SERIES COLOR

FEB24S2ABB FEB24S2A 38254412B1062 24" wall oven black

FEB24S2ASB FEB24S2A 38254412B1012 24" wall oven white

Publication No.

5995394821

030827

-EN/SERVICE /ECL

377

ELECTRIC

WALL OVEN

Model No.

FEB24S2A

FACTORY PARTS CATALOG

RANGE

WIRING DIAGRAM - # 318046222

OWNER’S GUIDE - # 318200919

TIMER INSTRUCTION SHEET - # 318200140

INSTALLATION INSTRUCTIONS - # 318201509

ELECTROLUX HOME PRODUCTS, INC.

P.O. BOX 212378, Augusta, GA 30917

08/03 2

Publication No. FEB24S2A

5995394821

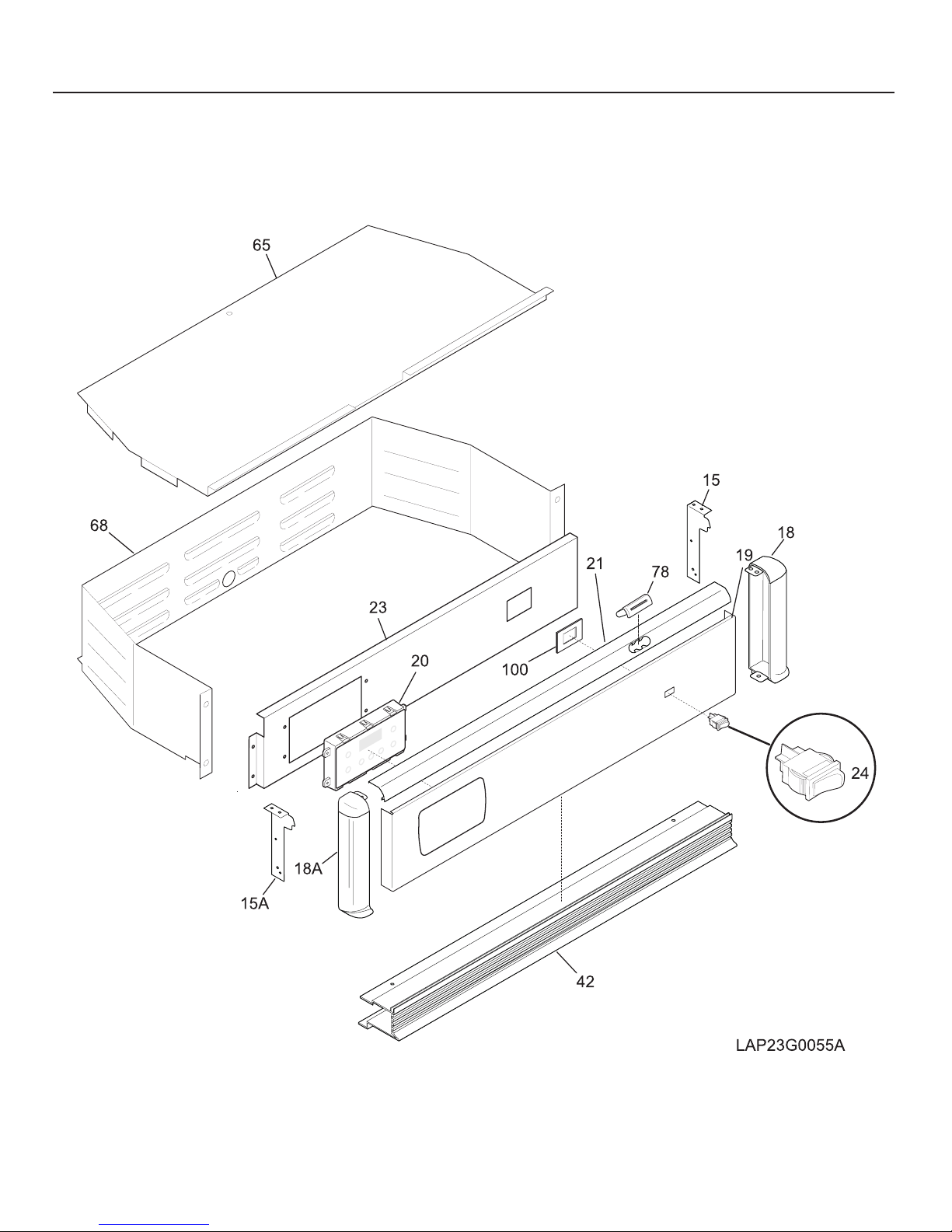

CONTROL PANEL

# = Functional Parts 3 08/03

* = Non-Illustrated Parts

FEB24S2A Publication No.

5995394821

CONTROL PANEL

A = FEB24S2A (FEB24S2ASB)

B = FEB24S2A (FEB24S2ABB)

POS. NO PART NO DESCRIPTION

15 5303302286 A B Support,backguard ,RH

15A 5303302287 A B Support,backguard ,LH

18 5303311208 A - End Cap,white ,RH

18 5303311231 - B End Cap,black ,RH

18A 5303311209 A - End Cap,white ,LH

18A 5303311232 - B End Cap,black ,LH

19 318179800 A - Panel,control ,white

19 318179801 - B Panel,control ,black

20 # 318185303 A - Clock/Timer,EOC ,white

20 # 318185304 - B Clock/Timer,EOC ,black

20* 318214400 A - Overlay,clock ,white

20* 318214401 - B Overlay,clock ,black

21 5303320425 A - Trim,top ,white

21 5303300408 - B Trim,top ,black

23 318015036 A B Bracket,clock/timer mtg

24 # 316005607 A - Switch,rocker ,white

24 # 316005602 - B Switch,rocker ,black

42 5303316649 A - Trim,vent ,white

42 5303316651 - B Trim,vent ,black

65 318038804 A B Cover,control housing

68 5303302397 A B Housing,control

78 318037122 A - Cover,oven vent ,white

78 318037121 - B Cover,oven vent ,black

100 318112200 A B Plate,mounting ,rocker switch

* 5303211311 A B Screw,8 x 0.500

08/03 4

Publication No. FEB24S2A

5995394821

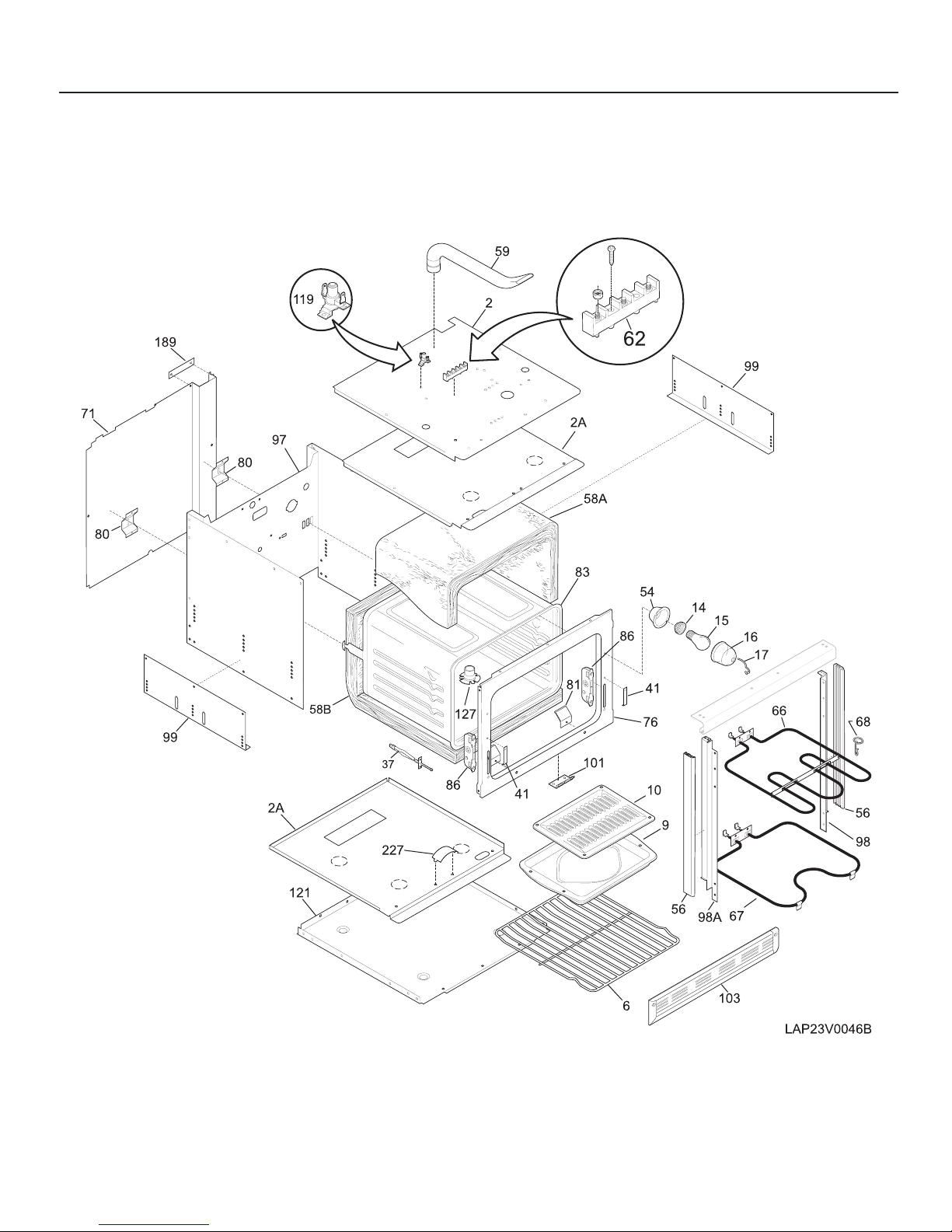

BODY

# = Functional Parts 5 08/03

* = Non-Illustrated Parts

FEB24S2A Publication No.

5995394821

BODY

A = FEB24S2A (FEB24S2ASB)

B = FEB24S2A (FEB24S2ABB)

POS. NO PART NO DESCRIPTION

2 318195900 A B Wrapper,outer ,top

2A 5303305035 A B Shield,insulation

6 5303296873 A B Rack,oven

9 5303317977 A B Pan,broiler

10 5303317976 A B Insert,broiler pan

14 318224000 A B Receptacle,oven light

15 5303013071 A B Bulb/Lamp,oven light

16 3201911 A B Cover,oven light ,glass

17 5304400195 A B Retainer,light cover

37 # 316217002 A B Probe,oven temp

41 5303310526 A B Cover,hinge cutout

54 318222400 A B Housing,oven light

56 5303302711 A - Trim,bodyside ,white

56 5303298951 - B Trim,bodyside ,black

58A 318133710 A B Insulation,oven wrapper

58B 318133704 A B Insulation,oven back

59 318072507 A B Tube,oven vent

62 # 316056000 A B Terminal Block

62* 5303323144 A B Nut,10-32

66 # 5303322963 A B Element,broil

67 # 5303323865 A B Element,bake

68 5304403015 A B Support,element hanger

71 318071111 A B Shield,rear wall

76 318056124 A B Front,oven

80 318192400 A B Spring,oven

81 5303323710 A B Bracket,oven

83 318089520 A B Liner,oven

86 5303310524 A B Receptacle,hinge

97 318066602 A B Wrapper,back & sides

98 318029342 A B Trim,side ,inner,RH

98A 318029343 A B Trim,side ,inner,LH

99 5303299686 A B Support,adjustable

101 318039512 A - Bracket,trim ,white

101 318039511 - B Bracket,trim ,black

103 318028711 A - Trim,base ,white

103 318028710 - B Trim,base ,black

119# 318003605 A B Thermostat,safety ,backguard

121 318145001 A B Wrapper,base

127 5303310542 A B Adapter,vent tube ,with converter

189 318042500 A B Plate,retainer

227 5303323955 A B Clip,retainer

* # 318078528 A B Box & wires assy

* 3015722 A B Clip-wire

* 08002868 A B Screw,10-24 x 0.500 ,probe,thrm brkt ,shield,drwr,box

* 5303211311 A B Screw,8 x 0.500

* 5303302745 A B Screw,10-16x1-1/8 ,square drive

* 5303324184 A B Screw (8X5/16)

* 5303935083 A - Screw 10-16X1-1/4

* 5303307406 - B Screw,6-32 x 3/8 ,black ,(2)

08/03 6

Publication No. FEB24S2A

5995394821

DOOR

# = Functional Parts 7 08/03

* = Non-Illustrated Parts

FEB24S2A Publication No.

5995394821

DOOR

A = FEB24S2A (FEB24S2ASB)

B = FEB24S2A (FEB24S2ABB)

POS. NO PART NO DESCRIPTION

3 318026102 A - Trim,oven door ,white

3 318026520 - B Trim,oven door ,black

4 318051515 A - Glass,oven door ,white ,outer

4 318051516 - B Glass,oven door ,black ,outer

6 318073600 A B Shield,air wash

7 318133740 A B Insulation,oven door

9 318156604 A B Liner,oven door

10 5303311217 A B Screw,handle ,door

12 # 5303316768 A B Seal,oven door

16 5303323828 A B Glass-oven door

17 318162601 A B Support,glass

18 318053204 A B Seal,rope ,lower oven

20 318014301 A - Spacer,handle ,white ,(2)

20 318014300 - B Spacer,handle ,black ,(2)

23 318024702 A B Hinge,oven door

29 318014400 A B Spacer,door

39 316091104 A - Handle,door ,white ,oven

39 316091103 - B Handle,door ,black ,oven

59 3202113 A B Plug,button

60 5303316982 A B Foam seal,(3)

* 08002868 A B Screw,10-24 x 0.500 ,probe,thrm brkt ,shield,drwr,box

* 5303211311 A B Screw,8 x 0.500

08/03 8

Publication No. FEB24S2A

5995394821

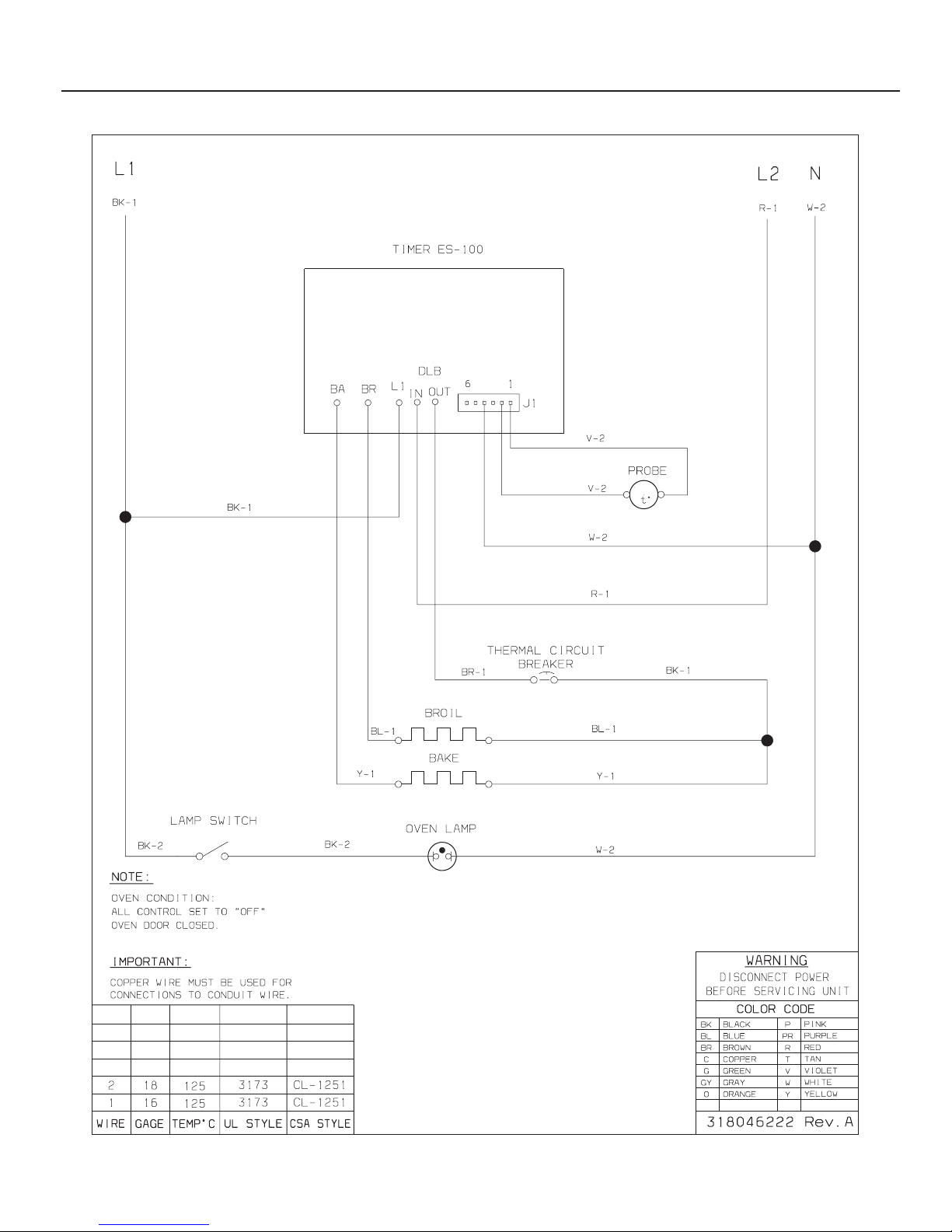

WIRING DIAGRAM
