Frigidaire FEB30T6DBD Instruction Manual

FEB30T6D.eps CFEB30T5DSC.eps BUFEB30T6DSC.eps BLFEB30T6DSC.eps

DFEB30S5DSA.eps 318046121.eps

UPPER

OVENLOWE

OVEN

Low er OvenUpper Oven

ock

Keep

warm

Controls

Clear

/Of

Bake

tim e

Start

time

Oven

light

Timer

On/Off

STAR T

Broil

BakeSpeed

clean

Speed

bake

Clea n

Speed Bak e Ovens

Keep

warm

Controls

Clear

/Of

Bake

time

Start

time

Oven

light

STAR T

Broi

BakeSpeed

ean

Speed

bake

Clean

Product No. FEB30T6DBD FEB30T6DQD FEB30T6DSD

37054381E4064 37054381E4044 37054381E4014

Series 30" double 30" double 30" double

Color black bisque white

Market North America North America North America

Wiring Diagram 318046121 318046121 318046121

Owner's Guide 318200924 318200924 318200924

Installation Instructions 318201514 318201514 318201514

Service Data Sheet 318047306 318047306 318047306

Timer Guide 318200137 318200137 318200137

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995463683

06/03/20

(EN/SERVICE/BJH)

377

DOUBLE ELECTRIC

WALL OVEN

Model No.

FEB30T6D

Publication No: 5995463683 FEB30T6D

03/06 2

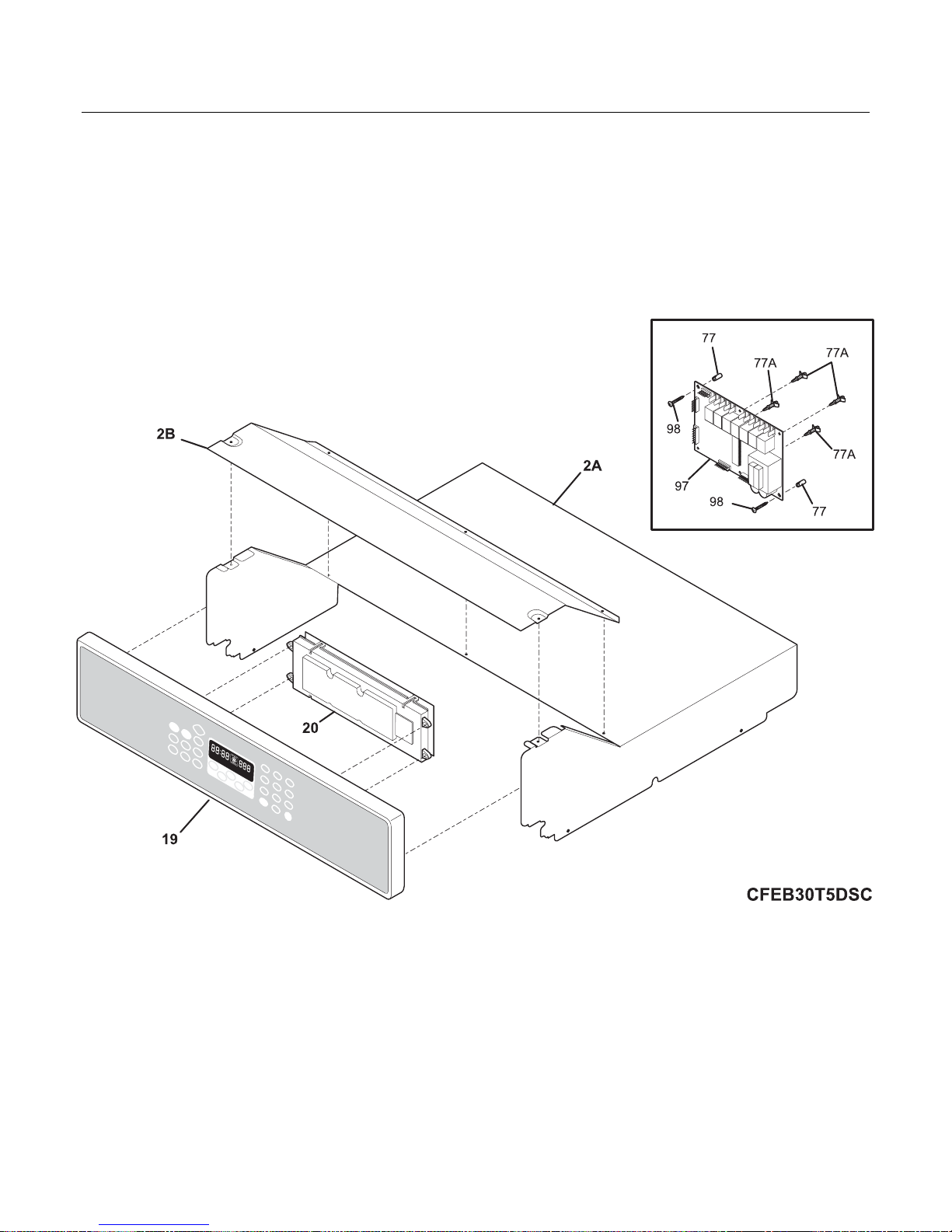

CONTROL PANEL

FEB30T6D Publication No: 5995463683

# Functional Parts 3 03/06

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFEB30T6D (FEB30T6DBD)

BFEB30T6D (FEB30T6DQD)

CFEB30T6D (FEB30T6DSD)

POS. NO PART NO. DESCRIPTION

2A 318257300 A B C Shield, oven top

2B 318260100 A B C Cover, box

19 318342905 A - - Control Panel Assembly, glass, black, w/touch pad

19 318342904 - B - Control Panel Assembly, glass, bisque, w/touch pad

19 318342903 - - C Control Panel Assembly, glass, white, w/touch pad

20 # 316443804 A B C Control, electronic, ES610W2, dual oven

77 316247900 A B C Spacer, power board, (2)

77A 316114100 A B C Spacer, (2)

97 316443902 A B C Board, relay, dual oven

98 5303297477 A B C Screw, 6-20 x 1 1/4

* 318231751 A B C Harness, wiring, control-relay

* 5303211311 A B C Screw, 8 x 0.500

Publication No: 5995463683 FEB30T6D

03/06 4

UPPER OVEN

119

108

108A

185

163

58B

264

29 127

58A

BUFEB30T6DSC

185

59A

131

132

58D

143

142

310

311

312

272

107

111

109

263

125

FEB30T6D Publication No: 5995463683

# Functional Parts 5 03/06

* Non-Illustrated Parts

UPPER OVEN

Model Index: AFEB30T6D (FEB30T6DBD)

BFEB30T6D (FEB30T6DQD)

CFEB30T6D (FEB30T6DSD)

POS. NO PART NO. DESCRIPTION

1 318259202 A B C Back, main

2 318258902 A B C Shield, insulation, upper

6 318262502 A B C Rack, oven

9 5303317977 A B C Pan, broiler

10 5303317976 A B C Insert, broiler pan

12 # 318089917 A B C Switch, light

14 318224000 A B C Receptacle, oven light

14* 318268099 A B C Insulation, oven light

15 5303013071 A B C Bulb/Lamp, light

16 3201911 A B C Cover, oven light, glass

17 5304400195 A B C Retainer, light cover

29 318147411 A B C Bumper, (2)

37 # 316217002 A B C Probe, oven temp

41 5303310526 A B C Cover, hinge cutout

* 5303325980 A B C Screw, 10-32 x 0.437

54 318222400 A B C Housing, oven light

58A 318285055 A B C Insulation, oven wrapper

58B 318285056 A B C Insulation, oven back

58D 318285058 A B C Insulation, 1/2" thick, 43 x 9.5

59 318072560 A B C Duct, oven vent

59A 318261600 A B C Bracket, vent tube

66 # 318255600 A B C Element, broil, 2750W

67 # 318255401 A B C Element, bake, 3400W

68 5304403015 A B C Support, hanger, (2), broil element

70 318259100 A B C Shield, insulation, sides, (2)

71 318260007 A B C Panel, rear box

76 318056217 A B C Front, oven

80 5303320846 A B C Plate, oven mtg

81 318192400 A B C Spring, oven

82 318258707 A B C Shield, insulation, lower

83 318261404 A B C Liner, oven assy

86 5303310524 A B C Receptacle, hinge

89 # 318261211 A B C Motor, latch assy

* # 318231750 A B C Harness, wiring, main, latch

* # 318199744 A B C Wiring Harness, latch, BAS

* # 318199746 A B C Wiring Harness, latch, NO BAS

99 318252800 A B C Support, side

* 5303300265 A B C Screw, 8-18 X 1/2, (2)

107 318219401 A B C Cover, fan

108# 318073018 A B C Motor, blower

* 08016432 A B C Screw, truss head, 8-18 x 0.375

108A 318251300 A B C Bracket, fan support

109 316136400 A B C Blade, fan

111 316136600 A B C Nut, fan retainer

119# 318004900 A B C Switch, thermal

125* 5303316994 A B C Insulation, 3.81 x 3.13

125# 316415800 A B C Motor, fan

127 318317100 A B C Adapter Assembly, vent tube, w/converter

Publication No: 5995463683 FEB30T6D

03/06 6

UPPER OVEN

119

108

108A

185

163

58B

264

29 127

58A

BUFEB30T6DSC

185

59A

131

132

58D

143

142

310

311

312

272

107

111

109

263

125

FEB30T6D Publication No: 5995463683

# Functional Parts 7 03/06

* Non-Illustrated Parts

UPPER OVEN

Model Index: AFEB30T6D (FEB30T6DBD)

BFEB30T6D (FEB30T6DQD)

CFEB30T6D (FEB30T6DSD)

POS. NO PART NO. DESCRIPTION

131 318272900 A B C Box, vent

132 318003000 A B C Plate, shield

142 318123910 A B C Deflector

143 318172904 A B C Support, wire

163 318014111 A B C Spacer

185 318014700 A B C Spacer, oven shield, (4)

263 316136500 A B C Washer, flat

264 318257701 A B C Trim, oven, black, front

272 318249401 A B C Tube, protector

310 5304440067 A B C Cabinet Mounting Kit

311 318246010 A B C Bracket, cabinet mtg, (2)

311* 5304438005 A B C Screw, 6 x 1, black

312 318246702 A B C Tool, cabinet bracket, RH

312 318246703 A B C Tool, cabinet bracket, LH

* 5303211311 A B C Screw, 8 x 0.500

* 5303323277 A B C Screw, 8-18 X 13/32

* 5304436875 A B C Screw, 8-18 X 1/2, black

Publication No: 5995463683 FEB30T6D

03/06 8

LOWER OVEN

143

119

108

108A

185

163

142

58B

264

56A

29 127

86 56

58A

82 BLFEB30T6DSC

185

59A

58D

272

107

111

109

263

125

FEB30T6D Publication No: 5995463683

# Functional Parts 9 03/06

* Non-Illustrated Parts

LOWER OVEN

Model Index: AFEB30T6D (FEB30T6DBD)

BFEB30T6D (FEB30T6DQD)

CFEB30T6D (FEB30T6DSD)

POS. NO PART NO. DESCRIPTION

1 318259202 A B C Back, main

2 318258902 A B C Shield, insulation, upper

6 318262502 A B C Rack, oven

12 # 318089917 A B C Switch, light

14 318224000 A B C Receptacle, oven light

14* 318268099 A B C Insulation, oven light

15 5303013071 A B C Bulb/Lamp, light

16 3201911 A B C Cover, oven light, glass

17 5304400195 A B C Retainer, light cover

29 318147411 A B C Bumper, (2)

37 # 316217002 A B C Probe, oven temp

41 5303310526 A B C Cover, hinge cutout

* 5303325980 A B C Screw, 10-32 x 0.437

54 318222400 A B C Housing, oven light

56 318259914 A - - Trim, side filler, black, RH

56 318259916 - B - Trim, side filler, bisque, RH

56 318259912 - - C Trim, side filler, white, RH

56A 318259915 A - - Trim, side filler, black, LH

56A 318259917 - B - Trim, side filler, bisque, LH

56A 318259913 - - C Trim, side filler, white, LH

58A 318285055 A B C Insulation, oven wrapper

58B 318285056 A B C Insulation, oven back

58D 318285058 A B C Insulation, 1/2" thick, 43 x 9.5

59 318072560 A B C Duct, oven vent

59A 318261600 A B C Bracket, vent tube

62 316056000 A B C Terminal Block

62* 5303323139 A B C Screw, 10-24 x 0.906

62* 5303323144 A B C Nut, 10-32

66 # 318255600 A B C Element, broil, 2750W

67 # 318255401 A B C Element, bake, 3400W

68 5304403015 A B C Support, hanger, (2), broil element

70 318259100 A B C Shield, insulation, sides, (2)

71 318260007 A B C Panel, rear box

71* 318340200 A B C Bracket, insul. panel

76 318056217 A B C Front, oven

80 5303320846 A B C Plate, oven mtg

81 318192400 A B C Spring, oven

82 318258707 A B C Shield, insulation, lower

83 318261404 A B C Liner, oven assy

86 5303310524 A B C Receptacle, hinge

87 318260600 A B C Bracket, cable mtg.

89 # 318261211 A B C Motor, latch assy

* # 318231750 A B C Harness, wiring, main, latch

* # 318199744 A B C Wiring Harness, latch, BAS

* # 318199746 A B C Wiring Harness, latch, NO BAS

90 318259701 A - - Trim, oven front, black, bottom

90 318259702 - B - Trim, oven front, bisque, bottom

90 318259700 - - C Trim, oven front, white, bottom

Publication No: 5995463683 FEB30T6D

03/06 10

LOWER OVEN

143

119

108

108A

185

163

142

58B

264

56A

29 127

86 56

58A

82 BLFEB30T6DSC

185

59A

58D

272

107

111

109

263

125
