Frigidaire FEB30S6DCA Instruction Manual

FEB30S6DC.eps CFEB30S7DCA.eps BFEB30S6DSA.eps DFEB30S5DCA.eps

318046227.eps

ean

Broil

BakeCl

ock

Controls

Clear

/Off

Bake

time

Oven

ght

Timer

On/

DoorLocked

Oven

eheat

Spee d

clean

Spee d

bake

Keep

warm

Product No. FEB30S6DCA

38254381E40S1

Series 30" single

Color stainless

Market North America

Wiring Diagram 318046227

Owner's Guide 318200924

Installation Instructions 316201514

Service Data Sheet 316047413

Timer Guide 318200189

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995421012

04/11/04

(EN/SERVICE/ECL)

377

SINGLE ELECTRIC

WALL OVEN

Model No.

FEB30S6D

Publication No: 5995421012 FEB30S6DCA

11/04 2

CONTROL PANEL

FEB30S6DCA Publication No: 5995421012

# Functional Parts 3 11/04

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

2A 318257300 Shield, oven top

2B 318260100 Cover, box

19 318271511 Control Panel Assembly, steel/glass, stainless/black, w/touch pad

20 # 316418523 Clock/Timer, electronic, ES350W2

* 316021107 Screw, hex head, 8-32, silver

* 5303211311 Screw, 8 x 0.500

Publication No: 5995421012 FEB30S6DCA

11/04 4

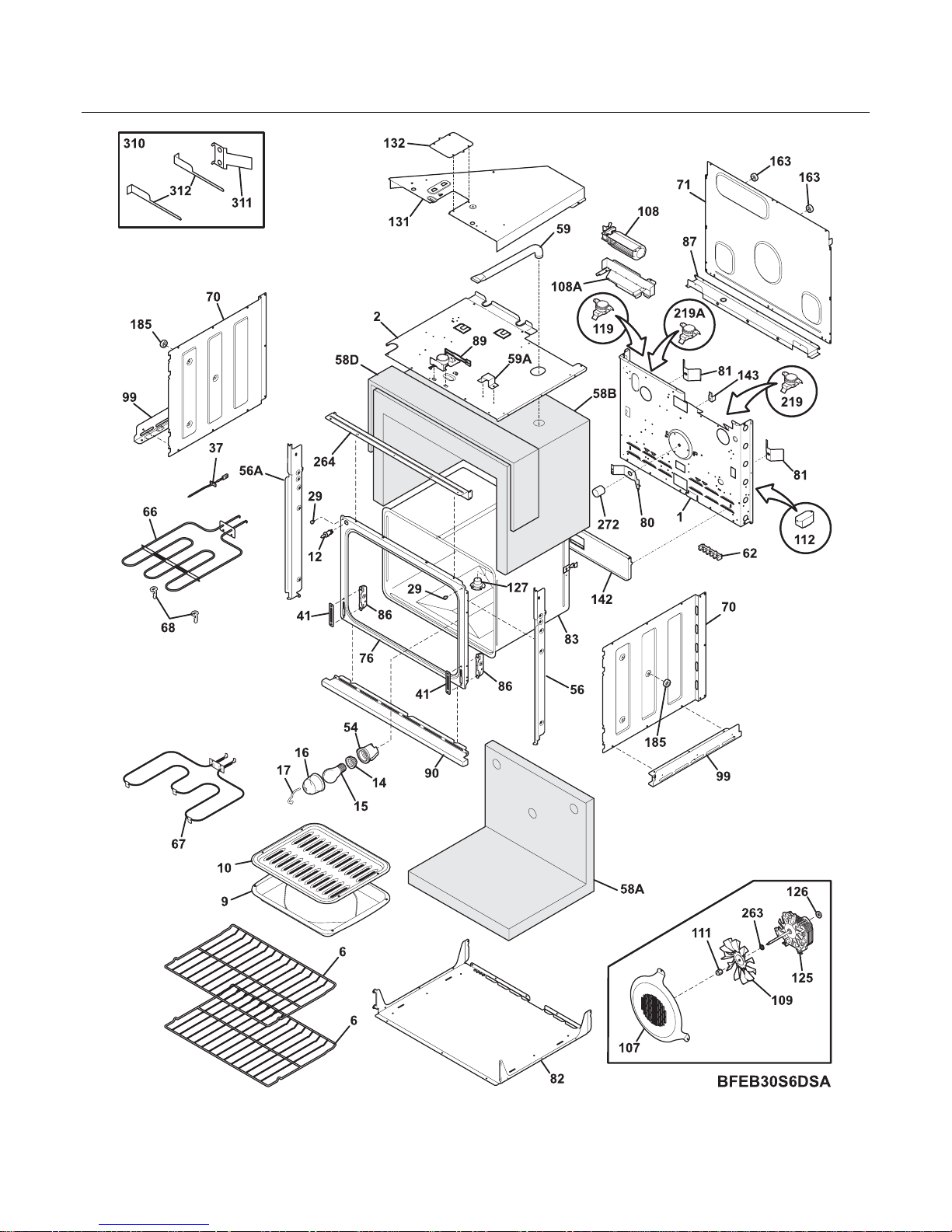

BODY

FEB30S6DCA Publication No: 5995421012

# Functional Parts 5 11/04

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 318259200 Back, main

2 318258900 Shield, insulation, upper

6 318262502 Rack, oven

9 5303317977 Pan, broiler

10 5303317976 Insert, broiler pan

12 # 318089917 Switch, light

* 3015722 Clip, wire retainer

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, oven light

16 3201911 Cover, oven light, glass

17 5304400195 Retainer, light cover

29 318147411 Bumper, door, (2)

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

54 318222400 Housing, oven light

56 318259904 Trim, side filler, black, RH

56A 318259905 Trim, side filler, black, LH

58A 318133791 Insulation, oven wrapper, back/bottom

58B 318133790 Insulation, oven wrapper, top/sides

58D 318133793 Insulation, 1/2" thick, 43 x 9.5

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

62 316056000 Terminal Block

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

66 # 318255600 Element, broil, 2750W

67 # 318255401 Element, bake, 3400W

68 5304403015 Support, element hanger

70 318259100 Shield, insulation, sides, (2)

71 318260004 Panel, rear box

76 318056217 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318258700 Shield, insulation, lower

83 318261404 Liner, ovenassy

86 5303310524 Receptacle, hinge

87 318260602 Bracket, cable mtg.

89# 318261200 Motor, latch assy

90 318259701 Trim, oven front, black, bottom

99 318256200 Bracket, side, bottom, (2)

* 5303300265 Screw, 8-18 x 0.500, chrome, (3)

107 318219401 Cover, fan

108# 318073018 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

108A 318251300 Bracket, fan support

109 316136400 Blade, fan

111 316136600 Nut, fan retainer

112# 318112701 Relay

119# 318004900 Switch, thermal

125# 316415800 Motor, fan

Publication No: 5995421012 FEB30S6DCA

11/04 6

BODY

FEB30S6DCA Publication No: 5995421012

# Functional Parts 7 11/04

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

126 318142100 Washer, motor, RH, convection

127 5303310542 Adapter, vent tube, with converter

131 318272900 Box, vent

132 318003000 Plate, shield

142 318123910 Deflector

* 5303324184 Screw, 8-18 x 5/16, black, (4)

143 318172904 Support, wire/glass

163 318014111 Spacer

185 318014700 Spacer, oven shield, (4)

219# 318003606 Thermostat, safety

219A 318003613 Thermostat, safety

263 316136500 Washer, fan motor

264 318257701 Trim, oven, black, front

272 318249401 Tube, protector

310 5304440067 Cabinet Mounting Kit

311 318246010 Bracket, cabinet mtg, (2)

311* 5304438005 Screw, 6 x 1, black

312 318246702 Tool, cabinet bracket, RH

312 318246703 Tool, cabinet bracket, LH

* # 318078542 Box & wires assy

* 318231706 Harness, wiring, main

* 5303323136 Screw ground

* 3201861 Screw, 6 x 0.375, (4)

* 5303211311 Screw, 8 x 0.500

* 5303323277 Screw, 8-18 X 13/32

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995421012 FEB30S6DCA

11/04 8

DOOR

FEB30S6DCA Publication No: 5995421012

# Functional Parts 9 11/04

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

3A 318260401 Trim, oven door, side, (2)

3B 318262101 Cover, rear door, black, (2)

6 318260500 Baffle, door

7 318133792 Insulation, oven door

7A 318133797 Insulation, oven door, cavity

8 316117500 Glass, oven door, heat barrier

9 318259605 Liner, oven door, upper

10 5303311174 Screw, 10-24 x 3/8

12 318053120 Seal, oven door

13 318272151 Door Assy, stainless steel, outer, w/tape & foil

17 316402403 Spacer, door glass, (2)

23 318024714 Hinge, oven door

24 318260301 Trim, door, black, lower

39 318231200 Handle, black

40 318242700 Bracket, glass holder, (2)

56 5304436875 Screw, 8-18 X 1/2, black

64 318165800 Spacer, (4)

* 318163602 Cleaner, stainless steel

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303211311 Screw, 8 x 0.500

* 5303300265 Screw, 8-18 x 0.500, chrome, (3)

* 5303323277 Screw, 8-18 X 13/32

Publication No: 5995421012 FEB30S6DCA

11/04 10

WIRING DIAGRAM
