Frigidaire FEB30S6DBD Instruction Manual

FEB30S6D.eps CFEB30S5DSA.eps BFEB30S6DSA.eps DFEB30S5DSA.eps

318046237.eps

Clean

Broil

Bake Clock

Controls

Clear

/Off

Bake

time

Start

time

Oven

light

Timer

On/Off

Door Locked

Oven

Preheat

Spee d

clean

Spee d

bake

Keep

warm

Product No. FEB30S6DBD FEB30S6DQD FEB30S6DSD

38254381E4064 38254381E4044 38254381E4014

Series 30" wall oven 30" wall oven 30" wall oven

Color black bisque white

Market North America North America North America

Wiring Diagram 318046237 318046237 318046237

Owner's Guide 318200924 318200924 318200924

Installation Instructions 318201514 318201514 318201514

Service Data Sheet 318047413 318047413 318047413

Timer Guide 318200189 318200189 318200189

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995460093

06/02/02

(EN/SERVICE/BJH)

377

SINGLE ELECTRIC

WALL OVEN

Model No.

FEB30S6D

Publication No: 5995460093 FEB30S6D

02/06 2

CONTROL PANEL

FEB30S6D Publication No: 5995460093

# Functional Parts 3 02/06

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFEB30S6D (FEB30S6DBD)

BFEB30S6D (FEB30S6DQD)

CFEB30S6D (FEB30S6DSD)

POS. NO PART NO. DESCRIPTION

2A 318257300 A B C Shield, oven top

2B 318260100 A B C Cover, box

19 318274605 A - - Control Panel Assembly, glass, black, w/touch pad

19 318274604 - B - Control Panel Assembly, glass, bisque, w/touch pad

19 318274603 - - C Control Panel Assembly, glass, white, w/touch pad

20 # 316418523 A B C Clock/Timer, electronic, ES350W2

* 5303211311 A B C Screw, 8 x 0.500

Publication No: 5995460093 FEB30S6D

02/06 4

BODY

FEB30S6D Publication No: 5995460093

# Functional Parts 5 02/06

* Non-Illustrated Parts

BODY

Model Index: AFEB30S6D (FEB30S6DBD)

BFEB30S6D (FEB30S6DQD)

CFEB30S6D (FEB30S6DSD)

POS. NO PART NO. DESCRIPTION

1 318259202 A B C Back, main

2 318258902 A B C Shield, insulation, upper

6 318262502 A B C Rack, oven

9 5303317977 A B C Pan, broiler

10 5303317976 A B C Insert, broiler pan

12 # 318089917 A B C Switch, light

14 318224000 A B C Receptacle, oven light

14* 318268099 A B C Insulation, oven light

15 5303013071 A B C Bulb/Lamp, light

16 3201911 A B C Cover, oven light, glass

17 5304400195 A B C Retainer, light cover

29 318147411 A B C Bumper, (2)

37 # 316217002 A B C Probe, oven temp

41 5303310526 A B C Cover, hinge cutout

54 318222400 A B C Housing, oven light

56 318259904 A - - Trim, side filler, black, RH

56 318259906 - B - Trim, side filler, bisque, RH

56 318259902 - - C Trim, side filler, white, RH

56A 318259905 A - - Trim, side filler, black, LH

56A 318259907 - B - Trim, side filler, bisque, LH

56A 318259903 - - C Trim, side filler, white, LH

58A 318285055 A B C Insulation, oven wrapper

58B 318285056 A B C Insulation, oven back

58D 318285058 A B C Insulation, 1/2" thick, 43 x 9.5

59 318072560 A B C Duct, oven vent

59A 318261600 A B C Bracket, vent tube

62 316056000 A B C Terminal Block

62* 5303323139 A B C Screw, 10-24 x 0.906

62* 5303323144 A B C Nut, 10-32

66 # 318255600 A B C Element, broil, 2750W

67 # 318255401 A B C Element, bake, 3400W

68 5304403015 A B C Support, hanger, (2), broil element

70 318259100 A B C Shield, insulation, sides, (2)

71 318260007 A B C Panel, rear box

76 318056217 A B C Front, oven

80 5303320846 A B C Plate, oven mtg

81 318192400 A B C Spring, oven

82 318258707 A B C Shield, insulation, lower

83 318261404 A B C Liner, oven assy

86 5303310524 A B C Receptacle, hinge

87 318260600 A B C Bracket, cable mtg.

89 # 318261202 A B C Motor, latch assy

90 318259701 A - - Trim, oven front, black, bottom

90 318259702 - B - Trim, oven front, bisque, bottom

90 318259700 - - C Trim, oven front, white, bottom

99 318256200 A B C Bracket, side, bottom, (2)

107 318219401 A B C Cover, fan

108# 318073018 A B C Motor, blower

Publication No: 5995460093 FEB30S6D

02/06 6

BODY

FEB30S6D Publication No: 5995460093

# Functional Parts 7 02/06

* Non-Illustrated Parts

BODY

Model Index: AFEB30S6D (FEB30S6DBD)

BFEB30S6D (FEB30S6DQD)

CFEB30S6D (FEB30S6DSD)

POS. NO PART NO. DESCRIPTION

108A 318251300 A B C Bracket, fan support

109 316136400 A B C Blade, fan

111 316136600 A B C Nut, fan retainer

112# 318112701 A B C Relay

119# 318004900 A B C Switch, thermal

125# 316415800 A B C Motor, fan

126 3016303 A B C Clip, insulator

127 318317100 A B C Adapter Assembly, vent tube, w/converter

131 318272900 A B C Box, vent

* # 318078542 A B C Box & wires assy

* 318231736 A B C Harness, wiring, main

132 318003000 A B C Plate, shield

142 318123910 A B C Deflector

143 318172904 A B C Support, wire

163 318014111 A B C Spacer

185 318014700 A B C Spacer, oven shield, (4)

219# 318003614 A B C Thermostat, safety

219A 318003613 A B C Thermostat, safety

263 316136500 A B C Washer, flat

264 318257701 A B C Trim, oven, black, front

272 318249401 A B C Tube, protector

310 5304440067 A B C Cabinet Mounting Kit

311 318246010 A B C Bracket, cabinet mtg, (2)

311* 5304438005 A B C Screw, 6 x 1, black

312 318246702 A B C Tool, cabinet bracket, RH

312 318246703 A B C Tool, cabinet bracket, LH

* 3201861 A B C Screw, 6 x 0.375, (4)

* 08016432 A B C Screw, truss head, 8-18 x 0.375

* 5303211311 A B C Screw, 8 x 0.500

* 5303323136 A B C Screw ground

* 5303323277 A B C Screw, 8-18 X 13/32

* 5303324184 A B C Screw, 8-18 x 5/16, black, (4)

* 5304436875 A B C Screw, 8-18 X 1/2, black

Publication No: 5995460093 FEB30S6D

02/06 8

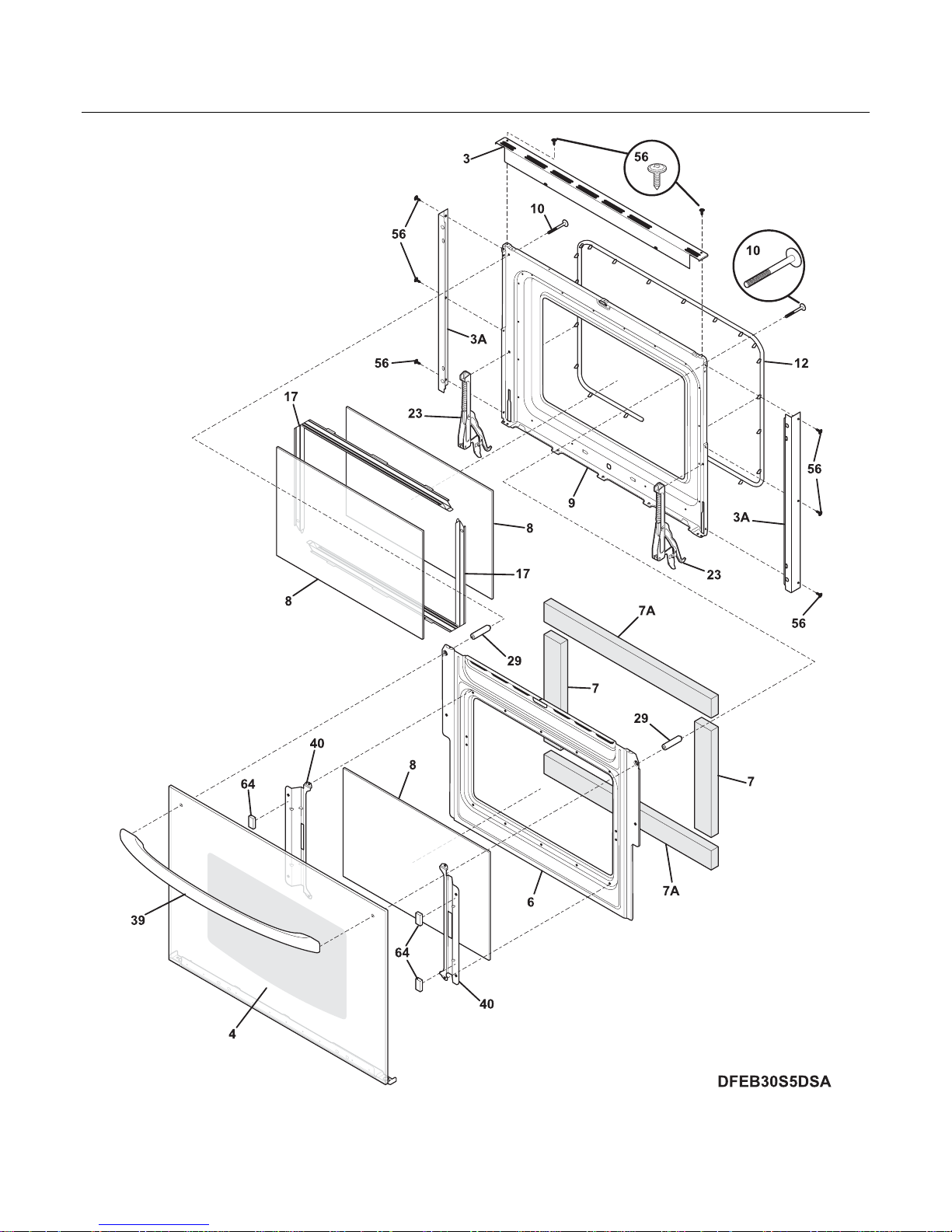

DOOR

FEB30S6D Publication No: 5995460093

# Functional Parts 9 02/06

* Non-Illustrated Parts

DOOR

Model Index: AFEB30S6D (FEB30S6DBD)

BFEB30S6D (FEB30S6DQD)

CFEB30S6D (FEB30S6DSD)

POS. NO PART NO. DESCRIPTION

3 318260201 A B C Trim, oven door, black, upper

3A 318260401 A B C Trim, oven door, side, (2)

4 318261300 A - - Glass Assy., oven door, black, outer, w/trim

4 318261302 - B - Glass Assy., oven door, bisque, outer, w/trim

4 318261301 - - C Glass Assy., oven door, white, outer, w/trim

6 318260500 A B C Baffle, door

7 318285057 A B C Insulation, oven door

7A 318285062 A B C Insulation, oven door

8 316117500 A B C Glass, oven door, heat barrier

9 318259601 A B C Liner, oven door

10 5304453223 A B C Screw, handle mtg, 10-14 x 1.82, (2)

12 318053120 A B C Seal, door, upper oven

17 316402403 A B C Spacer, door glass, (2)

23 5303310828 A B C Hinge, oven door, (2)

29 318014402 A B C Spacer, door

39 316270200 A - - Handle, door, black

39 316270202 - B - Handle, door, bisque

39 316270201 - - C Handle, door, white

40 318242700 A B C Bracket, glass holder, (2)

56 5304436875 A B C Screw, 8-18 X 1/2, black

64 318165800 A B C Spacer, (2)

* 08016432 A B C Screw, truss head, 8-18 x 0.375

* 5303211311 A B C Screw, 8 x 0.500

* 5303300265 A B C Screw, 8-18 X 1/2, (2)

* 5303323277 A B C Screw, 8-18 X 13/32

Publication No: 5995460093 FEB30S6D

02/06 10

WIRING DIAGRAM
