Frigidaire FEB27S5D User manual

FEB27S5D.eps CFEB30S5DSA.eps BFEB27S7FCC.eps DFEB30S5DSA.eps

318046237.eps

ean

Keep

warm

BakeCl

ock

Cont

Clear

/Of

Bake

Start

Oven

ght

Timer

On/

Sel

eani

Oven

Door

Locked

Oven

eheat

Product No. FEB27S5DBE FEB27S5DSE

38254731F4065 38254731F4015

Series 27" single 27" single

Color black white

Market North America North America

Wiring Diagram 318046237 318046237

Owner's Guide 318205115 318205115

Installation Instructions 318201514 318201514

Service Data Sheet 318047413 318200189

Timer Guide 318200189 318200189

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995489373

07/04/23

(EN/SERVICE/BJH)

377

SINGLE ELECTRIC

WALL OVEN

Model No.

FEB27S5D

Publication No: 5995489373 FEB27S5D

04/07 2

CONTROL PANEL

FEB27S5D Publication No: 5995489373

# Functional Parts 3 04/07

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFEB27S5D (FEB27S5DBE)

BFEB27S5D (FEB27S5DSE)

POS. NO PART NO. DESCRIPTION

2A 318257301 A B Shield, oven top

2B 318260101 A B Cover, box

19 318274401 A - Control Panel Assembly, glass, black, w/touch pad

19 318274400 - B Control Panel Assembly, glass, white, w/touch pad

20 # 316418520 A B Clock/Timer, electronic, ES350W1

* 5303211311 A B Screw, 8 x 0.500

Publication No: 5995489373 FEB27S5D

04/07 4

BODY

310

311

143

219

119

312

108

112

108A

185

163

142

58B

264

29 127

58A

BFEB27S7FCC

185

59A

56A

131

132

219A

FEB27S5D Publication No: 5995489373

# Functional Parts 5 04/07

* Non-Illustrated Parts

BODY

Model Index: AFEB27S5D (FEB27S5DBE)

BFEB27S5D (FEB27S5DSE)

POS. NO PART NO. DESCRIPTION

1 318259212 A B Back, main

2 318258910 A B Shield, insulation, upper

6 318345209 A B Rack, oven, (3)

9 5303317977 A B Pan, broiler

10 5303317976 A B Insert, broiler pan

12 316445501 A B Switch, oven light, door frame

14 318224000 A B Receptacle, oven light

14* 318268099 A B Insulation, oven light

15 5303013071 A B Bulb/Lamp, light

16 08011086 A B Lens, oven light, glass

17 5304400195 A B Retainer, light cover

29 318147411 A B Bumper, (2)

37 # 316217002 A B Probe, oven temp

41 5303310526 A B Cover, hinge cutout

54 318222400 A B Housing, oven light

56 318903704 A - Trim, side, black, RH

56 318903702 - B Trim, side, black, RH

56A 318903705 A - Trim, side, black, LH

56A 318903703 - B Trim, side, black, LH

58A 318285060 A B Insulation, rear & bottom, oven wrapper

58B 318285059 A B Insulation, top & sides, oven wrapper

59 318072560 A B Duct, oven vent

59A 318261600 A B Bracket, vent tube

62 316056000 A B Terminal Block

62* 5303323139 A B Screw, 10-24 x 0.906

62* 5303323144 A B Nut, 10-32

66 # 318255601 A B Element, broil, 3400W

67 # 318255103 A B Element, bake, 2300W

68 5304403015 A B Support, hanger, (2), broil element

70 318259100 A B Shield, insulation, sides, (2)

71 318260001 A B Panel, rear box

76 318056222 A B Front, oven

80 5303320846 A B Plate, oven mtg

81 318192400 A B Spring, oven

82 318258710 A B Shield, insulation, lower

83 318261502 A B Liner, oven assy

86 318342400 A B Receptacle, hinge

87 318260601 A B Bracket, cable mtg.

89 # 318261205 A B Motor, latch assy

90 318259711 A - Trim, oven front, black, bottom

90 318259710 - B Trim, oven front, white, bottom

99 318256200 A B Bracket, side, bottom, (2)

108# 318073018 A B Motor, blower

* 08016432 A B Screw, truss head, 8-18 x 0.375

108A 318251300 A B Bracket, fan support

112# 318112701 A B Relay

119# 318004900 A B Switch, thermal

127 318317100 A B Adapter Assembly, vent tube, w/converter

131 318272900 A B Box, vent

Publication No: 5995489373 FEB27S5D

04/07 6

BODY

310

311

143

219

119

312

108

112

108A

185

163

142

58B

264

29 127

58A

BFEB27S7FCC

185

59A

56A

131

132

219A

FEB27S5D Publication No: 5995489373

# Functional Parts 7 04/07

* Non-Illustrated Parts

BODY

Model Index: AFEB27S5D (FEB27S5DBE)

BFEB27S5D (FEB27S5DSE)

POS. NO PART NO. DESCRIPTION

132 318003000 A B Plate, shield

142 318123910 A B Deflector

* 5303324184 A B Screw, 8-18 x 5/16, black, (4)

143 318172904 A B Support, wire

163 318014111 A B Spacer

185 318014700 A B Spacer, oven shield, (4)

219# 318003614 A B Thermostat, safety

219A 318003613 A B Thermostat, safety, 1.375" mtg, 105/120

264 318257711 A B Trim, oven, black, front

310 5304440067 A B Cabinet Mounting Kit

311 318246010 A B Bracket, cabinet mtg, (2)

311* 5304438005 A B Screw, 6 x 1, black

312 318246702 A B Tool, cabinet bracket, RH

312 318246703 A B Tool, cabinet bracket, LH

* 318231735 A B Harness, wiring, main

* # 318078542 A B Box & wires assy

* 5303323136 A B Screw ground

* 3201861 A B Screw, 6 x 0.375, (4)

* 5303211311 A B Screw, 8 x 0.500

* 5303323277 A B Screw, 8-18 X 13/32

* 5304436875 A B Screw, 8-18 X 1/2, black

Publication No: 5995489373 FEB27S5D

04/07 8

DOOR

FEB27S5D Publication No: 5995489373

# Functional Parts 9 04/07

* Non-Illustrated Parts

DOOR

Model Index: AFEB27S5D (FEB27S5DBE)

BFEB27S5D (FEB27S5DSE)

POS. NO PART NO. DESCRIPTION

3 318260211 A B Trim, oven door, black, upper

3A 318260401 A B Trim, oven door, side, (2)

4 318261350 A - Glass Assy., oven door, black, outer, w/trim

4 318261351 - B Glass Assy., oven door, white, outer, w/trim

6 318260510 A B Baffle, door

7 318372000 A B Insulation, door, (2)

7A 318372001 A B Insulation, door, 20.5 x 2.375, (2)

8 318212200 A B Glass, oven door, heat barrier

9 318259611 A B Liner, oven door, upper

10 5304416408 A B Screw, 10-24 x 1.750, handle mtg

12 318053135 A B Seal, oven door, upper

17 318264700 A B Spacer, glass, (2)

23 318024724 A B Hinge, door, (2)

29 318014402 A B Spacer, door

39 318264500 A - Handle, oven door, black

39 318264501 - B Handle, oven door, white

40 318242700 A B Bracket, glass holder, (2)

56 5304436875 A B Screw, 8-18 X 1/2, black

64 318165800 A B Spacer

* 08016432 A B Screw, truss head, 8-18 x 0.375

* 5303211311 A B Screw, 8 x 0.500

* 5303323277 A B Screw, 8-18 X 13/32

Publication No: 5995489373 FEB27S5D

04/07 10

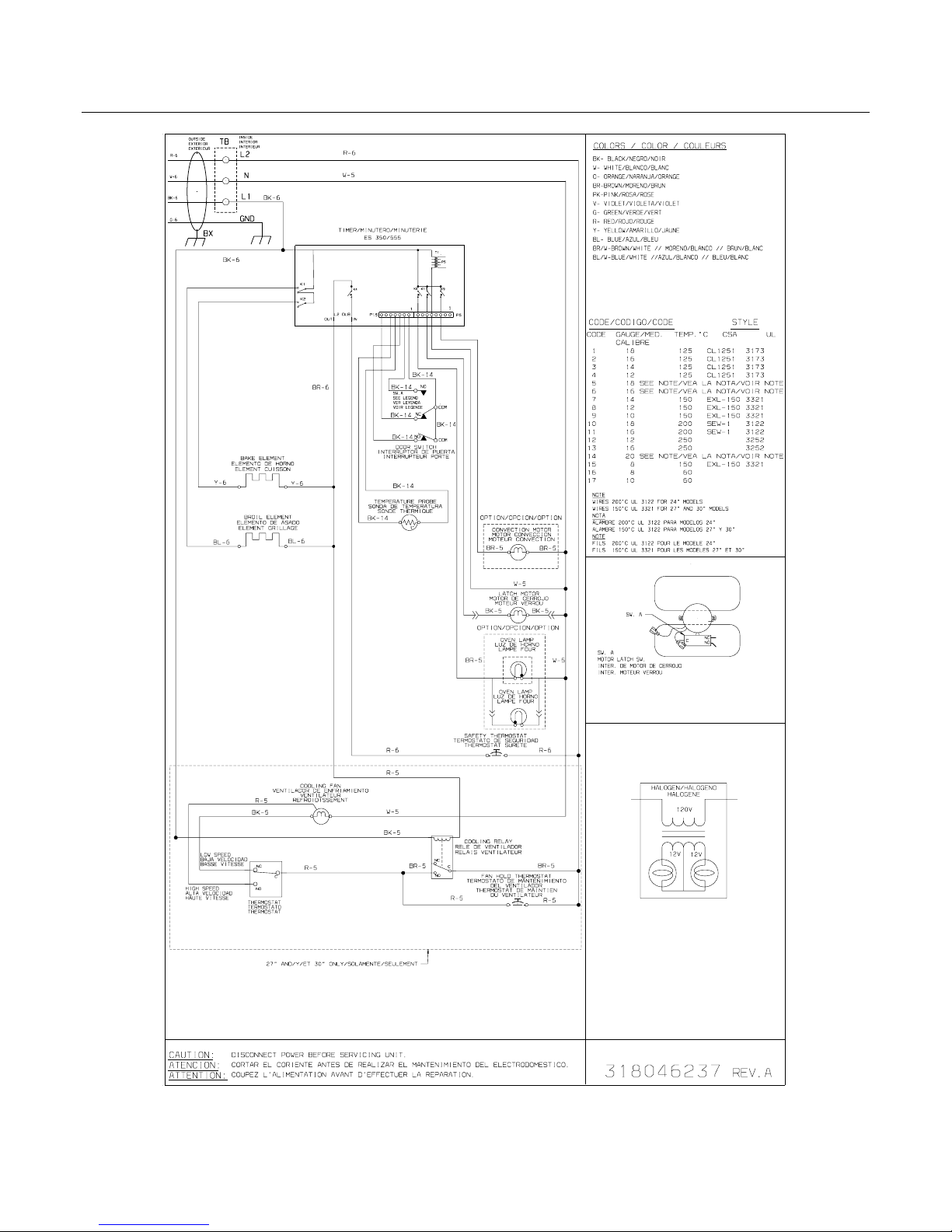

WIRING DIAGRAM
