Frigidaire FFU17D7HW0 User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFU17D7HW0 FFU17D7H 134A white 115

FFU21D7HW0 FFU21D7H 134A white 115

MARKET

North America

Publication No.

5995320628

990408

-EN/SERVICE /GS

365

FREEZER

Model No.

FFU17D7HW0

FFU21D7HW0

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216614200

OWNER’S GUIDE - # 216657700

SERVICE DATA SHEET - # 216614200

101 Masters Blvd.

Anderson, SC 29624

04/99 2

Publication No. FFU17/21D7H

5995320628

DOOR

# = Fast-moving Parts 3 04/99

* = Non-Illustrated Parts

FFU17/21D7H Publication No.

5995320628

DOOR

A = FFU17D7HW (FFU17D7HW0)

B = FFU21D7HW (FFU21D7HW0)

POS. NO PART NO DESCRIPTION

1 216522309 A - Gasket-door,white

1 216522312 - B Gasket-door,white

2 # 5303925107 A B Lock Assy

5 # 216388700 A B Key,lock

6 5300158222 A B Screw-anchor,8-18

9 216527812 A - Panel-inner door,frzr

9 216528107 - B Panel-inner door,white

11 5303925465 A B Panel-door,white

12 216373000 A B Frame-nameplate

12A 316095402 A B Label-nameplate

13 08016354 A B Door Stop

14 5303313518 A B Washer,sealing

18 216446900 A B Handle,white

21A 08005520 A B Screw-door stop mtg,flat hd metric ,

4.0 x 0.7-19.7

22 216443600 A B Bearing

22A 216503200 A B Bearing-hinge,btm

25 216022800 A B Screw,washer head ,8-18 X 1/2

26 216524200 A B Gasket,secondary

27 5303212828 A B Clip,panel

28 216523102 A B Rack-shelf,wide ,white

32 5309950074 A B Valve-breather

57 3017682 A B Insert-handle

64 216403700 A B Plug-button,base door

93 5303161215 A B Screw

* 5303296404 A B Clip-handle base

* 5303925098 A B Insulation

04/99 4

Publication No. FFU17/21D7H

5995320628

CABINET

# = Fast-moving Parts 5 04/99

* = Non-Illustrated Parts

FFU17/21D7H Publication No.

5995320628

A = FFU17D7HW (FFU17D7HW0)

B = FFU21D7HW (FFU21D7HW0)

POS. NO PART NO DESCRIPTION

2 216269500 A B Adapter-drain

3 216502600 A B Plug-drain,exterior

6 216604200 A - Breaker Kit w/corners

6 216604100 - B Breaker Kit w/corners

7 216603700 A - Breaker Kit w/corners,lock catch

7 216603600 - B Breaker Kit w/corners,lock catch

9 216603300 A B Breaker Kit w/corners,32" ,top or bottom

14 216472300 A B Switch-light plunger

15 216222700 A B Light Bulb/Lamp

16 5300136117 A B Socket-light/lamp

18 216591802 A B Knob,temp control

20 5303288184 A B Cover-control housing

21 # 216260300 A B Control-temperature

22 08037931 A B Clamp,cap tube ,cold control

23 216511700 A B Light-signal

24 5300052943 A B Screw-clamp,truss hd cr ,control

26 216503300 A B Ramp,closer ,door

27 5303205738 A B Screw-hinge,cr ,1/4-20 x 1.000 ,btm

28 216247400 A B Hinge-bottom

29 216313500 A B Hose-drain

32 5308005500 A B Drain

33 216511600 A B Bracket,signal light

34 216557600 A B Shield-light

35 216273000 A B Clip,drain hose

38 5303925086 A B Hinge-upper

39 5303294372 A B Nut-insert,hinge

40 5303212912 A B Cover-hinge

41 5303212937 A B Screw-top hinge

56 09950853 A B Screw-control knob,phillips ,4-40 x 3/8

59 216154400 A - Basket

59 216157200 - B Basket

59A 09948791 A B Stop-basket

62 131420300 A B Screw,cr truss head ,8-18AB x 0.750

63 216396900 A B Foot-adjustable

64 216009200 A B Bracket-dfr switch

65 216443500 A B Drop front

66 5303212697 A B Buzzer,alarm

67 # 5303212703 A B Switch-rocker,SPST

68 08009560 A B Glide-basket

69 5305878546 A B Bumper-basket

72 216511500 A B Grille/Kickplate

81 216571000 A B Support-drop front,top

83 216571100 A B Support-drop front,btm

86 216036600 A B Screw,rwhd (gx-ca) ,8-32 x 1/2

87 08037849 A B Screw

88 # 216380500 A B Switch-defrost

89 216206200 A B Bezel-nameplate,defrost

90 5303297123 A B Screw,th ,8-32 x 2-1/2

91 216372000 A B Insert-bezel

92 08037851 A B Screw,PH type AB ,8-32x1/2 ,wiring harness

132 5303283898 A B Screw,6-20AB x 3/8

* 09948773 A B Insulation,drain tube

* 5303305324 A B Paint,touch-up ,white

* 5303311565 A B Clip-cable

CABINET

04/99 6

Publication No. FFU17/21D7H

5995320628

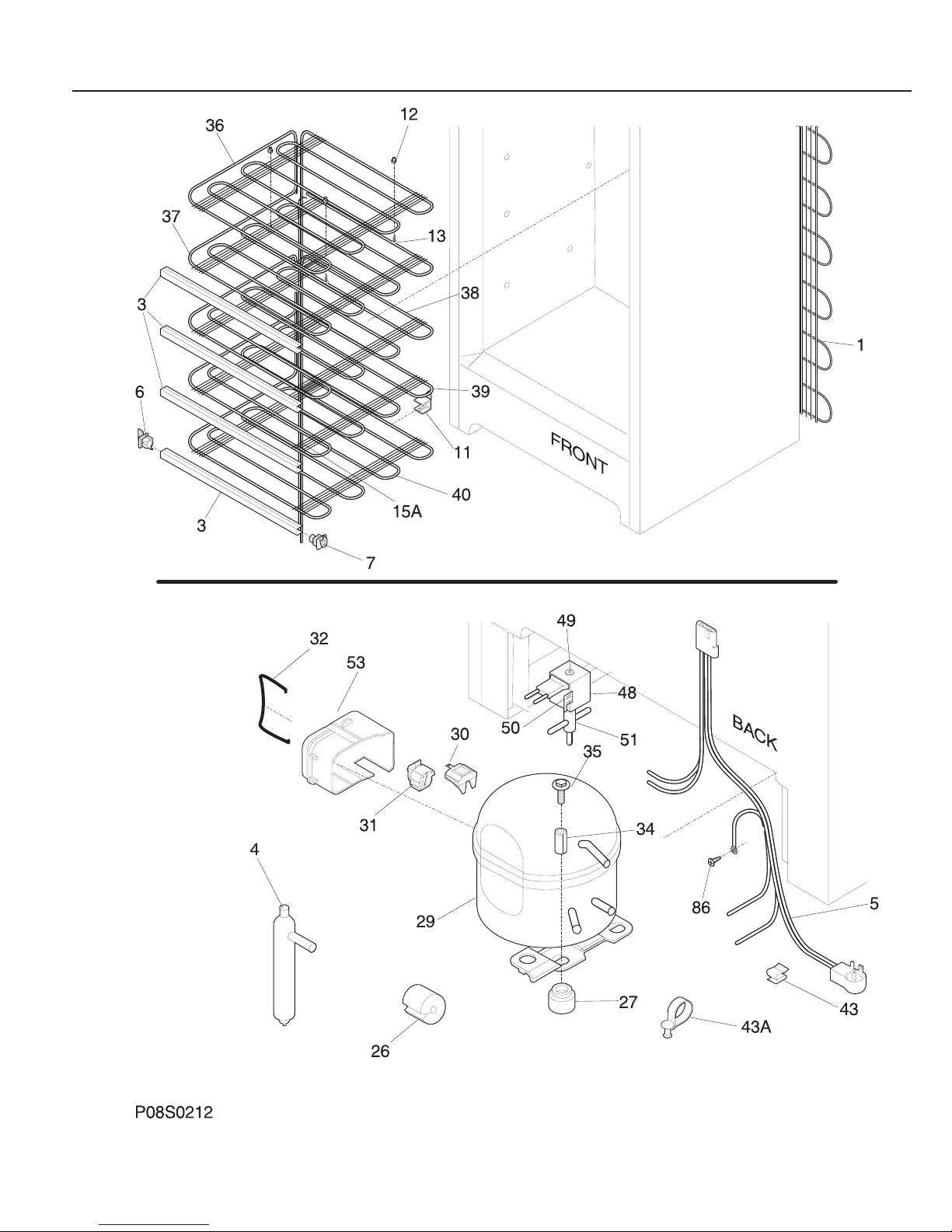

SYSTEM

# = Fast-moving Parts 7 04/99

* = Non-Illustrated Parts

FFU17/21D7H Publication No.

5995320628

SYSTEM

A = FFU17D7HW (FFU17D7HW0)

B = FFU21D7HW (FFU21D7HW0)

POS. NO PART NO DESCRIPTION

1 5300083897 A B Condenser

3 216444800 A B Trim-shelf,decorated

4 # 216634500 A B Drier-filter

5 # 216664000 A B Harness-main

6 3091418 A B Support-shelf,front LH

7 08037928 A B Support-shelf,front RH

11 216474600 A B Support-rear shelf

12 216225700 A B Grommet-spacer

13 216138900 A B Screw,hex sems ,8-18AB x 1.00 ,evap

15A 216468200 A - Heat Exchanger

15A# 216468300 - B Heat Exchanger

26 216511900 A B Spacer tube,(3)

27 216498900 A B Grommet,compressor

29 216639700 A B Compressor,Service

30 # 216594300 A B Starter

31 # 216100115 A B Overload Protector

32 5303006412 A B Strap-cover mtg

34 5306594529 A B Sleeve-compressor

35 5303272328 A B Screw,Ind hex sems ,1/4-28 unfx ,compressor

36 # 216070500 A - Grid-top evaporator

36 # 216070900 - B Grid-top evaporator

37 # 216211800 A - Shelf-top evaporator,evaporator

37 # 216160100 - B Shelf-top evaporator

38 # 216070700 A - Shelf-middle evaporator

38 # 216071100 - B Shelf-middle evaporator

39 # 216071200 - B Shelf-third evaporator

40 # 216070800 A - Shelf-bottom evaporator

40 # 216071300 - B Shelf-bottom evaporator

43 09950610 - B Clip,cord

43A 216629700 A B Clip-harness

48 # 3201514 A B Solenoid

49 3201513 A B Clip,valve

50 216533400 A B Wire-ground,solenoid

51 # 5303210219 A B Valve-formed

53 08006982 A B Cover-terminal

86 216036600 A B Screw,rwhd (gx-ca) ,8-32 x 1/2

* 5303208622 A B Clip,grounding
