Frigidaire FFU20F3AW User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFU20F3AW0 FFU20F3AW 134A white 115

MARKET

North America

Publication No.

5995354171

010604

-EN/SERVICE /GS

365

FREEZER

Model number

FFU20F3AW

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216803100

OWNER’S GUIDE - # 216802800

SERVICE DATA SHEET - # 216803100

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O.BOX 212378, AUGUSTA, GA 30917

06/01 2

Publication No. FFU20F3AW

5995354171

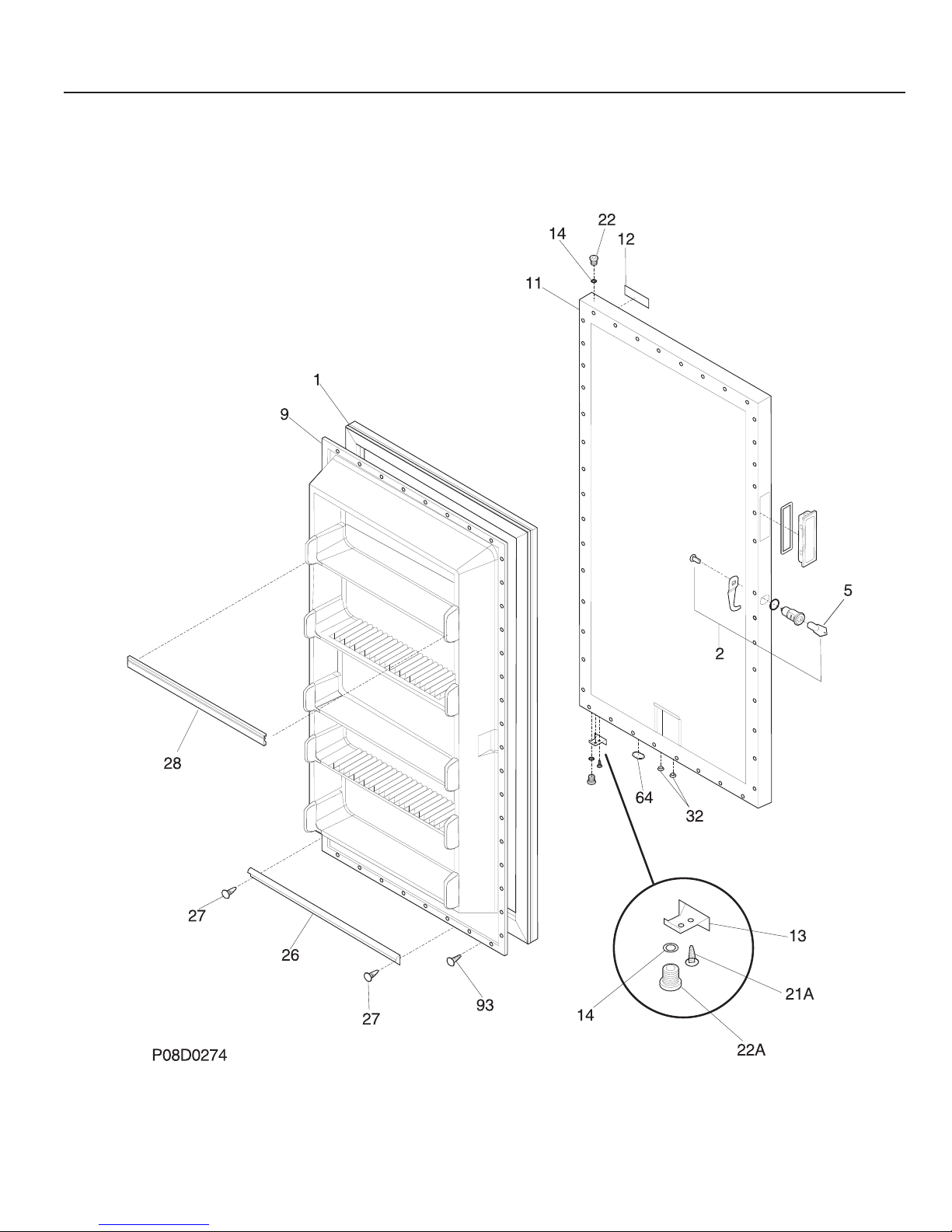

DOOR

# = Fast-moving Parts 3 06/01

* = Non-Illustrated Parts

FFU20F3AW Publication No.

5995354171

DOOR

POS. NO PART NO DESCRIPTION

1 216522312 Gasket-door,white

2 5303925107 Lock Assy

5 216702900 Key,lock

9 216528103 Panel-inner door,white

11 216531201 Panel-outer door,white ,chrome handle

12 240415201 Label-nameplate,white

13 08016354 Door Stop

14 5303313518 Washer,sealing

21A 08005520 Screw-dr stop mtg,flat hd metric , 4.0 x 0.7-19.7

22 216443600 Bearing

22A 216503200 Bearing-hinge,btm

26 216524200 Gasket,secondary

27 5303212828 Clip,panel

28 216523102 Rack-shelf,wide ,white

32 5309950074 Valve-breather

64 216403700 Plug-button,base door

93 5303302760 Screw

* 5303925098 Insulation

06/01 4

Publication No. FFU20F3AW

5995354171

CABINET

# = Fast-moving Parts 5 06/01

* = Non-Illustrated Parts

FFU20F3AW Publication No.

5995354171

POS. NO PART NO DESCRIPTION

3 216502600 Plug-drain,interior ,interior

5 # 216325600 Fan Blade

6 216604100 Breaker Kit w/corners

7 216603600 Breaker Kit w/corners,lock catch

9 216603300 Breaker Kit w/corners,32", top or bottom

13 216787000 Motor-fan

14 # 216472300 Switch-light plunger

15 # 216608600 Lamp,light bulb ,40 W ,120 V

16 # 5300136117 Socket-light/lamp

18 216707200 Knob-control cold

19 216204901 Gasket-cover evap

20 5303288184 Cover-control housing

21 216715200 Control-temperature

22 05878562 Clamp,cap tube ,cold control

22A 5303916855 Tube,sensor sleeve ,plastic ,clear

23 06594648 Light-signal,amber

24 5300052943 Screw-clamp,truss hd cr ,control

25 216737200 Cover-evaporator

26 216503300 Ramp,closer ,door

27 5303205738 Screw-hinge,cr ,1/4-20 x 1.000 ,btm

28 216247400 Hinge-bottom

32 5308005500 Drain

33 216252001 Bracket,signal light

34 216557600 Shield-light

38 5303925086 Hinge-upper

39 5303294372 Nut-insert,hinge

40 5303212912 Cover-hinge

41 5303212937 Screw-top hinge

42 216458500 Shelf,wire ,16.69x26.88 ,white ,(3)

42A 216458400 Shelf,14.50x27.88 ,WH

42B 216546000 Shelf-fixed w/frame,white

47 216661600 Baffle-plate

49 216279000 Trivet

50 216394000 Bracket-motor mtg fan

63 216396900 Foot-adjustable

71A 216347500 Screw,quadrex

72 216591110 Grille/Kickplate

93 5303302760 Screw

108 216388600 Trap-drain

132 5303283898 Screw,6-20AB x 3/8

* 09948773 Insulation,drain tube

* 216802800 Owners guide

* 5303305324 Paint,touch-up ,white

CABINET

06/01 6

Publication No. FFU20F3AW

5995354171

SYSTEM

# = Fast-moving Parts 7 06/01

* = Non-Illustrated Parts

FFU20F3AW Publication No.

5995354171

POS. NO PART NO DESCRIPTION

1 # 5300083897 Condenser

2 5308000110 Strap-evap/heater,aluminum ,(2)

4 216634500 Drier-filter

5 216806400 Harness-main

14 216730700 Heater-defrost

15 # 216737300 Evaporator

15A 216565700 Heat Exchanger

18 216727600 Insulator-evap,styrofoam

19 216727700 Insulator-evap,styrofoam

20 216731000 Thermostat-defrost

23 216744400 Timer-defrost

24 08016580 Bracket

27 216498900 Grommet,compressor

29 # 216788600 Compressor,w/o electricals

30 # 216649303 Controller

31A 216601800 Pan-drain,production compr

32 218740800 Clamp,elec cont mtg ,compressor

34 5306594529 Sleeve-compressor

35 5303272328 Screw,Ind hex sems ,1/4-28 unfx , compr

55 # 218909901 Capacitor-run,220 VAC ,15 microfarad

86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2

87 08037849 Screw

130 216730400 Support-evaporator

SYSTEM
