Frigidaire FFC05C4CW0 User manual

CHEST FREEZER

Base Model:

FFC05C4CW

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216787900

OWNER’S GUIDE - # 216802800 / ENERGY GUIDE - # 216793807

SERVICE DATA SHEET - # 216787900

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFC05C4CW0 FFC05C4CW 134A white 115

MARKET

North America

Publication No.

5995392783

030715

-EN/SERVICE /MLR

365

ELECTROLUX HOME PRODUCTS, INC.

P.O BOX 212378, AUGUSTA , GA 30917

07/03 2

Publication No FFC05C4CW0

5995392783

DOOR

# = Fast-moving Parts 3 07/03

* = Non-Illustrated Parts

FFC05C4CW0 Publication No.

5995392783

DOOR

POS. NO PART NO DESCRIPTION

1 216480801 Gasket-door,white

2 # 5303925107 Lock Assy

5 # 216702900 Key,lock

9 216061500 Panel-inner door\lid,white

10 216141101 Plug button,white

11 216106003 Panel-outer door\lid,white

12A 216816801 Insert-nameplate

18 216446600 Handle

27 5303212828 Clip,panel mtg

40 5309948647 Fastener,handle

07/03 4

Publication No FFC05C4CW0

5995392783

CABINET

# = Fast-moving Parts 5 07/03

* = Non-Illustrated Parts

FFC05C4CW0 Publication No.

5995392783

POS. NO PART NO DESCRIPTION

1 216117700 Catch-lock

3 216502600 Plug,drain ,interior

4 216073905 Plug-drain,exterior

6 216105700 Breaker-hinge\front,white

7 216105800 Breaker-lock side

11 216105600 Breaker-ends,white

18 216707200 Knob,temp control

21 # 216787700 Control-temperature

27 216337700 Screw,hex washer head ,10-24 x 0.500

28 216478800 Hinge Assy

30 216105500 Breaker-corners,white

59 216848200 Basket,(2)

71 131168200 Screw,pan head ,8-18B x 0.31

75 216782000 Panel-access,white

* 216793807 Energy Guide

* 5303305324 Paint,touch-up ,white

CABINET

07/03 6

Publication No FFC05C4CW0

5995392783

SYSTEM

# = Fast-moving Parts 7 07/03

* = Non-Illustrated Parts

FFC05C4CW0 Publication No.

5995392783

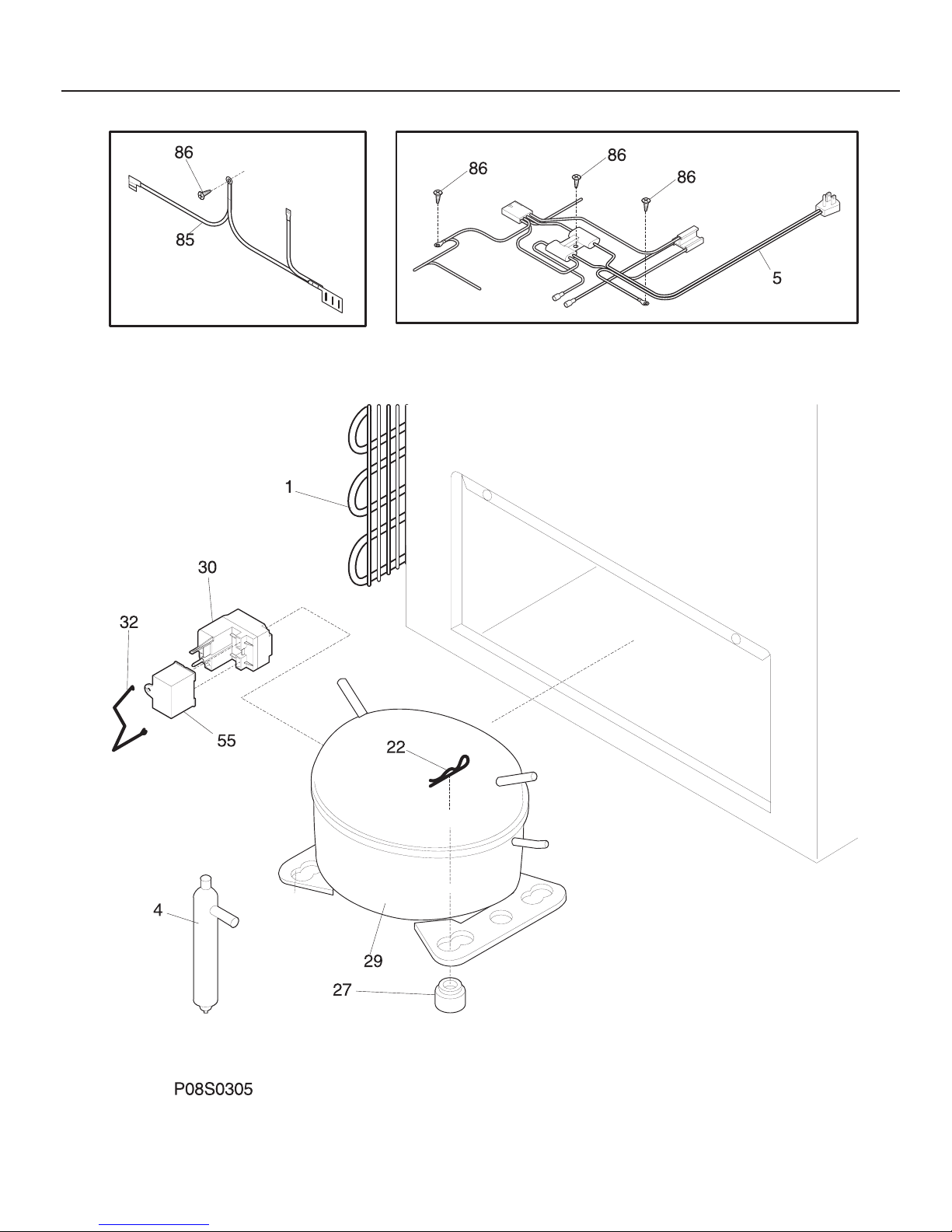

SYSTEM

POS. NO PART NO DESCRIPTION

1 5300120779 Condenser

4 216634500 Drier-filter

5 # 216711500 Harness-main

22 216056400 Clip,compressor mtg ,SPRING

27 5308002681 Grommet,compressor

29 # 216784800 Compressor,w/o electricals

30 216649304 Controller

32 216694500 Clip,controller

55 # 216696700 Capacitor-run,180 VAC ,15 microfarad

85 216818300 Wire-ground

86 216707700 Screw,8-18 X 1/2
