Frigidaire FFU09M2AW User manual

FREEZER

Model number

FFU09M2AW

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216803100

OWNER’S GUIDE - # 216802800

SERVICE DATA SHEET - #216803100

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFU09M2AW0 FFU09M2AW 134A white 115

MARKET

North America

Publication No.

5995356986

010802

-EN/SERVICE /GS

365

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O BOX 212378, AUGUSTA , GA 30917

09/01 2

Publication No FFU09M2AW

5995356986

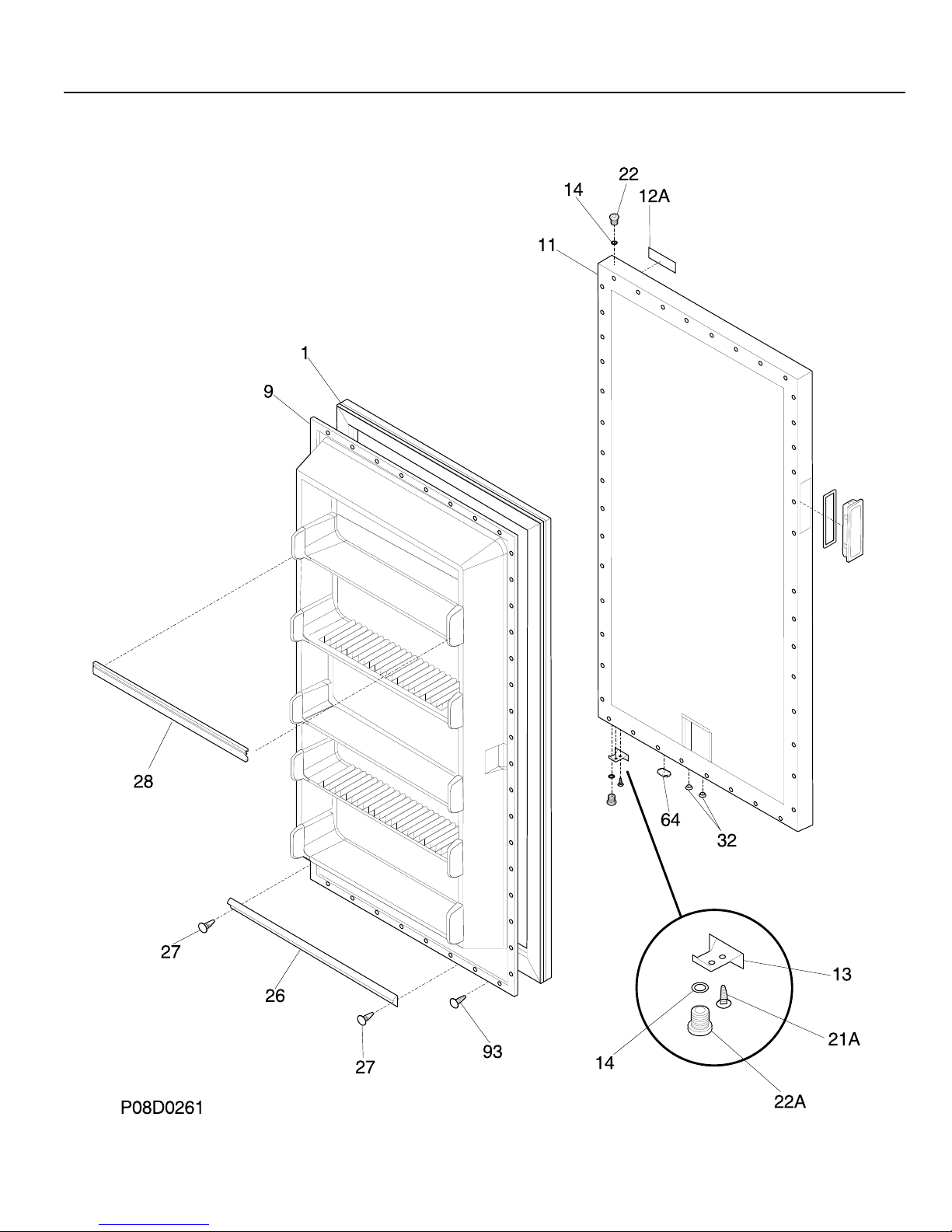

DOOR

# = Fast-moving Parts 3 09/01

* = Non-Illustrated Parts

FFU09M2AW Publication No.

5995356986

DOOR

POS. NO PART NO DESCRIPTION

1 216522300 Gasket-door

9 216527205 Panel-inner door,frzr

11 216564201 Panel-outer door,white

12A 240415201 Label-nameplate,white

13 08016354 Door Stop

14 5303313518 Washer,sealing

21A 08005520 Screw-door stop mtg,flat hd metric , 4.0 x 0.7-19.7

22 216443600 Bearing

22A 216503200 Bearing-hinge,btm

26 216524400 Gasket-secondary

27 5303212828 Clip,panel

28 216523502 Rack-shelf,wide ,white

32 5309950074 Valve-breather

64 216403700 Plug-button,base door

93 5303161215 Screw

09/01 4

Publication No FFU09M2AW

5995356986

CABINET

# = Fast-moving Parts 5 09/01

* = Non-Illustrated Parts

FFU09M2AW Publication No.

5995356986

POS. NO PART NO DESCRIPTION

3 216502600 Plug-drain,interior ,interior

6 216604500 Breaker,hinge side

9 216603500 Breaker,top

14 # 216472300 Switch-light plunger

15 # 216608600 Lamp,light bulb ,40 W ,120 V

16 # 5300136117 Socket-light/lamp

18 216707200 Knob-control cold

20 5303288184 Cover-control housing

21 # 216788100 Control-temperature

22 08037931 Clamp,cap tube ,cold control

24 5300052943 Screw-clamp,truss hd cr ,control

26 216503300 Ramp,closer ,door

27 5303205738 Screw-hinge,cr ,1/4-20 x 1.000 ,btm

28 216247400 Hinge-bottom

29 216313500 Hose-drain

32 5308005500 Drain

34 216557401 Shield-light

35 216273000 Clip,drain hose

38 5303925086 Hinge-upper

40 5303212912 Cover-hinge

41 5303212937 Screw-top hinge

56 09950853 Screw-control knob,phillips ,4-40 x 3/8

63 216396900 Foot-adjustable

86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2

87 08037849 Screw

132 5303283898 Screw,6-20AB x 3/8

* 09948773 Insulation,drain tube

* 216802800 Owners guide

* 5303305324 Paint,touch-up ,white

CABINET

09/01 6

Publication No FFU09M2AW

5995356986

SYSTEM

# = Fast-moving Parts 7 09/01

* = Non-Illustrated Parts

FFU09M2AW Publication No.

5995356986

SYSTEM

POS. NO PART NO DESCRIPTION

3 216742900 Trim-shelf,evaporator

4 216634500 Drier-filter

5 # 216791000 Harness-ext,main

6 3091418 Support-shelf,front LH

7 08037928 Support-shelf,front RH

11 216474600 Support-rear shelf

12 216225700 Grommet-spacer

13 216138900 Screw,hex sems ,8-18AB x 1.00 ,evap

15A 216404900 Heat Exchanger

27 216498900 Grommet,compressor

29 # 216696600 Compressor,w/o electricals

30 216649304 Controller

32 216694500 Clip,controller

34 5306594529 Sleeve-compressor

35 5303272328 Screw,Ind hex sems ,1/4-28 unfx , compressor

36 # 216069300 Grid-top evaporator

37 # 216069400 Shelf-top evaporator

38 # 216069500 Shelf-middle evaporator

40 # 216069600 Shelf-bottom evaporator

43A 216629700 Clip-harness

55 216696700 Capacitor-run,180 VAC ,15 microfarad

86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2
