Frigidaire FFU17FC5CW User manual

Product No. FFU17FC5CW1

Series 134A

Color white

Volts 115

Wiring Diagram 216857700

Owner's Guide 216933800

Market North America

Energy Guide 216795405

P08F0056.eps P08D0352.eps P08C0667.eps P08S0329.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995404430

04/02/23

(EN/SERVICE/MLR)

365

UPRIGHT FREEZER

Model No.

FFU17FC5CW

Publication No: 5995404430 FFU17FC5CW1

02/04 2

DOOR

FFU17FC5CW1 Publication No: 5995404430

# Functional Parts 3 02/04

* Non-Ilustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 216522309 Gasket-door, white

2 5303925107 Lock Assy

5 # 216702900 Key, lock

9 216527816 Panel-inner door, frzr

11 216526524 Panel-outer door, white

12 216892800 Nameplate

13 08016354 Door Stop

14 5303313518 Washer, sealing

18 216921200 Handle, white

* 216932500 Nut, flange locking, handle

21A 08005520 Screw, door stop mtg, 4.0 x 0.7-19.7, flat hd, metric

22 5303925197 Bearing, hinge, top

22A 216503200 Bearing, hinge, bottom

26 216524200 Gasket, secondary

27 5303212828 Clip, panel mtg

28 216807700 Rack-door, (4), wide

32 5309950074 Valve, breather, door base

39 5303294372 Nut-insert, 1/4-20 UNC, hinge

62 131420300 Screw, cr truss head, 8-18AB x 0.750

64 216403700 Plug-button, hole filler, door base

72 216514100 Shelf, tilt out, wire

73 216513900 End Cap, shelf, LH, tilt-out

74 216514000 End Cap, shelf, RH, tilt-out

93 5303161215 Screw, ph truss head, 8-18AB x 0.500

Publication No: 5995404430 FFU17FC5CW1

02/04 4

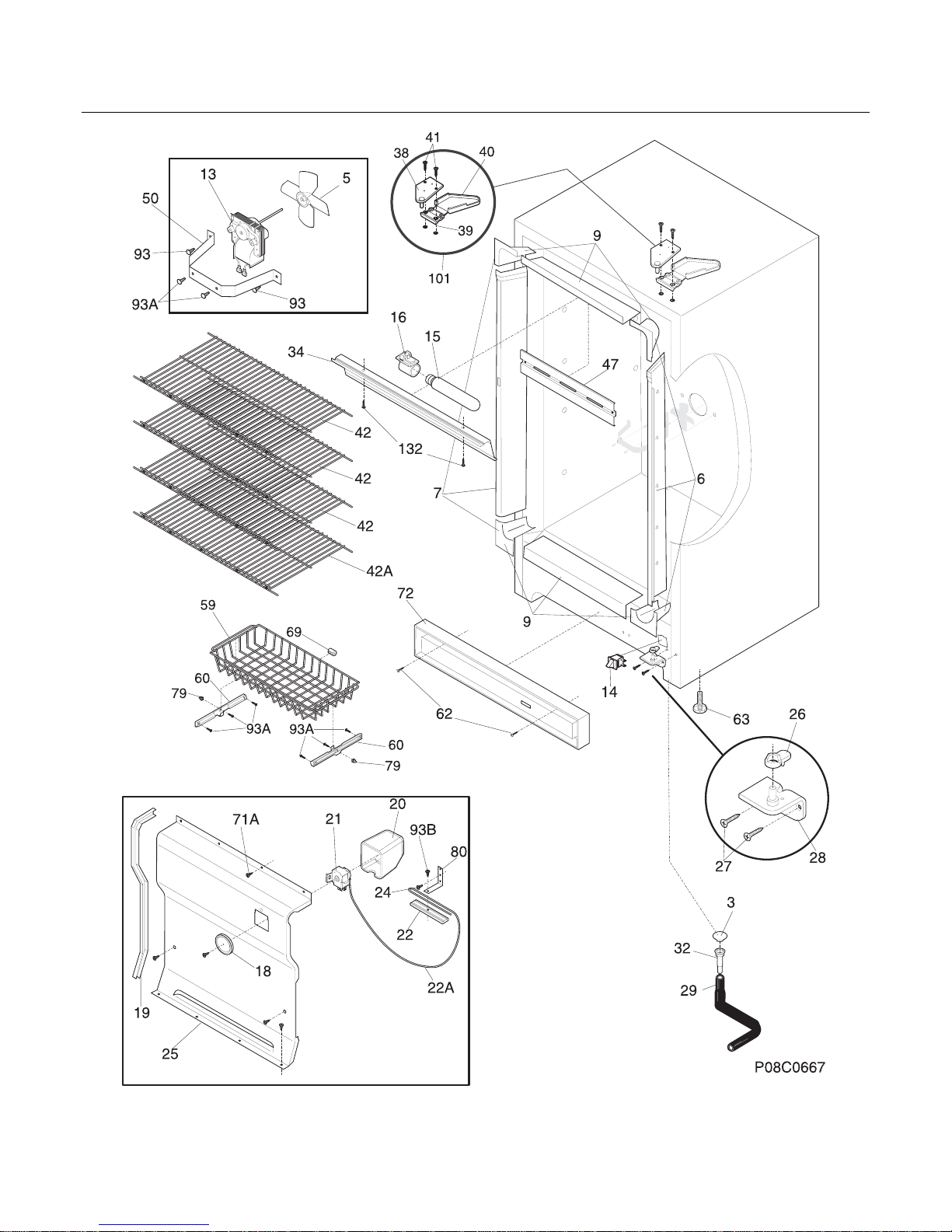

CABINET

FFU17FC5CW1 Publication No: 5995404430

# Functional Parts 5 02/04

* Non-Ilustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 216604200 Breaker Kit w/corners

7 216603700 Breaker Kit w/corners, lock catch

9 216603300 Breaker Kit w/corners, 32", top or bottom

13 # 216914200 Motor, fan, 115 V

14 216822900 Switch, light/lamp, ramp

15 216846400 Light Bulb/Lamp

16 216817600 Socket, light/lamp, 25 W

18 216707200 Knob, temp control

19 216204900 Gasket, evap cover

20 216230300 Cover, temp control

21 216715200 Control-temperature

22 216823500 Clamp, cap tube, cold control

22A 5303916855 Tube, sensor sleeve, plastic, clear

24 5300052943 Screw-clamp, truss hd cr, control

25 216820200 Cover-evaporator

26 216503300 Ramp, door closer

27 5303205738 Screw, hinge mtg, 10 (A) x 0.875, btm

28 216247400 Hinge, bottom

29 216313500 Hose-drain

32 5308005500 Drain

34 216816200 Shield-light

* 216629700 Clip

38 216808900 Hinge, plate, top

39 5303294372 Nut-insert, 1/4-20 UNC, hinge

40 216809000 Cover-hinge

41 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

42 216458400 Shelf, 14.50x27.88, (3)

42A 216458200 Shelf, 12.50x27.88, white

* 216502400 Grommet-shelf mtg

47 216661600 Plate, baffle, snap fit

50 216394000 Bracket, fan motor mount

59 216372800 Basket, (2)

60 5303212693 Slide-basket, (4)

62 131420300 Screw, cr truss head, 8-18AB x 0.750

63 216396900 Screw, leveling foot, plastic, adjustable

69 5305878546 Bumper-basket, (4)

71A 5304416289 Screw, ph truss head, 8-18AB x 0.47, EVAP PANEL

72 216294400 Grille/Kickplate

79 3017666 Nut-insert

80 06594601 Bracket, control

93 5303161215 Screw, ph truss head, 8-18AB x 0.500

93A 216629600 Screw, hex washer head, 10-16 x 0.500, tapping

93B 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming

101 216835200 Top Hinge Kit

132 5303283898 Screw, 6-20AB x 3/8

* 09948773 Insulation, drain tube

* 216795405 Energy Guide

Publication No: 5995404430 FFU17FC5CW1

02/04 6

SYSTEM

FFU17FC5CW1 Publication No: 5995404430

# Functional Parts 7 02/04

* Non-Ilustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 5300083897 Condenser

2 5308000110 Strap-evap/heater, aluminum, (2)

4 216634500 Drier-filter

5 # 216895800 Harness-main

14 # 216730700 Heater-defrost

15 # 216737300 Evaporator

15A 216783200 Heat Exchanger, suct/cap tube

18 216727600 Insulator-evap, styrofoam

19 216727700 Insulator-evap, styrofoam

20 216731000 Thermostat, defrost

23 # 216744500 Timer-defrost

24 08016580 Bracket

27 5308002681 Grommet, compressor

29 # 216784600 Compressor, w/o electricals

30 # 216649315 Controller

32 216649100 Clamp, elec cont mtg, compressor

34 5306594529 Sleeve-compressor

35 5303272328 Screw, Ind hex sems, 1/4-28 unfx, compressor

43A 216629700 Clip

55 218909913 Capacitor-run, 220 VAC, 15 microfarad

86 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming

87 08037849 Screw, ph truss head, 6-32(T) x 0.500, thread cutting

105 216854001 Cup-drain

130 216486800 Support, evaporator mtg

* 216502500 Sleeve, suction line

* 5303298960 Spacer-tube, 0.237" ID
