Frigidaire FRA08PZU112 User manual

READ BEFORE INSTALLING UNIT

For Low Profile Window Air Conditioner

Carefully read the installation manual before beginning.

Follow each step as shown.

Observe all local, state, and national electrical codes and by qualified, licensed, authorized personnel only.

Pay attention to danger and safety notices.

To avoid risk of personal injury, property damage, or product damage due to the weight of this device and sharp edges that may

be exposed:

Air conditioners covered in this manual pose an excessive weight hazard. Two or more people are needed to move and install

the unit. Wear protective gloves whenever lifting or carrying the unit. AVOID the sharp metal fins of front and rear coils. To

prevent injury or strain, use proper lifting and carrying techniques when moving unit.

Carefully inspect location where air conditioner will be installed. Be sure it will support the weight of the unit overan extended

period of time.

Handle air conditioner with care.

Make sure air conditioner does not fall during installation.

• SAVE CARTON and these INSTALLATION INSTRUCTIONS for future reference. The carton is the best way to

store unit durin 9 winter, or when not in use.

o DO NOT USE ANY SCREWS OTHER THAN THOSE SPECIFIED IN THESE INSTRUCTIONS.

Tools Required

• SCREWDRIVER (Standard and Phillips and Flathead) • RULER

• KNIFE ® HAMMER

e PENCIL • LEVEL

Hardware ( in plastic bag)

SHORT LEVELING BOLT 1

SUPPORT BRACKET 1

LONG LEVELING BOLT 1

1/2" SCREW

Qty. Hardware (in plastic bag)

SASH LOCK

WEATHER SEALS

(6"x3/4"x1/12")

WINDOW SASH SEAL

FOAM STRIP

Qty.

2020211A1554

How to install the unit

1. To prevent vibration and noise, make sure the unit is installed

securely and firmly.

2. Install the unit a little slanted so the back is slightly lower than the

front (about 1/4"). This will force condensed water to flow to the

outside.

CAUTION: All side louvers of the cabinet must remain exposed to

the outside of the structure.

Install

About 1/4"

into the

Left + Right Filler Panel Assembly

Place unit on floor, a bench or a table. There is a Left and Right side Filler Panels - be sure to use the proper

panel for each side. When installed, the flange for securing the panel in place to the window sill will be facing

room.

A. Hold the side panel in one hand and gently pull back the center to free the open end. See FIG. 1.

B. Slide the free end "1" section of the panel into the cabinet as shown in FIG. 2. Slide the panel down. Be sure to

leave enough space to slip the top and bottom of the frame into the rails on the cabinet.

C. Once the panel has been installed on the side of the cabinet, make sure it sits securely inside the frame channel by

making slight adjustments. Slide the top and bottom ends of the frame into the top and bottom rails of the cabinet, see FIG.3.

D. Slide the panel all the way in and repeat on the other side.

FIG.1 _,---_'r' section FIG.2 FIG.3

i_ .......,, Top Rail

Your air conditioner is designed to install in standard double

hung windows with opening widths of 26.5 to 41.5 inches

(673 mm to 1054 mm) (FIG. 4),

Lower sash must open sufficiently to allow a clear vertical

opening of 12.4 inches (315 mm ). Side louvers and the rear

of the air conditioner must have clear air space to allow

enough airflow through the condenser, for heat removal.

The rear of the unit must be outdoors, not inside a building

or garage.

Fig. 4 OFF ;ET

EXTERIOR

WALL

Wooden Windows

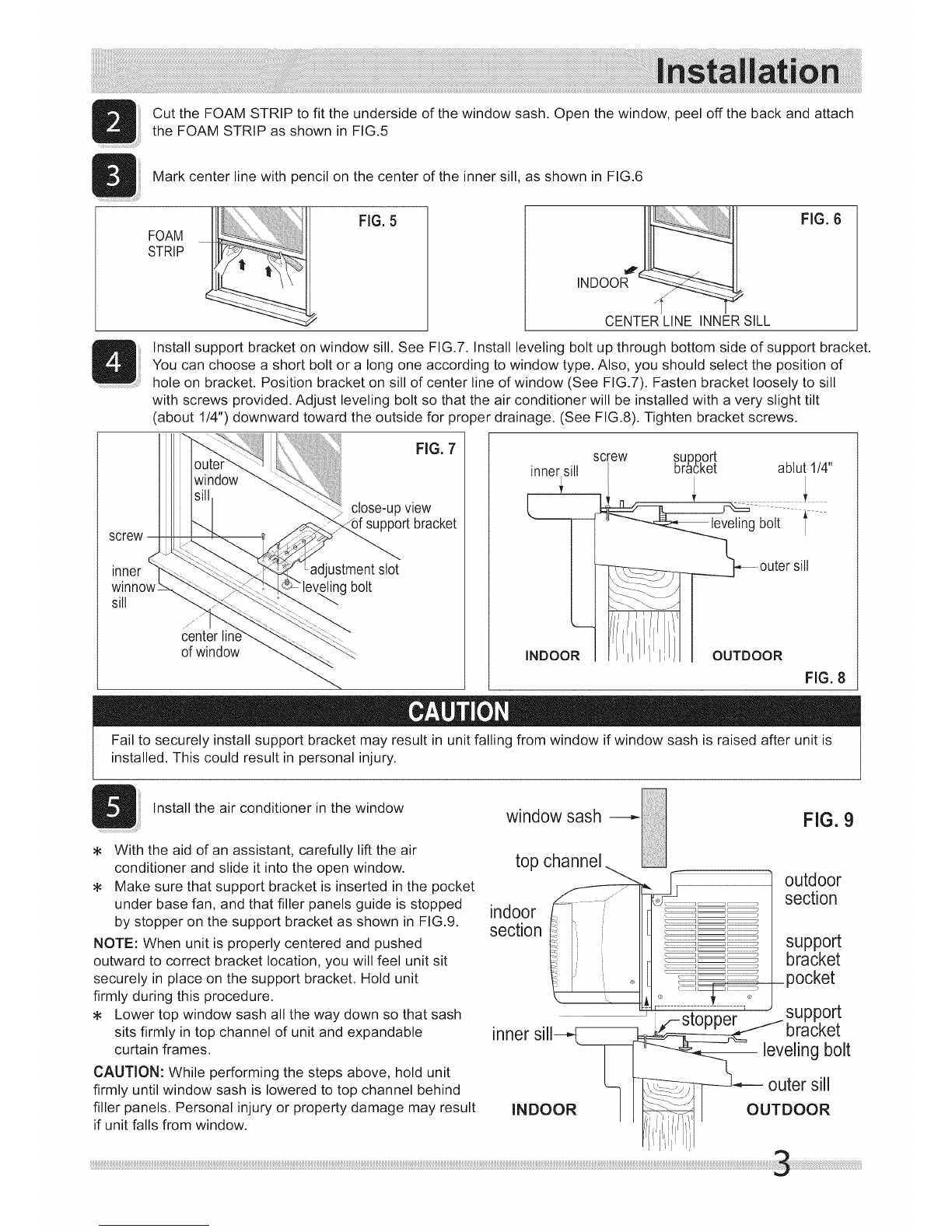

CuttheFOAMSTRIPtofittheundersideofthewindowsash.Openthewindow,peeloffthebackandattach

theFOAMSTRIPasshowninFIG.5

Markcenterlinewithpencilonthecenteroftheinnersill,asshowninFIG.6

screw

inner

sill

FOAM

STRIP

FiG. 5 FiG. 6

CENTER LINE INNER SILL

Install support bracket on window sill. See FIG.7. Install leveling bolt up through bottom side of support bracket.

You can choose a short bolt or a long one according to window type. Also, you should select the position of

hole on bracket. Position bracket on sill of center line of window (See FIG.7). Fasten bracket loosely to sill

with screws provided. Adjust leveling bolt so that the air conditioner will be installed with a very slight tilt

(about 1/4") downward toward the outside for proper drainage. (See FIG.8). Tighten bracket screws.

FIG. 7

close-up view

support bracket

innerlsitl screw ,supp,o_ .......

,, DracKe[l aDlUIl JILl"

° ling bolt T

________ outer sill

INDOOR 1;'1,_"' l, )1 I OUTDOOR FIG. 8

Fail to securely install support bracket may result in unit falling from window if window sash is raised after unit is

installed. This could result in personal injury.

Install the air conditioner in the window

With the aid of an assistant, carefully lift the air

conditioner and slide it into the open window.

Make sure that support bracket is inserted in the pocket

under base fan, and that filler panels guide is stopped

by stopper on the support bracket as shown in FIG.9.

NOTE: When unit is properly centered and pushed

outward to correct bracket location, you will feel unit sit

securely in place on the support bracket. Hold unit

firmly during this procedure.

Lower top window sash all the way down so that sash

sits firmly in top channel of unit and expandable

curtain frames.

CAUTION: While performing the steps above, hold unit

firmly until window sash is lowered to top channel behind

filler panels, Personal injury or property damage may result

if unit falls from window,

FIG. 9

outdoor

section

support

bracket

pocket

inner sill-,4..__

INDOOR

,iz_stopper suppor_

_[ _-"---_-_- leveling bolt

L-I _F --J_---- outer sill

I I _1 OUTDOOR

SECURE THE CURTAIN FRAMES:

Expand the filler panels and secure them using 4 screws

as shown in FIG.10. When filler panels opens or closes,

you may feel a slight resistance. This is normal.

WINDOW SASH SEALAND WINDOW LOCK:

Cut the window sash seal to the window width. Stuff

the window sash seal between the glass and the

window to prevent air and insect from getting into the

room, as shown in FIG.10.

Trim the weather seal (6"X3/4"X1/12") to a proper

length, peel off the protective backing and plug any

gaps if needed as shown FIG.10.

Install the sash lock bracket to prevent window from

being raised which may result in unit falling.as shown

in FIG.10.

NOTEI : It is difficult to lock the windows with the sash

lock for some windows, so you can use lock by window

itself.

NOTE2: If window sash has a metal surface. Use sheet

metal screws instead of the provided wood screws. Obtain sheet metal screws at local hardware store.

Sash lock and filler panels screws must be installed as instructed to avoid the possibility of unit falling from window

and causing personal injury or property damage.

IF AIR CONDITIONER IS BLOCKED BY STORM WINDOW

FRAME:

If storm window presents interference, fasten a 2" (51 mm)

wide wood strip to the inner window sill across the full width

of the sill. The wood strip should be thick enough to raise

the height of the window sill so that unit can be installed

without interference from the storm window frame, See

FIG.11. Top of wood strip should be approximately 718"

(22mm) higher than the storm window frame to help

condensation to drain properly to the outside.

Install a second wood strip (approximately 6" (152mm) long

by 1-1/2" (38mm) wide and same thickness as the first strip)

in the center of the outer sill flush against the back of the

inner sill. See FIG.11.

INSTALLATION FOR OTHER TYPE WINDOWS:

Dimensions and geometry of windows are different

wood strip 1-1/2"min. 7/8" (22mm)

mounted on (38ram) clearance

top of innersill _

frame

window

storm

sill

INDOOR OUTDOOR

When storm window

frame is located on outer silt

FiG. 11

according to manufacturer's. Check your window and refer to FIG. 12 to install the support bracket firmly.

(a)When window frame is located on inner sill.

• Installa wood strip (window width longand

window frame heighthigh) on the inner sill.

(b) When the window frame is higher than 23/32"(18mm).

•Install a wood strip (about 4"(102mm) long) on

the outer sill to raise support bracket.

SASH

WINDOW FRAME WINDOW WOOD STRIP

23/32"(18mm):

INNER :,

ER SILL

FIG. 12

REMOVAL FROM WINDOW:

Turn off and unplug the air conditioner.

Unscrew the side screws that you installed in step 6 and 7.

Close the filler panels and remove window sash seal and sash lock from windows.

Keep a firm grip on the air conditoner as your sash.

Lift the air conditioner from the window.

Remove the support bracket from window frame.

NOTE: When cooling season is over, unit is removed from window for cleaning and storage. There may still be some

condensation water in the basepan. Remove the unit carefully to avoid water being spilled out on floor. Always store

unit flat on its base. Remove bracket and window sash seal from window and save. Window can not close if support

bracket remains installed.

Air conditioners covered in this manual pose an excessive weight hazard. Two or more people are needed to

move and install the unit. To prevent injury or strain, use proper lifting and carrying techniques when moving unit.

When handling the air conditioner, be careful to avoid cuts from sharp metal fins on front and rear coils.

Mark sure air conditioner does not fall during removal.
