Frigidaire FRA08PZU111 User manual

READ BEFORE INSTALLING UNIT

For SLO3 Air Conditoner (8,000-12,000 BTU)

Carefully read the installation manual before beginning.

Follow each step as shown.

Observe all local, state, and national electrical codes and by qualified, licensed, authorized personnel only.

Pay attention to danger and safety notices.

To avoid risk of personal injury, property damage, or product damage due to the weight of this device and sharp edges that may

be exposed:

Air conditioners covered in this manual pose an excessive weight hazard. Two or more people are needed to move and install

the unit. Wear protective gloves whenever lifting or carrying the unit. AVOID the sharp metal fins of front and rear coils. To

prevent injury or strain, use proper lifting and carrying techniques when moving unit.

Carefully inspect location where air conditioner will be installed. Be sure it will support the weight of the unit overan extended

period of time.

Handle air conditioner with care.

Make sure air conditioner does not fall during installation.

Tools and Parts:

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools

listed here.

TOOLS NEEDED

• Flat-blade and Phillips screwdrivers • Tape measure

• Level • Drill and 3/16", 1/8"_ 3/32", or smaller drill bit

Through-the-wall Installation:

In addition to the tools listed above, the following tools are needed for through-the-wall installation.

TOOLS NEEDED

o saw

• 1°'(2.5 cm) or thicker lumber

® caulk • #10 X 1" wood screws (7)

Parts Supplied

Check that all parts are included in parts package:

Hardware Qty. Hardware

#10 X 1/2" pan - head

Phillips screws

#10 X 1/2" round - headscrews

#10 X 1/4" pan - head

Phillips screws

Top channel

side curtains

Window sash seal

5 Foam seal

window lock bracket

2 _ Safety Lock

_1 (for Vinyl-Clad window)

weather seals

(6"X3/4"X1/12")

Qty.

2020217A2196

• Installation parts are supplied for double-hung windows up to 36" (91.4 cm) wide. A special Wide Window Kit is

available from your dealer or service center. See "Accessories."

• Do not use any screws other than those specified here.

Location Requirements:

IMPORTANT:Observe all governing codes and ordinances. Check the location where air conditioner will be installed,

Proper installation is your responsibility, Make sure you have everything necessary for correct installation,

Grounded electrical outlet within 4 ft (122 cm) of where the power cord exits the air conditioner.

Free movement of air in room to be cooled.

A large enough opening for the air conditioner.

Adequate wall support for weight of air conditioner. Air conditioner weights between 70 and 85 Ibs (32 to 40 kgs).

• Do not use an extension cord.

• Cabinet louvers must not be obstructed. Air must be able to pass freely through the cabinet Iouvers.(FIG.1 )

Window Installation:

Window opening measurements (FIG.2) :

26-7/8" to 36" (68.3 cm to 91.4 cm) opening width.

16-1/2" (41.9 cm) minimum opening height.

FIG.1 FIG.2

A. Cabinet louvers

r- J

[ !

A. 26-7/8" (68.3 cm) minimum

B. 16-1/2" (41.9 cm) minimum

Remove packaging material:

Remove and dispose of/recycle packaging materials. Remove tape and glue residue from surfaces before installing

the air conditioner. Rub a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water

and dry.

Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These

products can damage the surface of your air conditioner.

Handle the air conditioner gently.

1. Remove the air conditioner from the carton and place it on cardboard.

2. Remove 1 shipping screw from each side of the cabinet (FIG.3A).

3. Remove front panel by removing 1 Phillips screw from each side of the front panel, Set screws aside and save

(FIG.3B).

4. Rotate Front Panel up until top tabs are free. Pull panel straight out. Depress latch on electronics plug (on some

models) to disconnect. Remove Front Panel from unit (see Fig. 4).

5. Pull on the handles to slide the air conditioner out of the cabinet. Place the air conditioner on cardboard (FIG.5).

FIG.3A FIG.3B FIG.4 FIG.5

A B ,Y electronics plug

B. front panel screw

A. shipping screw C. handle

+ Handle the air conditioner gently.

+ Be sure your air conditioner cabinet does not fall out of the opening during installation or removal.

• The place where the power cord exits the air conditoner should be no more than 4 ft (122 cm) from a grounded

3 prong outlet.

• Do not block the louvers on the front panel.

o Do not block the louvers on the outside of air conditioner.

® Do not lift, pull or remove any expanded polystyrene (foam) from inside of the air conditioner. It is not packing

material

Attach Top Channel (FIG.6): B FIG.6

• Attach the top channel and side curtains to the air conditioner cabinet before

placing the cabinet in the window.

1. Locate provided bag of screws.

2. Place the top channel on top of the air conditioner cabinet, lining up the three

holes in the top channel with the three holes on top of the air conditioner cabinet.

3. Using three #10 X 1/4" pan-head Phillips thread cutting screws, attach the top

channel to the air conditioner cabinet.

Attach S+de Curta+ns :

1. Locate provided bag of screws.

A. #10 X 1/4" pan-head Phillips

thread cutting screws

B. Top channel

2. Insert the right-hand curtain connector tab into the curtain housing channels on the air conditioner (FIG.7A).

3. Insert the top and then the bottom of the right-hand curtain housing in the top and bottom curtain channels on the

air conditioner (FIG.7B, FIG.7C).

4. Slide the curtain housing into the curtain guides as far as it could go.

5. Repeat the above steps for the left-hand curtain.

FIG.7A A FIG.7B

A. Side Curtain

Top view FIG.7C Bottom view

A B

A _ B

A. Curtain housing

B. Curtain top channel

on air conditioner

A. Curtain housing

B. Curtain bottom channel

on air conditioner

Attach foam adhesive seal:

Attach foam adhesive seal along the bottom of the curtain bottom channel (FIG.8).

A. Curtain housing

B. Foam adhesive seal

FIG.9 A_g_ket fsCeacbuineetyseated

on edge of inner silt.

_binet

_'neUr°_,, wintdow [--J Bracket

outer sill

Install Cabinet into Window:

1. Center empty cabinet in window:

FIG.10

IA. Window sash

II......................................A

...................B

......................C

B. Empty cabinet

C. Window channel

Check that lower rail of air conditioner cabinet is behind and against back side of window sill. Maintain a firm hold on

the air conditioner cabinet (FIG.9). Lower window sash to hold the cabinet in place. Measure the distance between the

right side of the cabinet and the inside of the window channel (FIG.10). Repeat for the left side. Adjust the cabinet until

the distance on each side is the same.

2. Attach the cabinet to window:

A: For wooden window:

Use a 3/16" drill bit to drill three starter holes 3/8" deep through the three holes in the cabinet and into the window sill,

and drill one starter hole 318" deep through the hole in the middle of top rail and into the window frame (FIG.11). Attach

cabinet to window with three #10 x 1/2" pan-head Phillips screws and one #10 X 1/2" round-head screw (FIG.11).

B: For Vinyl-Clad window:

Use a 1/8" drill bit to drill one hole through the hole in the middle of top rail and into the window frame. Attach cabinet

to window with one #10 x 1/2" round-head Phillips screw (FIG.11). Place two safety locks into the holes that located

in the bottom of the cabinet and drive two locking screws through the safety locks into the cabinet as shown (FIG.12)

3. Check that air conditioner cabinet is tilted back 5/16" to 3/8" so that water could run to the outside (See FIG.13).

FIG.11 ..... FIG.12

A A

A. #10 X 1/2" pan-head Phillips screws

B. #10 X 1/2" round-head screw

C. Window channel

Only for Vinly-Clad Window

FIG.13

w Sash

', ide Louvers

#10 X 1/4" pan-head Phillips screws

Safety Lock Window Sill

Attach Side Curtains to Window Frame:

1. Extend the side curtains out against the window frame

(FIG.11).

2. Drill holes and drive locking screws:

A: For wooden windows:

Use a 3/32" drill bit to drill 4 starter holes through the holes in

the side curtains into the window. Drive four #10 X 1/2" locking

screws through the holes in the side curtains into the window

sill and window frame(FIG.14A, FIG.14B).

B: For Vinyl-Clad windows:

Use a 118"drill bit to drill two holes through the holes in the

side curtains into the window frame as shown (FIG.14A).

Drive two #10 X 112"locking screws through the holes in the

FIG.14B

FIG.14A

B _

A. Window channel A. #10 X 1/2" round-head

B. left-hand curtain

C. #10 X 112"round-head screw

B. Slotted hole in the

side curtains into the window sash (FIG. 14A) screw bottom of the curtain

3. Trim the weather seal (6"X314"X1112") with a proper length, peel off the protective backing and plug any gaps if

needed as shown (FIG.14B).

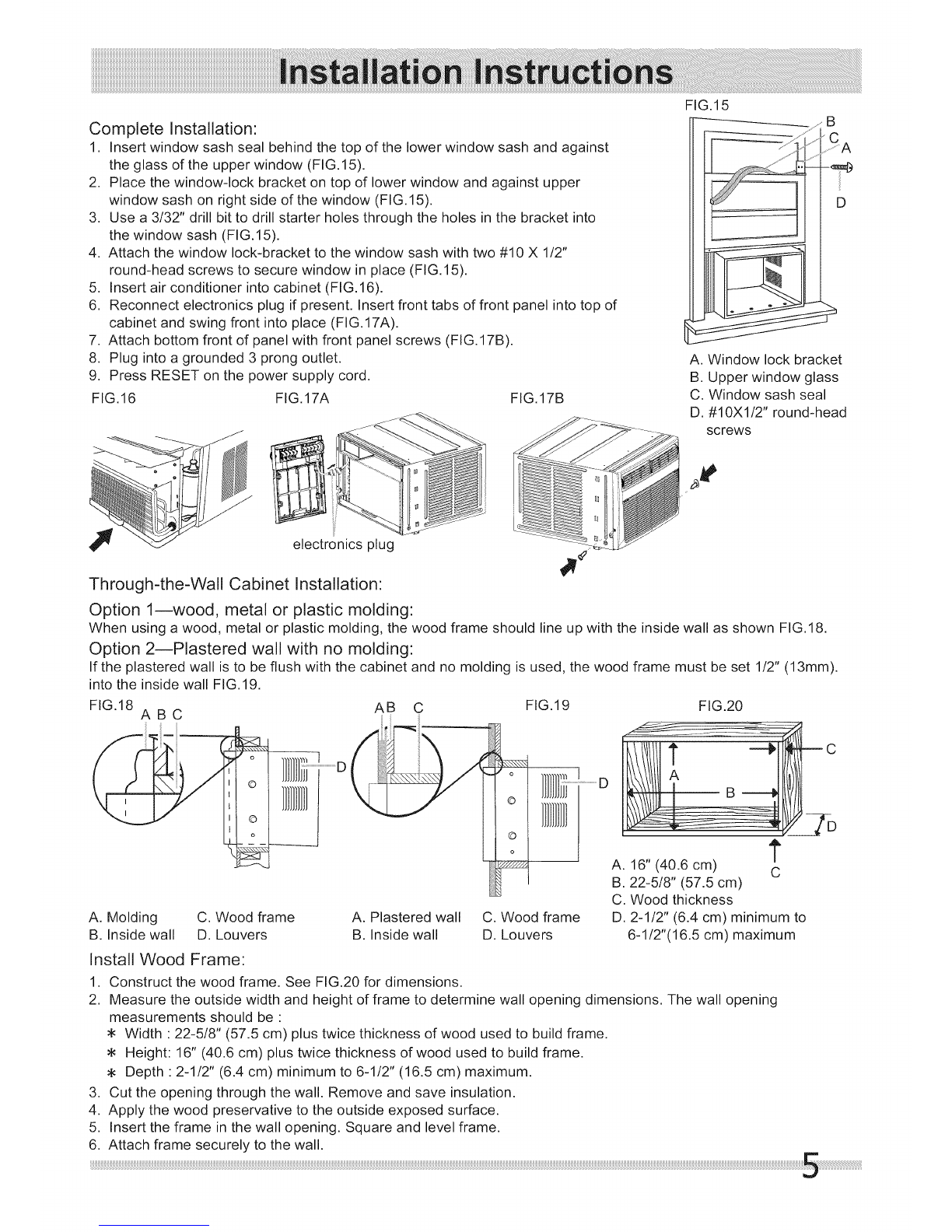

Complete Installation:

1. Insert window sash seal behind the top of the lower window sash and against

the glass of the upper window (FIG. 15).

2. Place the window-lock bracket on top of lower window and against upper

window sash on right side of the window (FIG. 15).

3. Use a 3/32" drill bit to drill starter holes through the holes in the bracket into

the window sash (FIG.15).

4. Attach the window lock-bracket to the window sash with two #10 X 1/2"

round-head screws to secure window in place (FIG.15).

5. Insert air conditioner into cabinet (FIG.16).

6. Reconnect electronics plug if present. Insert front tabs of front panel into top of

cabinet and swing front into place (FIG.17A).

7. Attach bottom front of panel with front panel screws (FIG.17B).

8. Plug into a grounded 3 prong outlet.

9. Press RESET on the power supply cord.

FIG.16 FIG.17A FIG.17B

FIG.15 B

A. Window lock bracket

B. Upper window glass

C. Window sash seal

D. #10Xl/2" round-head

_ I1[_

electronics plug _ _-_-_:_-_2,___

Through-the-Wall Cabinet Installation:

Option 1--wood, metal or plastic molding:

When using a wood, metal or plastic molding, the wood frame should line up with the inside wall as shown FIG.18.

Option 2--Plastered wall with no molding:

If the plastered wall is to be flush with the cabinet and no molding is used, the wood frame must be set 112" (13mm).

into the inside wall FIG.19.

FIG.18 ABC FIG.20

1' _ c

A. 16" (40.6 cm) C

B. 22-5/8" (57.5 cm)

C. Wood thickness

D. 2-1/2" (6.4 cm) minimum to

6-1/2"(16.5 cm) maximum

AB C FIG.19

_i ii iiiii

A. Molding C. Wood frame A. Plastered wall C. Wood frame

B. Inside wall D. Louvers B. Inside wall D. Louvers

Install Wood Frame:

1. Construct the wood frame. See FIG.20 for dimensions.

2. Measure the outside width and height of frame to determine wall opening dimensions. The wall opening

measurements should be :

Width : 22-5/8" (57.5 cm) plus twice thickness of wood used to build frame.

Height: 16" (40.6 cm) plus twice thickness of wood used to build frame.

Depth : 2-1/2" (6.4 cm) minimum to 6-1/2" (16.5 cm) maximum.

3. Cut the opening through the wall. Remove and save insulation.

4. Apply the wood preservative to the outside exposed surface.

5. Insert the frame in the wall opening. Square and level frame.

6. Attach frame securely to the wall.

• Dimensionfordepthdependsonwallthicknessandtypeofmolding

(FIG.21).

o Donotblocklouversinairconditionercabinet.

• Use1"(2.5cm)orthickerlumberforwoodframe. FIG.

A.Outsidewidth C.Depth

B.Outsideheight

Install Cabinet into Wood Frame:

1. Insert cabinet into the framed wall opening. The top of the cabinet should extend 314°'(19.1 mm) into the room. If

there is trim, the cabinet should extend 3/4°' (19.1 mm) past trim (FIG.22).

2. Use a level to check that cabinet is level side to side (FIG.23).

3. Check that air conditioner cabinet is tilted to the outside so that water could run to the outside. The cabinet should

slop at least half-a-bubble towards the rear.

4. Reuse the insulation to seal opening between cabinet and frame.

5. Use existing holes in sides and top of cabinet and seven #10 X 1°'wood screws (not provided) to attach cabinet to

frame.

6. Caulk all outside wall openings around cabinet.

• Do not overtighten screws or the cabinet will distort and provide a poor air seal between cabinet and air

conditioner.

...............................a FIG.22

A. 3/4" (19.1 mm) extending into room

B. Trim A. level

Complete Installation:

1. Insert air conditioner into cabinet (FIG.24).

2. Reconnect electronics plug if present. Insert front tabs of front panel into top of cabinet and swing front into

place (FIG.25A).

3. Attach bottom front of panel with front panel screws (FIG.25B).

4. Plug into a grounded 3 prong outlet.

5. Press RESET on the power supply cord.

® Handle the air conditioner gently.

• For through-the-wall installations, if needed, install molding around the room side of cabinet.

FIG.24 FIG.25A

electronics plu!

FIG.25B

This manual suits for next models

Other Frigidaire Air Conditioner manuals

Frigidaire

Frigidaire FAS226R2A - Heavy Duty Room 22,000 BTU Air Conditioner... Quick start guide

Frigidaire

Frigidaire FAK103J1V2 User manual

Frigidaire

Frigidaire GALLERY GHWQ125WD1 Owner's manual

Frigidaire

Frigidaire FAC102M1A1 User manual

Frigidaire

Frigidaire FAH12EN2T User manual

Frigidaire

Frigidaire FAS154K1A User manual

Frigidaire

Frigidaire CRA073PU11 Owner's manual

Frigidaire

Frigidaire FAC084N7A User manual

Frigidaire

Frigidaire FAS183K2A2 User manual

Frigidaire

Frigidaire FRA12EHT2 Installation instructions

Frigidaire

Frigidaire FRA104CV111 User manual

Frigidaire

Frigidaire CRA054XT72 User manual

Frigidaire

Frigidaire FAS295J2A3 User manual

Frigidaire

Frigidaire FFRE0533Q14 Owner's manual

Frigidaire

Frigidaire FRA064VU1 Owner's manual

Frigidaire

Frigidaire FRA184MT2 User manual

Frigidaire

Frigidaire FRA065AT70 Owner's manual

Frigidaire

Frigidaire FAS157P1A1 User manual

Frigidaire

Frigidaire FFRA0522Q14 Owner's manual

Frigidaire

Frigidaire FRA106CT1 W User manual

Frigidaire

Frigidaire CRA052XT750 User manual

Frigidaire

Frigidaire ELECTRONIC CONTROL AIR CONDITIONER Owner's manual

Frigidaire

Frigidaire FAC103K1A2 User manual

Frigidaire

Frigidaire FAM18HS2AB User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Samsung

Samsung AS09HM3N user manual

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Mitsubishi Electric

Mitsubishi Electric MSC-GE20VB operating instructions
