READ BEFORE iNSTALLiNG UNiT

For Slider Casement Air Conditioners

Carefully read the installation manual before beginning.

Follow each step as shown.

Observe all local, state, and national electrical codes and by qualified, licensed, authorized personnel only.

Pay attention to danger and safety notices.

To avoid risk of personal injury, property damage, or product damage due to the weight of this device and sharp edges that may

be exposed:

Air conditioners covered in this manual pose an excessive weight hazard. Two or more people are needed to move and install

the unit. Wear protective gloves whenever lifting or carrying the unit. AVOID the sharp metal fins offront and fear coils. To

prevent injury or strain, use proper lifting and carrying techniques when moving unit.

Carefully inspect location where air conditioner will be installed. Be sure it will support the weight of the unit overan extended

period of time.

Handle air conditioner with care.

Make sure air conditioner does not fall during installation.

= These instructions describe installation in a typical wood framed window with a wood SLIDE-BY sash, or

installation in a metal CASEMENT window. Modification may be necessary when installing in windows made

differently than those shown in these instructions.

Meeting Electrical Requirements

Electrical Shock and Personal Injury Hazard

• Electrical ground is required on this appliance.

® DO NOT ground to a gas line.

• If cold water pipe is interrupted by plastic, non-metallic gaskets, or other insulating materials, DO NOT use for

grounding.

• Check with a qualified electrician if you are in doubt as to whether the appliance is properly grounded.

® DO NOT modify power supply cord plug. If it does not fit outlet, have a proper outlet installed by a qualified

electrician.

DO NOT have a fuse in the neutral or grounding circuit. Afuse in the neutral, or grounding circuit could result in

an electrical shock.

• DO NOT use an extension cord with this appliance.

Failure to follow these instructions could result in electrical shock, serious injury, or death.

OBSERVEALL LOCAL GOVERNING CODESAND ORDINANCES. DO NOT, UNDERANY CIRCUMSTANCES,

REMOVE THE POWER SUPPLY CORD GROUNDING PRONG.

® If codes permit, and a separate grounding wire is used, it is recommended that a qualified electrician determine

that the grounding path is adequate and not interrupted by plastic, non-metallic gaskets, or other insulating

materials.

2020215A1257

ReceptacleWiring:

Receptacle wiring should be a minimum of 14 gauge. Use copper wire only. It is your responsibility to provide proper

and adequate receptacle wiring, installed by a qualified electrician.

Electrical Requirements:

A 115 volt (103.5 minimum, 126.5 maximum), 60 Hertz, AC only, 15 ampere fused electrical supply is required. Atime

delay fuse or time delay circuit breaker is also required. A separate circuit, serving this appliance only, MUST be

provided.

Electrical Connection:

Electrical grounding is required on this appliance.

Recommended grounding method:

For your personal safety, this appliance must be grounded.

This air conditioner includes a power supply cord with a

3-prong grounding plug. To minimize possible electrical shock

hazard:

cord must be plugged into a matching 3-prong grounding type

wall receptacle.

must be grounded in accordance with National Electrical

Code (ANSl/NFPA 70-latest version) and all local codes and

ordinances,

If a matching 3-prong grounding type wall receptacle is not available,

it is the responsibility of the consumer to have a properly grounded

3-prong wall receptacle installed by a qualified electrician.

3-Prong Grounding

Type Wall Rece

3-Prong

Grounding plug

__ Grounding prong

Power Supply Cord

(6 feet long) FIG. 1

Preparing for installation

installation Tips

For wood-frame casement windows:

It may be necessary to construct a frame, using at least

1" thick wood, with a 15-1/2" wide opening.

For brick or cement building construction:

It may be necessary to put a wood stool strip under air

conditioner, for mounting purposes as shown FIG. 2.

wood stdp Bottom Rail of

mounted on air conditioner

top of inner sill /'

FIG. 2

Failure to adhere to the following precautions could result in personal injury and product damage.

• Because this unit weighs about 60 to 80 pounds, it is recommended that you have someone help you when

installing your new unit, and that you both use proper lifting techniques. Inspect the condition of the window

where unit will be installed. Be sure it will support the weight of the unit.

• This appliance must be installed according to all applicable codes and ordinances.

,, Handle air conditioner with care. AVOID sharp metal fins on front and rear coils.

• Make sure your air conditioner does not fall during installation.

,_ Do not use water collected in the unit for drinking purposes. It is not sanitary.

,_ Flabhead screwdriver

• Phillips-head screwdriver

Tools Required

,, Carpenter's level ® Fine tooth saw

® Tape measure o Electric or hand drill

Knife and scissors

Pencil

o DO NOT USE ANY SCREWS OTHER THAN THOSE SPECIFIED IN THESE INSTRUCTIONS,

H Makesureyouhaveallthenecessaryparts.

Installationkitcontents(FIG.3):

No. Hardware Qty. No. Hardware Qty.

1 Platform 1 11 Screw #10 x 1" pan-head 2

2 Support brace 1 12 Screw #8 x 3/4" pan-head 6

3 Adjustment bolt 1 13 Screw #8 x 3/4" self-threading 7

4 Hex flange nut - 1/4 1 14 Window locking bracket 1

5 Track seal 1 15 Plastic window panel 1

6 Side channel seal 1 16 Side channel 2

7 Window sash seal 1 17 Screw-#8 x 3/8" truss head 10

8 Safety bracket 1 18 Panel frame/seal assembly 1

Support bracket 1

9 Screw #10 x 2-1/2" flat-head 2 19 (ForViny_-Ciadwindows)

10 Screw #10 x 1-3/4" flat-head 2 20 Safety bracket 1

(For Vinyl-Clad windows)

9or10

orll or17

• Use scale below to measure length of your screws. The scale will come in handy

when separating screws for installation.

IDENTIFY SCREWS (13ram) (25ram) (44ram) (63ram)

BY LENGTH 1/2" 1" 1-3/4" 2-1/2"

3/8" 3/4" 1-1/2" 2"

(10ram) (19ram) (38ram) (50ram)

M Choose a proper as (FIG.4).

sized window, shown

15-1/2" minimum width

16-1/4" maximum width (for casement windows)

21-1/2" minimum height (with window panel retainer)

20-5/16" minimum height(window panel retainer removed)

40" maximum height

16-114"

maximum

width

(casement

windows)

FIG.4 T............

1.571/2" _

m,;:d hm

21o1/2"

minimum

height

40"

maximum

height

ti q

o Height measurement must be of a clear opening above mounting platform.

In some cases, due to a variety of stop and track arrangements, the above

dimensions may vary slightly. If necessary, installation can be made by

alternating window jambs. (See Alternate Window Jamb Applications.)

II_ Choose the proper window location.

Choose a window that allows the cooled air to flow freely and directly into

room(s) you wish to cool. Remember, it is difficult to move air around

corners. Also, choose a window that is within 6 feet of an electrical outlet

as shown (FIG.5). (See Meeting Electrical Requirements/Receptacle wiring

needs,) Do not use an extension cord.

"_.FIG.5

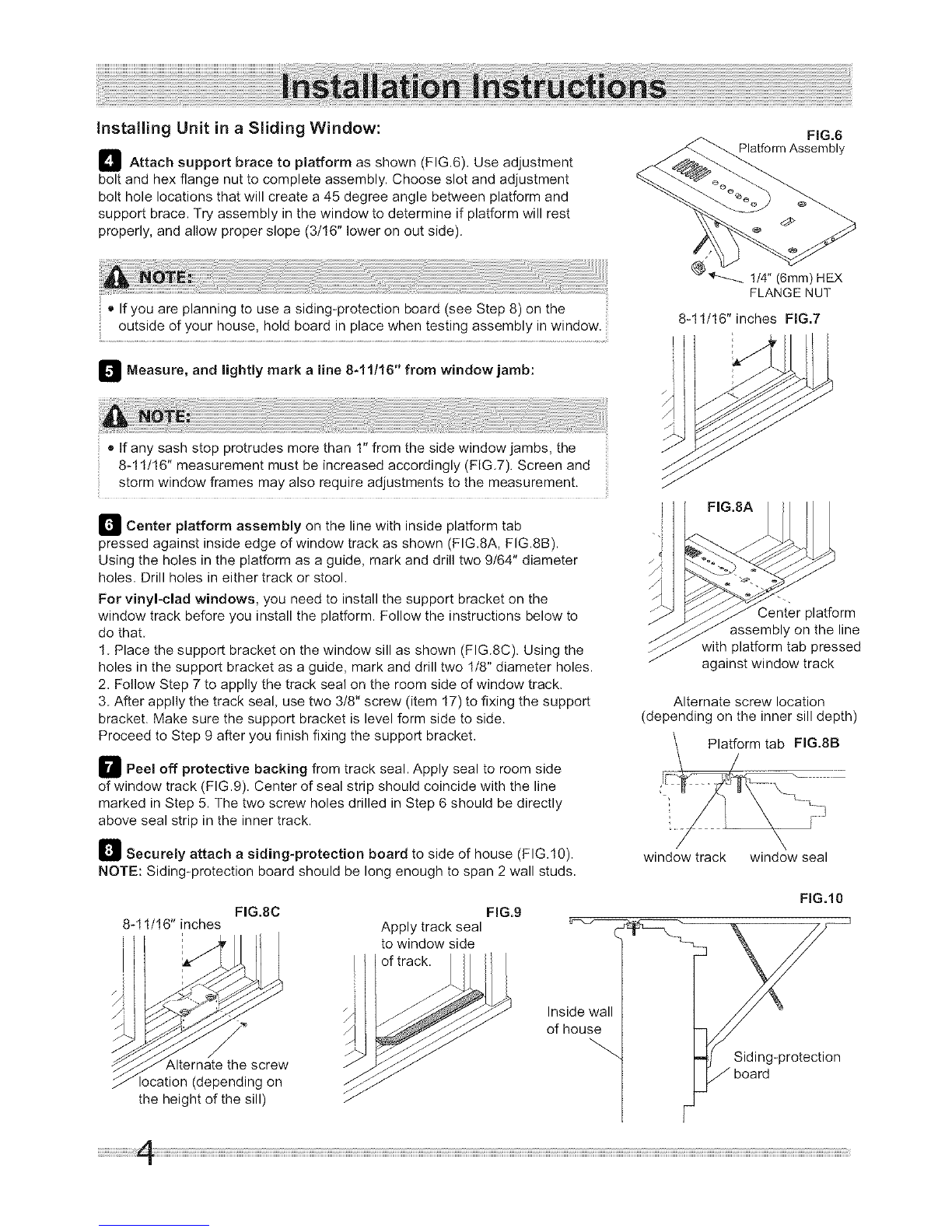

Installing Unit in a Sliding Window:

IL_ Attach support brace to platform as shown (FIG.6). Use adjustment

bolt and hex flange nut to complete assembly. Choose slot and adjustment

bolt hole locations that will create a 45 degree angle between platform and

support brace. Try assembly in the window to determine if platform will rest

properly, and allow proper slope (3/16" lower on out side).

outside of your house, hold board in place when testing assembly in window.

I_ Measure, and lightly mark a line 8-11/16" from window jamb:

• If any sash stop protrudes more than 1" from the side window jambs, the

8-11/16" measurement must be increased accordingly (FIG.7). Screen and

storm window frames may also require adjustments to the measurement.

I!_ Center platform assembly on the line with inside platform tab

pressed against inside edge of window track as shown (FIG.8A, FIG.8B).

Using the holes in the platform as a guide, mark and drill two 9/64" diameter

holes. Drill holes in either track or stool.

For vinyl-clad windows, you need to install the support bracket on the

window track before you install the platform. Follow the instructions below to

do that.

I. Place the support bracket on the window sill as shown (FIG.8C). Using the

holes in the support bracket as a guide, mark and drill two 1/8" diameter holes.

2. Follow Step 7 to applly the track seal on the room side of window track.

3. After applly the track seal, use two 3/8" screw (item 17) to fixing the support

bracket. Make sure the support bracket is level form side to side.

Proceed to Step 9 after you finish fixing the support bracket.

m Peel off protective backing from track seal. Apply seal to room side

of window track (FIG .9). Center of seal strip should coincide with the line

marked in Step 5. The two screw holes drilled in Step 6 should be directly

above seal strip in the inner track.

m Securely attach a siding-protection board to side of house (FIG.10).

NOTE: Siding-protection board should be long enough to span 2 wall studs.

FIG.8C FIG.9

8-11/16" inches Apply track seal

i to window side

Alternate the screw

(depending on

the height of the sill)

of track.

FIG.6

Platform Assembly

8-11/16" inches FIG.7

_ _form

_ assemblyon the line

_t tfw_.rndta btrParceksed

Alternate screw location

(depending on the inner sill depth)

Platform tab FIG.8B

window track window seal

FIG.10

ofhous_ _/_"

_//bSiod2 _g-protecti on

O Place platform assembly, with platform tab against inside of window

track, and attach it to window jamb (FIG.11A). Use appropriate length

screws (Items 9-11 in preparing For Installation).

For Vinyl- Clad windows, place platform assembly, with platform tab

against insidh edge of the support bracket, and use two 3/8" screw (item 17)

to attach it to support bracket as shown (FIG.lIB).

_ Adjust platform assembly so that outside edge is 3/16" lower than

inside edge, as shown (FIG.11A & FIG.B). This ensures proper water drainage

from the air conditioner.

_=I Level platform assembly from side-to-side. Also, make sure window

track is level. Use leveling shims as necessary to ensure unit is level from

side-to-side.

_'_ Measure height of window opening from top of platform assembly as

shown (FIG. 12). Subtract 20-5/8". Mark this measurement on plastic window

panel, along the longer side.

_ Clamp plastic window panel between a board and a work table, and

cut along cutting line with a fine tooth saw. Remove any burrs with a file.

_ Fasten side channels to the sides of the air conditioner using 3 screws

(Item 17) per channel as shown (FIG.13). Start with first screw at top of

channel. Make sure hook ends of channels face toward back of unit.

_ Slide plastic window panel into panel frame as shown (FIG.14), with

the smooth side to the room. Slide panel frame assembly into side channels

of the AC cabinet. Make sure plastic window panel is firmly enclosed on all

sides by the retainer grooves.

FIG.13 "_ Panel frame

FIG.14

i ", Fastening

Side Channels

Put platform

tab against

inside of tracl

Outside edge is 3/16"

__ lower than inside\_

FIG.11B

Put platform tab Outside edge is 3/16"

agai_nstinside edge _Iowe [ t!qtn inside.

FIG.12

Plastic

window panel

I_Cut side channel seal into 2 equal lengths. Remove protective backing

and apply it to the rear side of cabinet side channels, starting just below panel

frame assembly (FIG,15). Pinch off excess length so seal is even with the bottom

of the cabinet side channel,

WTo remove front as shown (FIG.16)

t. Remove the two front retaining screws from the front frame.

2. Press firmly on each side of the metal case close to front, approximately 2/3 of the way down.

3. While pressing on the sides of the metal case, gently pull the front out and lift up to release it from the case.

4. Then release the electrical coupler plug.

NOTE: DO NOT push or pull air direction louvers.

E_ Place air conditioner in window opening. As shown (FIG.17), it should sit on platform assembly so that

window panel frame and cabinet side channels are against top and side window jambs.

F,G15 F,GI0 jIIApply side ;_

channel seal

to side channels

just Slide inner

below edge

of panel frame Front _'/_ _" window sash

Retain'ngt_ L_-_:'; firmly against'

Screw _ cabinet.

I1_ISlideinner window sash firmly against side of the cabinet. Make sure not to peel the seal strips from the window

track and cabinet side channels. If the panel frame does not fit snugly to the inner window sash, secure the panel frame

to the sash with #8 x 3/4" self-threading screws. Use the partially plugged holes in the panel frame. Drill 1/8" pilot

holes for the screws.

_Hook the safety bracket over the base of the unit and fasten itto the front of the platform assembly (FIG. 18). Use

a #8-32 x 3/4" self-threading screw.

For Vinyl-Clad windows, use Item 20 (refer to page 3) to fasten the unit to the platform.

NOTE: The bracket prevents movement of the air conditioner (either in or out) after completing the installation.

I_ Stuff the window sash seal between the vertical sash and the window glass, as shown (FIG.19).

I_use the window locking bracket to lock the inner window sash to the base of the outer window sash (FIG. 19).

Use one #8 x 3/4" screw, or #8-32 x 3/4" self-threading screw. (Drill 1/8" pilot hole).

_To replace the front first reconnect the coupler plugs, make the exhaust control positioned through the front in

the proper location. Gently push the front into position on the cabinet. It should click into place. Then replace the

retaining screws that holds the panel in place. DO NOT push or pull the front panel louvers.

Insttall safety bracket FIG.18 :lG.19

window sash

safety bracket

(choose the correct

bracket

according to your Window

window type) Iockin<

bracket

Alternate Window Jamb Applications

To install in windows having no flanges or wood stops on the top and side jambs, the channels and panel frame must

fit against a matching flange (or 1/16" max. thick angle) attached to the window jambs. FIG.20A shows this angle

installed. FIG.20B & FIG.20C show alternate treatments. On the sash side of the opening, the leading corner of the inner

sash becomes the flange. You can purchase the angle strip locally.

FIG.20A FIG.20B FIG.20C

Add angle to wood stop Add wood as shown Add 16- or 18- gage angle

Installing the Unit in a Casement Window

Platform Assembly FIG.21

• Open the window the maximum amount to allow for clearance of the cabinet.

The crank handle should be removed to allow the platform to be fastened to

the jamb. If the window cannot open far enough (more than 15-1/2") for the

cabinet to clear the window, remove the window entirely by drilling out the

rivets. Bolts can serve as the pivots in the feature.

• To avoid crank handle and window clearance problems, the unit can be

installed in a stationary sash section. However, the horizontal mullion and

the 2 glass panels must be removed before installation.

_ Attach support to platform as (FIG.21). Use adjustment

brace shown the bolt

and hex flange nut to complete the assembly. Choose the slot and adjustment bolt

hole location that will create a 45 degree angle between the platform and support

brace. Try the assembly in the window to determine if the platform will rest properly,

and allow the proper slope (3/16" lower on outside).

_'_ 1/4" (6mm) HEX

FLANGE NUT

• If you are planning to use a siding-protection board (see Step 29) on the outside of your house, hold the board in

place when testing the assembly in the window.

I_ Drill a 9/64" diameter pilot hole in the window jamb an equal distance from each side of the jamb (FIG.22),

and 3/16" up from the window sill. If the hole coincides with the window lever slot in the jamb bottom, an additional hole

will have to be drilled through the platform edge and the window jamb to miss this slot.

_Peel off the protective backing from the track seal, and stick the seal to the window sill on the outside of the

bottom jamb as shown (FIG.23).

_ Screw the platform assembly to the window jamb through the pilot hole you drilled in Step 25. Use a #8 x 3/4"

self-threading screw (FIG.24).

Equal distance from both sides Apply track seal to the outside Track seal

edge of the bottom window jamb. Screw /

diameter

pilot hole

FIG.22 _' FIG.24

I_ Adjust the platform assembly so that the rear of the air conditioner will be 3/16" lower than the front (tilted about

2° to 4° downward to the outside). After proper installation, condensate should not drain from the overflow drain hole

during normal use, correct the slope otherwise.

• A projection below the base of the air conditioner will require the rear of the platform to be 7/16" lower than the

front to create the 3/16" slant from front to rear (FIG.25).

_ Securely attach a siding-protection board to the side of the house where the platform assembly hit the house

as shown (FIG.26). The siding-protection board should be long enough to span 2 wall studs.

Rear is at least I _

7116"lower than I

............. f,:°,ZL..........

FIG.26

_ Measure the height of the window opening from the top of the platform

assembly as shown (FIG.27). Subtract 20-5/8". Mark this measurement on the

plastic window panel, along the longer side.

1_"_1Clamp the plastic window panel between a board and a work table, and

cut along the cutting line with a fine tooth saw. Remove any burrs with a file.

[_1 Fasten the side channels to the sides of the unit using three screws

(Item 17) per channel. Make sure hook ends of channels face toward the back

of unit.

_ Slide the plastic window panel into the panel frame with the smooth

side to the room. Slide the panel frame assembly into the side channels of

the air conditioner cabinet. Make sure the plastic window panel is firmly

enclosed on all sides by the retainer grooves (FIG.28).

Fasten siding

protection board to

the house siding.

FIG.28

FIG.27

Panel frame

Plastic window panel

_Cut side channel seal into 2 equal lengths. Remove the protective backing and apply it to the rear side of the

cabinet side channels, starting just below the panel frame assembly. Pinch off excess length so the seal is even with

the bottom of the cabinet side channel (FIG.29).

_To remove front as shown (FIG.30)

t. Remove the two front retaining screws from the front frame.

2. Press firmly on each side of the metal case close to the front, approximately 2/3 of the way down.

3. While pressing on the sides of the metal case, gently pull the front out and lift up to release it from the case.

4. Then release the electrical coupler plug.

NOTE: DO NOT push or pull air direction louvers.

Place the air conditioner in the window opening as shown (FIG.31). It should sit on the platform assembly

so that the window panel frame and the cabinet side channels are against the top and side window jambs. Side

channels should overlap side window jambs equally.

FIG.29

FIG.30 _ FI_

Front

Retaining/_, I_-_

Screw L_-/_

Apply side

channel

seal to side

channels

below edge of

panel frame.

m Drill two 9/64" diameter pilot holes in the top window jamb in line with the partially plugged holes in the panel

frame. Secure the panel frame to the window jamb with two #8-32 x 3/4" self-threading screws. If additional holding is

necessary, two screws may be used on the sides of the panel frame as well.

Drill two screw-clearance holes in the cabinet side channels (near bottom) and two 9/64" diameter pilot holes

in the side window jambs. Secure the cabinet side channels to the window jambs with two #8-32 x 3/4" self-threading

screws. When doing this, be careful not to twist the side channel seals with the screws.

NOTE: Inserting screws will prevent the air conditioner from being pushed into the room.

_To replace the front first reconnect the coupler plugs, make the exhaust control positioned through the front

in the proper location. Gently push the front into position on the cabinet. It should click into place. Then replace the

retaining screws that holds the panel in place.

Do not push against or pull upon the front panel louvers.

This manual suits for next models

Other Frigidaire Air Conditioner manuals

Frigidaire

Frigidaire FAA053M7A1 Quick start guide

Frigidaire

Frigidaire FRA25EST2 Quick start guide

Frigidaire

Frigidaire FFRE053WAE User manual

Frigidaire

Frigidaire FRA12EHT2 User manual

Frigidaire

Frigidaire FAH12EM2T1 User manual

Frigidaire

Frigidaire LRA12HZT20 User manual

Frigidaire

Frigidaire FAH126J2T2 Service manual

Frigidaire

Frigidaire FAC085N7A1 User manual

Frigidaire

Frigidaire FAS184J2A5 User manual

Frigidaire

Frigidaire FAC122P1 User manual

Frigidaire

Frigidaire FFRA0811R1 Owner's manual

Frigidaire

Frigidaire FRA084KT7 User manual

Frigidaire

Frigidaire FAC12C2ABJW User manual

Frigidaire

Frigidaire 220219A255 User manual

Frigidaire

Frigidaire CRA052XT750 User manual

Frigidaire

Frigidaire FRA08EZT111 Owner's manual

Frigidaire

Frigidaire FFRE08C3Q12 User manual

Frigidaire

Frigidaire FRA053PU1 Quick start guide

Frigidaire

Frigidaire FFRE15L3Q14 Owner's manual

Frigidaire

Frigidaire FAC065K7A1 User manual

Frigidaire

Frigidaire FAH106S1T - 10000 BTU Through-the-Wall Air... User manual

Frigidaire

Frigidaire FAH105N1T2 Quick start guide

Frigidaire

Frigidaire Home Comfort FRA082AT7 Quick start guide

Frigidaire

Frigidaire Designer Series User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Samsung

Samsung AS09HM3N user manual

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Mitsubishi Electric

Mitsubishi Electric MSC-GE20VB operating instructions
