Frigidaire FAS154K1A3 User manual

PRODUCT NO. BASE MODEL NO. MARKET BTU-COOLING

FAS154K1A3 FAS154K1A USA 15000 BTU

Publication No.

5995364287

020122

-EN/SERVICE /KC

345

ROOM AIR CONDITIONER

Model No.

FAS154K1A3

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309107703

OWNER’S GUIDE - # 309000825

ELECTROLUX HOME PRODUCTS, INC.

P.O.BOX 212378, AUGUSTA, GA 30917

01/02 2

Publication No. FAS154K1A3

5995364287

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 01/02

* = Non-Illustrated Parts

FAS154K1A3 Publication No.

5995364287

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309632704 Cabinet,sleeve ,top louvers

2 309632804 Grille,rear ,with rail

7 309631104 Link-handle,vertical louver

8 309633305 Louver Assy,horizontal ,Incl-7,8*,9

8* 309630804 Louver,horizontal

9 309631004 Louver,vertical

12 309631404 Filter-air,molded plastic

17 309633205 Front-cabinet,complete assy

19 309633506 Dial-plate

19* 5303001775 Spacer,dial plate

20 309307013 Knob-control

25 309321401 Door-vent,actuator

26 309330404 Handle-vent,gray

26A 309330206 Detent Assy-vent,with adhesive

29 3015312 Screw,8-18AB x 0.500

43 309630904 Panel,cabinet front

01/02 4

Publication No. FAS154K1A3

5995364287

CONTROLS

# = Fast-moving Parts 5 01/02

* = Non-Illustrated Parts

FAS154K1A3 Publication No.

5995364287

CONTROLS

POS. NO PART NO DESCRIPTION

7 309630401 Control Box

8 # 5303323284 Switch,selector

9 # 5304408295 Control-temperature,20 Amp

9* 3200761 Spacer-control bulb

10 309623602 Bulkhead,control system

10* 309111201 Grommet,wire protector

12 309331801 Clip-control bulb,(2)

13 # 5303291523 Capacitor,370 V ,10+40 mfd

14 5303285199 Screw,phillips ,8-18 x 0.38 ,sq.recess ,truss head

15 5303303077 Strap-capacitor

17 309343111 Cord-electric power,type A ,14 AWG

18 5303007754 Screw,6-32 x 0.188

01/02 6

Publication No. FAS154K1A3

5995364287

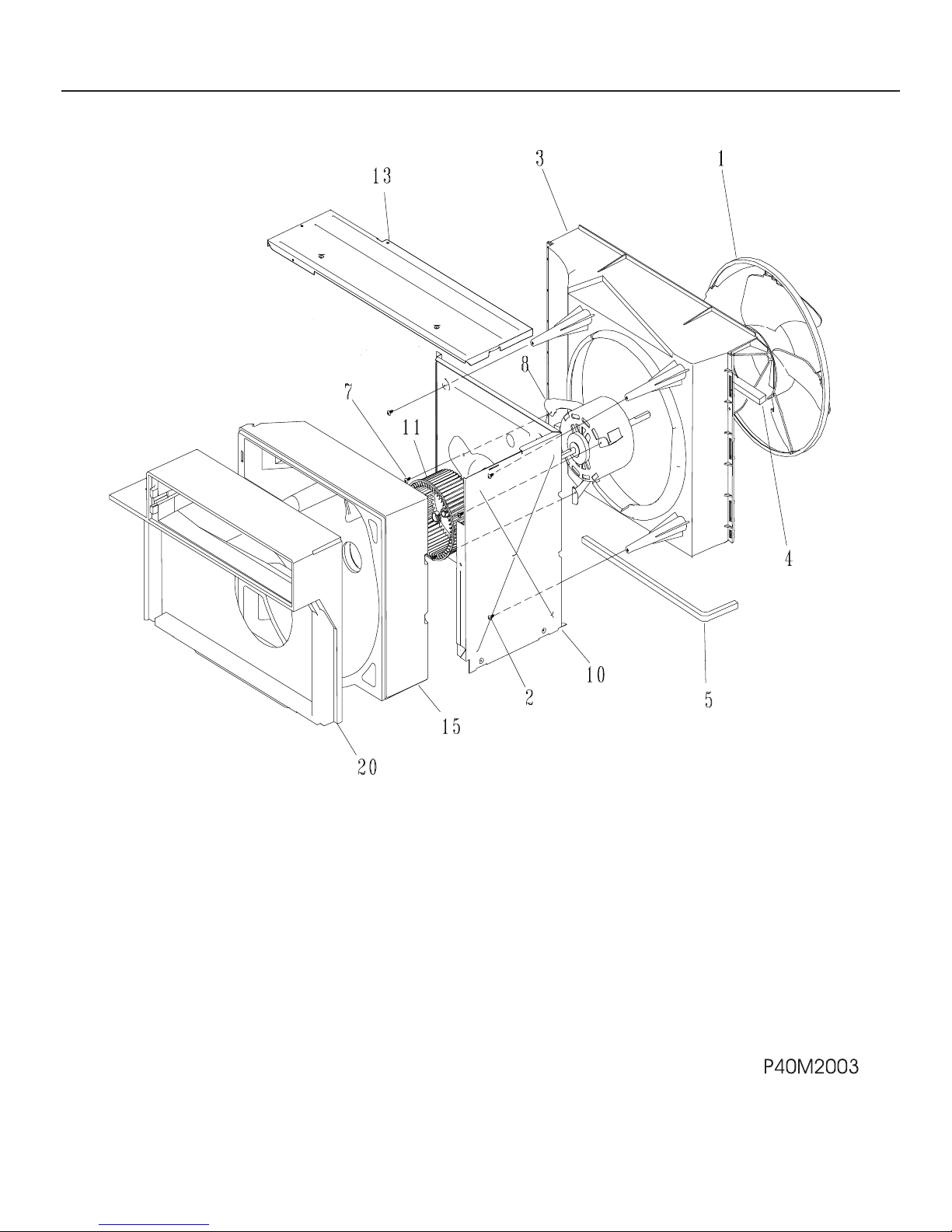

AIR HANDLING PARTS

# = Fast-moving Parts 7 01/02

* = Non-Illustrated Parts

FAS154K1A3 Publication No.

5995364287

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 5303311048 Fan Blade,with clamp

2 3202975 Screw,10-16 x 0.72 ,square drive

3 309623201 Shroud-condenser,one piece

4 5303212504 Seal-sleeve/chassis,bottom

5 5303015311 Seal,fan housing ,lower

7 5303015427 Screw,truss head ,8-18AB x 0.47

8 # 309630609 Motor-fan

10 309623401 Bulkhead,air system

11 309633001 Blower Wheel,plastic ,with clamp

13 309630302 Cover-top

15 309630101 Housing-blower,evap scroll

20 309630201 Plate-blower housing,scroll plate

01/02 8

Publication No. FAS154K1A3

5995364287

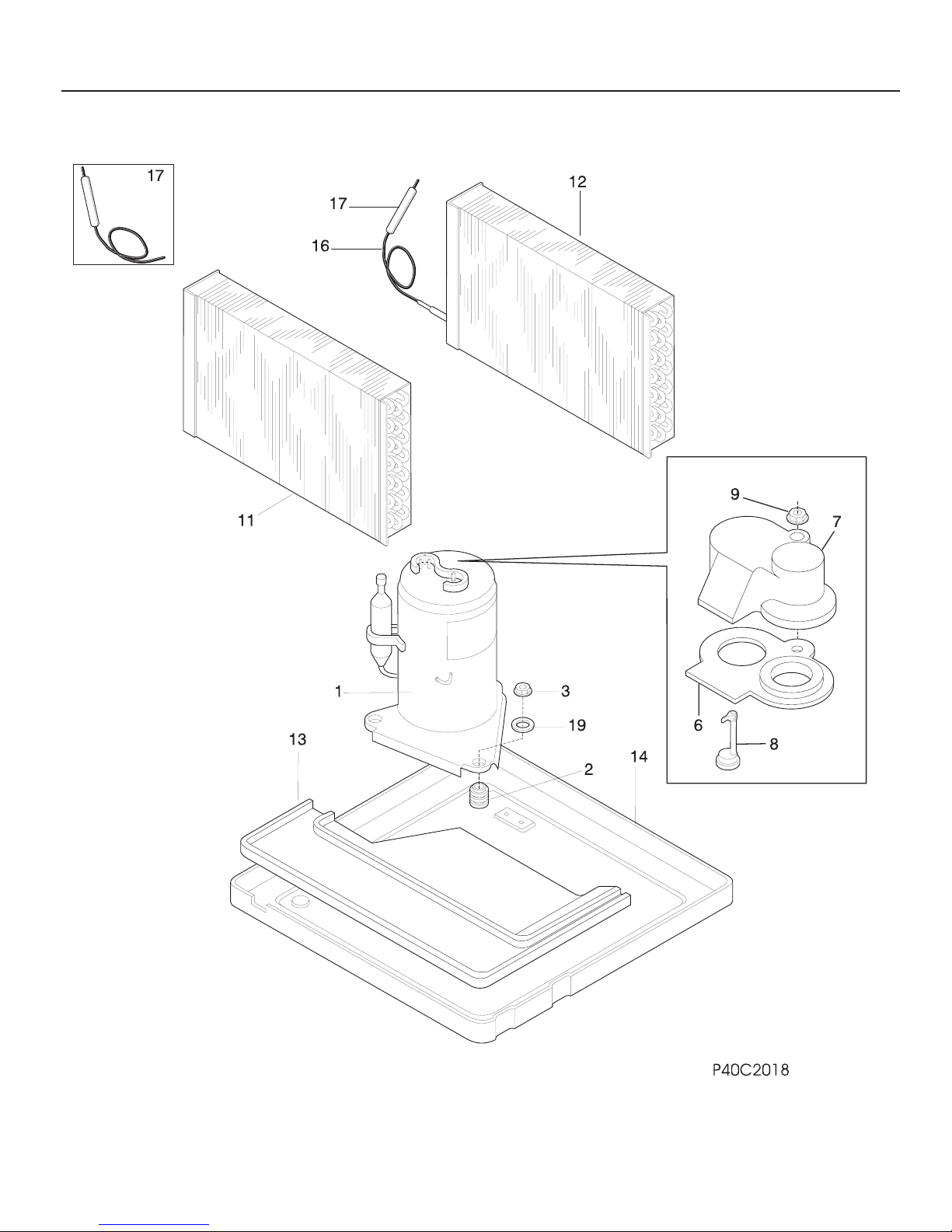

COMPRESSOR PARTS

# = Fast-moving Parts 9 01/02

* = Non-Illustrated Parts

FAS154K1A3 Publication No.

5995364287

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 5303925103 Compressor,w/overload

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 5303272298 Gasket-cover,terminal

7 3206230 Cover-terminal

8 # 5303016697 Overload Protector

9 5303211017 Nut-terminal cover

11 # 309634103 Evaporator

12 # 5303303600 Condenser

13 309623501 Tray-evaporator

14 309632907 Base-compressor

16 5303289577 Capillary Tube,40 inch long ,cut-to-length

17 5304417722 Tube-process,cond. outlet

19 309112501 Washer,metallic

19 5303002664 Washer,compressor mtg

01/02 10

Publication No. FAS154K1A3

5995364287

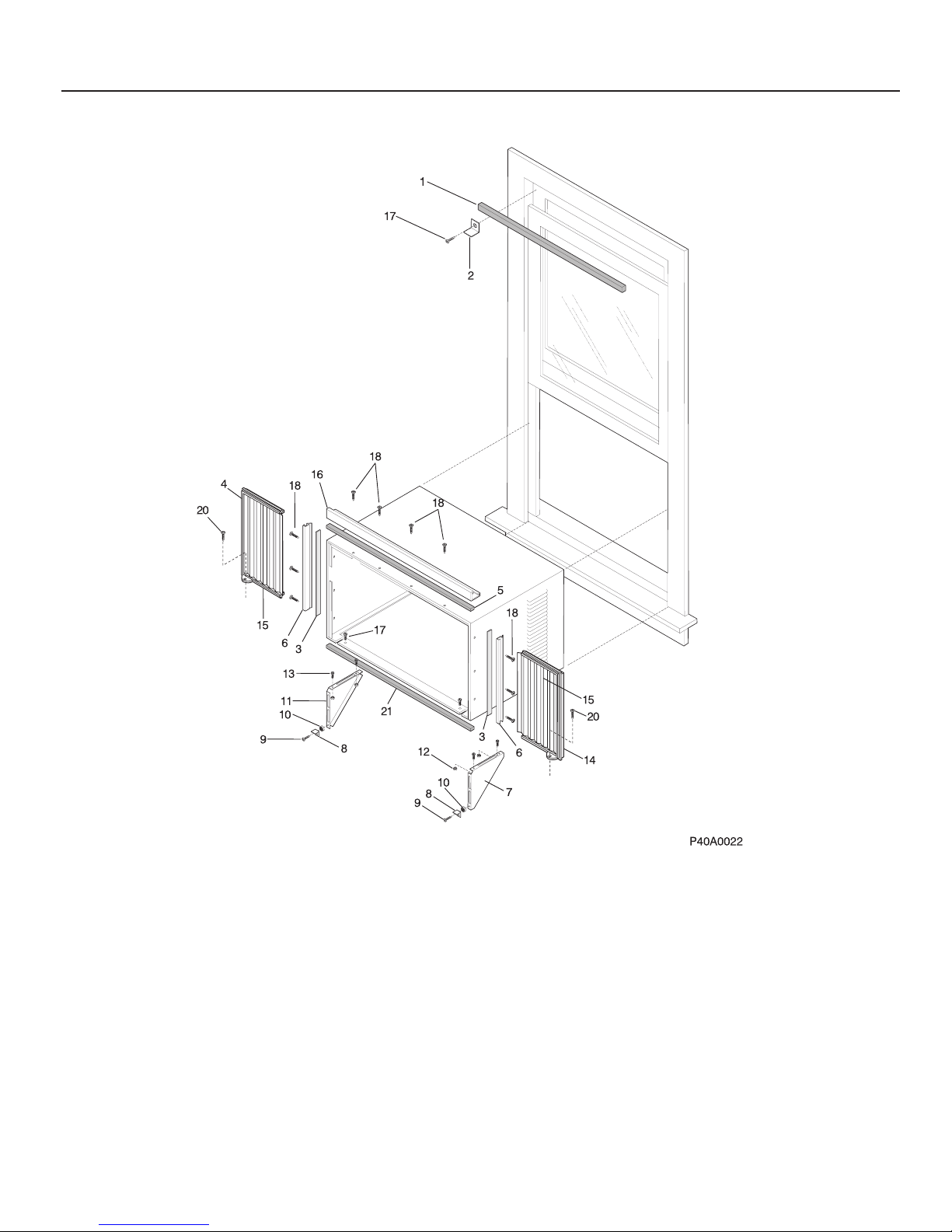

WINDOW MOUNTING PARTS
