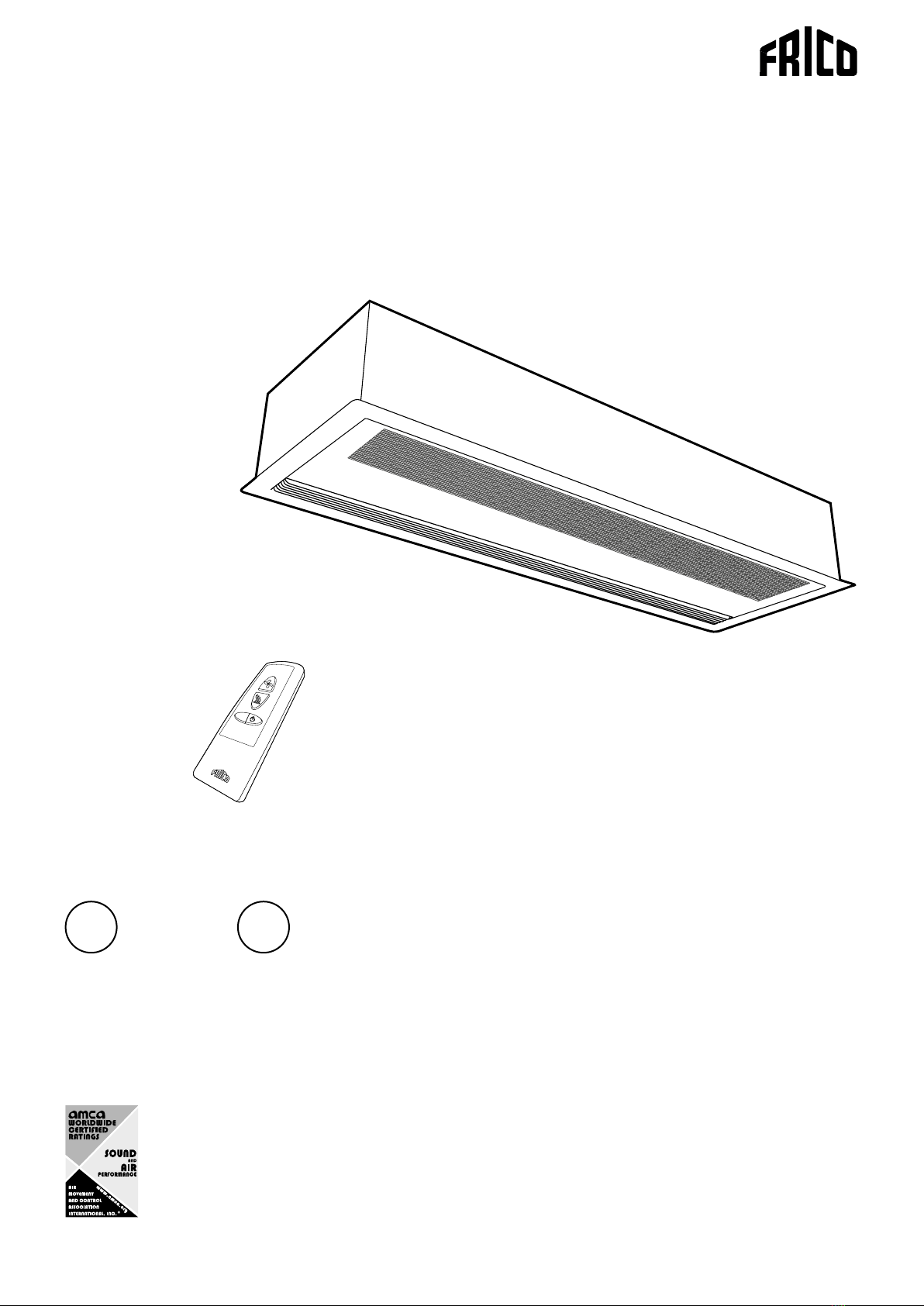

Frico AREC3200C User manual

AREC3200C

.... 17

EN FR

Original instructions

.... 23

AUTO

Frico AB certies that the AREC3200CA, AREC3200CE and AREC3200CW air curtains shown herein

are licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures

performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply

with the requirements of the AMCA Certied Ratings Program. The AMCA Certied Ratings Seal

applies to airow rate, average outlet velocity, outlet velocity uniformity, velocity projection and

power rating at free delivery only.

AREC3200C

3 Electrical heat - AREC3200CE (IP20)

1 Ambient, no heat - AREC3200CA (IP21)

Metric chart

*1) Highest airow of totally 3 fan steps.

*2) Values shown are for total sound power levels for Installation Type A: free inlet, free outlet. The Sound

power level ratings shown are in decibels, referred to 10-12 watts, calculated per AMCA Standard 301.

*3) FLA: total amperage for motor and heat.

*4) Applicable at water temperature 60/40 °C, air temperature, in +18 °C.

Above table is valid for 208V/1ph/60Hz. Also approved for 230V/1ph/60Hz. Product performance for

230V/1ph/60Hz will differ from stated data.

Type Output*4

[kW]

Airow*1

[m3/h]

Sound

power*2

[dB(A)]

Motor

power

[W]

Voltage

motor

[V]

Amperage

motor

[A]

Water

volume

[l]

Weight

[kg]

AREC3210CW-NA 8 1300 72 127 208V~ 0.8 1.3 30

AREC3215CW-NA 14 2050 73 148 208V~ 0.9 2.1 41

AREC3220CW-NA 19 2550 74 254 208V~ 1.5 2.7 56

Type Output

steps

[kW]

Airow*1

[m3/h]

Sound

power*2

[dB(A)]

FLA (full load

amperage)*3

[A]

Motor

power

[W]

Amperage

motor

[A]

Voltage [V]

Amperage [A]

(heat)

Weight

[kg]

AREC3210CE-208-NA 4/7 1630 72 21 127 0.8 208V3~/20 31

AREC3215CE-208-NA 7/10 2300 73 29 148 0.9 208V3~/28 42

AREC3220CE-208-NA 8/13 3250 74 39 254 1.5 208V3~/36 59

AREC3210CE-480-NA 5/8 1630 72 11 127 0.8 480V3~/10 31

AREC3215CE-480-NA 8/12 2300 73 16 148 0.9 480V3~/15 42

AREC3220CE-480-NA 10/16 3250 74 21 254 1.5 480V3~/20 59

AREC3210CE-600-NA 5/8 1630 72 9127 0.8 600V3~/8 31

AREC3215CE-600-NA 8/12 2300 73 13 148 0.9 600V3~/12 42

AREC3220CE-600-NA 10/16 3250 74 17 254 1.5 600V3~/16 59

Type Output

[kW]

Airow*1

[m3/h]

Sound

power*2

[dB(A)]

Motor

power

[W]

Voltage

motor

[V]

Amperage

motor

[A]

Weight

[kg]

AREC3210CA-NA 0 1630 72 127 208V~ 0.8 29

AREC3215CA-NA 0 2300 73 148 208V~ 0.9 40

AREC3220CA-NA 0 3250 74 254 208V~ 1.5 55

2 Water heat - AREC3200CW (IP21)

Protection class for units with electrical heating: IP20.

Protection class for units without heating and units with water heating: IP21.

CE compliant.

Frico AB certies that the AREC3200CA, AREC3200CE and AREC3200CW air curtains shown herein

are licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures

performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply

with the requirements of the AMCA Certied Ratings Program. The AMCA Certied Ratings Seal

applies to airow rate, average outlet velocity, outlet velocity uniformity, velocity projection and

power rating at free delivery only.

Type Nozzle

deep x width

[mm]

Max Velocity

at nozzle

[m/s]

Outlet Velocity

[m/s]

Outlet Velocity

Uniformity

[%]

AREC3210CA/E/W-NA 70x970 10.97 9.50 78

AREC3215CA/E/W-NA 70x1485 10.25 9.40 83

AREC3220CA/E/W-NA 70x2000 10.97 9.50 78

AREC3200C

3 Electrical heat - AREC3200CE (IP20)

1 Ambient, no heat - AREC3200CA (IP21)

Imperial chart

Type Output*4

[MBH]

Airow*1

[cfm]

Sound

power*2

[dB(A)]

Motor

power

[W]

Voltage

motor

[V]

Amperage

motor

[A]

Water

volume

[US gal]

Weight

[lb]

AREC3210CW-NA 27 750 72 127 208V~ 0.8 0.34 65

AREC3215CW-NA 48 1200 73 148 208V~ 0.9 0.55 90

AREC3220CW-NA 65 1500 74 254 208V~ 1.5 0.71 123

Type Output

steps

[MBH]

Airow*1

[cfm]

Sound

power*2

[dB(A)]

FLA (full load

amperage)*3

[A]

Motor

power

[W]

Amperage

motor

[A]

Voltage [V]

Amperage [A]

(heat)

Weight

[lb]

AREC3210CE-208-NA 14/24 950 72 21 127 0.8 208V3~/20 68

AREC3215CE-208-NA 24/34 1350 73 29 148 0.9 208V3~/28 91

AREC3220CE-208-NA 27/44 1900 74 39 254 1.5 208V3~/36 130

AREC3210CE-480-NA 17/27 950 72 11 127 0.8 480V3~/10 68

AREC3215CE-480-NA 27/41 1350 73 16 148 0.9 480V3~/15 91

AREC3220CE-480-NA 34/55 1900 74 21 254 1.5 480V3~/20 130

AREC3210CE-600-NA 17/27 950 72 9127 0.8 600V3~/8 68

AREC3215CE-600-NA 27/41 1350 73 13 148 0.9 600V3~/12 91

AREC3220CE-600-NA 34/55 1900 74 17 254 1.5 600V3~/16 130

Type Output

[MBH]

Airow*1

[cfm]

Sound

power*2

[dB(A)]

Motor

power

[W]

Voltage

motor

[V]

Amperage

motor

[A]

Weight

[lb]

AREC3210CA-NA 0 950 72 127 208V~ 0.8 64

AREC3215CA-NA 0 1350 73 148 208V~ 0.9 87

AREC3220CA-NA 0 1900 74 254 208V~ 1.5 121

2 Water heat - AREC3200CW (IP21)

*1) Highest airow of totally 3 fan steps.

*2) Values shown are for total sound power levels for Installation Type A: free inlet, free outlet. The Sound

power level ratings shown are in decibels, referred to 10-12 watts, calculated per AMCA Standard 301.

*3) FLA: total amperage for motor and heat.

*4) Applicable at water temperature 140/104F, air temperature, in +64F.

Above table is valid for 208V/1ph/60Hz. Also approved for 230V/1ph/60Hz. Product performance for

230V/1ph/60Hz will differ from stated data.

Protection class for units with electrical heating: IP20.

Protection class for units without heating and units with water heating: IP21.

CE compliant.

Frico AB certies that the AREC3200CA, AREC3200CE and AREC3200CW air curtains shown herein

are licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures

performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply

with the requirements of the AMCA Certied Ratings Program. The AMCA Certied Ratings Seal

applies to airow rate, average outlet velocity, outlet velocity uniformity, velocity projection and

power rating at free delivery only.

Type Nozzle

deep x width

[in]

Max Velocity

at nozzle

[fpm]

Outlet Velocity

[fpm]

Outlet Velocity

Uniformity

[%]

AREC3210CA/E/W-NA 2.8x38.2 2159 1870 78

AREC3215CA/E/W-NA 2.8x58.5 2018 1850 83

AREC3220CA/E/W-NA 2.8x78.7 2159 1870 78

AREC3200C

Output charts water AREC3200C

*1) Recommended outlet air temperature for good comfort and optimized output.

*2) Nominal output at given supply and return water temperature.

Supply water temperature:80 °C

Room temperature: +18 °C

Outlet air temperature: +35 °C*1

Water temperature: 80/60 °C

Room temperature: +18 °C

Type Fan

position

Airow

[m3/h]

Output

[kW]

Return

water temp.

[°C]

Water

ow

[l/s]

Pressure

drop

[kPa]

Output*2

[kW]

Outlet

air

temp.

[°C]

Water

ow

[l/s]

Pressure

drop

[kPa]

AREC3210CW-NA max 1300 8.8 35 0.05 2.4 14.1 46 0.17 23.7

AREC3215CW-NA max 2050 15.2 33 0.08 8.5 24.5 46 0.30 92.3

AREC3220CW-NA max 2550 18.2 32 0.09 4.9 30.5 47 0.37 60.7

Supply water temperature: 60 °C

Room temperature: +18 °C

Outlet air temperature: +35 °C*1

Water temperature: 60/40 °C

Room temperature: +18 °C

Type Fan

position

Airow

[m3/h]

Output

[kW]

Return

water temp.

[°C]

Water

ow

[l/s]

Pressure

drop

[kPa]

Output*2

[kW]

Outlet

air

temp.

[°C]

Water

ow

[l/s]

Pressure

drop

[kPa]

AREC3210CW-NA max 1300 8.8 43 0.12 14.0 8.2 34 0.10 9.2

AREC3215CW-NA max 2050 15.2 42 0.20 48.5 14.4 34 0.17 37.2

AREC3220CW-NA max 2550 18.2 41 0.23 27.5 17.9 35 0.22 24.1

Metric chart

Imperial chart

*1) Recommended outlet air temperature for good comfort and optimized output.

*2) Nominal output at given supply and return water temperature.

Supply water temperature:176 °F

Room temperature: +64 °F

Outlet air temperature: +95 °F*1

Water temperature: 176/140 °F

Room temperature: +64 °F

Type Fan

position

Airow

[cfm]

Output

[MBH]

Return

water

temp.

[°F]

Water

ow

[US gal/h]

Pressure

drop

[kPa]

Output*2

[MBH]

Outlet

air

temp.

[°F]

Water

ow

[US gal/h]

Pressure

drop

[kPa]

AREC3210CW-NA max 750 30.0 95 47.6 2.4 48.1 115 161.7 23.7

AREC3215CW-NA max 1200 51.9 91 76.1 8.5 83.6 115 285.3 92.3

AREC3220CW-NA max 1500 62.1 90 85.6 4.9 104.1 117 351.9 60.7

Supply water temperature: 140 °F

Room temperature: +64 °F

Outlet air temperature: +95 °F*1

Water temperature: 140/104 °F

Room temperature: +64 °F

Type Fan

position

Airow

[cfm]

Output

[MBH]

Return

water

temp.

[°F]

Water

ow

[US gal/h]

Pressure

drop

[kPa]

Output*2

[MBH]

Outlet

air

temp.

[°F]

Water

ow

[US gal/h]

Pressure

drop

[kPa]

AREC3210CW-NA max 750 30.0 109 114.1 14.0 28.0 93 95.1 9.2

AREC3215CW-NA max 1200 51.9 108 190.2 48.5 49.1 93 161.7 37.2

AREC3220CW-NA max 1500 62.1 106 218.8 27.5 61.1 95 209.2 24.1

AREC3200C

The introduction pages consist mainly of pictures. For translation of the English

texts used, see the respective language pages.

Les pages de présentation contiennent principalement des images. Pour la

traduction des textes en anglais, consultez la page correspondante à la langue

souhaitée.

AREC3200C

Ref Metric

[mm]

Imperial

[in]

Product type

A1078 43.12 AREC3210Cx

B1588 63.52 AREC3215Cx

C 2078 83.12 AREC3220Cx

D1028 41.12 AREC3210Cx

E1538 61.52 AREC3215Cx

F2028 81.12 AREC3220Cx

G29 1.16

H 90 3.60

I 51 2.04

J135 5.40

K70 2.80

L 475 19.00

M 256 10.24

N525 21.00

475

525

256

1, 1,5 m:4 x M8

2 m: 6 x M8

ø29

135

A / B / C

D / E / F

Metric

1 m: 4 x M8

1.5 m: 4 x M8

2 m: 6 x M8

Imperial

3.3 ft: 4 x M8

4.9 ft: 4 x M8

6.6 ft: 6 x M8

AREC3200C

244

134

933 805

156

525

805 / 1315

157

Mounting on threaded bars outside the unit

AREC3220Cx

AREC3210Cx/AREC3215Cx

Front view

Side view

Ref Metric

[mm]

Imperial

[in]

Product type

A805 32.20 AREC3210Cx

B1315 52.60 AREC3215Cx

C 66 2.64

D157 6.28

E933 37.32

F805 32.20

G 134 5.36

H 156 6.24

I 525 21.00

J 244 9.76

A / B

AREC3200C

Fig. 1b. Mounting on threaded bars outside the unit.

Mounting on threaded bars outside the unit

Fig. 1a: Mounting brackets on delivery.

AREC3220Cx

AREC3200C

Mounting on threaded bars inside the unit

Fig. 2a: Mounting brackets on delivery.

124

392

E/A: 932

W: 848

E/A: 851

W: 935

121

124

850 / 1360

Top view

Side view

AREC3220Cx

AREC3210Cx/ AREC3215Cx

124

392

E/A: 932

W: 848

E/A: 851

W: 935

121

124

850 / 1360

Ref Metric

[mm]

Imperial

[in]

Product type

A850 34.00 AREC3210Cx

B1360 54.40 AREC3215Cx

C 54 2.16

D 124 4.96

E851 34.04 AREC3220CE/A

F932 37.28 AREC3220CE/A

G935 37.4 AREC3220CW

H 848 33.92 AREC3220CW

I121 4.84

J 124 4.96

K392 15.68

L 88 3.52

A / B

AREC3200C

Mounting on threaded bars inside the unit

Fig. 2c. Location of the mounting brackets on the inside of the unit.

AREC3210Cx, AREC3215Cx 4x

AREC3220Cx 6x

Fig. 2d. In order to mount the brackets, remove the service hatch, outlet grille and covering plates.

AREC3220Cx

Fig. 2b. Mounting on threaded bars inside the unit.

Table of contents

Other Frico Heater manuals

Frico

Frico AGS5000 User manual

Frico

Frico AREC4000 Series User manual

Frico

Frico Elztrip EZ200 Service manual

Frico

Frico Thermozone AGI User manual

Frico

Frico IR3000 User manual

Frico

Frico Infradark IND15 User manual

Frico

Frico Thermowarm TWT100 User manual

Frico

Frico Aquaztrip P Series User manual

Frico

Frico Thermozone SF E User manual

Frico

Frico ICWP User manual

Frico

Frico Infrasmart IHS20W/B/S24 User manual

Frico

Frico IRCF15L User manual

Frico

Frico ADCH17A Series User manual

Frico

Frico Thermozone ADA Series User manual

Frico

Frico CIR105 User manual

Frico

Frico Thermoplus User manual

Frico

Frico Thermozone AD Corinte W Service manual

Frico

Frico ELIR User manual

Frico

Frico Infraduo IHD17 User manual

Frico

Frico PF Series User manual

Frico

Frico AGS5500 User manual

Frico

Frico SWH Series User manual

Frico

Frico Thermozone AGV 4000 A Series User manual

Frico

Frico Thermozone AR 200 E Series User manual

Popular Heater manuals by other brands

oventrop

oventrop Regucor Series quick start guide

Blaze King

Blaze King CLARITY CL2118.IPI.1 Operation & installation manual

ELMEKO

ELMEKO ML 150 Installation and operating manual

BN Thermic

BN Thermic 830T instructions

KING

KING K Series Installation, operation & maintenance instructions

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Installation instructions and owner's manual

Well Straler

Well Straler RC-16B user guide

EUROM

EUROM 333299 instruction manual

Heylo

Heylo K 170 operating instructions

Eterna

Eterna TR70W installation instructions

Clarke

Clarke GRH15 Operation & maintenance instructions

IRSAP

IRSAP The Radiator Company Ovali Fitting instructions

Empire Heating Systems

Empire Heating Systems WCC65 Installation and owner's instructions

Wetekom

Wetekom 92 86 43 Original instructions

Desa

Desa SPC170-F owner's manual

Watlow

Watlow Watrod Electric Tubular Heaters Specifications

Haverland

Haverland ECO-DRY GPS Series Instruction & installation manual

Stelpro

Stelpro ASILVC2060 Series user guide
