Frama KR180 User manual
ASSEMBLY GUIDE
Daybed
4
3
2
5
44
1
In this box you will find:
4× Legs, 2x Horizontal cross support, 2x Bed support frames, 18x Bed supports,
4×Screws, 8x Wooden dowels, 1x Umbraco tool
Start by unpacking wooden dowels f rom package 5 and
placing the dowels in each of the outer holes located on
the top of the leg pieces, located in package 3.

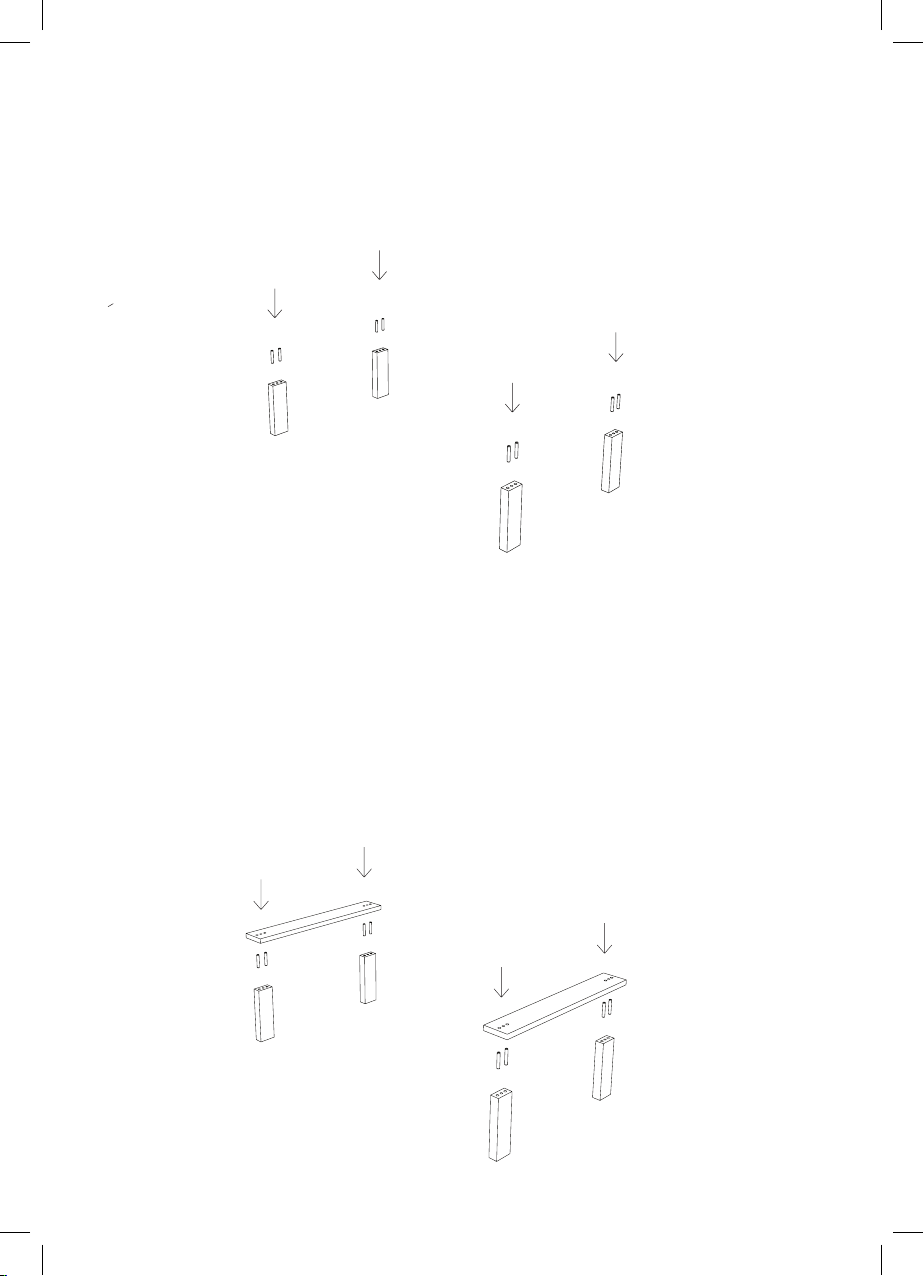

1. Start by unpacking wooden dowels from package 5 and placing the dowels
in each of the outer holes located on the top of the leg pieces, located in
package 3.
2. Next remove the horizontal cross supports in package 3. Using one
horizontal cross support at a time, fasten each leg by fitting the wooden
dowels with the two outer holes located on the horizontal cross supports
Repeat on the other side of the horizontal cross support, and then with the
second horizontal cross support.
1
3
4
2

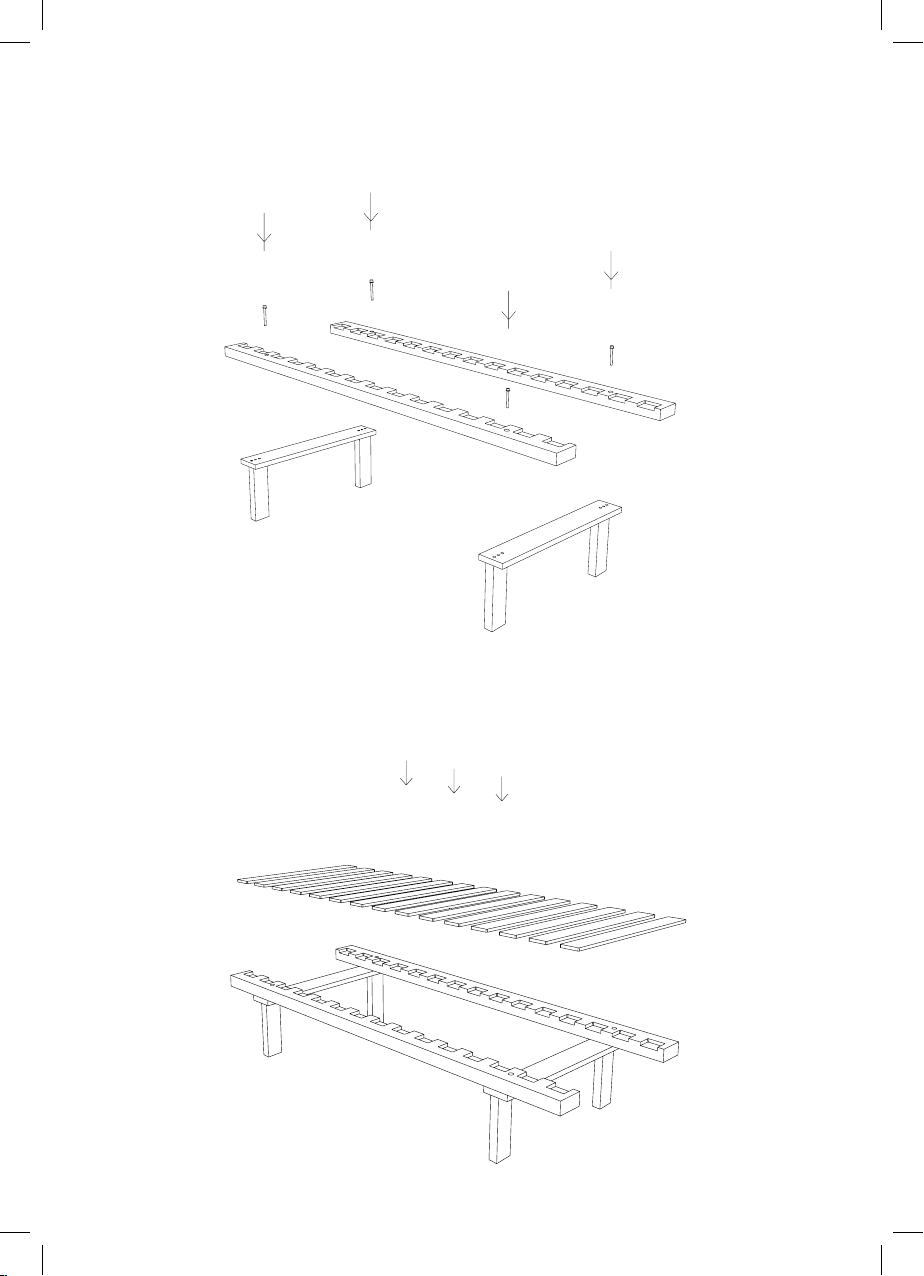

3. Next remove the two bed support frames in package 1. Align each bed
support frame with the center hole located in each of the now attached leg
and two horizontal cross support frames. Screw the four screws located in
package 5 in place using the small umbraco tool also located in package 5.
4. Place all bed supports located in package 4 within their allocated slots atop
the bed frame.
1
3
4
2
5. Place mattress atop frame.
FRAMA
Fredericiagade 57, 1310 Copenhagen K
+45 3140 6030 framacph.com
