FREQUENCY RESPONSE/IMPEDANCE

MEChANICAl DRAwINg

UNIVERSAL

ISS 130

• Polyglass cone

• Reduced height

woofer Nominal power 60W

Maximum power 120W

Sensitivity 91.9dB

Cone Polyglass

Surround Butyl

Nom. impedance 4 Ohms

DC resistance 2.8 Ohms

VC diameter 25.5mm 1"

VC height 8.4mm 01/3"

Former Kapton

Layers 2

Wire Copper

Inductance 0.10mH

Xmax 2.5mm 01/8"

Magnet d x h 72 x 15mm 213/16 x09/16"

Magnet weight 160g 0.35Ib

Flux density -

Gap height 3mm 01/8"

Net weight 500g 1.1lb

PARAMETERS

Fs 87.54Hz

Vas 4.39 I

Qts 0.81

Qes 0.88

Qms 10.2

Re 2.8 Ohms

Sd 84.95cm2

Cas 3.13 E-8m5/N

Mas 105.73 kg/m4

Ras 5701.61 Ohms.ac

Cms 433µm/N

Mms 7.63g

Rms 0.411kg/s

Ces 571.40mF

Les 5.78mH

Res 32.45 Ohms

BI 3.65N/A

SPL 87.09dB (Re)

SPECIFICATIONS

Focal® is a trademark of Focal-JMlab®-Tel. (33) 04 77 43 57 00 - www.focal.com - Images may not conform exactly to specific product. Photos L’Atelier Sylvain Madelon - SCEB-121203/1

Integration

INSTANT GRATIFICATION

OhmdB SPL

140

136

129

5,50

113.7

6.30

48.90

7.60

130.com.ua

Autogood products «130»

INTEGRATION

UNIVERSAL ISS

User manual / Manuel d’utilisation

English page 2

Français page 8

130.com.ua

Autogood products «130»

INTEGRATION UNIVERSAL ISS

User manual

Thank you for choosing Focal and for sharing our passion for the “Spirit of Sound”. Designed using the latest

technology, these speakers integrate Focal’s perfectionist believes, developing products with high power handling,

and unrivalled sound quality. To obtain the best results from this product, we recommend that you follow carefully

all the information contained in this user’s manual. If not correctly followed, any fault observed may not be covered

by the guarantee.

Warning

Continuous listening at high sound level (above 110dB) can durably damage your hearing. Listening above 130dB can

damage your hearing permanently.

Important recommendations

Before attempting any installation work, it is very important to check how much space is available to fit the speakers

into the vehicle.

Key points:

• Ensure the speaker is clean from debris and metallic particles that maybe attached (especially after drilling).

• Clean before mounting the speakers.

The Focal guarantee only applies if the enclosed guarantee card

is returned to us within 10 days of purchase.

English version

130.com.ua

Autogood products «130»

INTEGRATION UNIVERSAL ISS

User manual 3

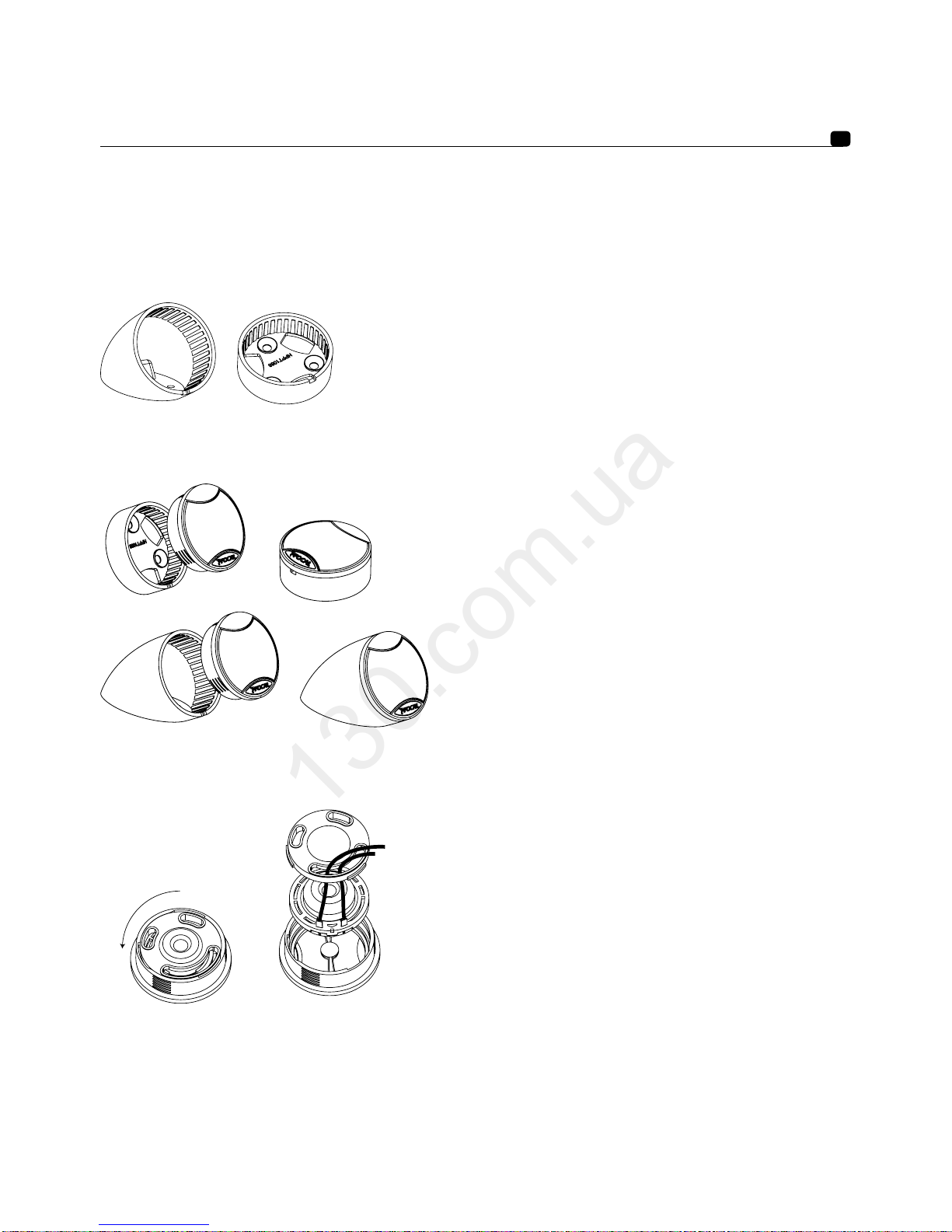

Tweeter

1/ Tweeter accessories.

2/ Assembling the tweeters to the mounts.

3/ Tweeter assembly in original space.

Remove the tweeter to adapt it to the original space.

Handle with care: do not touch the aluminum dome and not to let it come into contact with the rear of the car’s

original grill.

unlocked

NB: "+" is the wire with red line

130.com.ua

Autogood products «130»

INTEGRATION UNIVERSAL ISS

User manual 4

4/ Connecting the tweeters.

5/ Connecting the tweeters with crossover connector.

When installing on a demonstration display, connect the “display” wire.

When installing in a vehicle: connect the "car"wire.

The unmarked wire is "-" wire with both connection options.

Warning: the tweeter crossover is integrated into the connector. Ensure correct wiring thanks to the cable plugs

(tweeter/crossover connector) in order to ensure optimal performance of this Integration kit.

integrated crossover

NB: "+" is the wire with red line

130.com.ua

Autogood products «130»

INTEGRATION UNIVERSAL ISS

User manual 5

1/ Mounting the ISS 130 / 165 / 170 / 200 woofer in original space.

2/ Mounting the ISS 570 / 690 woofer in original space.

Woofer ISS

These separate 2-way “elliptic” kits can be fitted into the following car models Toyota®, Jeep®, Dodge®, Ford®.

Warning: in some of cases, you will need to use dedicated spacers to the vehicule.

130.com.ua

Autogood products «130»

INTEGRATION UNIVERSAL ISS

User manual 6

4/ View of the full installation in the vehicle.

3/ Rear view of the terminal block (marked “+” and “-”).

130.com.ua

Autogood products «130»

INTEGRATION UNIVERSAL ISS

User manual 7

ISS 165 / 200 / 570 / 690 installation

Mounting the woofer + connector (supplied with the kit)

integrated crossover

The woofers in the ISS 165, ISS 200, ISS 570 and ISS 690 kits are equipped with a crossover integrated into the

connector (for a more compact basket and one which is easy to install in original locations).

Make sure ONLY these connectors (supplied with the kit) are used.

Conditions de garantie

All Focal loudspeakers are covered by guarantee drawn up by the official Focal distributor in your country.

Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to

that granted by the legal guarantee in force in the country where the original purchase invoice was issued.

Your Focal-JMlab product was developed and manufactured with high-quality materials and components

which can be recycled and/or re-used. This symbol indicates that electrical and electronic equipment

must be disposed of separately from normal garbage at the end of its operational lifetime.Please dispose

of this product by bringing it to your local collection point or recycling centre for such equipment. This will

help to protect the environment in which we all live.

NB: "+" is the wire with red line

130.com.ua

Autogood products «130»

INTEGRATION UNIVERSAL ISS

Manuel d'installation

Nous vous remercions d’avoir choisi les kits Intégration Séparés et de partager avec nous notre philosophie "the

Spirit of Sound". Ces haut-parleurs de haute technicité intègrent les ultimes perfectionnements Focal en matière

de conception de haut-parleurs pour l’obtention d’un son puissant et de très haute qualité. Afin d’exploiter toutes

leurs performances, nous vous conseillons de lire ce livret, puis de le conserver avec précaution pour pouvoir vous

y référer ultérieurement. Tout problème dû au non-respect des règles d’utilisation peut entraîner l’invalidation

de la garantie.

Avertissement

L’écoute prolongée à fort niveau au-delà de 110 dB peut détériorer durablement l’audition. Des écoutes même

brèves à plus de 130 dB peuvent provoquer des lésions auditives irrémédiables.

Pour validation de la garantie Focal,

merci de nous retourner la garantie jointe dans les 10 jours.

Recommandations importantes

Avant tout, vérifiez l’espace disponible pour l’encastrement des haut-parleurs (se reporter aux plans sur l’emballage)

puis procédez aux découpes. Dans le cas d’un montage en emplacement d’origine, vérifiez qu’il y ait un espace

suffisant entre le haut-parleur et la grille de protection.

• Tenir les haut-parleurs à l’écart des copeaux métalliques et des poussières.

• Procédez à un nettoyage soigneux avant de monter les haut-parleurs.

Version française
