Focal POLYGLASS MULTI SPEAKER User manual

Français page 7

THE FOCAL GUARANTEE ONLY APPLIES IF PAGE 15 IS

RETURNED TO US WITHIN 1 DAYS OF PURCHASE.

POLYGLASS MULTI SPEAKER

User Manual

Due to constant technological advances, Focal reserves its right to modify specifications without notice. Images may not conform exactly to specific product.

Focal® is a trademark of Focal-JMlab® - BP 374 - 108, rue de l'Avenir - 42353 La Talaudière

cedex - France - Tel. (+33) 04 77 43 57 00 - Fax (+33) 04 77 43 57 04 - www.focal-fr.com

Congratulations on choosing Focal automobile speakers.

Focal speakers remain high quality products, due to the multitude of advanced

materials used. Detailed research and development in the laboratory, from

dedicated engineers and technicians, played a major role in producing such high

performing products.

To gain the best results from your speakers, please ensure you follow these

recommendations. If not followed correctly any fault observed, may not be

covered by the guarantee.

Technical advances, included in the

Polyglass range

• Woofer and midrange membrane cones,

made using Polyglass material.

• TN47 tweeter using Focals renowned inverted

dome technology, with added Titanium Tio id

5 surface treatment.

• Separate crossover, fully optimised with

ad-justable level control. High quality

components used throughout.

• Strong rigid chassis made from Zamak alloy.

• Motor unit constructed using neodymium

magnet, to be ultra compact, for easy

installation (Slim series).

• Membrane suspension in Butyl, for long live.

Included

• 2 woofer / midrange

• 2 TN47 tweeters

• 2 gaskets (2 way)

• 2 crossovers

• fi ing screws

notice polyglass 2.indd 1notice polyglass 2.indd 1 27/04/07 9:56:1427/04/07 9:56:14

POLYGLASS MULTI SPEAKER

User Manual 2

Important recommendations

Before attempting any installation work, it is very important to verify how much space is

available to fit the speakers into the vehicle.

Key points:

• For direct replacement of original speakers, please check there is enough space for your

new Focal speakers and grilles.

• Ensure the speaker is clean from debris and metallic particles that maybe attached (especially

after drilling).

• Use the foam gasket supplied (inside the grille), for airtight placement of the speaker into

the panel.

Choice of installation and positioning the tweeter

To achieve best results for your installation, please follow these simple guidelines

• Use a variety of speakers to achieve a large bandwidth, the most central possible.

• Speakers positioned in the most forward location possible, for correct staging.

• Mids and tweeters positioned preferably high in the doors or in the dash (if space

permitting), to obtain un-muddled high and midrange frequencies. These being directive

to the listener.

• To position the tweeters direct in-line to the listeners ears, for improved imaging.

Preferred woofer and

mid-range positions. 3 x preferred tweeter

positions

notice polyglass 2.indd 2notice polyglass 2.indd 2 27/04/07 9:56:1527/04/07 9:56:15

POLYGLASS MULTI SPEAKER

User Manual 3

Cables and connections

• For best results with your Polyglass speakers, we recommend you include the use of

Focal cables.

• Alternatively, other high quality cable can be used, if sufficient section thickness is available

(minimum thickness = 1mm2). This is particularly important for long lengths of cable to

ensure a strong efficient signal is maintained.

• Always ensure the polarity is respected, (+ is connected to +) and (- is connected to -).

• Maintain correct connections, from principal source radio / amplifier (left / right / front and

rear), and crossover to speakers (tweeter to tweeter), (mid to mid)*, (woofer to woofer), is

always observed.

* For the 3 way models 165V3E and 270V3, the midrange is not shown.

Right Output

Left Output

Woofer

Tweeter

Woofer

Input

Input Tweeter

Fitting the tweeter

There are two mounting possibilities available:

surface or flush mount. The TN47 arrives supplied

in its flush-mounting pod. Very carefully, remove the

grille, by gently prizing it off (using a pointed tool),

then use the unlocking tool provided to turn the

tweeter and to remove it of its seating.

Surface mounting: Choose the angle that best

suits your installation (10° or 30°) and mount the

pod firmly using the screws supplied. Feed the wire

through the hole in the pod and re-fit the tweeter and

grille in place.

Flush mounting: Cut a neat 40mm diameter hole in

the panel where you want to place the tweeter. Then with the metal mounting strip held from

behind (ensuring the ends are pointing towards the hole), insert the screw through the flush-

mount pod from the front and tighten the two parts together. Feed the wire through the hole

in the pod and re-fit the tweeter and grille in place.

Grille

Unlocking tool

Tweeter

Pod

Mounting strip

notice polyglass 2.indd 3notice polyglass 2.indd 3 27/04/07 9:56:1627/04/07 9:56:16

POLYGLASS MULTI SPEAKER

User Manual 4

Fitting the crossover

Locate the crossovers in a dry, preferably ventilated area,

using either the screws supplied or double-sided tape.

To open the bo , squeeze the middle on the side, and

remove the cover.

In some cases, depending on your installation and the space

available, it maybe easier to route the cables and connect to

the crossover, before securing the crossover to the vehicle.

Please check before.

Level adjustment of tweeter and midrange

The toggle switch found inside the crossover, allows the

user to adjust the tweeter level (and mid-range level for 130V2 and 165V2). This user-friendly

option allows effective adjustments to be made, to your own personal listening pleasure, plus

optimising the infinite amount of speaker installation locations available.

This allows the system to be “tailor made” to your vehicle, effectively ensuring the best acoustics

are possible. Remember too much treble and your system may sound aggressive, thus suffer a

lose of dynamics, resulting in poor definition.

“FULL” position for adjustment of the midrange (130V2 and 165V2), if the speakers are

positioned low in the vehicle (low in door or kick-panels).

Level of “FULL” position 0 or -3dB, if the tweeter is located very close to woofer-midrange.

Level of “FULL” position -3dB or -6dB, if the tweeter is located high in the vehicle (in the dash

or high in the doors) with the woofer positioned comparatively low.

Mid-range level adjustment

“FULL” and “FILTER”

(for 130V2 and 165V2)

Tweeter level adjustment

0, –3dB and -6dB

notice polyglass 2.indd 4notice polyglass 2.indd 4 27/04/07 9:56:1627/04/07 9:56:16

POLYGLASS MULTI SPEAKER

User Manual 5

Specifications

How can you improve the sound quality of your speakers?

Easy. To improve the sound quality of your speakers notably those installed into the doors,

Focal has the answer.

Known as “Plain-Chant”, this material acts as a sound absorber, to effectively reduce unwanted

resonances and ensure your speakers produce a more full sound. No-fuss installation ensures

this accessory, proves to be a real asset for your Focal speakers / installation. Consult your

Focal retailer for further information / advise.

100 V Slim 130 V2 130 V Slim 160 V2 165 V2 165 V Slim 165 V3E 270 V3

Type 2 way 2 way 2 way 2 way 2 way 2 way 3 way

(inc. neo

mid-range) 3 way

Impedance 4 ohms 4 ohms 4 ohms 4 ohms 4 ohms 4 ohms 4 ohms 4 ohms

Maximum

power 80W 120W 100W 100W 150W 120W 160W 300W

Nominal

power 40W 60W 50W 50W 75W 60W 80W 150W

Sensitivity

(dB / 2.83V

/ 1m)

91dB 92dB 91dB 91dB 93dB 93dB 93dB 94dB

Frequency

response

90Hz-

20kHz

70Hz-

20kHz

80Hz-

20kHz

75Hz-

20kHz

60Hz-

20kHz

70Hz-

20kHz

55Hz-

20kHz

40Hz-

20kHz

Fitting

diameter 93mm 115mm 115mm 125.5mm 141mm 141mm 141 +

93mm

232 +

115mm

Mounting

Depth 39.5mm 60.75 mm 48.50mm 55mm 68mm 56mm 68 +

39.5mm

112 + 60.75

notice polyglass 2.indd 5notice polyglass 2.indd 5 27/04/07 9:56:1627/04/07 9:56:16

What power for your amplifier?

Polyglass speakers are already highly efficient, with improved sensitivity. Therefore, their use

with a high power head unit will provide comfortable listening pleasure.

However used in a more high-end system, with separate amplification, the audio quality

will be greatly improved. It is very important that the nominal power of amplifiers remains

the same as the speakers' nominal power. Otherwise your speakers may distort, or possible

damage could occur.

Always consult the owners manual of the principal source (head unit/amplifier), to ensure the

power rating is compatible. A safe guide is to ensure that the ma imum power of the amplifier

is not greater than the nominal power of the speakers.

Installation upgrade (with the help of a subwoofer)

If you want your system to have bass, with real punch and power, we recommend the inclusion

of a subwoofer. This will greatly improve your listening pleasure and give your system, some

real physical dimension.

Focal has therefore developed a range of subwoofer drivers and complete subwoofer systems

to add to your Polyglass speakers.

Consult your local dealer, or check out these e citing products on the Focal Internet site:

www.focal-fr.com.

Guarantee

All Focal loudspeakers are covered by guarantee drawn up by the official Focal distributor in

your country.

Your distributor can provide all details concerning the conditions of guarantee. Guarantee

cover e tends at least to that granted by the legal guarantee in force in the country where the

original purchase invoice was issued.

In addition to Car hi-fi systems, Focal offers personalized solutions for the equipment of your

house. Enjoy at home the hi-fi and home cinema sensations provided by the Focal sound.

Four product lines by the French leading loudspeaker manufacturer, are at your disposal to

share with you our passion : the Spirit of Sound / www.focal-fr.com.

POLYGLASS MULTI SPEAKER

User Manual 6

notice polyglass 2.indd 6notice polyglass 2.indd 6 27/04/07 9:56:1627/04/07 9:56:16

POLYGLASS MULTIVOIES

Manuel Utilisateur

POUR VALIDATION DE LA GARANTIE FOCAL, MERCI DE

NOUS RETOURNER LA PAGE 13 DANS LES 1 JOURS

Dans un but d'évolution, Focal- MLab se réserve le droit de modifier les spécifications techniques de ses produits sans préavis. Images non contractuelles.

Focal® est une marque de Focal-JMlab® - BP 374 - 108, rue de l'Avenir - 42353 La Talaudière

cedex - France - Tel. (+33) 04 77 43 57 00 - Fax (+33) 04 77 43 57 04 - www.focal-fr.com

Nous vous remercions d’avoir choisi Focal.

Les haut-parleurs Focal sont des produits de haute technologie, conçus pour

fournir des performances élevées, constantes dans le temps.

Aussi, afin de tirer le meilleur parti de vos haut-parleurs, nous vous recommandons

de lire attentivement cette notice. Tout problème dû à un non respect des règles

d’utilisation peut entraîner l’invalidation de la garantie.

Les technologies Focal - Ligne Polyglass

• Membrane de haut-parleurs graves et

médiums en Polyglass.

• Tweeter à dôme inversé orientable TN47,

avec membrane titane traitée Tio id 5.

• Filtres séparés optimisé avec réglage de

niveau, composants de haute-qualité.

• Saladiers en Zamak.

• Aimant Néodyme ultra-compact (série Slim).

• Suspension Butyle longue durée.

Contenu de l'emballage

• 2 haut-parleurs grave-médiums

• 2 tweeters, 2 grilles avec supports

• 2 joints

• 2 filtres

• vis de fi ation

notice polyglass 2.indd 7notice polyglass 2.indd 7 27/04/07 9:56:1727/04/07 9:56:17

POLYGLASS MULTIVOIES

Manuel Utilisateur 8

Recommandations importantes

Avant tout, vérifiez l’espace disponible pour l’encastrement des haut-parleurs (se reporter au

plans sur l’emballage) puis procédez au découpes.

• Dans le cas d’un montage en emplacement d’origine, vérifiez qu’il y ait un espace suffisant

entre le haut-parleur et la grille de protection.

• Tenir les haut-parleurs à l’écart des copeau métalliques et des poussières. Procédez à un

nettoyage soigneu avant de les monter.

• Utilisez le joint d’étanchéité fourni dans la grille afin d’assurer une étanchéité parfaite.

Choix de l’emplacement et orientation du tweeter

Le résultat optimum sera obtenu en respectant quelques règles simples :

• L’image sonore la plus large et la plus centrée sera obtenue par un écartement ma imum des

haut-parleurs et par un positionnement le plus à l’avant possible.

• Les fréquences médiums et aigues seront favorisées par un emplacement en haut de portière

ou sur le tableau de bord, les fréquences graves sont peu directives et ne sont donc pas

déterminantes pour le choi de l’emplacement du haut-parleur.

• L’orientation des tweeters en direction des oreilles de l’auditeur permet d’optimiser l’image

sonore.

Positionnement possible

des haut-parleurs

de graves et médiums 3 positionnements possibles

des tweeters

notice polyglass 2.indd 8notice polyglass 2.indd 8 27/04/07 9:56:1727/04/07 9:56:17

POLYGLASS MULTIVOIES

Manuel Utilisateur 9

Câblage et connexions

Afin de tirer le meilleur parti de vos haut-parleurs Polyglass, nous vous recommandons

d'utiliser des câbles Focal. A défaut, un câble de qualité et de section suffisante (1 mm2

minimum) est recommandé, surtout si la distance entre l’amplificateur ou l’autoradio et les

haut-parleurs est importante.

Veillez à respecter la polarité des branchements (+ sur +, etc.) et la convenable orientation des

câbles vers ampli, grave, médium ou tweeter (pour les modèles 3 voies 165 V3E et 270 V3,

le haut-parleur médium n'est pas représenté).

Sortie droite

Sortie gauche

Woofer

Tweeter

Woofer

Input

Input Tweeter

Installation du tweeter

Il e iste deu possibilités de montage : montage en

surface et montage encastré.

Pour installer le tweeter, vous devez le sortir de son

support : retirez la grille en la tirant à l’aide d’un

objet pointu puis utilisez l’outil fourni pour faire

tourner le tweeter et le dégager de son logement.

Montage en surface : choisir l’inclinaison (10°

ou 30°), fi er le support avec les vis fournies, passer

les fils puis bloquer le tweeter en le faisant pivoter.

Remettre la grille.

Montage encastré : découper un trou de 45 mm de diamètre, installer la barrette avec la

vis fournie sur le support. Insérer le support et la barrette puis visser afin que la barrette vienne

pincer le support. Passer les fils et bloquer le tweeter en le faisant pivoter. Remettre la grille.

Grille

Outil de déblocage

Tweeter

Support

Patte de ﬁxation

notice polyglass 2.indd 9notice polyglass 2.indd 9 27/04/07 9:56:1727/04/07 9:56:17

POLYGLASS MULTIVOIES

Manuel Utilisateur 10

Fixation des filtres

Les filtres doivent être fi és (vis fournies ou double face)

dans un endroit sec et aéré de préférence. Pour ouvrir le

boîtier, appuyer suivant les flèches du schéma ci-contre.

Si les filtres sont peu accessibles, procédez au câblage et

au réglages avant la fi ation définitive.

Réglage de niveau du tweeter

Le commutateur placé à l’intérieur du filtre permet d’ajuster le niveau du tweeter (et du

médium sur 130 V2 et 165 V2) en fonction de vos goûts et aussi de l’emplacement des haut-

parleurs dans votre habitacle, ceci afin d’avoir la meilleure restitution sonore possible. Trop

de niveau dans l’aigu donne un son agressif et un manque de niveau altère la définition et

la dynamique.

Pour le réglage du médium (130 V2 et 165 V2), vous avez intérêt à choisir la position "Full" si

les haut-parleurs sont en bas de portière (plus de niveau en position "Full").

Si le tweeter est installé très près du haut-parleur de grave-médium, le régler sur 0 ou sur -3

dB. Si le tweeter est installé sur le tableau de bord ou en haut de portière et le woofer dans la

portière, le régler sur -3 ou -6 dB.

Réglage de niveau

du médium

"Full" et "Filtré"

(sur 130 V2 et

165 V2)

Réglage de niveau

du tweeter :

0, -3 et -6 dB

notice polyglass 2.indd 10notice polyglass 2.indd 10 27/04/07 9:56:1727/04/07 9:56:17

Other manuals for POLYGLASS MULTI SPEAKER

This manual suits for next models

Table of contents

Languages:

Other Focal Speakers manuals

Focal

Focal Chorus 700 serie User manual

Focal

Focal INTEGRATION UNIVERSAL ISC User manual

Focal

Focal 300 SERIES User manual

Focal

Focal INTEGRATION PLUG&PLAY IS 165TOY User manual

Focal

Focal SOPRA 1 User manual

Focal

Focal CHORUS 700 V series User manual

Focal

Focal DIABLO UTOPIA COLOUR EVO User manual

Focal

Focal MAESTRO UTOPIA III EVO User manual

Focal

Focal SM9 User manual

Focal

Focal 800 V serie User manual

Focal

Focal 100 AC User manual

Focal

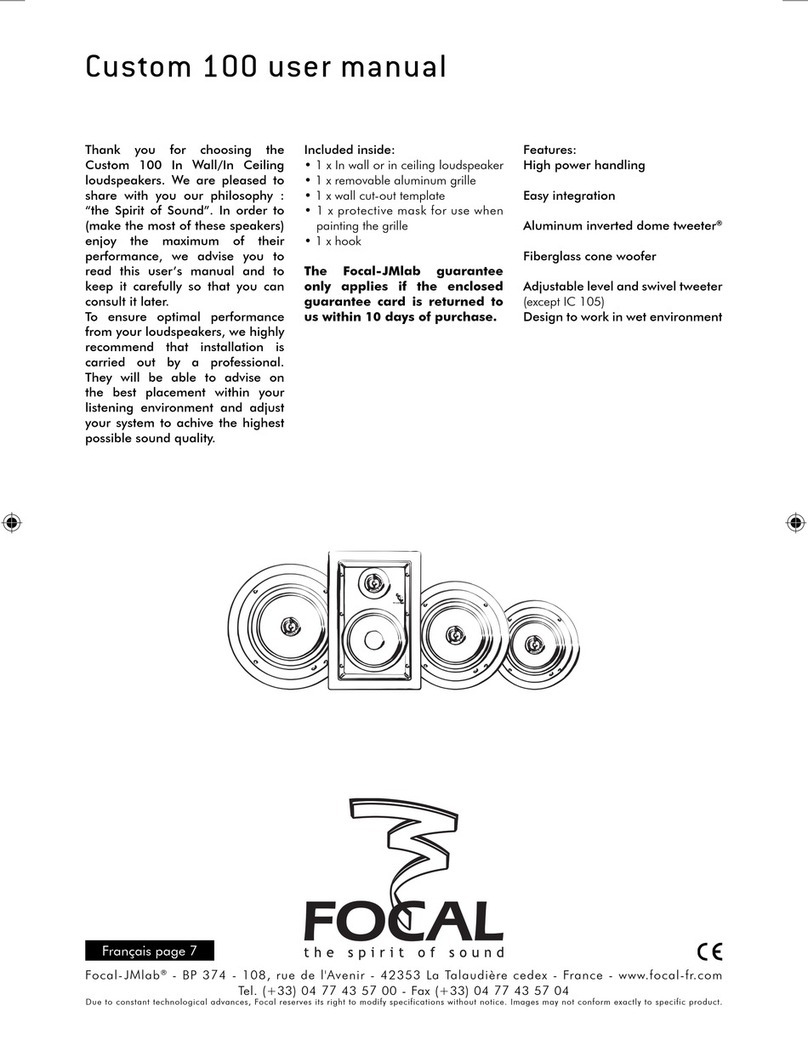

Focal CUSTOM 100 User manual

Focal

Focal Electra Beryllium 1000 Series User manual

Focal

Focal MICRO UTOPIA BE User manual

Focal

Focal TRIO6 Be User manual

Focal

Focal UNIVERSAL ISS 130 User manual

Focal

Focal SCU - STAND CENTER UTOPIA BE User manual

Focal

Focal ALTO UTOPIA BE User manual

Focal

Focal ELECTRA SW 1000 BE User manual

Focal

Focal ARIA K2 936 User manual

Focal

Focal Bird Stand User manual

Focal

Focal Electra Beryllium 1000 Series User manual

Focal

Focal BMW Series User manual

Focal

Focal ARIA 900 serie User manual

Popular Speakers manuals by other brands

argon audio

argon audio IE20 quick start

Denon

Denon SC-N7 owner's manual

Gemline

Gemline Ace 3952 user manual

HEADRUSH

HEADRUSH Maximus HRSP 5024 manual

SoundLogic

SoundLogic BCCS-6/6395 instruction manual

Peavey

Peavey DTH 218 Specification sheet

Avantree

Avantree Pluto Air user guide

Morel

Morel Integra Series INTEGRA OVATION 4 install guide

Oppo

Oppo SONICA quick start guide

Bose

Bose SoundLink Wireless Music System owner's guide

Rocksteady

Rocksteady Stadium owner's manual

Bowers & Wilkins

Bowers & Wilkins 4 owner's manual

Sonance

Sonance SONOS OUTDOOR Series installation manual

Electro-Voice

Electro-Voice EVID FM4.2 Brochure & specs

Pioneer

Pioneer XW-HTD630 manual

Onn

Onn BWA16AA002 Product guide

HP GL313AA - USB Speakers PC Multimedia quick start guide

Tannoy

Tannoy SYSTEM 600a user manual
