100 IWSUB8

Type Subwoofer passif

Haut-parleur Woofer 21 cm en Polyglass

Bande Passante (+/-3 dB) 34 - 140 Hz

Coupure basse (-6 dB) 30 Hz

Impédance nominale 8 Ώ

Puissance ampli recommandée Max 200 W / 4 Ώ

Dimensions (L x P x H) 352 x 98 x 1 300 mm

Dimensions d'encastrement (L x H) 352 x 1 300 mm

Profondeur d'encastrement 86 mm

Poids net 14,6 kg

100 IWSUB8

Type Passive subwoofer

Speakers 8" (21cm) Polyglass Woofer

Bandwith (+/-3dB) 34-140Hz

Cut-off frequency (-6dB) 30Hz

Nominal impedance 8Ώ

Recommended amp power Max 200W / 4Ώ

Dimensions (WxDxH) 137/8 x 37/ 8 x 513/16" (352 x 98 x 1,300mm)

Cut-out dimensions (WxH) 137/8 x 513/16" (352 x 1,300mm)

Depth from wall 33/8" (86mm)

Net weight 32.3lbs (14.6kg)

Manuel d’utilisation / User manual

READ FIRST !

IMPORTANT SAFETY INSTRUCTIONS ! GB

An exclamation mark in an equilateral triangle warns the user that the manual

contains important instructions on how to use and look after the device.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all the instructions.

5. Do not use this device near water.

6. Only clean with a dry cloth.

7. Do not obstruct ventilation

openings. Follow the manufacturer’s

instructions for installing the device.

8. Do not install the device close

to a heat source such as a radiator,

cooker, heat vents or any other

appliance (including ampliﬁers) that

gives out heat.

9. Only use accessories

recommended by the manufacturer.

10. Only use trolleys, stands, tripods,

mounts or tables recommended

by the manufacturer or sold with

the device. If using a trolley, take

extra care when moving the trolley

and device together, to prevent the

device from falling o and causing

injury.

11. All maintenance tasks should

be performed by a qualiﬁed

professional. Maintenance is required

in case of any kind of damage to

the device (damaged cable or plug,

spillages or objects inserted into

the device, exposure to rain or

humidity, if the device malfunctions

or overturns, etc.).

12. To avoid damaging your hearing,

do not listen to loudspeakers at

high volumes for long periods of

time. Listening to loudspeakers at

high volumes can cause damage

to the user’s ears and may lead to

hearing problems (temporary or

permanent deafness, buzzing in the

ears, tinnitus, hyperacusis). Exposure

to excessive volumes (over 85 dB)

for more than one hour can cause

irreparable damage to your hearing.

(CEI 60417-6044)

100 IWSUB8™

Thank you for choosing the 100 Series 100 IWSUB8 subwoofer and for sharing our 'Listen Beyond' philosophy.

To get the most out of this product, we recommend that you read the instructions in this booklet, then store

it in a safe place to refer to in the future.

The 100 IWSUB8 is a high-power bass-reflex passive subwoofer, designed to be flush-fitted into walls with pre-

constructed 16" (40.64cm) OC studs. The installation depth is only 86mm (33/8"). This subwoofer is designed

to be used with the 100 IWSUB8 Amplifier. You can connect up to two subwoofers in parallel.

Attention

Warning: this product requires installation inside the wall structure. We recommend using a professional

installer who will know how to install the product properly and will understand the various mechanical and

vibratory constraints to ensure the product works at its best for years to come. Contact your Focal-JMLab

retailer who will be able to advise you. Focal cannot be held responsible for any consequences due to poor

installation.

Package contents

• 1 x 100 IWSUB8 subwoofer

• 4 x fixing brackets

• 36 x 13/16" (30mm) screws (24 for the brackets, 12 for the frame)

• 1 x grille support frame

• 1 x metal grille with logo

• 12 x shock-absorbing foam strips

• 1 x cut-out template

• 1 x quick start manual

Key points

• Bass-reflex subwoofer with low cut-off at 30Hz.

• Shallow depth (33/8"/ 86mm), for installation in walls with 16” (40.64cm) OC studs.

• 8" (21cm) woofer made with Polyglass technology. Glass microbeads added to the cone surface to help

stiffen the structure.

• Moulded internal vent for noiseless running.

• Nominal impedance of 8 Ohms, to enable installation in pairs with 100 IWSUB8 Amplifier.

• Slim grille with magnetic fastening, ready to paint.

Warranty terms and conditions

In the event of a problem, please contact your Focal dealer.

The warranty for France on any Focal equipment is 2 years, non-transferable in the event of resale, from the

date of purchase. In the event of faulty equipment, you must send it in its original packaging and at your own

expense to the dealer, who will analyse the equipment and determine the nature of the fault. If it is under

warranty, the equipment will be returned to you or replaced ‘carriage paid’. Otherwise, you will be offered an

estimate for repair.

The warranty does not cover damage resulting from inappropriate use or incorrect connection.

Outside France, Focal equipment is covered by a warranty for which the terms and conditions are determined

locally by the official Focal distributor for each country, in accordance with the laws in force in the region in

question.

Our policy of continual product improvement means that Focal-JMlab reserves the right to modify the technical specifications

of its products without notice. Product may vary from images.

Please validate your Focal-JMlab warranty,

it is now possible to register your product online: www.focal.com/warranty

User manual English

100 IWSUB8™

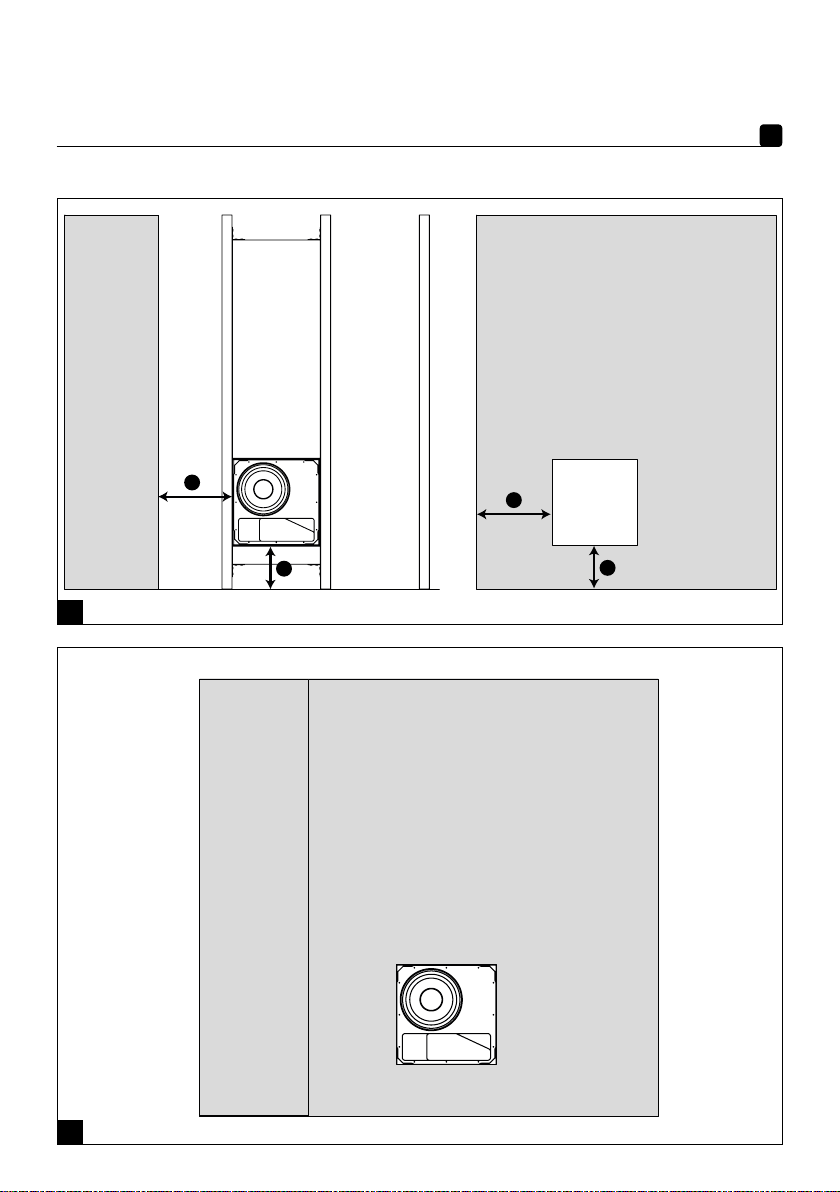

Positioning the subwoofer in the room

Unlike an acoustic loudspeaker that needs to be far enough away from the walls and corners of the room, we

recommend positioning the subwoofer in a corner. The resonances of the room will be stimulated in a more

linear, predictable way. Not only will this optimise bass perception, but this layout will also make it possible to

increase the bass level by + 6 dB.

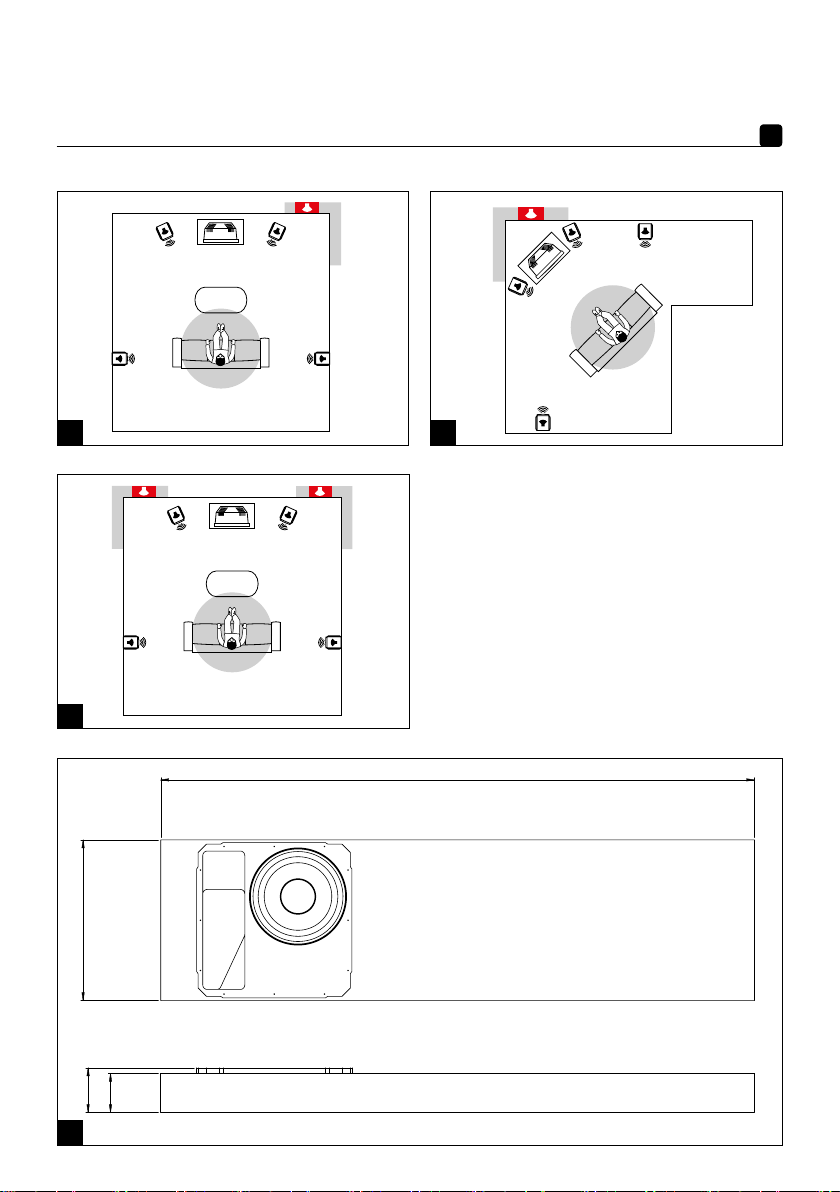

In general, make sure the subwoofer is positioned more towards the front of the room (fig. A and B). Since

the frequency bands are omnidirectional, in principal the bass should not be affected by an object or piece of

furniture placed between the subwoofer and the point of listening.

Using two subwoofers will provide more powerful playback and enable use in larger rooms (fig. C).

Pre-installation wiring

You can only install your subwoofer once you have wired it up. Make sure you leave enough cable length to

be able to connect your product with ease (approximately 1911/16" / 50cm). We recommend using a cable with

a marker to ensure the polarity of the speaker drivers is respected (+/-). Choose good quality cables with a

cross-section appropriate for their length: your dealer will be able to advise you.

Installation

1- Stick the foam strips onto the sides, the front panel and the back of the cabinet. (fig. E)

2- Decide where you want to position the product and attach the bottom brackets perfectly horizontally

onto the studs with 6 screws. (fig. E)

3- Position the cabinet on the brackets, slightly set-back from the studs by around 1/16" (1mm) and screw in

with 6 screws.

4- Fix the upper brackets onto the studs with 6 screws then secure the cabinet using another 6 screws. (fig.

5- Connect the cables to the terminal and check the subwoofer is working. (fig. E)

6- Mark the position of the subwoofer’s front panel with respect to the floor and the wall, then position the

template in the equivalent position on the partition, then finally cut the partition carefully. (fig. F)

7- Position the partition and check it fits properly around the subwoofer's front panel before attaching it to

the studs. (fig. G)

8- Position the grille support frame and fix with 12 screws. (fig. H)

9- Finally, place the grille onto its frame. (fig. I)

Painting

If you wish, you can paint the grille of your 100 IWSUB8 so that it is coordinated with your environment. We

recommend that you firstly remove the grille and paint it using a paint gun. The paint used can be the same

type as the paint used on the walls .

Amplification

This subwoofer is designed for optimum use with the 100 IWSUB8 Amplifier. You can connect up to two

subwoofers in parallel to this amplifier.

User manual

Focal-JMlab®- BP 374 - 108, rue de l'Avenir - 42353 La Talaudière cedex - France - www.focal.com

Tel. (+33) 04 77 43 57 00 - Fax (+33) 04 77 43 57 04 - SCAA-190214/1
