FLOS NOCTAMBULE F User manual

REV. 1

DATE 30/06/2021

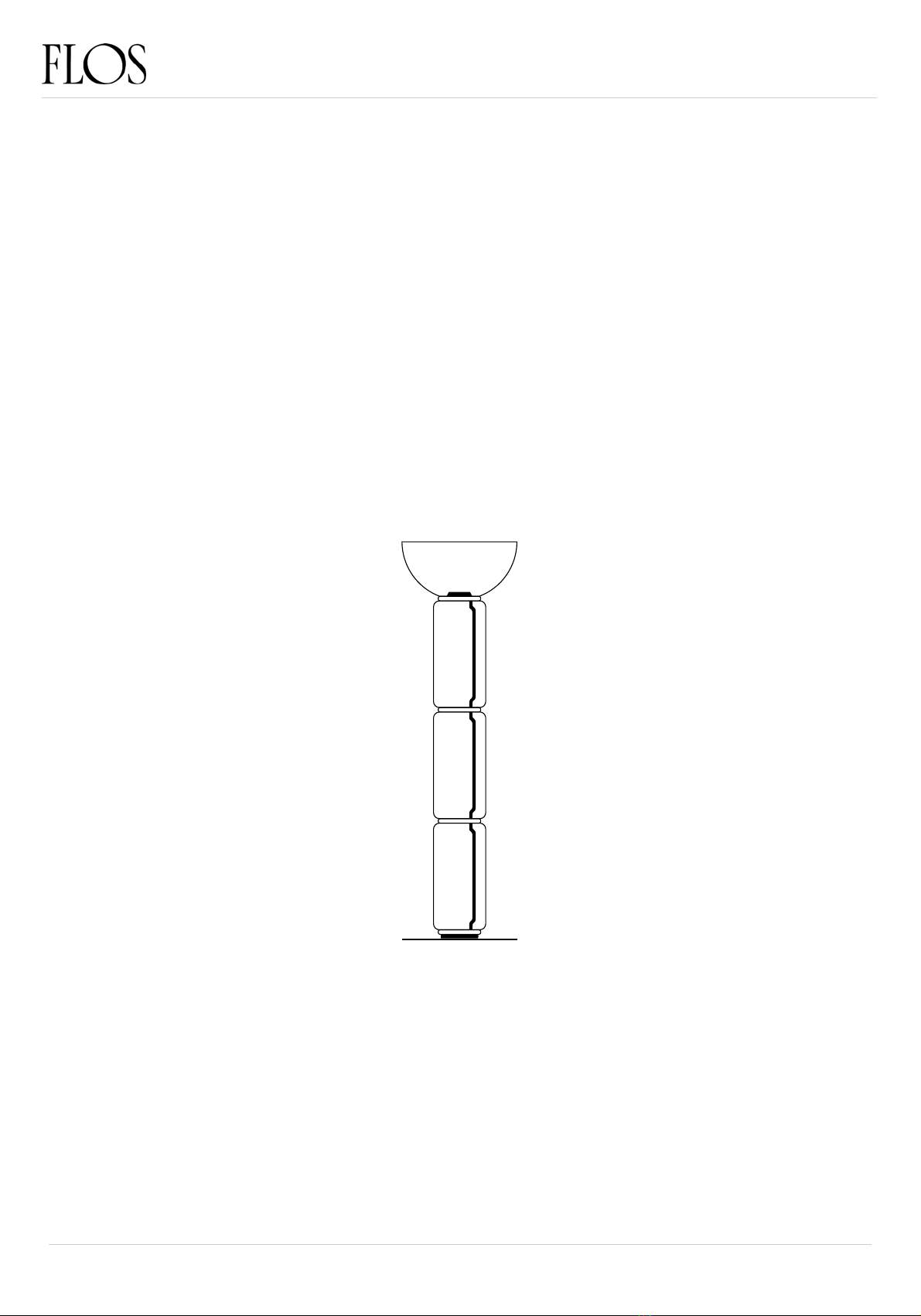

NOCTAMBULE F

F0266000

Flos reserves the right to introduce any changes to its own models, without prior notice.

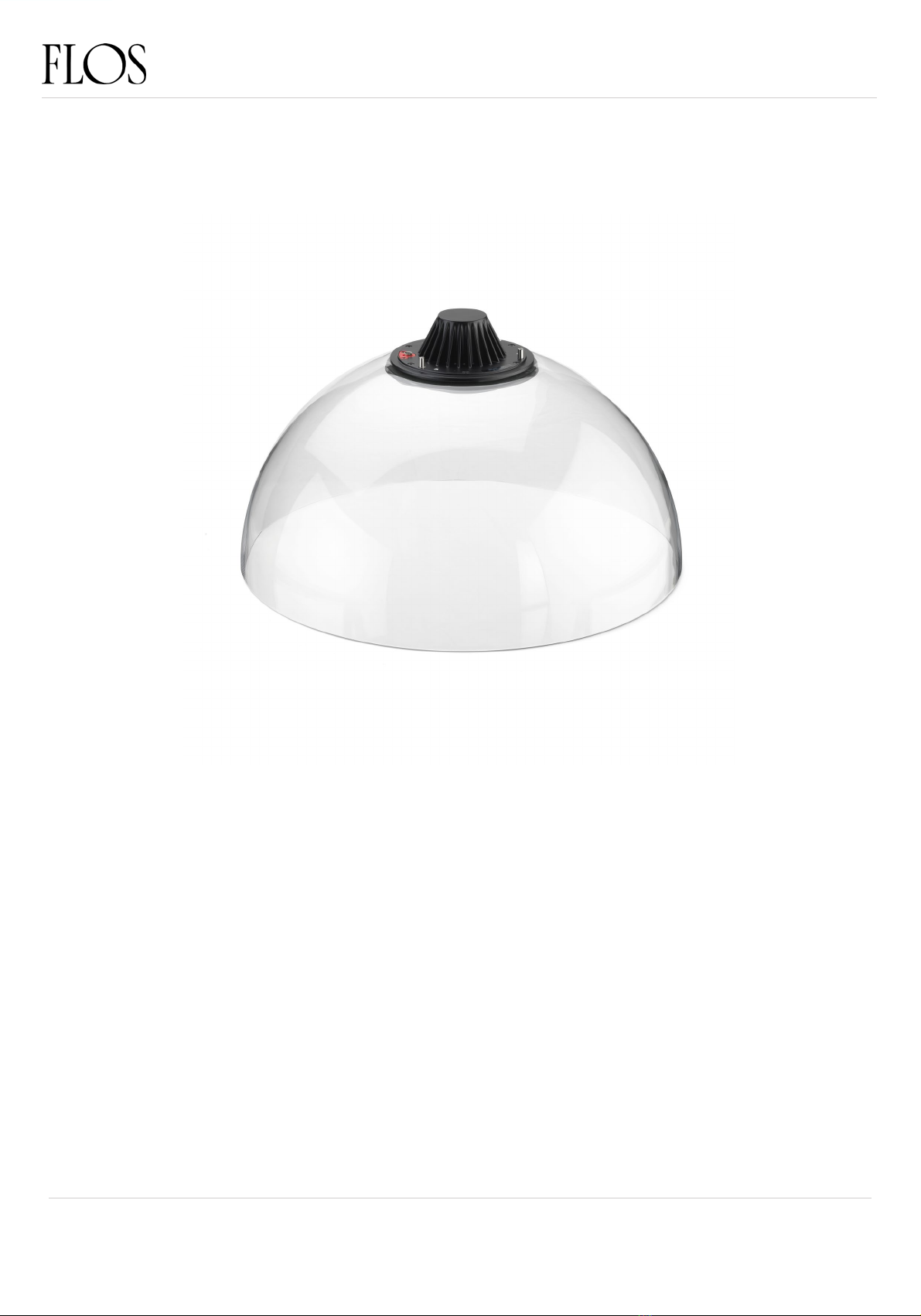

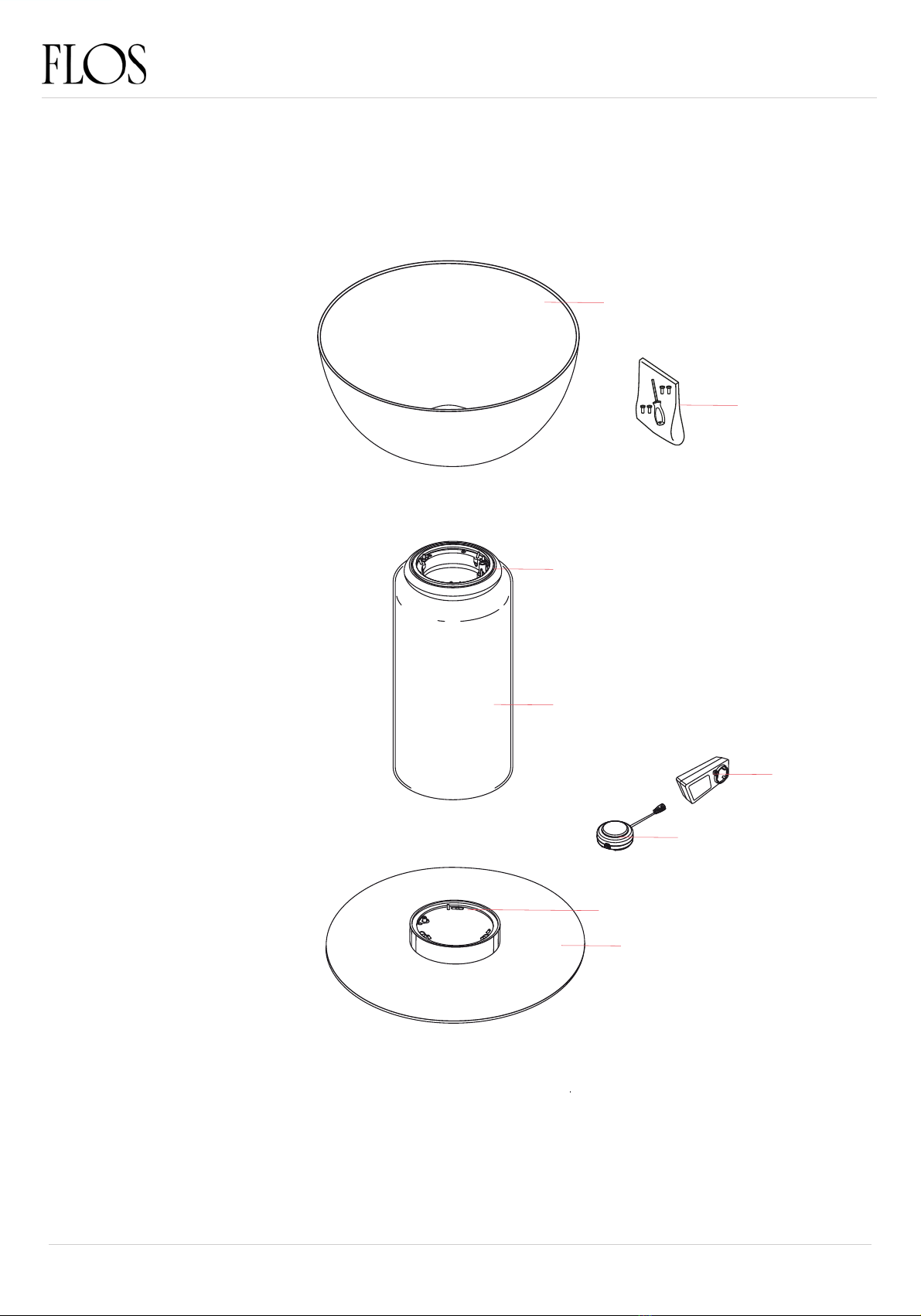

01. F0255000A –Bowl glass

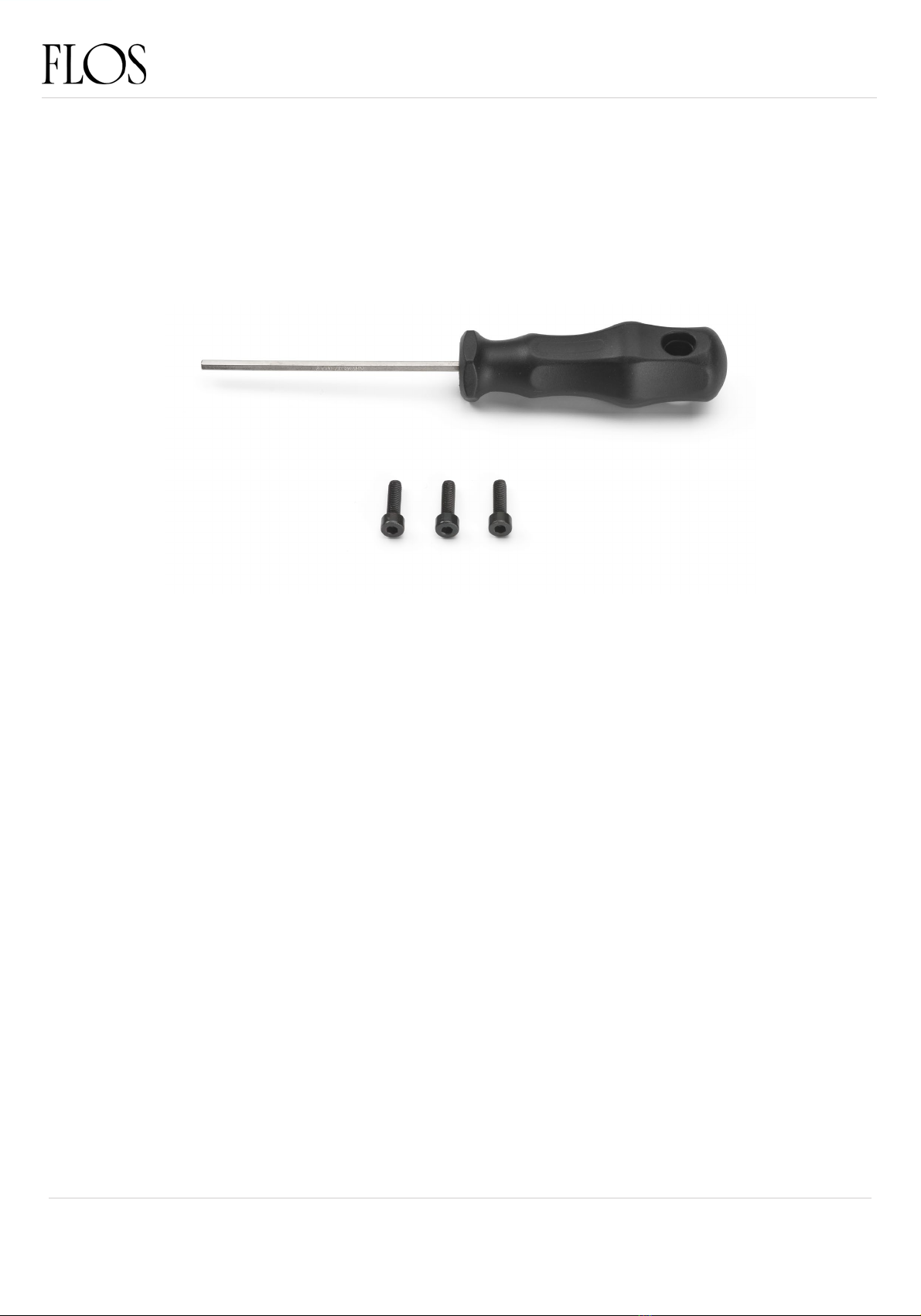

04. RF0254100 –Fixing screws kit

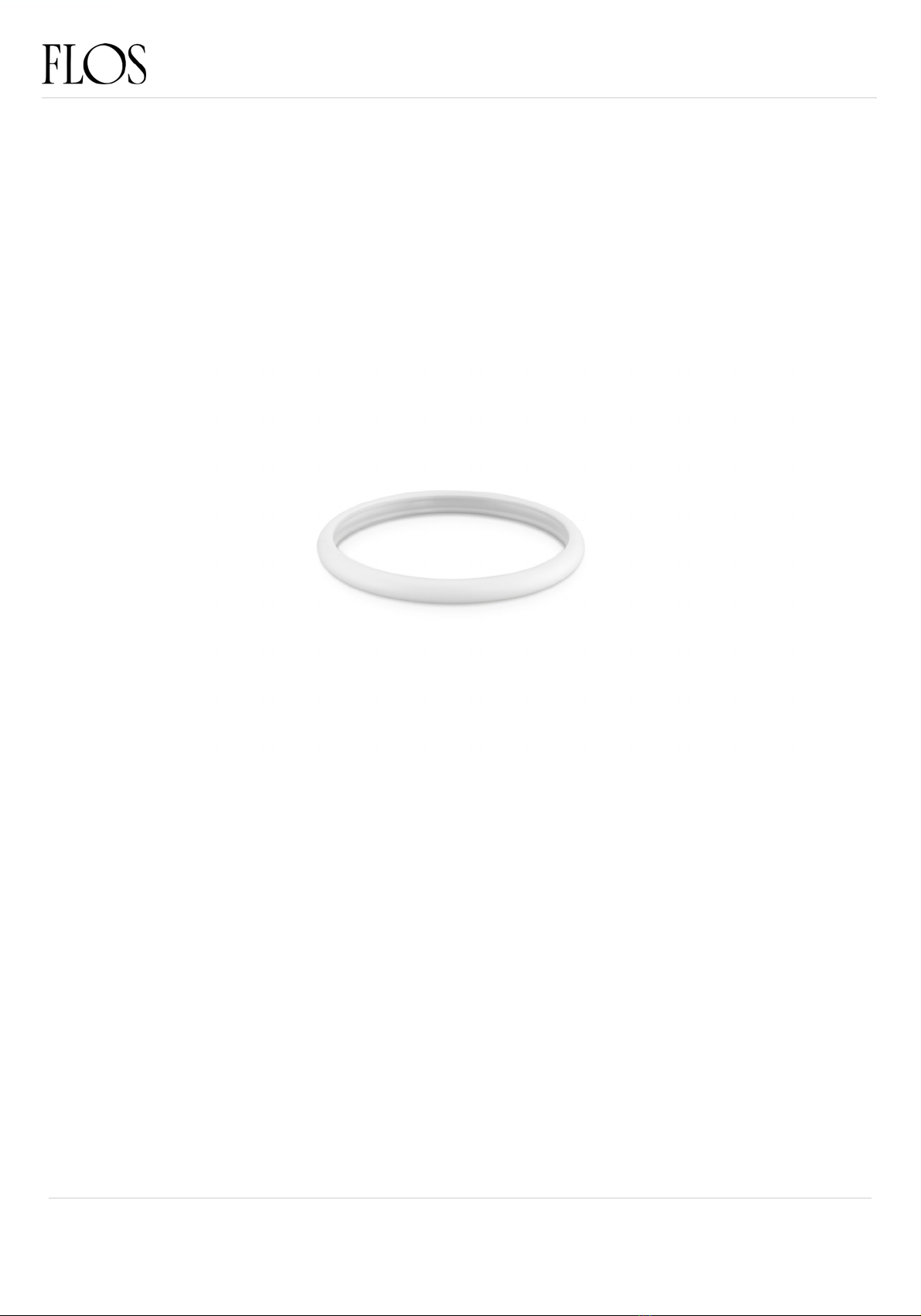

05. RF27498 –Ring led diffuser

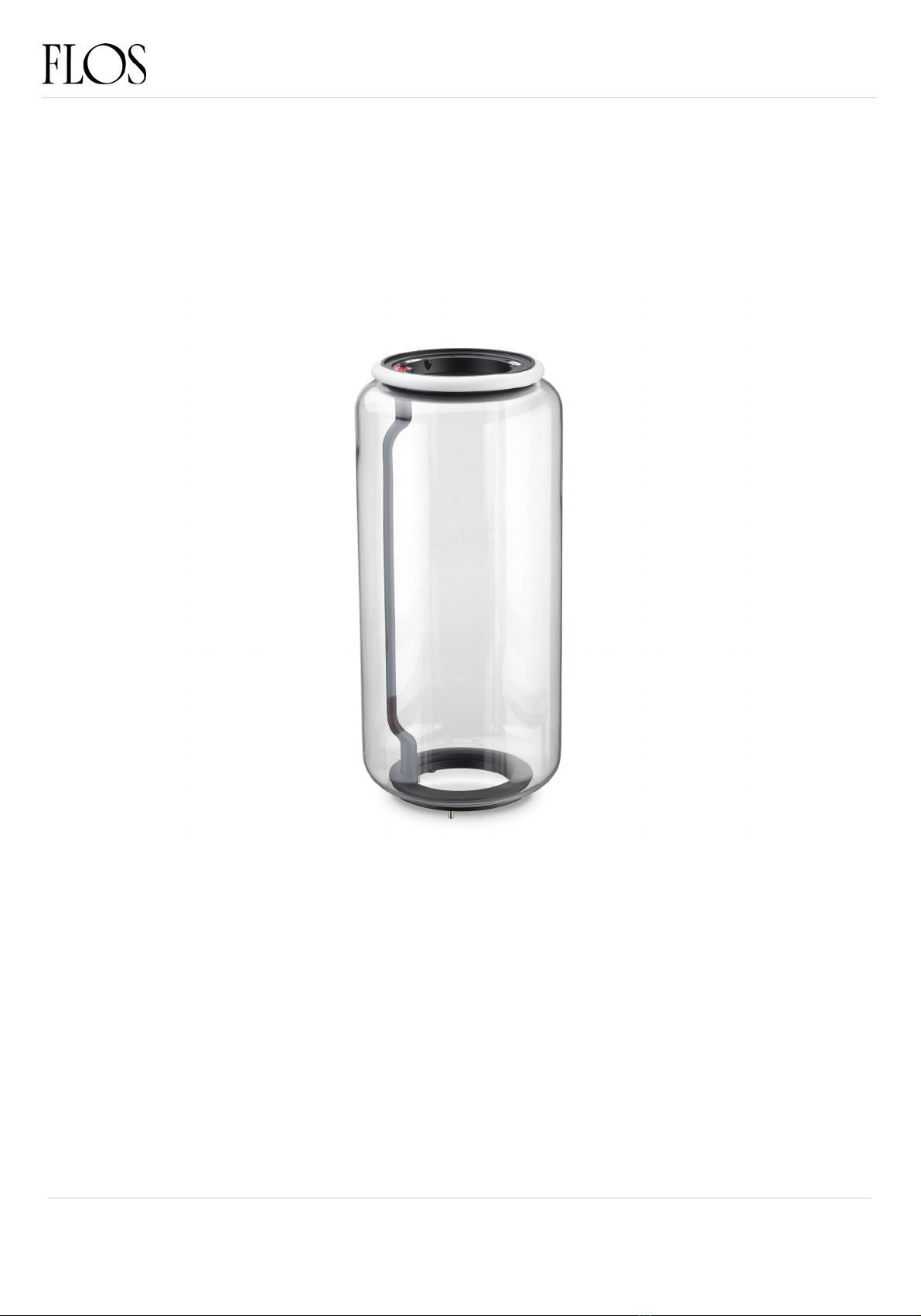

06. F0257000A –High cylinder

07. RF3320400 –Black plug kit & driver

08. RF27549 –Switch dimmer 48V PMW 500Hz

09. F0262030A –Big base

REV. 1

DATE 30/06/2021

NOCTAMBULE F

F0266000

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

REV. 1

DATE 30/06/2021

F0255000A

BOWL GLASS

NOCTAMBULE F F0266000

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Remove the base from the cylinder.

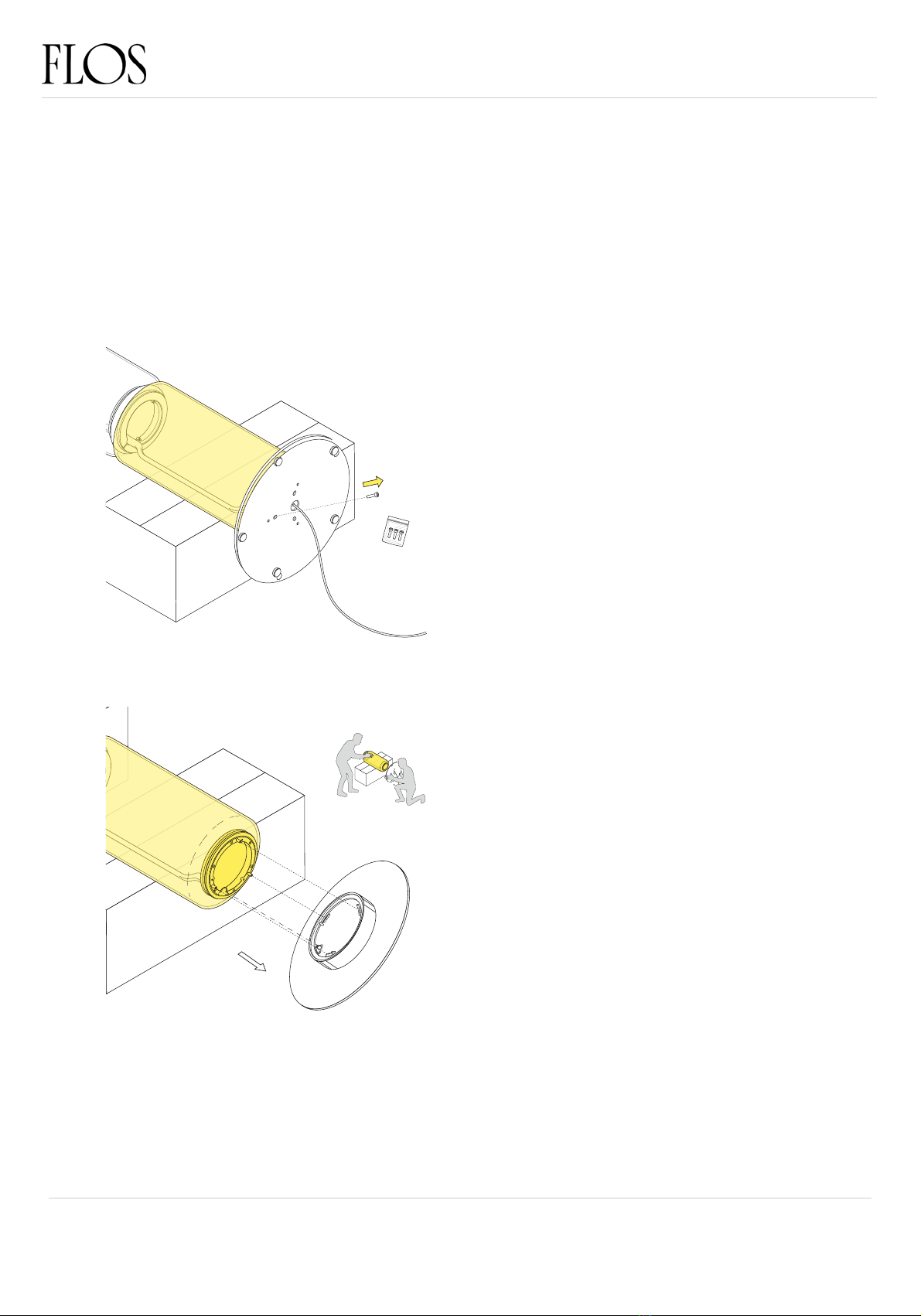

Fig.1

Fig.2

Disconnect the dimmer from the electrical cable.

Carefully place the lamp in a horizontal position by

resting it on the cylinder packages.

Unscrew the screws from the base.

REV. 1

DATE 30/06/2021

F0255000A

BOWL GLASS

NOCTAMBULE F F0266000

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Unscrew the screws from the cylinder (1-2).

Disconnect the cylinder from the other one (3).

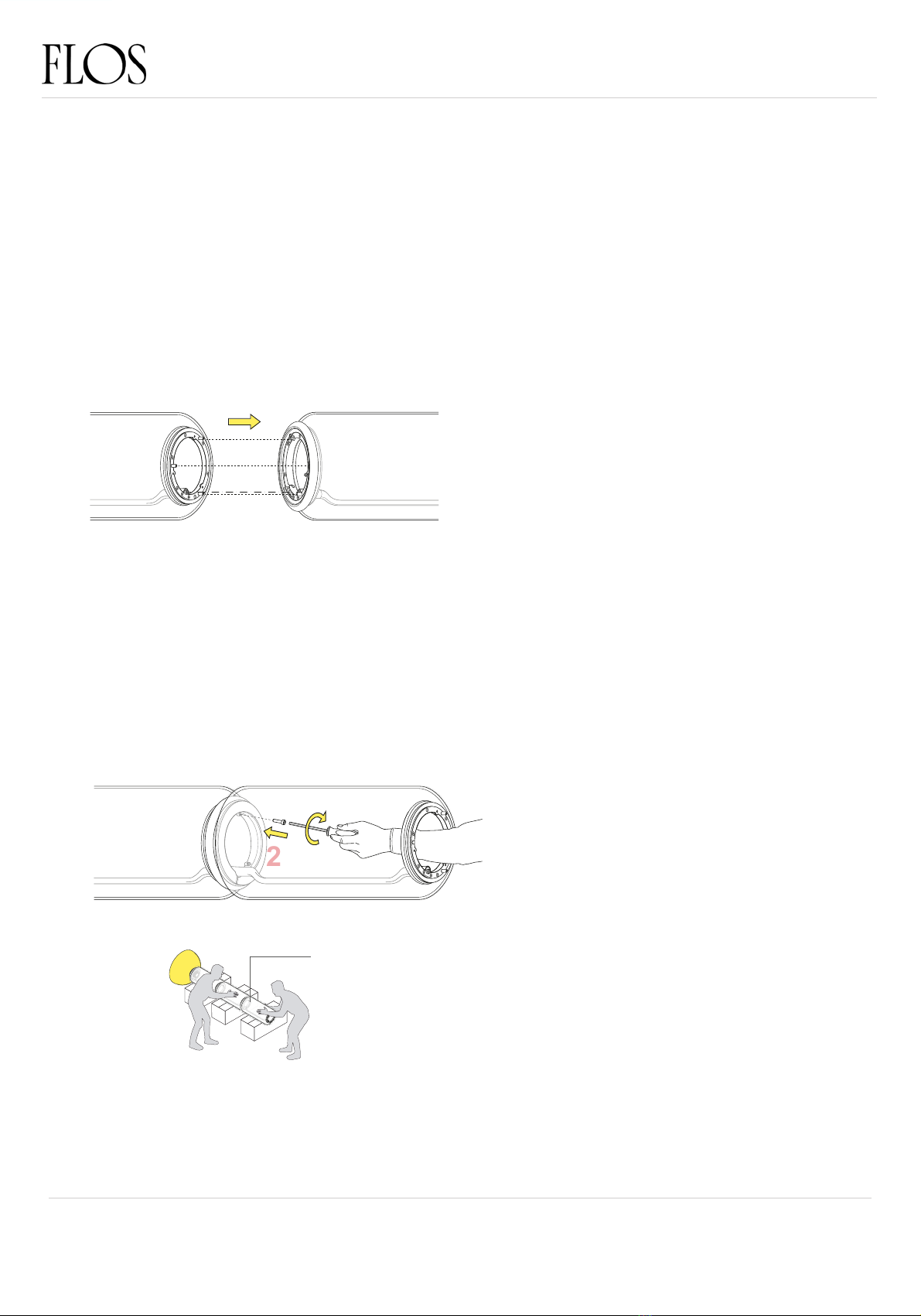

Fig.3

Fig.4

REV. 1

DATE 30/06/2021

x3 MAX

F0255000A

BOWL GLASS

NOCTAMBULE F F0266000

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

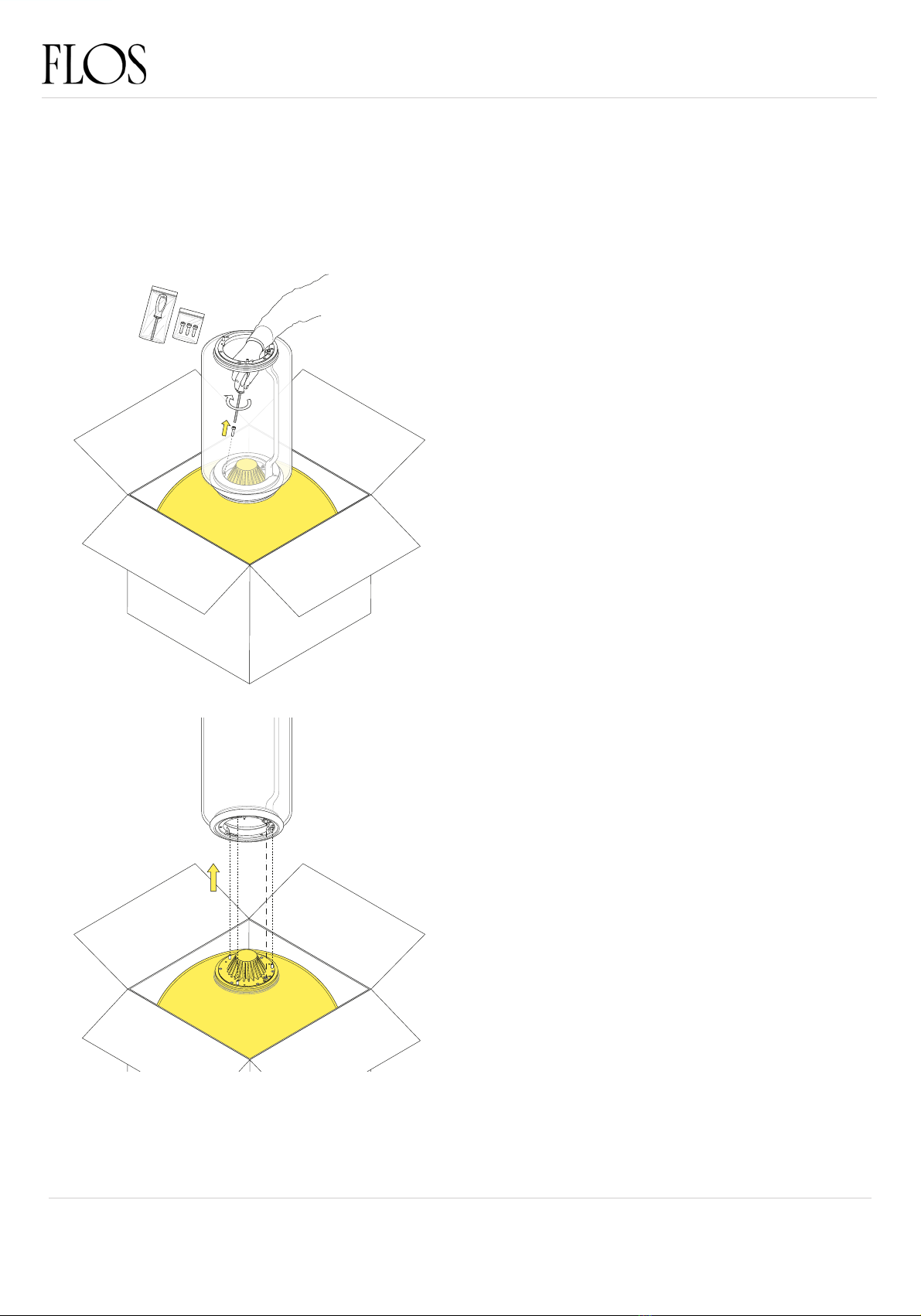

Disconnect the cylinder from the bowl (Fig. 4).

Remove the old bowl and place the new one.

Now Connect the cylinder to the new bowl.

Tighten the screws to the new bowl.

Carefully place the lamp in a horizontal position by

resting it on the cylinder packages.

Connect the cylinder to the other one.

Tighten the screws to the cylinder.

Connect the base to the cylinder.

Tighten the screws of the base

Connect the dimmer to the electrical cable.

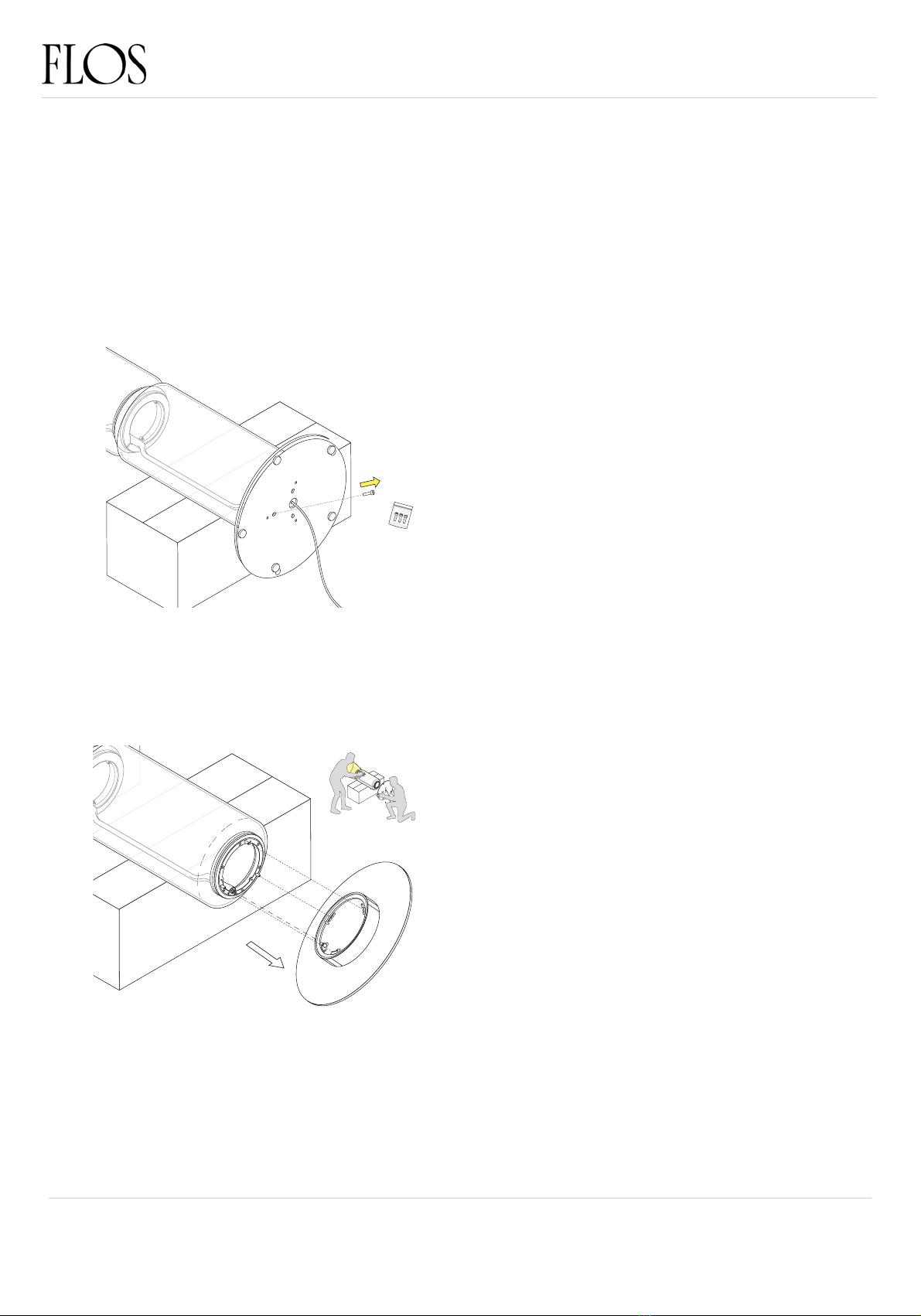

Fig.5

Fig.6

Carefully place the lamp in a vertical position.

Unscrew the screws from the bowl (Fig. 3).

REV. 1

DATE 30/06/2021

F0255000A

BOWL GLASS

NOCTAMBULE F F0266000

RF0254100

FIXING SCREWS KIT

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

REV. 1

DATE 30/06/2021

NOCTAMBULE F F0266000

RF27498

RING LED DIFFUSER

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

REV. 1

DATE 30/06/2021

NOCTAMBULE F F0266000

F0257000A

HIGH CYLINDER

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

REV. 1

DATE 30/06/2021

NOCTAMBULE F F0266000

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Remove the base from the cylinder.

Fig.1

Fig.2

Disconnect the dimmer from the electrical cable.

Carefully place the lamp in a horizontal position by

resting it on the cylinder packages.

Unscrew the screws from the base.

REV. 1

DATE 30/06/2021

F0257000A

HIGH CYLINDER

NOCTAMBULE F F0266000

Other manuals for NOCTAMBULE F

This manual suits for next models
