Fisher-Price N0459 User manual
N0459
N0459
www.fisher-price.com
www.fisher-price.comwww.fisher-price.com
Please keep this instruction sheet for future reference, as it contains important information.
Please keep this instruction sheet for future reference, as it contains important information.
Adult assembly is required.
Adult assembly is required.
Tool required for assembly: Phillips Screwdriver (not included).
Tool required for assembly: Phillips Screwdriver (not included).
Water or sand to fill base (not included).
Water or sand to fill base (not included).
IMPORTANT!
IMPORTANT!
Rim height should be adjusted
Rim height should be adjusted
only
only
by an adult.
by an adult.
N0459
Product features and decoration may vary from the photograph above.
Product features and decoration may vary from the photograph above.Product features and decoration may vary from the photograph above.
Please keep this instruction sheet for future reference, as it contains important information.
Adult assembly is required.
Tool required for assembly: Phillips Screwdriver (not included).
Water or sand to fill base (not included).
IMPORTANT! Rim height should be adjusted only by an adult.
2
Backboard
Lower PostUpper Post
Note: Label sheet not shown.
Assembled Parts
Hint: Some parts were placed inside the lower post for shipping.
Base
Net/Ring
Assembly
Rim
Sure Score™Rim
#6 x 1/2" Screw - 4
BOTH SHOWN ACTUAL SIZE
Note: Tighten all screws with a Phillips
screwdriver. Do not over-tighten the screws.
#8 x 3/4" Screw - 4
2
3
3
Proper label application will help to keep the label looking
its best!
• Carefully peel a label from the label sheet and attach it to
the backboard, as shown.
• Smooth out the label to remove any air bubbles.
• Repeat this procedure to apply the remaining labels to
the backboard.
Backboard
Assembly
• Place the loops at the top of the net into the grooves on
the ring.
• Pull each loop through a ring tab, as shown.
• Place the rim on a flat surface with the rectangular tabs
facing up.
• Locate the four holes in the underside of the net assembly.
Align the four holes in the underside of the net assembly with
the four holes in the rim.
• Place the net assembly onto the rim.
Ring
This product contains small parts
in its unassembled state.
Adult assembly is required.
CAUTION
1Label
Ring Tab
Rectangular
Tabs
Rim
Holes
Net Assembly
12
3
4
4
5
4
• While holding the ring assembly and rim together,
turn them over.
• Insert four #6 x 1/2"" screws into the holes in the rim, making
sure each hole in the rim is still aligned with each screw hole
in the net assembly.
• Partially tighten the screws. Turn the rim over to ensure that
the net loops are still in the grooves and through the ring
tabs. Now, tighten the screws.
Lower Post
Base
Assembly
• Insert and "snap" the lower post into the base.
7
6
8
5
Latch
• Attach the rim assembly and backboard to the upper post,
as shown.
• Flip down the latch on the lower post.
• Insert the upper post into the lower post.
Lower Post
Upper Post
Rim Assembly
Backboard
Assembly
• Insert four #8 x 3/4" screws into the holes on the back of the
backboard. Tighten the screws.
9
10
6
• Snap the Sure score™rim onto the rim assembly.
Rim Assembly
Assembly
IMPORTANT! Rim height should only be adjusted by an adult.
Also, make sure children are not standing below
the rim when adjusting the rim height.
Adjusting the Rim Height
• To lower the rim height: While holding the upper post, flip
the latch on the lower post down. Lower the upper post and
flip the latch into the groove to secure in place.
• To raise the rim height: Simply lift the upper post and flip
the latch into the groove to secure in place.
Lower Post
Upper Post
Latch
Groove
Sure Score™
Rim
• After assembly is complete, fill each base with water or
approximately 20 lbs of sand (water or sand not included) to
keep this product stationary. Simply lift the plug, fill the base
and then replace the plug.
Plug
7
• Remove the Sure score™rim to add more challenge!
Let's Play! Storage
• Push in the tabs on the bottom of the rim assembly to
remove the Sure score™rim.
• Store the Sure score™rim behind the backboard, as shown.
• Sure score™rim guides the ball to the basket.
Fisher Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A.
©2008 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc.
PRINTED IN MEXICO N0459pr-0920
Consumer Information
• This toy includes an inflatable ball. If the ball becomes soft,
inflate it with a standard, hand-operated air pump with a
standard air needle (both not included).

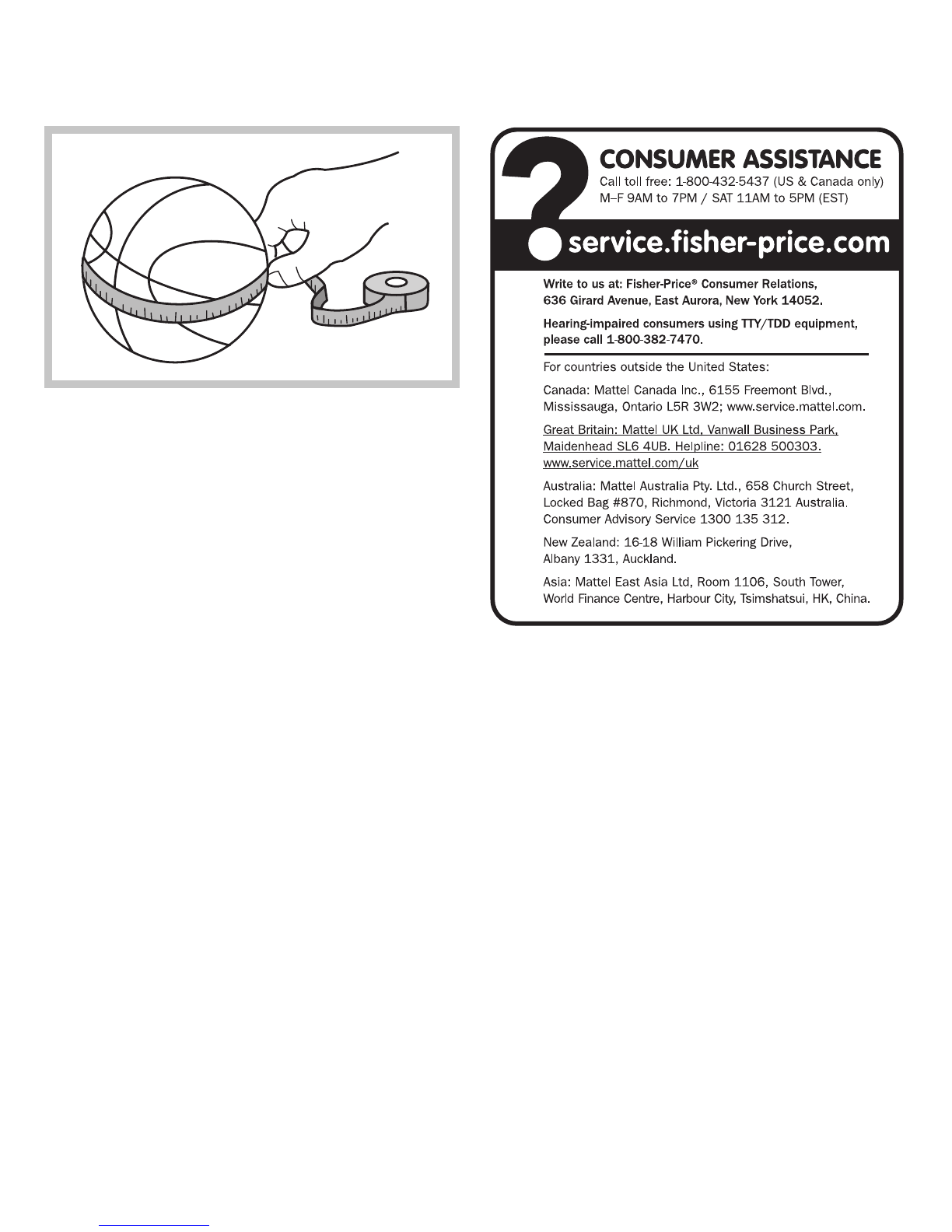

• The ball will contain the correct amount of air when its
circumference measures 21 to 22 inches. Measure the
circumference of the ball with a tape measure or with a piece
of string cut 21 to 22 inches long. Do not over-inflate the ball.
Care
• To clean, use a mild soap and water solution and clean cloth.
Rinse clean with warm water to remove soap residue.
• Be sure to drain water from the base before extended
storage. If water freezes in the base, it could cause damage.
• Check all fasteners regularly to be sure they are tight. If the
fasteners are not tight, tighten them as necessary.
• Check plastic parts regularly and if broken or cracked,
dispose of them properly.
