Fisher-Price M7332 User manual

www.ﬁsher-price.com

M7332

• Please keep this instruction sheet for future reference, as it

contains important information.

• Adult assembly is required.

• Tools needed for assembly: Hammer, Phillips Screwdriver

and Scrap Block of Wood (not included).

• Age: 2 - 6 years; Weight Limit: 60 lbs (27 kg).

• Please save all packaging material until assembly is

complete to ensure that no parts are discarded.

• Please wipe each part with a clean, dry cloth before assembly.

WARNING

To avoid serious injury:

• Adult supervision is required.

• Never use near cars and other motor

vehicles, near streets, steps, sloped drive-

ways, hills, roadways, alleys, swimming pool

areas or other bodies of water.

• Always wear shoes or sneakers.

• Never allow more than one rider.

Consumer Information

Fisher-Price, Inc., a subsidiary of Mattel, Inc. East Aurora, New York 14052, U.S.A. PRINTED IN MEXICO

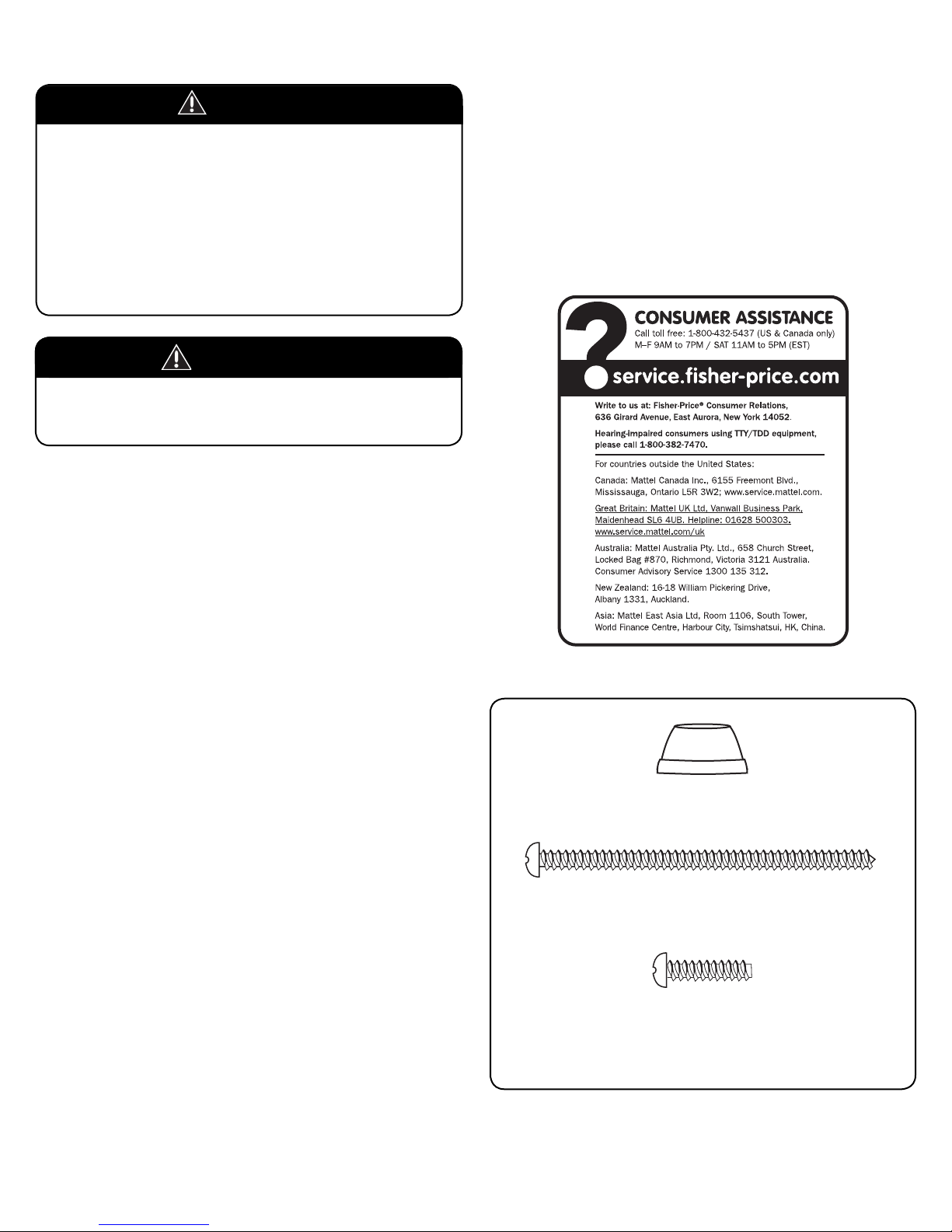

#8 x 3" Screw – 1

#8 x 3/4" Screw – 4

FASTENERS SHOWN ACTUAL SIZE

Cap Nut

This product contains small parts in its

unassembled state. Adult assembly is required.

CAUTION

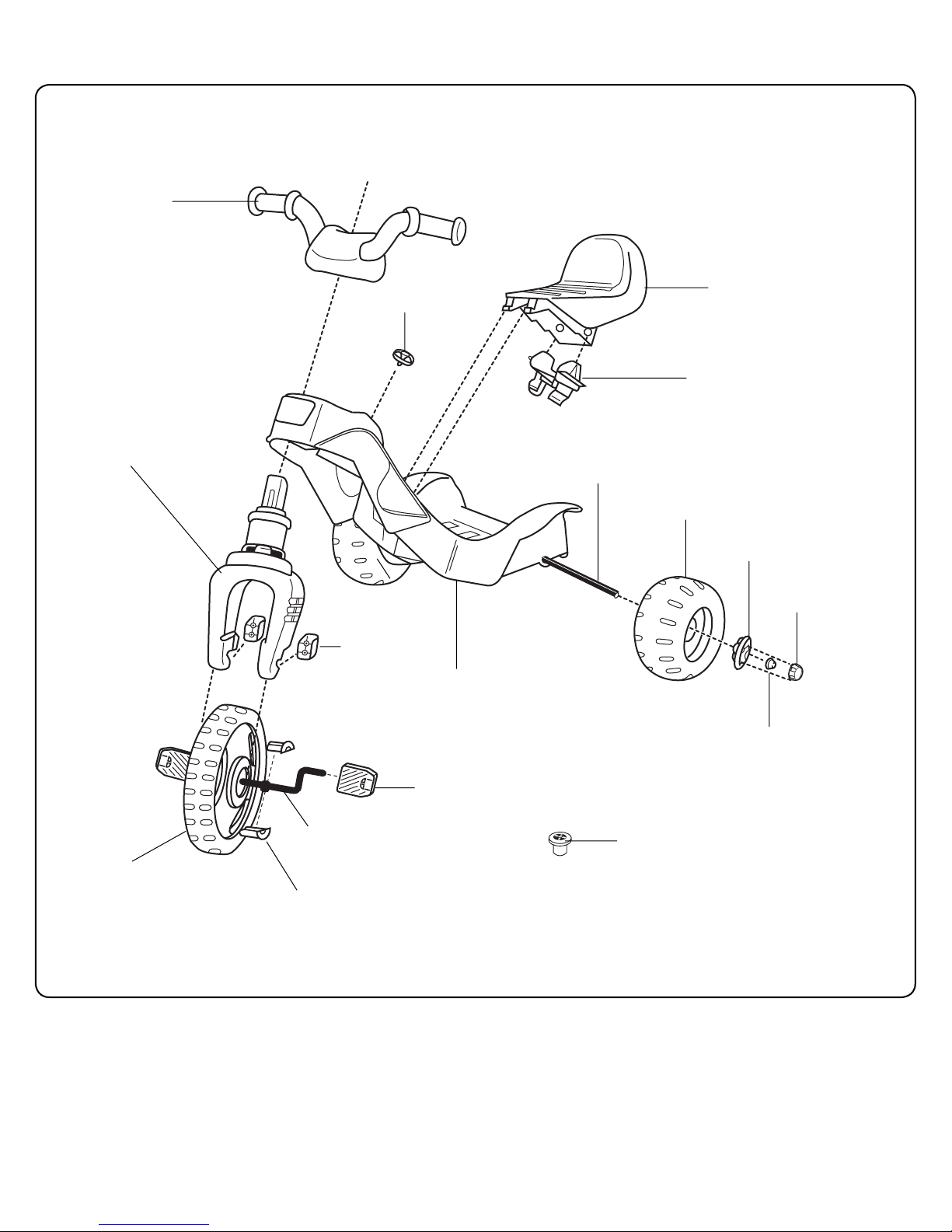

Parts

Note: Some parts shown are assembled to both sides of the trike.

Handlebar

Front Wheel

4 Pedal Hubs

Pedal Axle

2 Pedals

Fork

2 Fork Covers

Frame

Seat

Seat Retainer

Rear Wheel

Straight Axle

2 Hubcaps

Cap

Part Not Shown: Label Sheet

Cap Nut

Cap Nut Assembly Tool

2 Covers

Assembly

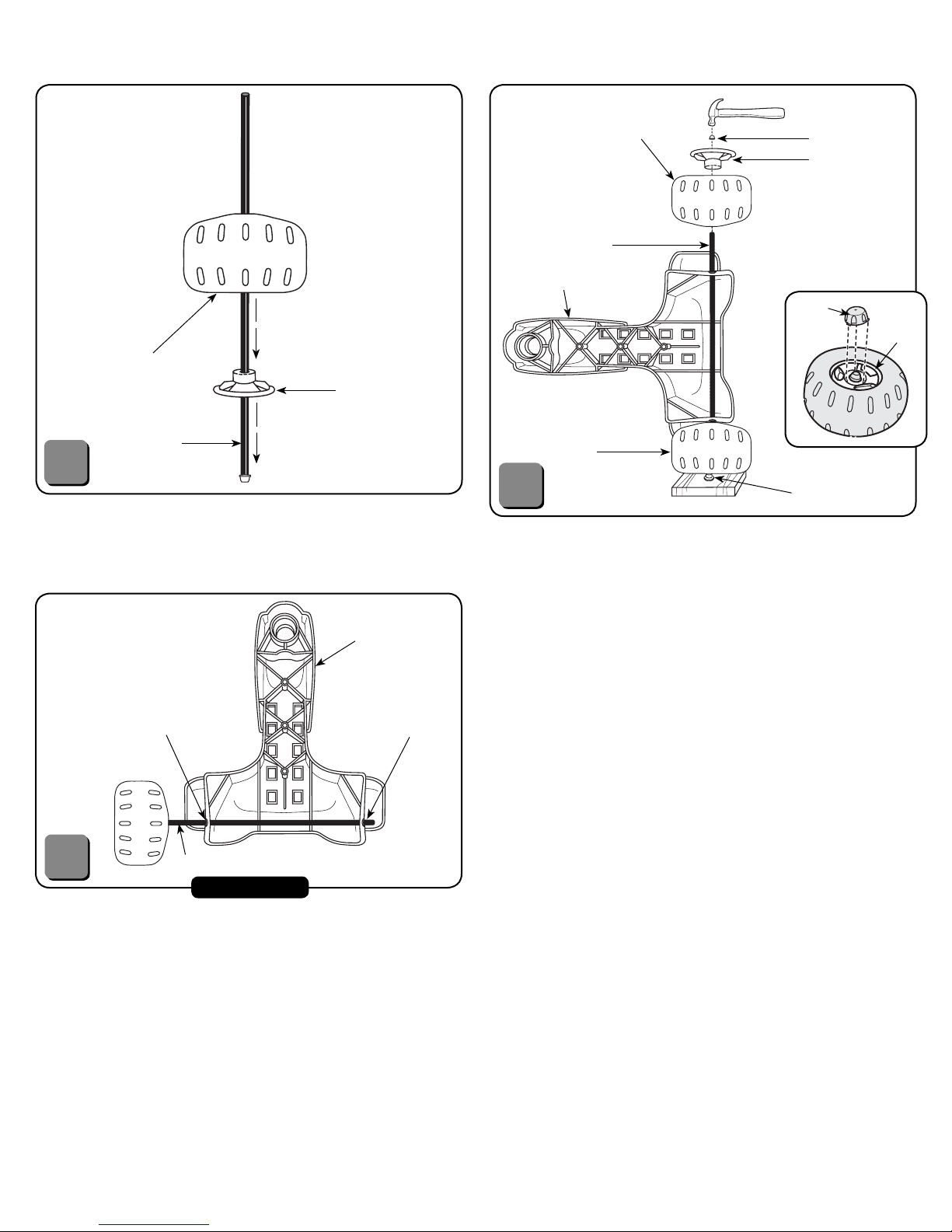

• Slide a hubcap (peg side up) onto the straight axle.

• Slide a rear wheel (indented side down) onto the

straight axle.

Rear Wheel

Indented Side Down

• Place a scrap block of wood on a flat surface.

• Turn the frame on its side with the exposed end of the

straight axle up.

• Place the cap nut assembly tool under the assembled rear

wheel and onto the cap nut.

• Slide a rear wheel (indented side up) onto the end of the

straight axle.

• Slide a hubcap (peg side down) onto the straight axle.

• Place a cap nut on the end of the straight axle.

• Tap the cap nut with a hammer. Gently pull the rear

wheel up to be sure the cap nut is securely attached

to the straight axle.

• Dispose of the cap nut assembly tool properly.

• Insert one of the tabs on a cover into a slot in the hubcap.

Push to "snap" the cover in place. Repeat this procedure

to attach the other cover to the other hubcap.

• Set the frame assembly aside.

Cap Nut

Rear Wheel

Indented Side Up

Cap Nut

Assembly Tool

Assembled

Rear Wheel

Straight Axle

• Turn the frame upside down.

• Insert the straight axle through the holes in the rear of

the frame.

Hole Hole

Frame

Straight Axle

BOTTOM VIEW

Hubcap

Frame

Straight Axle

Cover

Hubcap

Assembly

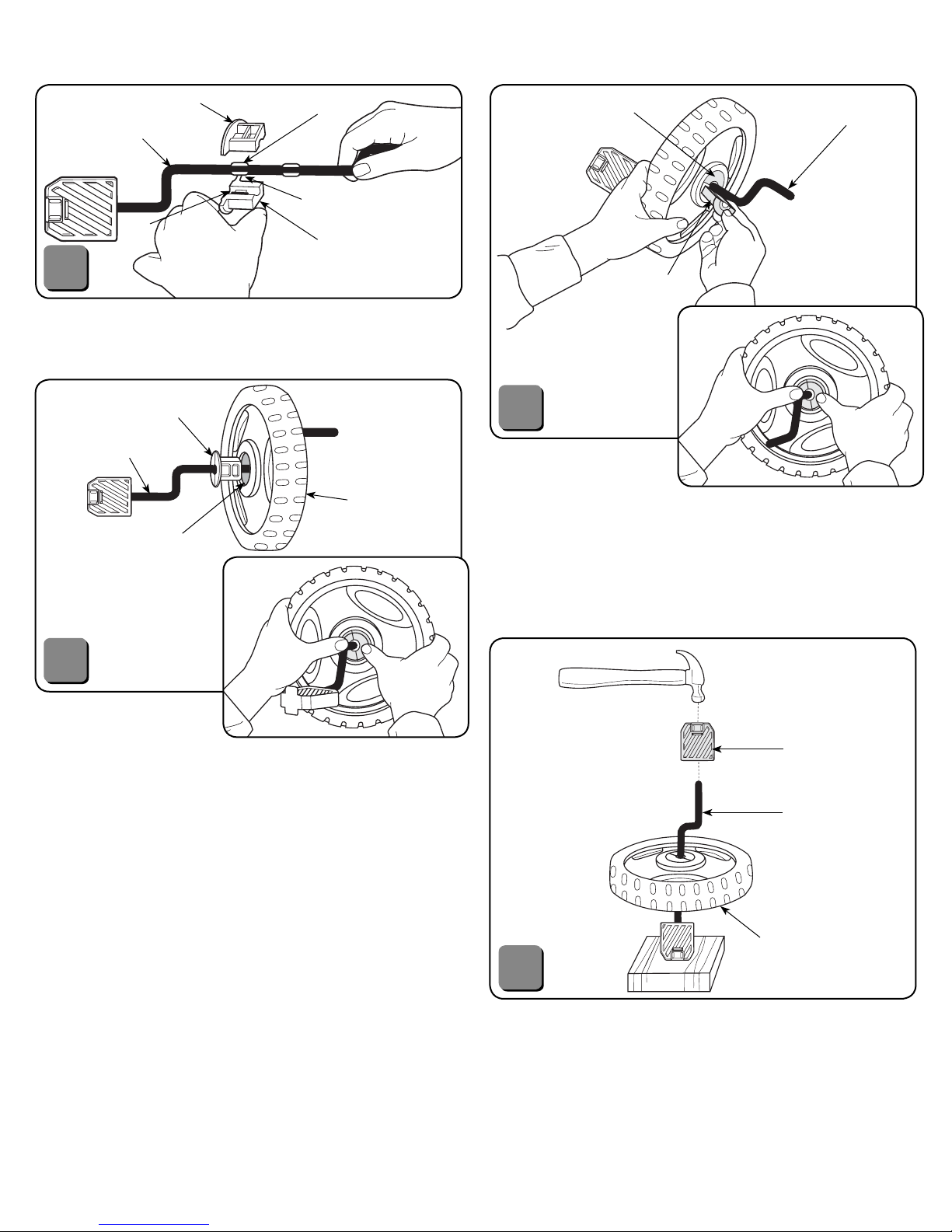

• Fit two pedal hubs onto the pedal axle tabs. Make sure the

tabs fit into the slot in each pedal hub.

Pedal Hub

Pedal Axle

Tab

Slot

• While holding the pedal

hubs on the pedal axle,

insert the pedal axle through the hole in the center of the

front wheel.

• Push the pedal hubs into the center of the front wheel until

they are flush with the surface of the front wheel.

Hole

Pedal Axle

Pedal Hubs

Front Wheel

• Place a scrap block of wood under the front wheel assembly

with the exposed end up.

• Fit a pedal on the pedal axle.

• Tap the pedal with a hammer until it is secure.

Pedal Axle

Front Wheel Assembly

Pedal

Pedal Hub

Pedal Hub Pedal Axle

• Turn the front wheel

assembly over.

• Insert a pedal hub onto the top of the pedal axle and into

the hole in the center of the front wheel.

• Insert the remaining pedal hub below the pedal axle and

into the hole in the center of the front wheel.

• Push the pedal hubs into the center of the front wheel until

they are flush with the surface of the front wheel.

Assembly

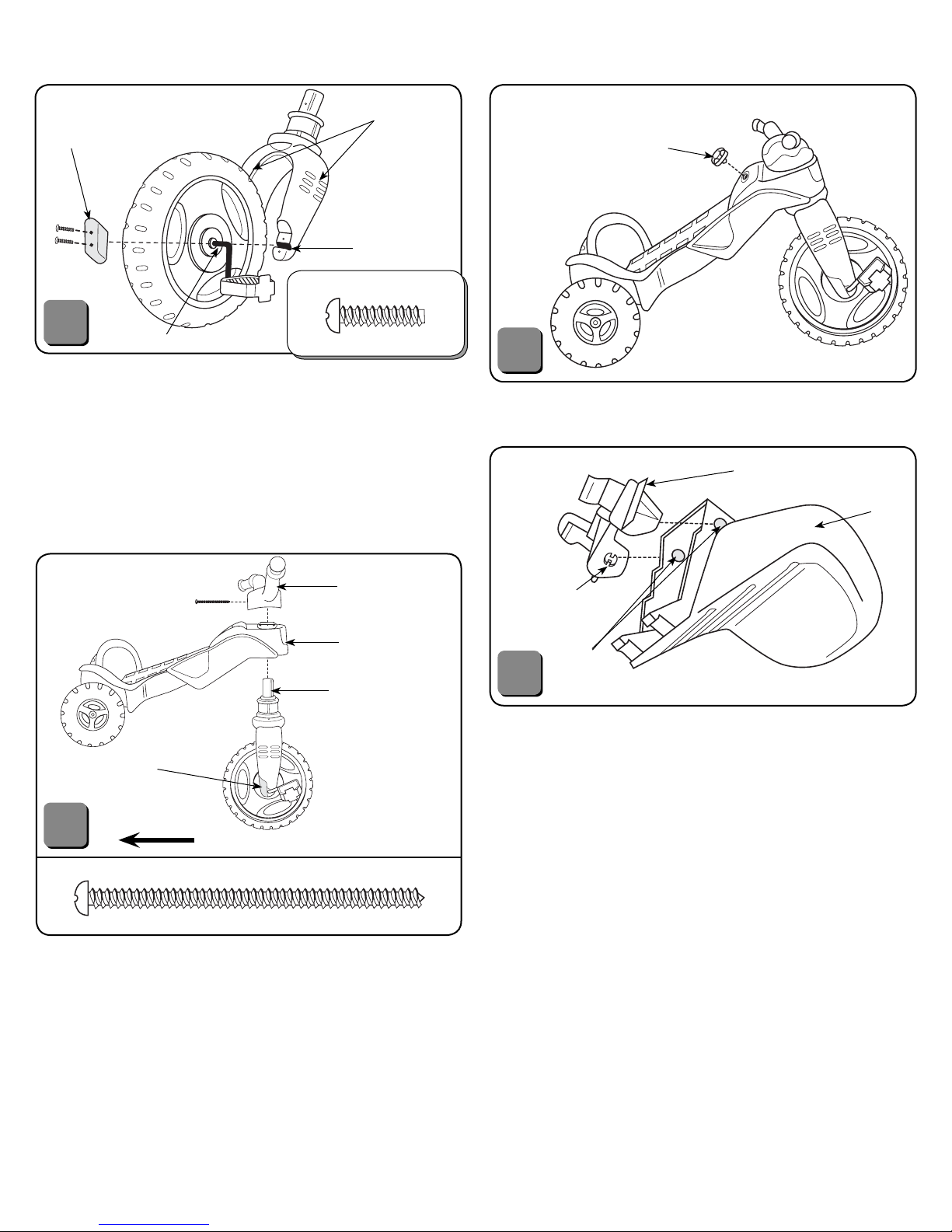

• Turn the frame upright.

• Insert the fork post up through the hole in the neck of the

frame. Make sure the fork is positioned so that the fork

covers face the rear wheels.

• Place the handlebar over the fork post and push it down

onto the frame. Make sure the handlebar is positioned so

that the screw hole faces the rear wheels and aligns with

the screw hole in the fork post.

Hint: You may need to rotate the handlebar to align

the holes.

• Insert the #8 x 3" screw through the hole in the handlebar

and into the fork post. Tighten the screw with a Phillips

screwdriver. Do not over-tighten.

Handlebar

Frame Neck

Fork Post

Fork Cover

Rear of Trike

• Place the front wheel assembly between the fork arms.

Make sure the pedal axle fits into the groove at the bottom

of each fork arm.

• Place a fork cover over the pedal axle on one fork arm.

• Insert two #8 x 3/4" screws through the fork cover and into

the fork arm. Tighten the screws with a Phillips screwdriver.

Do not over-tighten.

• Repeat this procedure to attach the other fork cover to the

other fork arm.

Fork Arms

Pedal Axle

Groove

Fork Cover

• Position the seat upside down.

• Fit the small pegs on the seat retainer into the holes in

the seat.

• Insert and “snap” the cap into the hole in the frame.

Cap

Seat Retainer

Seat

Peg

Holes

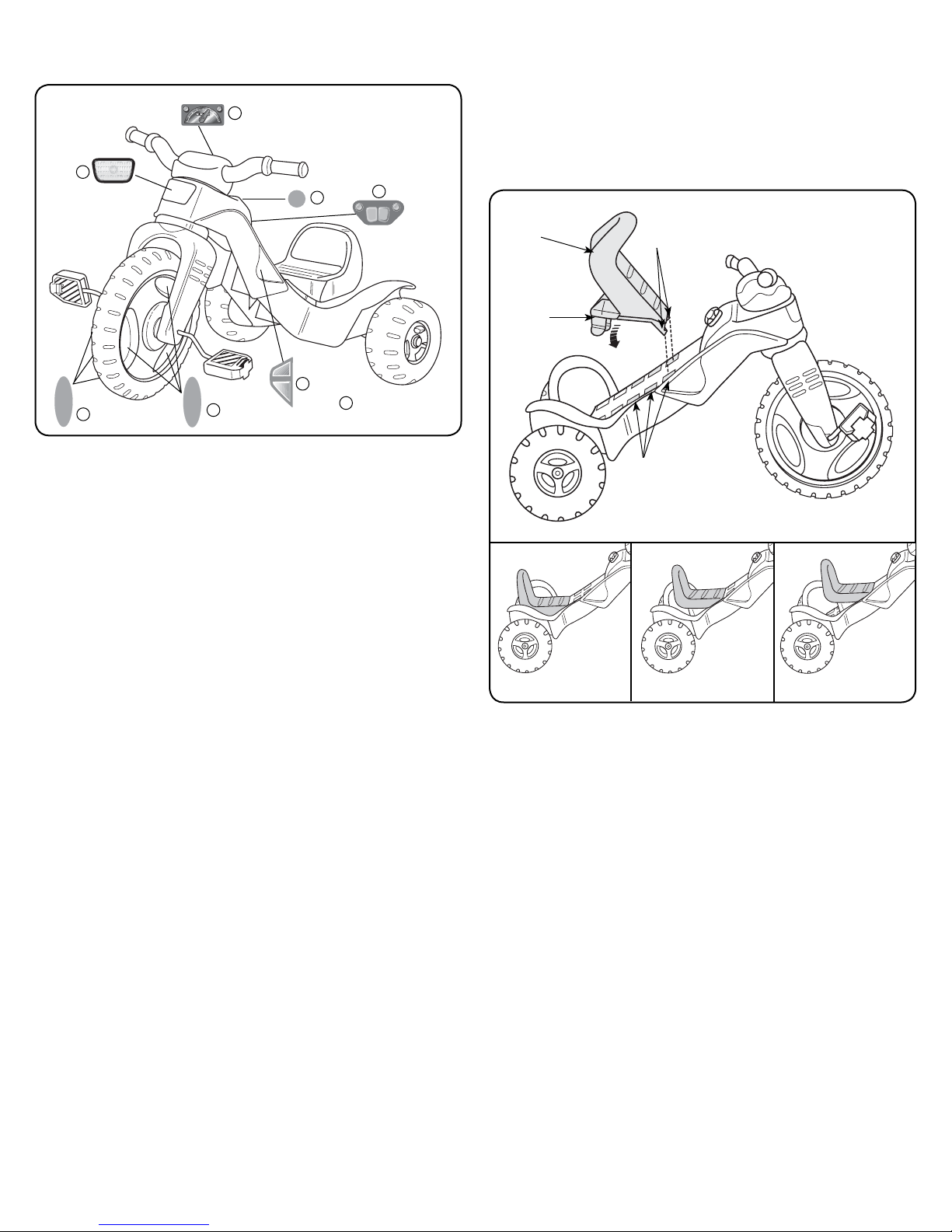

• At an angle, insert the tabs on the seat into any of the top

three sets of slots for the lower, middle or upper position.

• Lower the seat so that the seat retainer inserts and snaps

into the slots in the frame.

• Pull up on the seat to be sure it is secure.

Seat

Helpful Hint: The seat can be attached to the frame in any of

three positions, depending on the size of your child. Check

your child’s fit on the trike by observing the seat to pedal

distance, as it is being ridden. If the pedals seem too far

away or too close for your child, move the seat up or down.

Attaching the Seat

• Make sure the areas where the labels will be applied are

clean and dry. Wipe your vehicle with a clean, soft, dry

cloth to remove any dust or oils.

• For best results, avoid applying a label more than once.

• Apply the labels as shown in the illustration above.

One-time assembly is now complete.

Label Decoration

Lower Position Middle Position Upper Position

Tabs

Slots

Seat

Retainer

IMPORTANT! It is a good practice to start training children

very young regarding the importance of helmet use. When

children are older and riding bicycles and faster vehicles,

it is important that they use a helmet each and every time

they ride. For this reason, even while riding a tricycle, it is

a good idea to familiarize your child with helmet use, so that

it becomes a habit for life. Choose a helmet that complies

with requirements of the applicable certifying agency for

bicycle helmets.

(Label 5on other side)

• Periodically, check the plastic parts and if broken or cracked,

dispose of them properly.

• Check all fasteners regularly to be sure they are tight. If the

fasteners are not tight, tighten them as necessary.

• To clean, use a mild soap and water solution and a clean

cloth. Rinse clean with water to remove soap residue.

Seat Retainer Tab

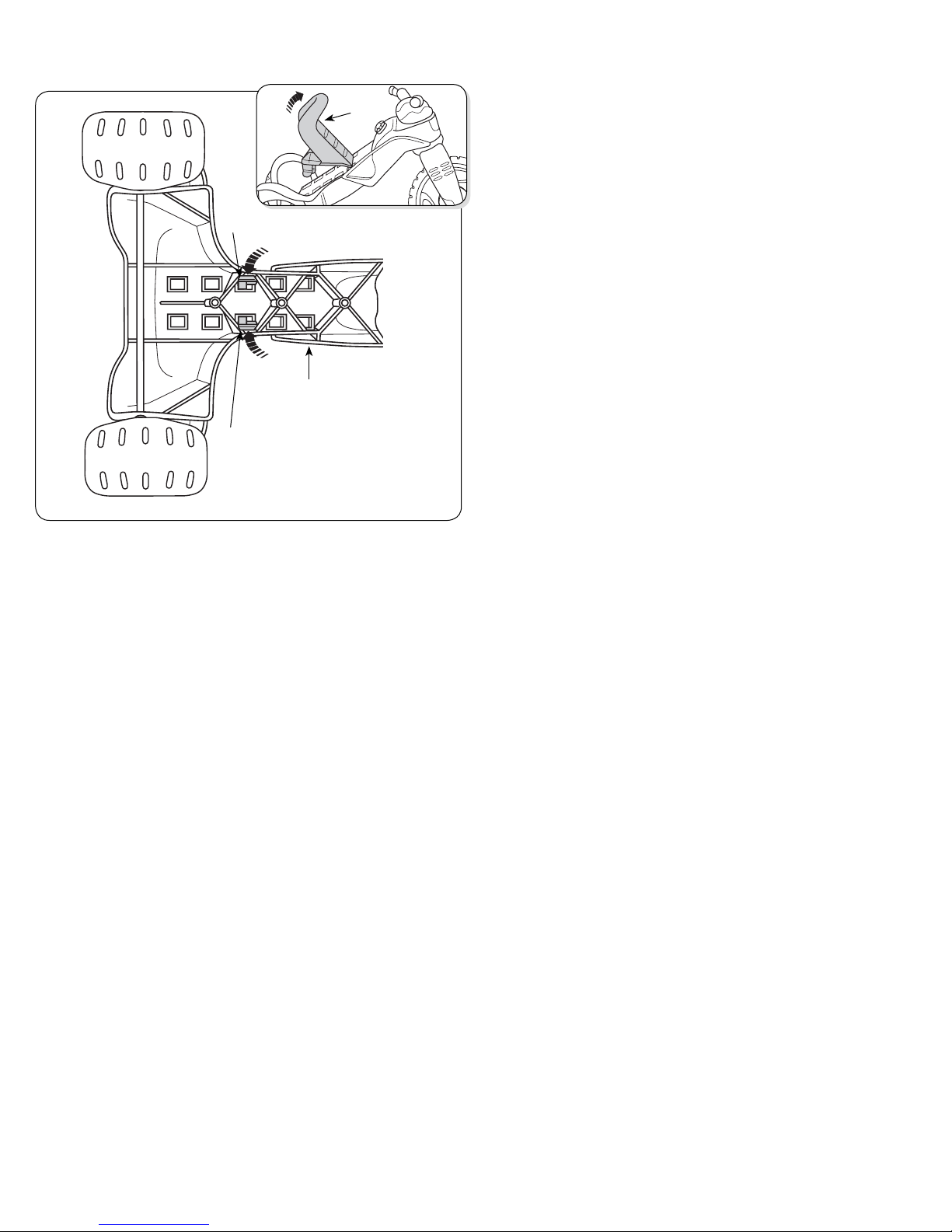

• Turn the frame on it’s side.

• Squeeze the seat retainer tabs toward one another and lift

the seat from the frame.

CareRemoving the Seat

Seat Retainer Tab

Frame

Seat
