Fisher-Price iXL User manual
www.fisher-price.com
CAUTION - ELECTRIC TOY
IMPORTANT SAFETY INSTRUCTIONS - SAVE
THESE INSTRUCTIONS.
Not recommended for children under 3 years of age. As with
all electrical products, precautions should be observed during
handling and use to reduce the risk of electric shock.
Consumer Information
IMPORTANT! Before first-time use, charge the 4,8V NiMH rechargeable
battery pack for 5 hours. Charge the 4,8V NiMH rechargeable battery
only with the supplied charger. Do not use any other charger.
• Please read this booklet before first-time use. Keep these instructions
for future reference, as they contain important information.
• Requires a 4,8V NiMH rechargeable battery pack (included) for operation.
• Adult assembly is required.
• Tool required to access battery compartment: flathead screwdriver or
coin (not included)
• The charging station is not a toy. Do not use extension cords with the
charger base.
• iXLTM Learning System not included and sold separately.
• Adults Note: Adult supervision is required. Periodically examine this
product for damage to the cord, housing or other parts that may result
in the risk of fire, electric shock or injury. If the product is damaged, do
not use it.
• Even with proper care, the rechargeable battery pack will not last forever.
The life of the rechargeable battery pack depends on how well you follow
these instructions and the total number of hours it is used. If you should
need to replace the rechargeable battery pack, contact Fisher-Price®.
• Do not connect to more than the recommended number of power supplies.
• Do not disassemble the sealed 4,8V NiMH rechargeable battery pack.
• Do not charge a battery pack that shows leakage or corrosion.
• Charger specifications: Input 120 VAC, 60 Hz; Output 9.0 VDC, 600 mA.
DANGER
To prevent electric shock, do not immerse
in water; wipe clean with a damp cloth.

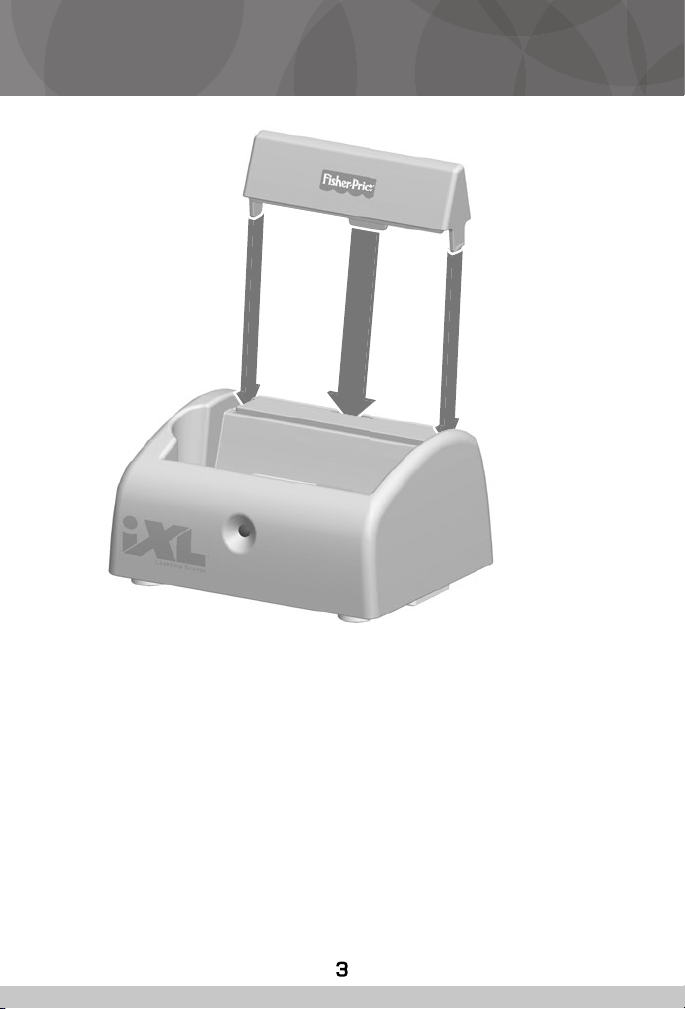

One-Time Assembly
• Fit the tabs on the base back into the slots in the charger base. Push to
“snap” in place.
th t b th b b k i t th l t i th h
Battery Pack Installation
• While pulling up on the tab, lift the
battery tray.
• Using a slotted screwdriver or coin,
turn the battery compartment fastener
on the side of the iXLTM Handheld Device
(sold separately) to unlock .
• Slide the battery compartment door to
remove it.
• Remove the batteries from the
battery compartment.
• Pull up on the gray tab.
Battery Pack Installation
• Fit the tabs on the underside of the
battery compartment door into the
grooved tabs on the handheld. Slide the
battery compartment door to close.
• Using a slotted screwdriver or coin, turn
the fastener to lock .
• Fit the tabs on the rechargeable battery
pack into the slots in the battery
compartment.
• Push to “snap” in place.

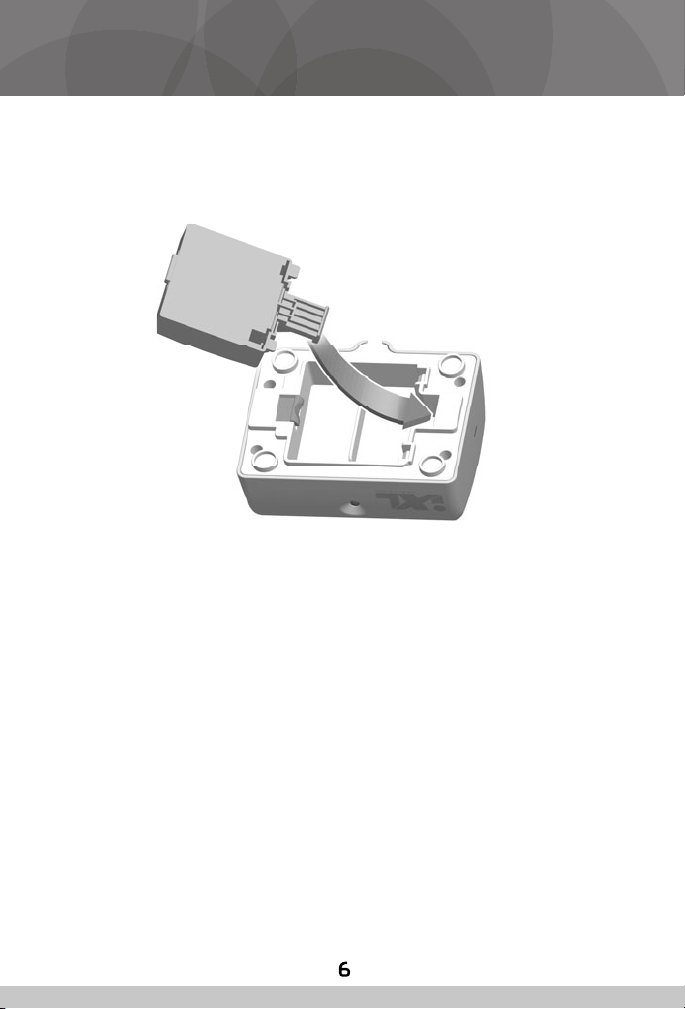

Battery Tray Storage
Note: You can store the battery tray in the bottom of the charging base
for future use.
IMPORTANT! Remove the “AA” batteries from the battery tray.
• Fit the long tab on the battery tray into the slot on the bottom of the
charging base. Push to secure the battery tray in the charging station.
Charging Your Battery
IMPORTANT! The rechargeable battery pack must be installed in the
iXLTM Handheld Device to charge it. Before first-time use, charge the 4,8V
NiMH rechargeable battery pack for 5 hours.

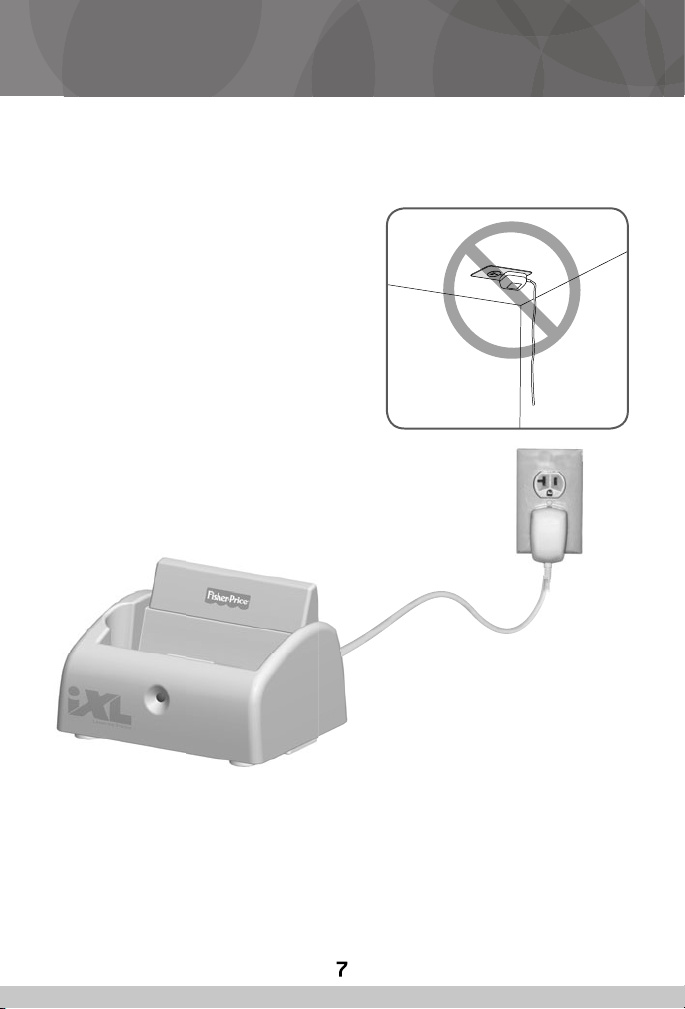

• Plug the charging station into a standard wall outlet.
Notes: If power flow to the wall outlet is controlled by a switch, make sure the
switch is “ON”. Plug the charging station only in a wall outlet. Do not plug
the charging station into a ceiling outlet. To connect to a supply that is not
in the United States, use an adapter (not included and sold separately)
with the proper configuration for the power outlet.
• Place the iXLTM Handheld Device into the charging base. The L.E.D. will
flash and then turn red.
• Charge the iXLTM Handheld Device for five hours. The L.E.D. will turn
green when the battery pack is fully charged.
• Remove the iXLTM Handheld Device from the charging station. Unplug
the charging station from the wall outlet.
• When you see the low battery indicator on the iXLTM Handheld Device
screen, it’s time for an adult to charge the battery pack.
Charging the Battery Pack
L.E.D.
In exceptional circumstances, a battery pack may leak fluids that can
cause a chemical burn injury or ruin your product. To avoid battery leakage:
• Insert the battery pack as indicated inside the battery compartment.
• Remove the battery pack during long periods of non-use. Always
remove an exhausted battery pack from the product. Dispose of the
battery pack safely. Do not dispose of this product in a fire. The battery
pack inside may explode or leak.
• Never short-circuit the battery terminals.
• Use only batteries of the same or equivalent type, as recommended.
• Use only the Fisher-Price®battery pack that came with this product.
Battery Safety Information
Troubleshooting and Care
Problem Solution
Charging station begins to
operate erratically
The charging station may need to
be reset. Unplug it from the wall
outlet. Wait 10 seconds and plug
it back in
L.E.D. turns green before battery
is fully charged
If you quickly the iXLTM Handheld
Device from the charging station
and replace within 4 seonds, the
L.E.D. will turn green. Remove the
iXLTM Handheld Device from the
charging station wait 10 seconds
and replace it
The L.E.D. does not light You may have dirt on the charging
contacts. Wipe the charging
station
and the iXLTM Handheld Device with
a cloth to remove
4,8V NiMH rechargeable battery
pack feels warm
It is normal for the battery pack
to get warm during charging and
is not reason for concern.
• Wipe this product with a clean cloth dampened with a mild soap
and water solution. Do not use bleach. Do not use harsh or abrasive
cleaners. Do not immerse in water. Immersing this product can result
in electric shock.
• This product has no consumer serviceable parts. Do not take this
product apart.
• Protect the environment by not disposing of this product with
household waste (2002/96/EC). Check your local authority for
recycling advice and facilities.
