Extech Instruments RT30 User manual

User's Guide

Wireless AC Circuit Identifier

Models RT30 and RT32

RT30 V2.0 11/08

Introduction

Congratulations on your purchase of Extech’s Model RT30 (914Mhz) or RT32

(869MHz) Wireless AC Circuit Identifier. The detector can identify live circuits and

detect changes in light level with the wireless receiver. With careful use, this

detector will provide years of reliable service.

Meter Description

TRANSMITTER DESCRIPTION

1. Wire clamp slot

2. Wire Clamp release latch

3. Light sensor

4. Voltage/Light detect LED

5. Battery compartment

6. Power LED

7. Light setpoint button

8. Power/Mode select switch

9. External Probe Connector

RECEIVER DESCRIPTION

1. Detect LED (Amber)

2. Communication LED (Yellow)

3. Power/Mode

4. Power LED (Green)

5. Battery compartment

6. Pocket clip

7. Audio Buzzer

1 2

RT30 V2.0 11/08

Operation

Detecting Live Circuits (VOLTAGE method)

The RT30 can be directly clamped on installed building wiring

and will detect the voltage applied to the wiring.

1. Slide the transmitter power switch to the VOLTAGE

position. The POWER LED will switch on.

2. Slide the Receiver power switch to the ON position. The

POWER LED and the SIGNAL OK LED will switch ON.

3. Place the RomexTM/nm cable (AC wire) directly into the

wire clamp slot or, alternatively, connect the external

voltage detector probe into the external probe socket and

then clamp the probe to any cable, extension cord or

appliance cord.

4. If the cable is “live” (voltage present), the

VOLTAGE/LIGHT amber LED on the

transmitter will switch on and the

DETECT LED on the receiver will switch

on.

5. If desired, switch the receiver power

switch to the audio OFF position to

disable the audible tone.

6. When the voltage is removed (by opening the splice or the circuit breaker,

for example), the Detect LEDs will switch OFF and the detect beeper will

switch OFF.

Note: Use of the External Probe overrides the setting of the Power/Mode

Switch. The Lighting method cannot be used while the External Probe is

attached.

RT30 V2.0 11/08



Support line (781) 890-7440

Technical Support: Extension 200; E-mail: support@extech.com

Repair & Returns: Extension 210; E-mail: [email protected]

Product specifications subject to change without notice

For the latest version of this User Guide, Software updates, and other

up-to-the-minute product information, visit our website: www.extech.com

Extech Instruments Corporation, 285 Bear Hill Road, Waltham, MA 02451

Detecting Live Circuits (LIGHTING method)

In situations where access to circuit wiring is limited,

the RT30 can also detect room lighting changes (ON

to OFF).

1. Slide the transmitter power switch to the LIGHT

position. The POWER LED will switch on.

2. Slide the Receiver power switch to the ON

position. The POWER LED will switch on.

3. Cover the Light Sensor on the transmitter and

press the Light Setpoint button.

4. Expose the Light Sensor to the light source.

The VOLTAGE/LIGHT LED on the transmitter and the DETECT LED on the

receiver will switch on

5. When the lights are turned off the VOLTAGE/LIGHT LED on the transmitter

and the DETECT LED on the receiver will switch off, indicating the light has

been switched off and power has been removed.

Note: Before use, always test the light on/off operation for proper sensitivity and

detection.

RT30 V2.0 11/08

Specifications

Transmitter Unit Receiver Unit

Indicators LED Audio Beeper, LED

Transmission

Frequency RT30 (914MHz)

RT32 (869MHz) n/a

Transmission Distance Approx. 328’ (100m) in an unobstructed field

Transmission Power +10dBm n/a

Alarm Status Visual Visual and audible

Power Supply Two (2) ‘AAA’ batteries Two (2) ‘AAA’ batteries

Battery Life 80 hours (approximately)

Operating Temperature 14 to 122°F (-10 to 50°C)

Storage Temperature -14 to 140°F (-30 to 60°C)

Operating Humidity 90% RH from 32-86°F (-10 to 30°C)

75% RH from 86-104°F (30 to 40°C)

45% RH from 104-122°F (40 to 50°C)

Storage Humidity 90% RH max.

Dimensions 4.0x2.4x1.5”

(101x61x38mm) 4.5x1.17x 1.02”

(114x30x26mm)

Weight 8.0 oz.(0.23 kg) – three (3) piece total

RT30 V2.0 11/08

Maintenance

Battery Replacement

When the Power LED begins to dim, or the transmitter and receiver stop

communicating, the batteries may need to be replaced. Each unit uses two (2)

‘AAA’ batteries (MN2400 or equivalent). The battery doors can be removed

using a Philips screwdriver to loosen the attaching screw.

Calibration and Repair Services

Extech offers repair and calibration services for the products we sell. Extech

also provides NIST certification for most products. Call the Customer Care

Department for information on calibration services available for this product.

Extech recommends that annual calibrations be performed to verify meter

performance and accuracy.

FCC Part 15 (RT30)

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate the

equipment.

Warranty

EXTECH INSTRUMENTS CORPORATION (a FLIR company) warrants this instrument to be free of

defects in parts and workmanship for one year from date of shipment (a six month limited warranty

applies on sensors and cables). If it should become necessary to return the instrument for service

during or beyond the warranty period, contact the Customer Service Department at (781) 890-7440

ext. 210 for authorization or visit our website at www.extech.com (click on Contact Extech and go to

Service Department to request an RA number). A Return Authorization (RA) number must be issued

before any product is returned to Extech. The sender is responsible for shipping charges, freight,

insurance and proper packaging to prevent damage in transit. This warranty does not apply to defects

resulting from action of the user such as misuse, improper wiring, operation outside of specification,

improper maintenance or repair, or unauthorized modification. Extech specifically disclaims any

implied warranties or merchantability or fitness for a specific purpose and will not be liable for any

direct, indirect, incidental or consequential damages. Extech's total liability is limited to repair or

replacement of the product. The warranty set forth above is inclusive and no other warranty, whether

written or oral, is expressed or implied.

more infor for Extech RT30

Phone: 01235 838 555

Email: cs@airconcern.co.uk

Web. www.airconcern.co.uk

Air Concern Ltd, Building 173 Curie Avenue Harvell Didcot, Oxfordshire

This manual suits for next models

Table of contents

Other Extech Instruments Test Equipment manuals

Extech Instruments

Extech Instruments VT30 User manual

Extech Instruments

Extech Instruments ExStik CL200 User manual

Extech Instruments

Extech Instruments ExStik CL200 User manual

Extech Instruments

Extech Instruments 380260 User manual

Extech Instruments

Extech Instruments ET60 User manual

Extech Instruments

Extech Instruments CG304 User manual

Extech Instruments

Extech Instruments 412355A User manual

Extech Instruments

Extech Instruments 380366 User manual

Extech Instruments

Extech Instruments 380260-NIST User manual

Extech Instruments

Extech Instruments MG325 User manual

Extech Instruments

Extech Instruments ET10 User manual

Extech Instruments

Extech Instruments ET60 User manual

Extech Instruments

Extech Instruments PRC15 User manual

Extech Instruments

Extech Instruments prc20 User manual

Extech Instruments

Extech Instruments ExStik PH150-C User manual

Extech Instruments

Extech Instruments PRC15 User manual

Extech Instruments

Extech Instruments 412300 User manual

Extech Instruments

Extech Instruments IRC350 User manual

Extech Instruments

Extech Instruments 7630 User manual

Extech Instruments

Extech Instruments MS6100 User manual

Extech Instruments

Extech Instruments MS420 User manual

Extech Instruments

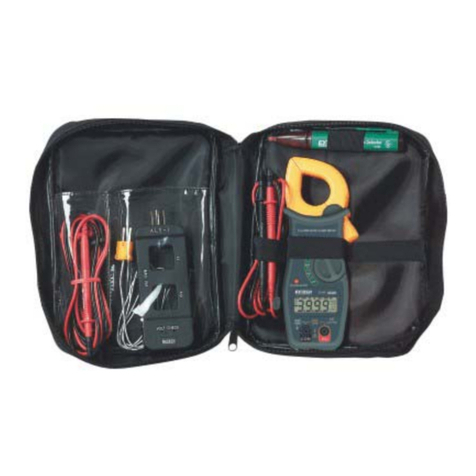

Extech Instruments TK32 User manual
