EverFocus Polestar EZN7221 User manual

Star Light Outdoor Bullet IR Network Camera

EZN7221/7260/7360

Ultra Low Light Network Camera

Quick Installation Guide

Release Date: March, 2016

EZN7221/7260/7360

1. Physical Description

4 5 63

Dimensions

No. Name Description

1 Micro SD / SDHC Slot For inserting a micro SD / SDHC card.

2 Reset Button Resets all configurations to the factory default settings. Press

and hold the Reset Button for 5 seconds.

3 IR LEDs 44 IR LEDs for infrared illumination in night vision applications.

4 Lens 3.3 – 10 mm, auto focus, varifocal, F1.3 – 360C.

5 Light Sensor Detects lights.

6 Sunshield Protect the camera from the direct rays of the sun.

EZN7221/7260/7360

System Requirements

Before installing, please check that your computer meets the following system requirements.

Operating System Windows 7 (32 and 64-bit) or above

CPU Intel Core i5 CPU @ 2.0GHz (or equivalent AMD) or higher

(Intel Core i7 CPU @ 3.4GHz recommended)

Graphic Card 512MB RAM graphic cards (or equivalent on-board graphic cards)

RAM

•

2GB or more (8GB recommended)

•Additional HD space depends on required local storage of video files,

100 Mbps network card.

Software

•

DirectX 9.0c

•Internet Explorer 9 and later, Firefox 4.0-9.0, Chrome (Windows

version 44 and earlier)

Packing List

Please check that there is no missing item in the package before installing.

•EZN Series Camera x 1 •Power Pigtail Cable x 1

•Cable Gland Kit x 1 (connect to the

•Plug x 1 (inserting to the Quick Mounting Ring for

LAN/PoE cable for waterproofing) through-the-wall installation)

•Quick Mounting Ring x 1 •Software CD x 1

•MAC Address Sticker x 2 •Quick Installation Guide x 1

•Mounting Kit x 1

-Long Screw x 4 (for attaching the Quick Mounting Ring to the mounting surface)

-Short Screw x 4 (for connecting the camera base to the Quick Mount Ring)

-Screw Anchor x 4 (in conjunction with Long Screw)

-Hexagon Wrench x 1 (for adjusting the camera position)

-Thinner Hexagon Wrench x 1 (for removing the Sunshield)

-Desiccant Bag x 1

Note:

1. Equipment configurations and supplied accessories vary by country. Please consult your

local EverFocus office or agents for more information. Please also keep the shipping

carton for possible future use.

2. Contact the shipper if any items appear to have been damaged in the shipping process.

EZN7221/7260/7360

Optional Accessory

•IP Sidekick - ESK1000

Using it for installation, you do not need to pre-configure

the IP address or to use an additional monitor to check and

adjust all the IP cameras. The product can assign an IP

address to the camera through its Wi-Fi network, then you

can connect and check the camera live view using our

mobile app. For details about IP Sidekick, please refer to the

IP Sidekick – ESK1000 User’s Manual.

•EverFocus 5 / 8 / 16 / 24 Ports

PoE Switch

5 Ports: ES0501-40

8 Ports: ES0812-31 / ES0802-41

16 Ports: ES1625-31 / ES1645-51

24 Ports: ES2426-31 / ES2446-51 / ES2448-62

2. Cables

The Cables provide connections for Network, GND, CVBS output, power, audio input / output and

alarm input / output. Note that the audio-in / out cable features a line 3.5mm jack (TRS). Be sure to

prepare microphones / speakers with TRS connector (see TRS Connector image below). Also,

microphones / speakers with a (built-in) amplifier and external power supply are required.

12VDC Input

LAN / PoE Cable

Audio Input (TRS Line-in) (Pink)

Audio Output (TRS Line-out) (Green)

Cable Assembly

Gray: CVBS OUT

White: 24VAC+

Light Green: 24VAC-

Brown: RS485_A

Black: RS485_B

Yellow: GND

Green: Alarm OUT

Pink: Alarm COM

Purple: Alarm IN

TRS Connector

Left Channel (Tip)

Right Channel (Ring)

Ground (Sleeve)

To activate the Audio function, the Enable Audio must be checked.

See 7.2.1 Streaming and Audio.

EZN7221/7260/7360

3. Installation

This installation guide provides the basic instructions on installing an EZN bullet IP camera. For

details, please refer to the User’s Manual in the software CD.

3.1 Mounting and Wiring

Follow the steps below for mounting and wiring the camera.

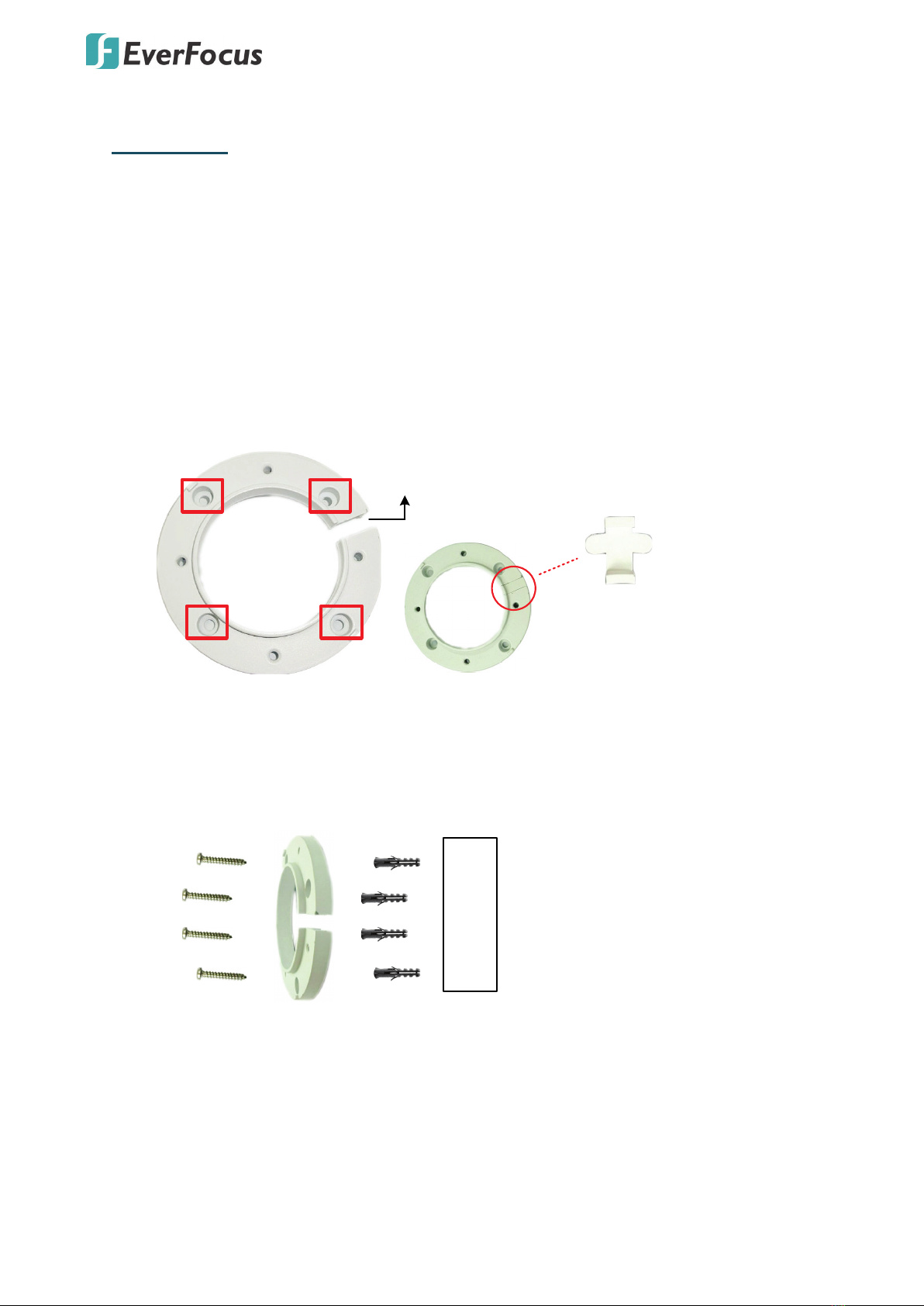

1. Before screwing the camera to the wall, drill four holes on the wall according to the

hole-positions on the supplied Quick-Mounting Ring. If you wish to run the wires into the

wall, drill another hole in the middle of the circular area within the Quick-Mounting Ring.

Circular Area

This conduit Is for wiring the cables along

the wall installation.

If you want to wire the cables through the wall,

then this conduit will not be used. You can

insert the supplied Plug into the conduit.

Plug

2. Push the four supplied Anchors into the four holes on the wall. Place the Quick-Mounting

Ring against the anchoring surface so that the holes line up. Screw the Quick-Mounting

Ring to the wall using the supplied Long Screws.

Wall

Anchors

Quick-Mounting Ring

Long Screws

EZN7221/7260/7360

3. Screw the camera base to the Quick-Mounting Ring using the supplied four Short Screws.

Quick-Mounting Ring

Short Screws

Camera Base

Short Screws

You can wire the cables from the side of the camera or through the wall.

Wire the cables from the side

of the camera

Wire the cables through the wall

4. Connect the network, power and other cables of the camera to the related devices.

•If you want to use the Cable Gland to connect the network cable for waterproofing:

a. Insert the supplied Stopper to the Cable Gland.

Cable Gland

Stopper

b. Insert a RJ-45 network cable (without the RJ-45 connector on the one end)

through the Screw Cap and Cable Gland.

Cable Gland Screw Cap

c. Crimp the RJ-45 connector onto the network cable. Note that the wires should be

placed into the RJ-45 connector based on the following order (from left to right).

Orange with white stripe

Orange

Green with white stripe

Blue

Blue with white stripe

Green

Brown with white stripe

Brown

EZN7221/7260/7360

d. Connect the RJ-45 network cable to the LAN / PoE Cable. Tightly screw the Cable

Gland and Screw Cap.

5. Optionally insert a micro SD / SDHC card into the card slot. Please refer to 3.2 Inserting a

micro SD Card later.

6. Access the camera live view. See 4. Accessing the Camera. Or connect a handheld test

monitor to the CVBS wire on the Cable Assembly for adjusting viewing angles.

7. To adjust the camera angles:

Pan Adjustment: Unscrew the Set Screw using the supplied Thinner Hexagon Wrench.

Twist the Camera Body forcefully until it unscrews from the Camera Base. Rotate the

camera by 360° to the desired position and screw the E-Z Lock Ring until it locks against

the Camera Base. Screw back the Set Screw.

E-Z Lock Ring

Set Screw

360°

Camera Base

Camera Body

Tilt Adjustment: Loosen the Tilt Screw using the provided Hexagon Wrench and adjust

the tilt angle by 90°.

Tilt Screw

90°

EZN7221/7260/7360

Rotational Adjustment: Loosen the Rotate Screws on both side of the camera body using

the providing Hexagon Wrench and rotate the camera by 360° (180° to the left / 180° to

the right).

Rotate Screw

180° 180°

8. To adjust zoom and focus, please use Lens Control buttons on the Live View window.

Please refer to 5.4 Live View Window in the User’s Manual.

Note: Before start operating the IP camera, please make sure the camera date and time are

correct. To configure the camera date/time, go to System > Date/Time setting page on Web UI.

3.2 Inserting a Micro SD Card

You can optionally insert a micro SD card to the card slot on the camera module for recording

videos.

1. Remove the Sunshield from the camera. Loosen the set screw on the Sunshield using the

provided Thinner Hexagon Wrench. Slide the Sunshield out from the rail on the camera

body.

Set Screw

Sunshield

2. Rotate and then remove the camera cover, and insert a micro SD card into the card slot.

Micro SD Card Slot

EZN7221/7260/7360

Note: After opening the camera cover for inserting the micro SD card, you have to

close the cover immediately in case of reducing the absorption capacity of the

desiccant bag inside the camera.

3. Stick the supplied Desiccant Bag inside the camera.

4. Firmly close the camera cover for waterproofing and then slide the Sunshield back to the

camera body.

Note: When properly installed, the rear-side of the Sunshield should be even with the

rear-side of the camera body. Extending the Sunshield in order to shade the lens will

compromise the image quality.

4. Accessing the Camera

You can look up the IP address and access the Web interface of the IP camera using the IP Utility

(IPU) program, which is included in the software CD. The IP Utility can also be downloaded from

EverFocus’ Website: http://www.everfocus.com.tw/HQ/Support/DownloadCenter_p1.aspx

(Support > Download Center > Keyword Search: IP Utility). Please connect the IP camera on the

same LAN of your computer.

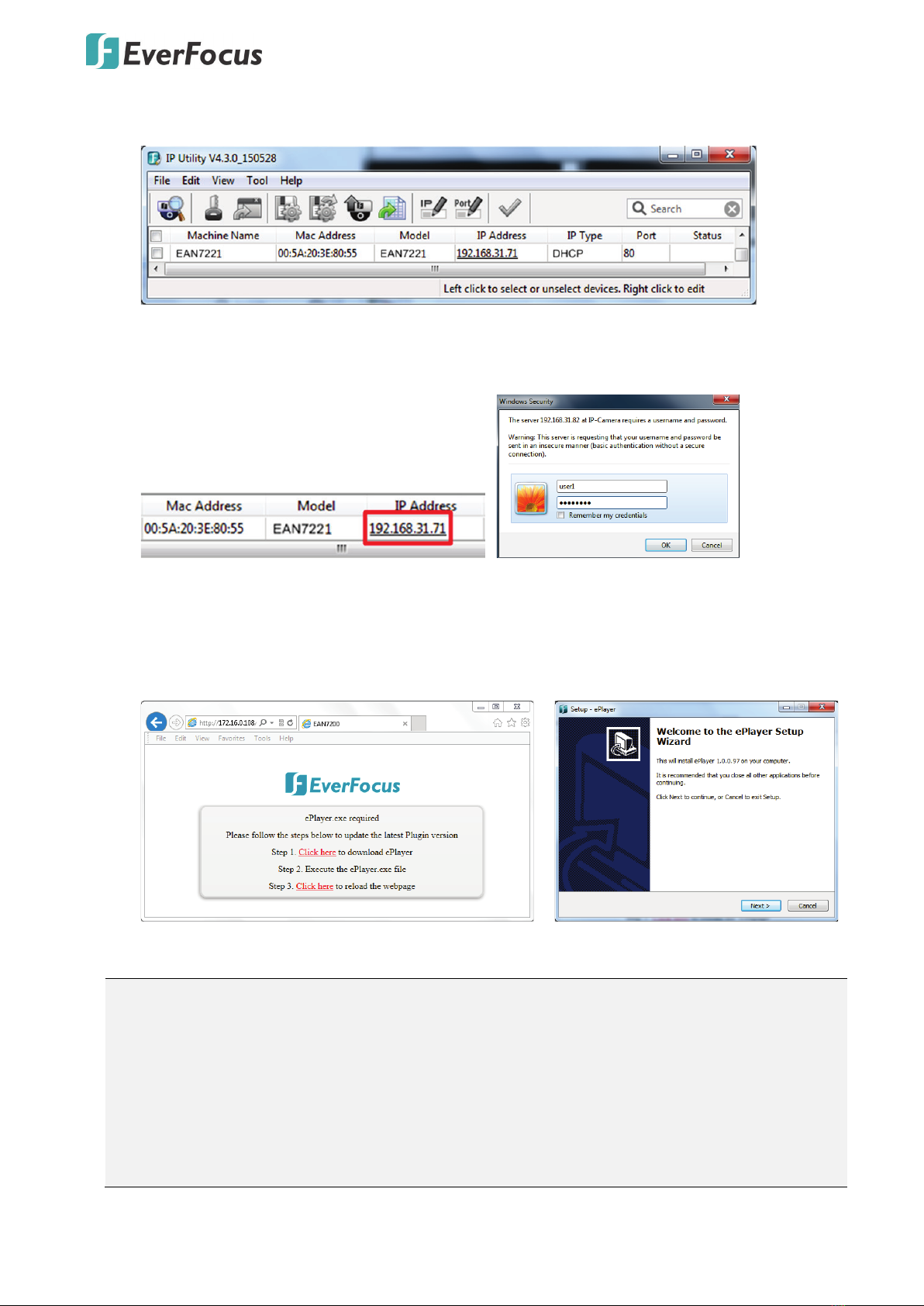

1. Save IP Utility Setup .exe in your computer. Double click the .exe file and follow the

on-screen instructions to install the IP Utility.

EZN7221/7260/7360

2. Click the Finish button, the IP Utility will be automatically launched to search the IP devices

connected on the same LAN.

3. To access the Live View window, double click the IP address of the desired device, the login

window pops up. Type the user ID and password to log in. By default, the user ID is user1

and the password is 11111111.

4. If you log in for the first time, follow the on-screen instructions to update the latest Plugin

version (ePlayer). After reloading the webpage, the login window pops up again. Type the

user ID and password to log in again. By default, the user ID is user1 and the password is

11111111.

5. Now you will be able to see the remote live page.

Note:

1. The “Download ePlayer Instruction” page will only be prompted for the first time login in

order to update the system to the latest Plugin version.

2. If the Error window appears, please be sure to close ALL the Web browser windows first

and then click Retry. When the Completing the ePlayer Setup Wizard window shows up,

click Finish. Then, you can open a new browser again to access the camera’s remote Web

interface.
