More functions
- RDM. RDM stands for “Remote Device Management”, with this function, users can realize remote control of the
device, such as remotely changing DMX address, reverse pan/tilt setting, check a lot of useful information such as
temperature, power consumption, fan speed. Etc. Every single device has a unique RDM code programmed at
manufacture to distinguish from each other. It is not recommended for users to change this code.
- Software upgrade function via DMX cable. If there is any new firmware for this device, it can be upgraded simply via
a software upgrade box, no need to change any mechanical parts. The upgrade box is not included in the package,
if need any further assistance please just contact your authorized dealer.
- Hibernation. The device will enter sleeping mode if activated after a period of disconnecting DMX signal to save the
power consumption, and will return immediately as soon as the DMX signal is sent again.
- Display back-up communication IC. There is a back-up communication IC installed in the display PCB, so users
could replace at once if the original one is broken.
- Display flip. By press up and down button for more than 3 seconds, the display will flip automatically, this function is
useful to read menu conveniently when device is hanged.
Technical Specifications
- Input Voltages: 100V~240V A, 50/60Hz
- Power Consumption: 520W
- Light source: 37 pcs Osram 15W RGBW LED
- Power Connection: Neutrik® Powercon input and output connection
- LED life: 60,000 hours

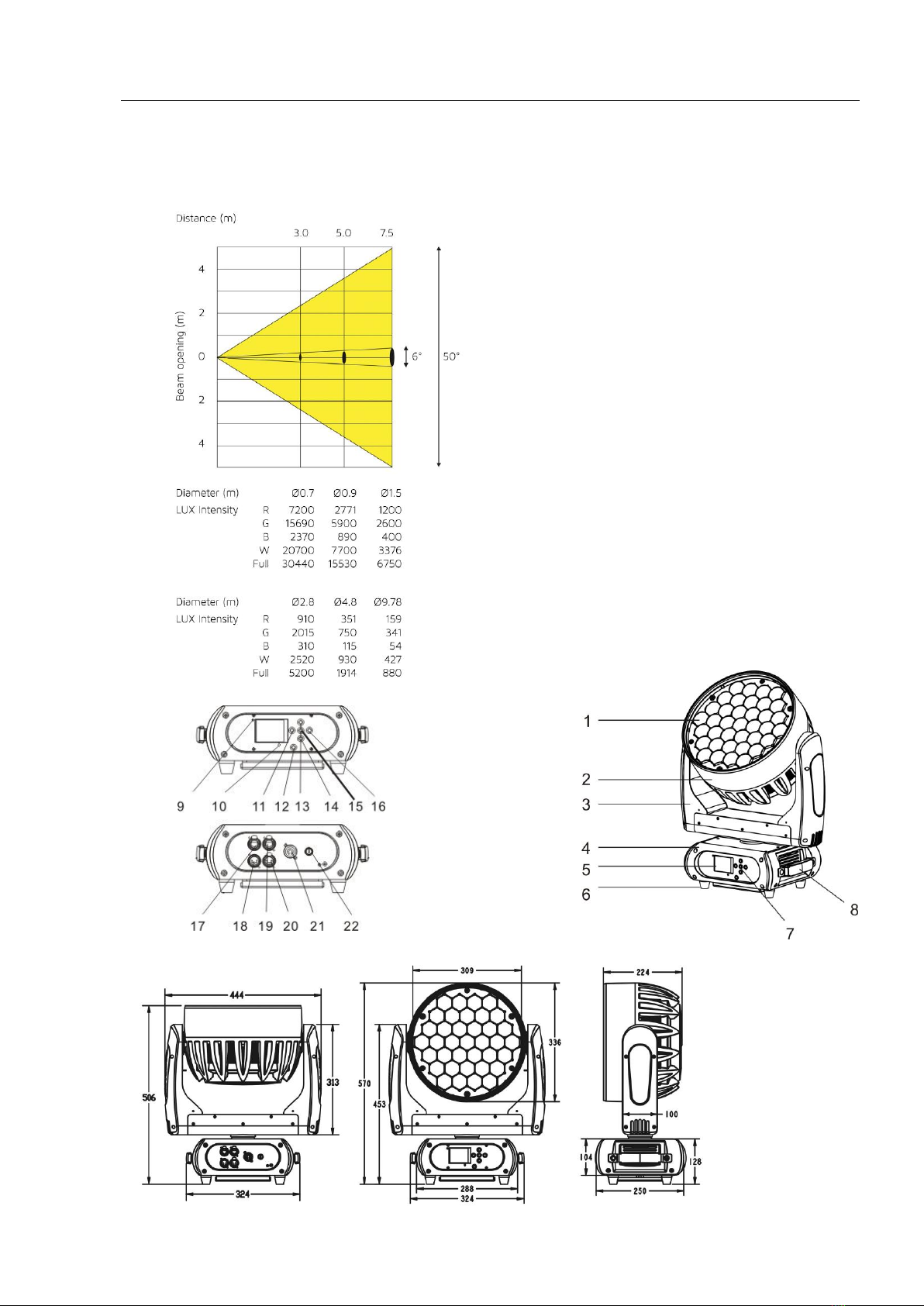

- Lux: 13,500 lumen, 30,440 lux RGBW full on @3M at 6°, 5,200 lux RGBW full on @3M at 50°
- Beam angle: 6°to 50°
- PWM: 1,200Hz
- Colors: full color
- Pixel control
- Dimmer: 0-100% dimmer
- Strobe: 0.5 - 26 Hz
- Zoom: 6°to 50°
- Head movement: Pan: 630°(2.2 sec)or 540°(2.0 sec), Tile 265°(0.85 sec).16-bit resolution, auto repositioning
- Control: DMX512, 5-pin XLR & Ethernet interfaces, 19/41/170/19/21 channel mode
- Other function: wireless DMX is available
- 2.4 inch colour LCD display with back-up power.
- Thermostat Controlled, variable speed fan
- RDM and software upgrade via DMX.
- Net weight: 17Kg
- Overall Size: 444x250x506mm
- Rigging: 2pcs omega brackets with 1/4 –turn quick locks
- Road case available
