Event Lighting M1H300W User manual
M1H300W
Hybrid Moving Head with CMY, CTO and Zoom
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
V1.0
2
www.event-lighting.com.au
Safety Instructions
WARNING
• Do not open this device, there is no user-serviceable parts inside. Risk of electric shock.
• Do not look at the light source when the device is on.
• CAUTION: This unit's housing may be hot during and after operation.
• Install this device in a location with adequate ventilation, at least 20 inch (50 cm) from adjacent surfaces.
• Do not leave any flammable material within 50 cm of this unit while operating or connected to power.
• Use a safety chain when mounting this device overhead.
• Do not operate this device outdoors or in any location where dust, excessive heat, water, or humidity may affect it.
• Do not operate this device if the housing, lenses, or cables appear damaged.
• Do not connect this device to a dimmer or rheostat.
• ONLY connect this device to a grounded and protected circuit.
• ONLY use the hanging bracket to carry this device.
• In case of a serious operating problem, stop using immediately.
• The maximum ambient temperature is 104° F (40° C). Do not operate this device at higher temperatures.
Power Input & Power Linking
This device has an auto-switching power supply work with input voltage range of 100~240 VAC, 50/60 Hz.
Link up to the maximum 8A. DO NOT exceed this.
Fuse Replacement
If the fine-wire fuse of the device fuses, only replace the fuse by a fuse of same type and rating.
Before replacing the fuse, unplug mains lead.
Procedure:
Step 1: Unscrew the fuse holder on the rear panel with a fitting screwdriver from the housing (anticlockwise).
Step 2: Remove the old fuse from the fuse holder.
Step 3: Install the new fuse in the fuse holder.
Step 4: Replace the fuse holder in the housing and fix it.
Product Installation
This device can be mounted in many orientations provided each
individual device is secured by the use of correct mounting bracket.
Use a safety chain when mounting this device overhead.
3
www.event-lighting.com.au

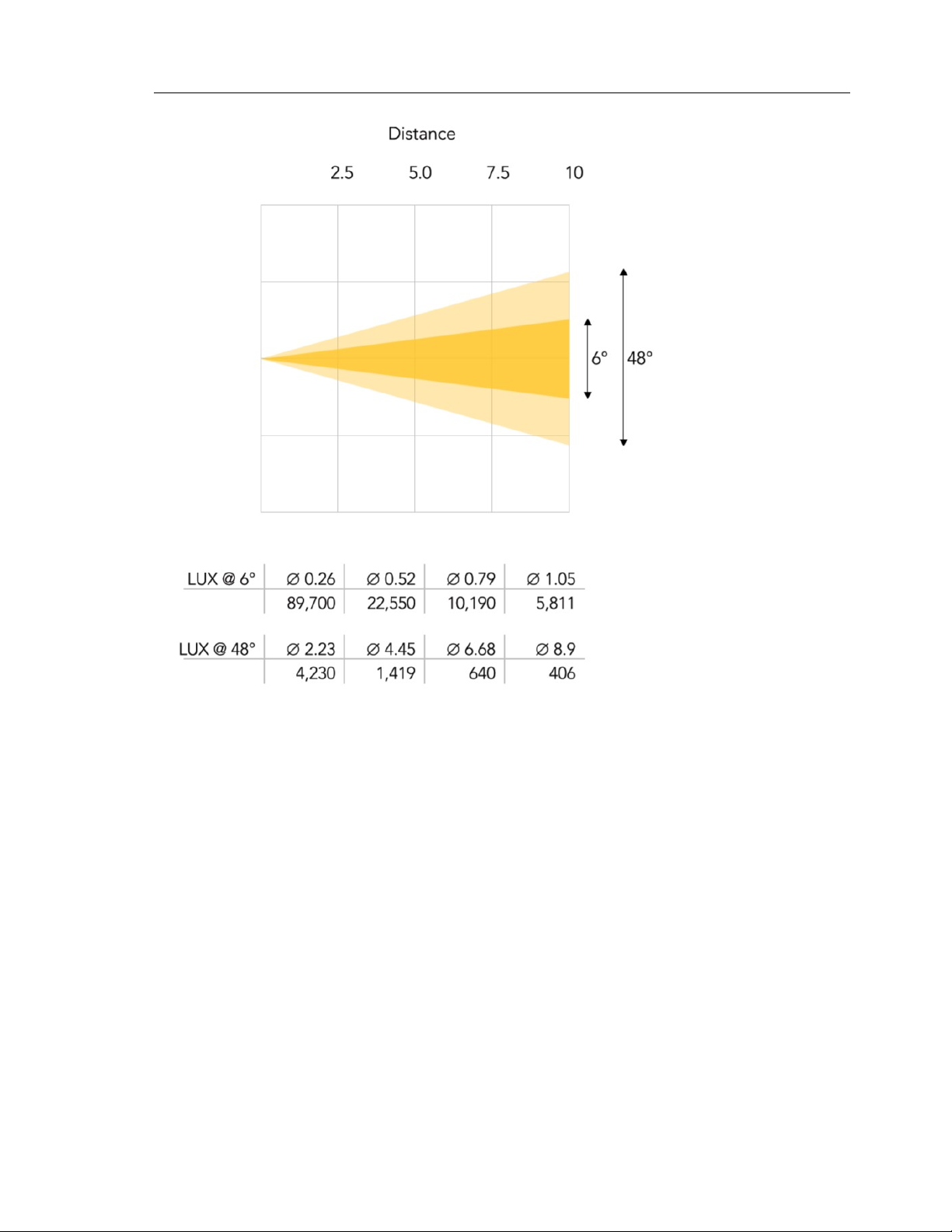

Product appearance, LUX chart, Dimensions
1. Project lens
2. Head
3. Arm
4. Base
5. Display
6. Foot stand
7. Operation button
8. Handle
9. Wireless indicator
10. Mic
11. Left button
12. Battery indicator
13. Up button
14. Down button
15. Enter button
16. Right button
17. 3-pin DMX in
18. 5-pin DMX in
19. 3-pin DMX out
20. 5-pin DMX out
21. Powercon in
22. Fuse
23. Power switch
4
www.event-lighting.com.au
5
www.event-lighting.com.au
Colour wheel
1
Open
2
Magenta
3
Orange
4
Sky blue
5
Pink
6
Yellow
7
Green
8
Blue
9
Red
Gobo wheel
Static gobo wheel Rotating gobo wheel (slot-in-out gobos)
6
www.event-lighting.com.au
Rotating gobo wheel
Position 1
Position 2
Position 3
Position 4
Position 5
Position 6
Position 7
Position 8
7
www.event-lighting.com.au
Static gobo wheel
Position 1
Position 2
Position 3
Position 4
Position 5
Position 6
Position 7
Position 8
8
www.event-lighting.com.au
Menu operation
Description of icons in the menu
CONNECT LIGHT INFOMATION SET PROGRAM
Menu
Default setting shadowed. Mark with ①can be basic reloaded, ② be program reloaded, ③can be private reloaded.
Connect
DMX Address① XXX DMX address setting
Wireless① Wireless Enabled
Light
Max
Temperature①
80~139℃80℃ /176~282℉176℉ Lamp off if temperature
continuously over for 5
minutes
Lamp Adjust① PAN…… Adjust value of channel
Information
Time Info. Current XXXX(Hours)
Fixture Life XXXX(Hours)
Fixture boot time
Fixture total run time
Temperature Near Lamp Temp (depends on fixture) Temperature Sensors
Fans Speed Near Lamp Fan (depends on fixture) Fan speed Sensors
Channel Value PAN…… Display value of channel
Error Message Pan,Tilt…… Error channels
Fixture Model xxxxxxxxxxxx Display model brand and
model
Software Ver 1U01 V1.0.00……… Version of each IC
Set
Reset All
Pan&Tilt
Colors
Gobos
Others
Reset all
Reset Pan & Tilt
Reset Colors
Reset Gobos
Reset Others
Movement Pan Reverse①
Tilt Reverse①
Pan Degree①
Encoders①
Pan/Tilt Mode①
ON/OFF
ON/OFF
630/540
ON/OFF
Stand/Smooth
Pan Reverse
Tilt Reverse
Choose Pan Degree
Encoder wheel on/off
Choose pan/tilt mode
UI Set Mic Sens. ③
No Signal①
Temperature. C/F①
Fans Mode①
Hibernation①
Backlight①
Flip Display①
0~99%,60%
Close/Hold/Auto/Music
Fahrenheit /Celsius
Auto Speed /High Speed
OFF, 01M~99M，15M
02~60m 02m
ON/OFF
Sensitivity of Mic
Mode when no signal
Temperature at ℃/℉
Fans mode
Sleeping mode
Show backlight time
Display 180°reverse
9
www.event-lighting.com.au
Display Bright③
Brand Show①
Key Lock①
Language③
00~31 10
ON/OFF
ON/OFF
En/简/繁/Fr/Sp
Display Brightness
Show brand or not
Key lock on/off
Language Select
Users User Mode① Standard
Extended
Basic-8bit
Basic-16bit
User
Standard mode
Extended mode
Basic-8bit mode
Basic-16bit mode
User program mode
Edit User③ Max Channel = XX
PAN = CH01
:
Edit users mode
Calibration③ -Password-
Color
:
=XXX
=XXX
:
Password: 050
Calibrate channel value
Fixture ID③ Name
-Password-
PID Code
Name
Password: 050
Set PID of RDM
Wireless Set① DMX On Cable
Reset Connect
ON/OFF
ON/OFF
DMX Send Out
Reset Connect
Reload Default Basic Reload(①)
Program Reload(②)
---Password---
Private Reload(③)
All Reload
ON/OFF
ON/OFF
XXX
ON/OFF
ON/OFF
Basic Reload
Program Reload
Password: 050
Private Reload
All Reload
Program
Play① DMX Receive
Slave Receive
Sequence
Music
Slave Receive 1,2,3
Master / Alone
Master / Alone
DMX Receive
Choose slave position
Run Sequence
Music mode
Select Chase② Chase Part 1
Chase Part 2
Chase Part 3
Chase 1 ~ 8 Chase 1
Chase 1 ~ 8 Chase 2
Chase 1 ~ 8 Chase 3
Select and run auto program
Edit Chase② Chase 1
:
Chase 8
Chase Test
Step 01
Step 64
=SCxxx
=SCxxx
Test
Beginning scene
Ending scene
Edit Scenes② Edit Scene 001
~ Edit Scene 250
Pan,Tilt,……
--Fade Time--
--Secne Time--
DMX Input
=xxx
=xxx
=xxx
Input manual scene
Modify manually fading time
Modify manually scene time
Input scene from exterior
controller
Scenes Record ScXX=>ScXX Auto Input scenes
10
www.event-lighting.com.au
DMX Chart
Channel name function Min
DMX
Max
DMX
St Ex
Ba1 Ba2
1 1 1 1 Pan Pan Coarse 0 255
2
2 Pan fine Pan Fine 0 255
2 3 2 3 Tilt Tilt Coarse 0 255
4
4 Tilt fine Tilt Fine 0 255
3 5 3 5 Movement
Speed fastest to Slowest 0 255
6
Movement
Function
Normal 0 15
Movement With Blackout 16 31
TBD 32 255
4 7
Shutter
Function
Normal Shutter Functions 0 15
Pulse-effect Forward 16 31
Pulse-effect Reverse 32 47
Random Strobe 48 63
TBD 64 255
5 8
Shutter
Normal Shutter Functions
Close 0 31
Strobe Rate (slow to fast) 32 223
Open 224 255
Pulse-effect Forward
Close 0 31
Strobe Rate (slow to fast) 32 223
Open 224 255
Pulse-effect Reverse
Close 0 31
Strobe Rate (slow to fast) 32 223
Open 224 255
Random Strobe
Close 0 31
Strobe Rate (slow to fast) 32 223
Open 224 255
4 6 Shutter
Shutter closed 0 31
No function (shutter open) 32 63
Strobe effect slow to fast 64 95
No function (shutter open) 96 127
Pulse-effect in sequences 128 159
No function (shutter open) 160 191
Random strobe effect slow to fast 192 223
No function (shutter open) 224 255
6 9 5 7 Dimmer Dimmer(Close to Open) 0 255
