ETC Installation Guide

ArcSystem ArcSystem Pro Multi-Cell RDM

Corporate Headquarters Middleton, WI, USA +1 608 831 4116 London, UK +44 (0)20 8896 1000

Holzkirchen, DE +49 (80 24) 47 00-0 Rome, IT +39 (06) 32 111 683 Hong Kong +852 2799 1220 Paris, FR +33 1 4243 3535

Web etcconnect.com Support support.etcconnect.com Contact etcconnect.com/contactETC

Product information and specifications subject to change. ETCintends this document to be provided in its entirety.

7490M2160 Rev B Released 2019-07

Introduction

Congratulations on your purchase of ArcSystem products. ArcSystem is a family of overhead LED

products designed for installations where dimming, light quality, and ease of installation are

absolutely essential. With ArcSystem, you will experience perfectly smooth dimming from 100%

down to absolute zero. ArcSystem luminaires come in a variety of form factors, beam angles, and

color-temperature options, all with high-efficiency optics and an outstanding quality of light ideal for

any application.

This manual provides step-by-step instruction on the installation and RDMconfiguration of ArcSystem

products. For information on ArcSystem products with ArcMesh wireless control, see the

ArcSystem

Installation Manual

at etcconnect.com/Products/Lighting-Fixtures/ArcSystem. All ETC manuals are

available for download free of charge at etcconnect.com.

Safety

ArcSystem products are intended for professional use only. Read the entire manual before using this

equipment.

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions should always be followed including

the following:

READ AND FOLLOW ALL SAFETY

INSTRUCTIONS

•

Do not use outdoors.

•

Do not let power supply cords touch hot surfaces.

•

Do not mount near gas or electric heaters.

•

Equipment should be mounted in locations and at heights where it will not readily

be subjected to tampering by unauthorized personnel.

•

The use of accessory equipment not recommended by the manufacturer may cause

an unsafe condition.

•

Do not use this equipment for other than intended use.

SAVE THESE INSTRUCTIONS

ETC Installation Guide

ArcSystem Pro Multi-Cell

ArcSystem Pro Multi-Cell Page 2 of 24 ETC

Compliance

ArcSystem Multi-Cell Standard Fixtures with Integral Drivers

Model Description Compliance

ARCP2 100–240 Vor 100–277 V Pro Two-Cell

cULus Listed

•

ANSI/UL Std. 1598

•

CAN/CSA22.2 No. 250.0

•

FCC part 15 class A

CECertified

ARCP2RDM 100–240 Vor 100–277 V Pro Two-Cell RDM

ARCP4L 100–240 V or 100–277 V Pro Four-Cell Linear

ARCP4LRDM 100–240 V or 100–277 V Pro Four-Cell Linear RDM

ARCP4S 100–240 V or 100–277 VPro Four-Cell Square

ARCP4SRDM 100–240 V or 100–277 VPro Four-Cell Square RDM

ARCP4R 100–240 VPro Four-Cell Round

ARCP4RRDM 100–240 VPro Four-Cell Round RDM

ARCP8 100–240 Vor 100–277 V Pro Eight-Cell

ARCP8RDM 100–240 Vor 100–277 V Pro Eight-Cell RDM

ArcSystem Multi-Cell Emergency Fixtures with Integral Drivers

Model Description

ARCPE2 100–240 Vor 100–277 V Pro Two-Cell Emergency

cULus Listed

•

ANSI/ULStd. 924

•

CAN/CSA C22.2 No. 141

•

FCCpart 15 class A

CECertified

ARCPE2RDM 100–240 Vor 100–277 V Pro Two-Cell RDMEmergency

ARCPE4L 100–240 V or 100–277 V Pro Four-Cell Linear Emergency

ARCPE4LRDM 100–240 V or 100–277 V Pro Four-Cell Linear RDMEmergency

ARCPE4S 100–240 Vor 100–277 V Pro Four-Cell Square Emergency

ARCPE4SRDM 100–240 Vor 100–277 V Pro Four-Cell Square RDMEmergency

ARCPE4R 100–125 V Pro Four-Cell Round Emergency

ARCPE4RRDM 100–125 V Pro Four-Cell Round RDMEmergency

ARCPE8 100–240 V or100–277 V Pro Eight-Cell Emergency

ARCPE8RDM 100–240 V or100–277 V Pro Eight-Cell RDMEmergency

ETC Installation Guide

ArcSystem Pro Multi-Cell

ArcSystem Pro Multi-Cell Page 3 of 24 ETC

System Overview

ArcSystem fixtures are available in 100–240 V or 100–277 V, standard or emergency models.

ArcSystem Pro One-Cell fixtures require an external driver.

Models are available to meet your installation requirements. This guide covers the products listed

below.

ArcSystem Pro Two-Cell

•

integral driver

•

ideal for medium throw

•

55 W full load power consumption

•

Standard:100–240V with IEC connector or 100–277V

hard-wired input options

•

Emergency:100–125V with NEMA 5-15 connectors or

100–277 Vhard-wired input options

•

yoke-mount only

•

beam angle options: 19°, 24°, 37°, 60°

ArcSystem Pro Four-Cell

•

integral driver

•

ideal for medium/long throw

•

100 W full load power consumption

•

Standard:100–240V with IEC connector or 100–277V

hard-wired input options

•

Emergency:100–125V with NEMA 5-15 connectors or

100–277 Vhard-wired input options

•

linear and square yoke-mount, round, and pendant

options

•

beam angle options: 19°, 24°, 37°, 60°

ArcSystem Pro Eight-Cell

•

integral driver

•

ideal for long throw

•

200 W full load power consumption

•

Standard:100–240V with IEC connector or 100–277V

hard-wired input options

•

Emergency:100–125V with NEMA 5-15 connectors or

100–277 Vhard-wired input options

•

yoke-mount only

•

beam angle options: 19°, 24°, 37°, 60°

Note: The ArcSystem Pro One-Cell Pendant is only available with 100–277 Vhard-wired

input. The ArcSystem Pro Four-Cell Round is only available with 100-240 V input with

IECconnectors (standard)or 100–125 V input with NEMA5-15 connectors (emergency).

ArcSystem Pro One-Cell fixtures are covered in the

ArcSystem Pro One-Cell Installation Guide

and

ArcSystem Installation Manual

. All ETCmanuals are available for download free of charge at

etcconnect.com.

ETC Installation Guide

ArcSystem Pro Multi-Cell

ArcSystem Pro Multi-Cell Page 4 of 24 ETC

ETC Installation Guide

ArcSystem Pro Multi-Cell

ArcSystem Pro Multi-Cell Page 5 of 24 ETC

Emergency System Overview

ArcSystem drivers and fixtures can be purchased in UL924 listed variants. Each of the fixtures can be

configured to be UL924 listed when wired into an existing emergency response system. See

Installing 100–125 V Emergency Multi-Cell Fixtures

and

Installing 100–277 V Emergency

Multi-Cell Fixtures

Install the ArcSystem multi-cell fixture in a location that is accessible by qualified personnel for

testing of the emergency operation.

Note: Fixtures must be hard-wired to emergency certified drivers to be considered for

UL924 certification.

Note: Emergency fixtures must be installed in a high bay situation.

Note: The number of designated emergency lamps and their height is the responsibility of

the specifier and installer in order to achieve the minimum FC levels of NFPA101.

Installation scenarios should be evaluated by the AHJ to confirm illuminance and

performance requirements of ANSI/NFPA 101 and the IBC.

Note: ArcSystem Pro One-Cell Micro fixtures in emergency installations must be installed

with a maximum mounting height of 23.2 ft (7.07 m).

Note: Installation must follow all national and local codes for electrical equipment.

Note: Normal and emergency wiring cannot be contained in the same conduit according

to NEC 700.10(B).

ETC Installation Guide

ArcSystem Pro Multi-Cell

ArcSystem Pro Multi-Cell Page 6 of 24 ETC

Emergency drivers and fixtures require two branch circuit connections. These inputs have the

following functions:

1. Normal branch circuit to sense failure of the normal supply. Connect to Sense Input

connector.

2. Normal/Emergency branch circuit providing power to the fixture in both conditions.

Connect to Maintained Input connector.

Sense detects when power is lost and forces the fixture to a full-on state, powered by the emergency

supply through the Constant Power input. Control of the fixture will not be available until the sense

input has been restored.

WARNING: Do not mix 120 V and 277 V between the sense and emergency feeds.

AVERTISSEMENT : Ne pas inverser les alimentations à 120V et 277V entre les

alimentations de détection et de secours.

WARNING: Sense (normal) and Maintained (normal/emergency) feeds must have the

same phase. The diagram below shows the recommended installation.

AVERTISSEMENT : Les alimentations de détection (normale) et d’entretien

(normal/secours) doivent être sur la même phase. Le schéma ci-dessous présente

l’installation recommandée.

normal

breaker

panel

ArcSystem multi-cell

emergency luminaire

ArcSystem one-cell

emergency luminaire

with emergency

driver

emergency

breaker

panel

normal branch circuit

used to sense normal power failure

connect to Sense input

normal/emergency branch circuit

normal

normal/emergency

from UL1008

ATS by others

connect to Maintained input

ETC Installation Guide

ArcSystem Pro Multi-Cell

ArcSystem Pro Multi-Cell Page 7 of 24 ETC

Before You Begin Installation

Review the following sections before beginning your ArcSystem installation. ArcSystem products

should only be installed by a qualified installer or electrician.

Power Disconnect Device

Before installation, make sure you have a main circuit breaker cabinet or other readily accessible

input power disconnect device installed ahead of your ArcSystem products.

WARNING: RISK OF DEATH BY ELECTRIC SHOCK! Failure to disconnect all power to the

system before installation, maintenance, cleaning, or any other system modification could

result in serious injury or death.

AVERTISSEMENT : RISQUE DE MORT PAR DÉCHARGE ÉLECTRIQUE! Négliger de

débrancher toutes les sources d’alimentation du système avant l’installation, l’entretien, le

nettoyage ou toute autre modification du système peut causer des blessures graves ou la

mort.

De-energize main feed to ArcSystem and follow appropriate Lockout/Tagout procedures as

mandated by NFPA 70E. It is important to note that electrical equipment such as breaker

panels can present an arc flash hazard if improperly serviced. This is due to the high

amounts of short-circuit current available on the electrical supply to this equipment. Any

work must comply with OSHA Safe Working Practices.

WARNING: Circuits that are installed without an accessible power disconnect device

cannot be serviced or operated safely.

AVERTISSEMENT : Il est imprudent d'utiliser ou de réparer les circuits installés sans

qu'un dispositif de déconnexion de l'alimentation ne soit accessible.

Installation Requirements

Indoor installation only: 0–40°C (32–104°F), 5–95% non-condensing humidity.

Dry locations only.

Installation location must support the weight of the fixture and applicable mounting hardware.

CAUTION: ArcSystem fixtures and drivers are not suitable for use in spaces with restricted

air flow. Enclosing the fixtures or drivers temporarily or permanently may cause damage to

the fixtures or drivers.

ETC Installation Guide

ArcSystem Pro Multi-Cell

ArcSystem Pro Multi-Cell Page 8 of 24 ETC

Installing 100–240 V Multi-Cell Fixtures

100–240 V multi-cell yoke mounted fixtures include the Pro Two-Cell, Pro Four-Cell Linear, Pro Four-

Cell Square, and Pro Eight-Cell. For 100–240 V Pro Four-Cell Round, see

Installing 100–240 V

Four-Cell Round Fixtures on the facing page

. For 100–277 V fixtures, see

Installing 100–277

V Multi-Cell Fixtures on page10

Note: Mounting hardware and installation location must support the weight of the fixture.

DMX

DMX In and DMX Thru cables terminate to RJ45 connectors. DMX is installed in a daisy chain

topology and includes one pair of wires (Data +, Data -) plus an ISO ground (common). ETC

recommends Cat5e (or better) minimum 24 AWG conductors terminated to T568B standard. Up to

32 fixtures can be connected per DMX run.

RJ45 Pinout Information

Pin Description

1 Data +

2 Data -

7&8 ISOground

(common)

Four-cell square

fixture shown

DMX In and Thru

connections

Power switch

Power connection

Installation Procedure

1. Attach a C-clamp or other mounting hardware (not provided) to the yoke of the fixture.

2. Attach the fixture to a pipe or other approved mounting device.

3. Insert or attach additional accessories, if desired.

4. Connect the provided power cable.

5. If using hard wired DMX, plug the RJ45 connector into the DMX in port on the rear of the

fixture.

6. If linking additional fixtures via DMX, plug a RJ45 cable into the DMX thru port on the rear of

the fixture.

Note: ArcSystem fixtures are not self terminating. You must terminate the last fixture in

line with a 120

resistor.

To purchase an RJ45 terminator, please contact your ETC customer service representative

and request part number N4086.

7. Toggle the power switch to “ON".

8. Rotate the fixture so it is roughly focused to its final resting position. This will assist in final

focus procedures.

ETC Installation Guide

ArcSystem Pro Multi-Cell

ArcSystem Pro Multi-Cell Page 9 of 24 ETC

Installing 100–240 V Four-Cell Round Fixtures

Note: Mounting hardware and installation location must support the weight of the fixture.

Installing to Threaded Rod

Power cable

connection

DMX Thru

DMX In

Power switch

Fixture attachment

plate (nut)

1. Install one of the provided fixture

attachment plates (nuts), M10-

1.5mm or 1/2-13in, with the two

provided screws.

2. Attach the fixture to the installed

threaded rod.

3. Plug in the provided power cable.

4. If using hard wired DMX, plug in

the RJ45 connector into the DMX

In port on the top of the fixture.

5. If linking additional fixtures via

DMX, plug a RJ45 cable into the

DMX Thru port on the rear of the

fixture.

6. Toggle the power switch to “ON".

Note: ArcSystem fixtures are not self terminating. You must terminate the last fixture in

line with a 120

resistor.

To purchase an RJ45 terminator, please contact your ETC customer service representative

and request part number N4086.

ETC Installation Guide

ArcSystem Pro Multi-Cell

ArcSystem Pro Multi-Cell Page 10 of 24 ETC

Installing 100–277 V Multi-Cell Fixtures

This section provides the information needed to install 100-277 V Multi-Cell fixtures.

Supplies

The following supplies are required for installation, but not provided:

•

½ in flex conduit and conduit fittings

•

Appropriate strain relief connectors for the installation type, as needed

•

Phillips head screw driver

•

120ΩRJ45 terminator for DMX termination. See

Terminate DMX on page13

Note: Mounting hardware and installation location must support the weight of the fixture,

conduit hardware, and all cable required for installation.

Electrical and Wiring Specification

Install ArcSystem 100–277 V fixture on a power distribution system with reliably identified earthed

neutral and install a maximum 20 A circuit breaker on the line conductor.

ArcSystem 100–277 V fixtures and drivers accept 100–277 VAC, 50/60 Hz. ETC recommends

installing all wiring in grounded metal conduit.

Wire and Terminal Specifications

Fixture Type Terminal /

Connector

Conduit

Entry Wire Range / Specification Strip Length

Pro Two-Cell,

Pro Four-Cell Square,

Pro Four-Cell Linear,

Pro Eight-Cell

Power Input -

line/neutral/ground ½ in conduit 0.2–4 mm

(24–12 AWG) 11 mm (0.43 in)

DMX In/Thru

RJ45 Connectors N/A

Cat5e (or better) minimum 24

AWG conductors terminated

to T568B standard

N/A

Note: ArcSystem fixtures are not self-terminating. You must terminate the last fixture in

line with a 120

resistor. To purchase an RJ45 terminator, please contact your ETC

customer service representative and request part number N4086.

Other manuals for ArcSystem Pro Multi-Cell RDM

This manual suits for next models

Table of contents

Other ETC Lighting Equipment manuals

ETC

ETC D22 Desire series User manual

ETC

ETC Sensor IQ Contact Input Control Option Card User manual

ETC

ETC F-Drive W1 Series User manual

ETC

ETC High End Systems SolaPix 7 User manual

ETC

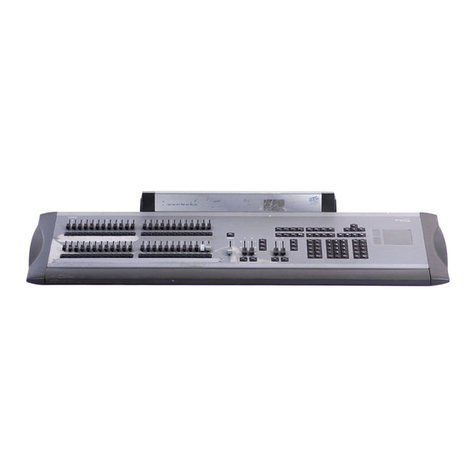

ETC Express 24/48 User manual

ETC

ETC ColorSource Raceway User manual

ETC

ETC Source Four CE 405 User manual

ETC

ETC Acclaim 100 series User manual

ETC

ETC Source Four Revolution Rotating Wheel Module User manual

ETC

ETC ColorSource PAR User manual

ETC

ETC ColorSource CYC User manual

ETC

ETC Sensor IQ DALI Control Option Card User manual

ETC

ETC Express 24/48 User manual

ETC

ETC IRIDEON AR500 User manual

ETC

ETC source four fresnel User manual

ETC

ETC fos/4 Series User manual

ETC

ETC Source Four Revolution Scroller Cartridge User manual

ETC

ETC Sensor3 User manual

ETC

ETC High End Systems SolaFrame 3000 User manual

ETC

ETC Lustr+ User manual

ETC

ETC SolarFrame 750 User manual

ETC

ETC Source 4WRD User manual

ETC

ETC High End Systems SolaPix 19 User manual

ETC

ETC Source Four LED Series User manual

Popular Lighting Equipment manuals by other brands

Brizo

Brizo 8SP-MU-4 manual

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 installation instructions

IKEA

IKEA BJÖRKSPIREA manual

Laserworld

Laserworld Evolution Series ES-400RGB manual

Alien

Alien RG STAR user manual

EuroLite

EuroLite LED B-40 user manual

Qazqa

Qazqa Suplux SL 3 Black 103062 instruction manual

Commercial Electric

Commercial Electric 54568141 Use and care guide

CREE LIGHTING

CREE LIGHTING 304 Series installation instructions

Goobay

Goobay 49867 user manual

ECOMAN ITALIA

ECOMAN ITALIA LED T8 instruction manual

Alkalite

Alkalite Krypton KT-81 user manual

Clas Ohlson

Clas Ohlson GU10 manual

DTS

DTS DELTA 10 F user manual

ring

ring Solar Steplight manual

One Stop Gardens

One Stop Gardens 57696 Owner's manual & safety instructions

Chauvet DJ

Chauvet DJ COREpar UV120 ILS user manual

SIREM

SIREM Swimeo A2 instructions
