ETC Source Four jr User manual

Product information and specifications subject to change.

Part Number:

7062M1210-06.01

Rev B

Released: June 2008

Picking# 7062M1004-B

CE User Manual

Production Dates: September 2004 - Present

Table of Contents

ETC

, Emphasis

, Expression

, Insight™, Imagine™, Focus™, Express™, Unison

, Obsession

II, ETCNet2™,

EDMX™, Source Four

, Revolution

, Sensor

, and WYSILink™ are either registered trademarks or trademarks

of Electronic Theatre Controls, Inc. in the United States and other countries.

All other trademarks, both marked and not marked, are the property of their respective owners.

Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Source Four jr / jr Zoom CE Guidelines . . . . . . . . . . . . . . . . . . . . . . .2

Basic Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Luminaire information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Colour frame holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Replacing the HPL lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Centering lamp and adjusting the field . . . . . . . . . . . . . . . . . . . .6

Focusing the beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Shaping the beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Adjusting the yoke position . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Switching lens assemblies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Cleaning glass lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Cleaning the reflector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Portable appliance test (PAT) . . . . . . . . . . . . . . . . . . . . . . . . . .11

English

Declaration of Conformity

We, Electronic Theatre Controls, Europe Ltd., declare under sole responsibility that the product:

Product name: Source Four fixed focus luminaries

Product type/model: S405, S410, S426, S450, S4jr26, S4jr36, Srjr50

Lot: n/a

Batch/Serial number: n/a

Item numbers: one of each model

to which this declaration relates in conformity with the following standards:

EN60598-1:2000 Luminaires, General requirements and tests

EN60598-2-17:1990 Specification for luminaires for stage lighting, television, film, and

photographic studios (outside and indoor) - equiv. BS 4533-

102.17:1990

following the provisions of EU LV Directive(s) 73/23/EEC

London, United Kingdom Mr. Adam Bennette

(Place of issue) (Name of authorised person)

(Date of issue) (signature of authorised person)

Electronic Theatre Controls Europe, Ltd. Registered office:

Unit 26-28, Victoria Industrial Estate, Grant Thornton House

Victoria Road, London W3 6UU U.K. Melton St., London NW1 28W, England

Telephone (+44) (0)20 896 1000 Registered in England No. 3057796

Fax (+44) (0)20 896 2000 VAT No. 6629487 90

2Source Four jr/jr Zoom CE User Manual

English

Source Four jr / jr Zoom CE Guidelines

The Source Four jr / jr Zoom CE is intended for professional use only. Read the entire User Guide

before using equipment.

• Do not mount the Source Four jr / jr Zoom CE on or near a flammable surface.

• Use the Source Four jr / jr Zoom CE in dry locations only, where humidity does not

exceed 90 percent.

• The luminaire is for indoor use only and is not intended for outdoor use.

• For temporary installations, mount and support the Source Four jr / jr Zoom CE only by

the primary suspension yoke holes. Suspend the luminaire from a hook clamp or a

stand mount, using a securely tightened steel bolt (up to Ø 12 mm), flat washer and

locking washer.

• In addition to primary suspension, attach a safety cable (ETC part #7060A1022)) or

chain to the secondary suspension point on the Source Four jr / jr Zoom CE.

• If the external cable is damaged, it shall be replaced by ETC or our service agents.

• Always hang the Source Four jr / jr Zoom CE with the colour frame held securely behind

the retaining clip.

• Always replace the lamp if it becomes damaged or thermally deformed.

• Disconnect the unit from power before all cleaning and maintenance.

• The Source Four jr / jr Zoom CE is suitable for indoor use with a maximum ambient

temperature: Ta=45°C

• Maximum exterior surface temperature: Tmax=235ºC

• A multilingual label sheet is included with this manual. Affix the label of the appropriate

language over the existing warning label on the extension yoke. Do not cover ETC

trademark or CE mark.

• The Source Four jr / jr Zoom CE contains a CE safety screen that covers the lens to

prevent injury from broken glass due to lamp failure. Do not remove the safety screen.

• Keep the luminaire at least 0.6 meters away from any lit surface. Lighted objects at this

distance or greater will not exceed 90ºC temperature from projected light.

WARNING:

Please note the following safety precautions.

0.6m

English

Basic Assembly

Luminaire information

Wiring and power information

A plug of at least 2.5 amp (220/240V) rating should be attached to the luminaire’s mains lead. The

wires in the mains lead are 1.55mm2each and coloured in accordance with the following code:

Green and Yellow: Earth

Blue: Neutral

Brown: Live

Current rating: 120V/5 amp maximum

240V/2.5 amp maximum

Operating frequency: 50/60 Hz

WARNING:

Please note the following safety warnings before use:

Do not mount the luminaire on or near combustible surfaces.

Do not operate the luminaire without a lens installed.

Always hang the luminaire with the colour frame retaining clip in the locked

position.

WARNING:

This luminaire must be earthed.

Figure 1

Lamp housing

C-clamp mounting

Barrel

Drop-in iris

slot cover

Pattern holder slot

Gel frame

Zoom rear focus knob

Beam focus knob

(Zoom front focus)

Yoke

Yoke locking knob

Color frame

retaining gel clip

t 180°c

4Source Four jr/jr Zoom CE User Manual

English

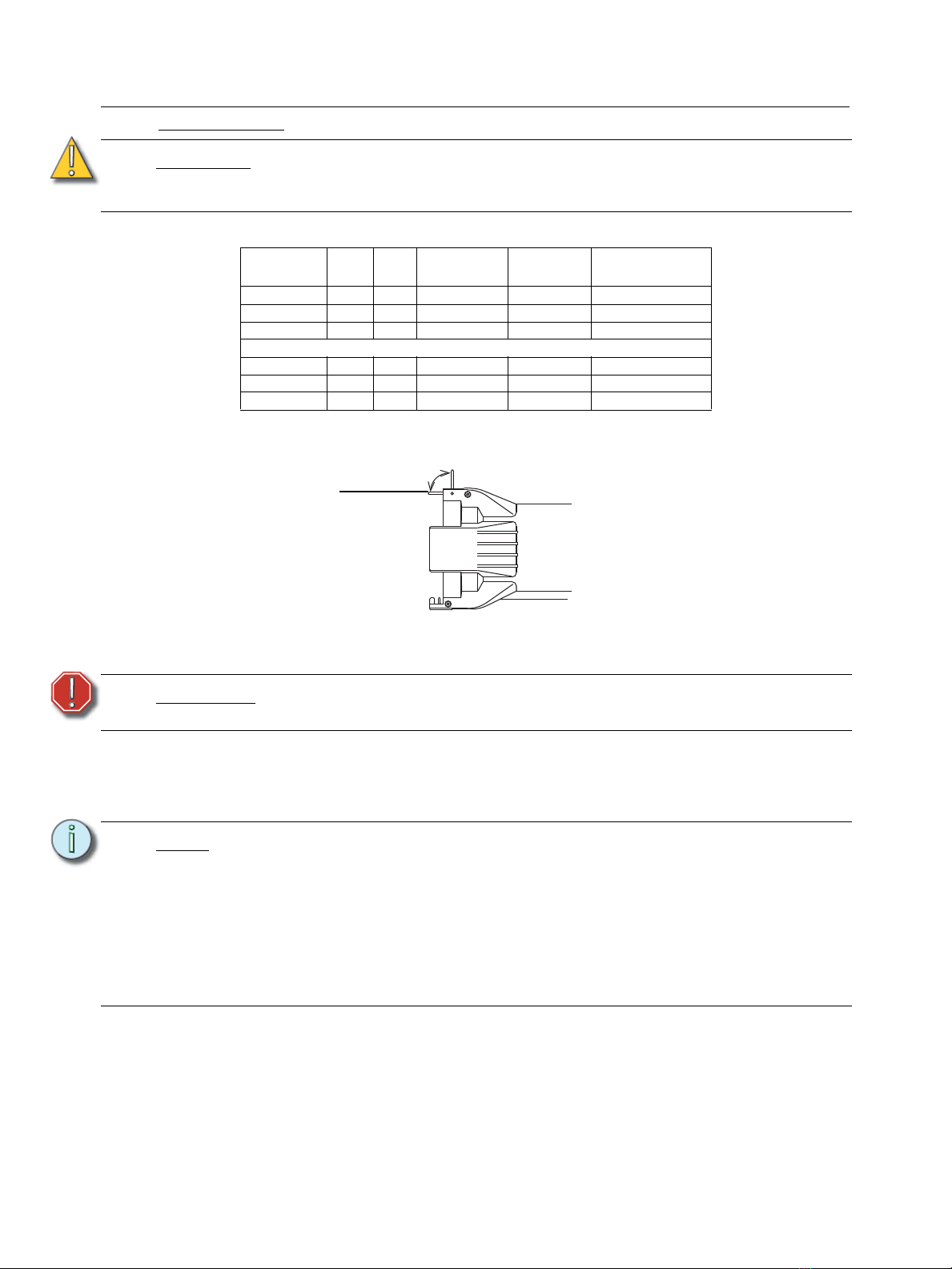

HPL lamp table

Colour frame holder

The colour frame holder is equipped with a spring-loaded retaining clip that prevents colour frames

and accessories from falling out. See Figure 2.

Step 1: Release the retaining clip by pushing it sideways while gently pulling backwards.

Step 2: Insert the colour frame.

Step 3: Lock the retaining clip by pushing sideways while gently pushing forward.

CAUTION:

The Source Four jr is rated for 575w maximum lamp. Do not use lamps other than

the HPL in Source Four fixtures. Use of lamps other than HPL or greater than

575w will void your warranty.

Lamp code Watts Volts Initial Lumen Colour

temp.

Average rated life

HPL 575/230 575 230 14,900 3,200°K 400 hours

HPL 575/230X 575 230 11,780 3,050°K 1500 hours

HPL 375/230 375 230 7,250 3,000°K 1000 hours

HPL 575/240 575 240 14,900 3,050°K 400 hours

HPL 575/240X 575 240 11,780 3,050°K 1500 hours

HPL 375/240X 375 240 19,750 3,000°K 1000 hours

WARNING:

Make sure all colour frame accessories are locked in position with the

retaining clip before hanging the Source Four jr / jr Zoom CE.

Note:

The performance of saturated colours may be less than desirable in any theatrical

lighting luminaire. For best results, always use high-quality colour media rated for

high-temperature use.

ETC’s optional Conical Gel Extender, part # 7060A1048, will provide maximum

colour media life. Gel Extenders are not recommended for 70° and 90° lens tubes

due to the extremely wide-angle beam.

A variety of heat shield products is also available from many colour media

manufacturers. Follow the manufacturer’s instructions for the use of these

products.

Figure 2

Retaining clip

English

Replacing the HPL lamp

A lamp must be installed before you use the luminaire.

Step 1: Disconnect power to the Source Four jr / jr Zoom CE before installing the lamp.

Step 2: Loosen the knurled bolt on the back of the lamp housing and pull the housing out.

Step 3: Holding by the base, remove the HPL lamp from its box.

Step 4: Align the flat sides of the lamp base with the retention brackets on either side of the

socket as shown in Figure 3.

Note:

Verify that the HPL lamp you intend to install is suitable for your facility’s voltage;

115-, 120-, 230-, and 240-volt HPL lamps are available. See HPL lamp table, page

4. Operating HPL lamps above their rated voltage reduces lamp life and can cause

premature lamp failure.

WARNING:

Let the lamp cool before replacing.

CAUTION:

Use caution when installing or replacing any lamp.

When installing/replacing lamp, be sure to point the lamp away from your face and

away from others before inserting it firmly into the assembly.

This may prevent injuries if the lamp should break.

Note:

To avoid premature lamp failure, do not touch the lamp glass. If you do, clean it

carefully with isopropyl alcohol and a clean lint-free cloth. Allow to dry before

operation.

HPL lamp

Lamp retention

brackets

Figure 3

Knurled bolt

Lamp housing

Lamp retaining clip

INCORRECT CORRECT

6Source Four jr/jr Zoom CE User Manual

English

Step 5: Push down on the lamp base until the lamp seats firmly. When properly installed, the top

of the lamp’s base will be even with he top edges of the retention brackets.

Step 6: Press lamp retaining clip across lamp base to secure.

Step 7: Reinstall the lamp housing by aligning the bolt hole and tightening the knurled bolt.

Centering lamp and adjusting the field

The two concentric knobs located on the lamp housing allow you to align the lamp and adjust its

field. See Figure 4. The outer knob centers the lamp within the reflector. The inner knob adjusts the

lamp’s field.

Step 1: Turn on the Source Four jr / jr Zoom CE and aim it at a flat surface. Adjust the barrel to

create a hard edge.

Step 2: Unlock and loosen the outer knob by turning it counterclockwise.

Step 3: Gently move the outer knob from side to side and up and down until the lamp is centered

within the reflector.

Step 4: Once the lamp is centered, turn the outer knob clockwise to lock it in place.

Step 5: Finally, turn the inner knob either clockwise or counterclockwise to achieve an optimum

flat field. See Figure 5.

Focusing the beam

On a fixed field angle Source Four jr., with a 26°, 36° or 50° lens, adjust the lens single beam focus

knob to focus the edge of the beam. On a Source Four jr Zoom, adjust the position of both lens

CAUTION:

Improperly installed lamps cause premature lamp failure and socket problems.

Outer Knob - lamp

center adjustment

Inner Knob -

peak/flat field

adjustment

Rear lamp

housing

Figure 4 Figure 5

Flat field-best adjustment

Hot spot - lamp pulled out

too far

Field with hole - lamp

pushed in too far

Beam focus knobs Figure 6

English

beam focus knobs to set the beam’s spread and to focus the edge of the beam. The Zoom lens

provide a range from 25° to 50°.

Step 1: Loosen the beam focus knob(s) on the underside of the barrel as shown in Figure 6.

Step 2: Slide the lens(es) forward or backward to achieve the desired beam edge.

Step 3: Once the luminaire is focused, tighten the beam focus knob(s).

Shaping the beam

The beam can be shaped using the shutters (see Figure 8), a pattern or an optional drop-in iris.

Pattern Projection

The pattern holder slot is on the top side of the barrel and in front of the shutters. It accommodates

an M-size pattern holder (see Figure 7). The pattern holder handle can be bent away from the

shutter handle to keep it from interfering with the action of the shutter handle.

Use an optional donut in the accessory holder to enhance pattern projection. Donut diameter range

should be 6.35 cm to 6.98 cm (2.5” to 2.75”).

Drop-In Iris Slot

The drop-in iris slot is located on the top of the barrel and in front of the pattern holder slot. It

accommodates either a drop-in iris or a motorized pattern device. When the slot is not in use, a

small sheet metal cover secured with two Phillips screws prevents light leakage (see Figure 8).

Step 1: Use a Phillips screwdriver to loosen the screws on the drop-in iris slot cover. Do not

remove screws.

Step 2: Slide the cover completely forward to expose the slot.

Step 3: Insert the iris with the flat side toward the shutters and make sure the iris handle extends

from the slot.

Figure 7

M-Size Pattern holder

Drop-in iris slot Iris

Figure 8

Pattern holder slot

Shutters

8Source Four jr/jr Zoom CE User Manual

English

Step 4: Slide the slot cover back toward the shutters until it meets the iris handle. Leave enough

space to move the iris handle.

Step 5: Secure the drop-in iris slot cover by tightening the screws.

Adjusting the yoke position

The Source Four jr / jr Zoom provides multi-positioning capabilities within its yoke for overall

luminaire height and angle.

Setting the luminaire height within the yoke

The luminaire is equipped with a two-position yoke for modifying the overall height in which the

luminaire is mounted (see Figure 9). To change the height position, perform the following steps.

Step 1: Remove the yoke locking knobs, washers, and hex bolts from either side of the luminaire.

Step 2: Raise or lower the luminaire to the desired position within the yoke.

Step 3: Reinstall the yoke’s hex bolts, washers, and locking knobs.

Step 4: Tighten the yoke knobs to secure in position.

Setting the angle within the yoke

Step 1: Loosen the yoke locking knobs (see Figure 10). Do not remove them.

Step 2: Tilt the luminaire to the desired position.

Step 3: Tighten the yoke locking knobs to secure in position.

Figure 9

Low clearance position

General use position

Yoke locking knob

Yoke locking knob Figure 10

Other manuals for Source Four jr

This manual suits for next models

Table of contents

Other ETC Dj Equipment manuals

ETC

ETC Source Four PAR EA User manual

ETC

ETC Source Four PARNel User manual

ETC

ETC ColorSource Linear User manual

ETC

ETC Source 4WRD II User manual

ETC

ETC High End Systems SolaPix 19 User manual

ETC

ETC ColorSource Fresnel V User manual

ETC

ETC Ion Classic User manual

ETC

ETC Source Four LED Series User manual

ETC

ETC Source Four LED Series User manual

ETC

ETC ColorSource CYC User manual

ETC

ETC ColorSource Spot Pearl v1.7 User manual

ETC

ETC Source 4WRD User manual

ETC

ETC Desire series Configuration guide

ETC

ETC Source Four Mini LED User manual

ETC

ETC ColorSource PAR User manual

ETC

ETC ColorSource PAR v1.7 User manual

ETC

ETC Source Four jr User manual

ETC

ETC Source Four PARN User manual

ETC

ETC Source Four Mini LED User manual

ETC

ETC High End Systems SHOWGUN Manual

ETC

ETC ColorSource Linear User manual

ETC

ETC Source Four PAR User manual

ETC

ETC ColorSource Spot jr v2.0 User manual

ETC

ETC RoadHog 4 User manual

Popular Dj Equipment manuals by other brands

ALPHA LITE

ALPHA LITE ALPHA 1500 User manual book

Chauvet

Chauvet OVATION E-930VW Quick reference guide

Zumtobel

Zumtobel APHRODITE Home Instructions for use

Snow Masters

Snow Masters Zig Oscillator user manual

EuroLite

EuroLite 50530554 user manual

Beamz

Beamz BUV243 user manual

thomann

thomann Stairville DJ Lase 40-G MK-III user manual

Eagletone

Eagletone 6 Eyes Flower user manual

EuroLite

EuroLite FLD-1508 user manual

Technical Pro

Technical Pro LG8xSEA user manual

JB Systems

JB Systems Lounge Laser DMX Operation manual

Lightmaxx

Lightmaxx Vega Halo 90 user manual

Elation

Elation FUZE WASH Z350 user manual

Maverick

Maverick MK3 WASH Quick reference guide

Infinity

Infinity TF-260C7 Fresnel manual

Chauvet

Chauvet EVE E-50Z Quick reference guide

Eliminator Lighting

Eliminator Lighting E 138 manual

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC user manual
