Ericsson R320S User manual

NotforCommercialUse

EricssonMobileCommunicationsAB

Contents

at a Glance

Getting Started 5

Preparing Your Phone for Use 6

Turning Your Phone On and Off 11

Display Information and Key Functions 13

Making and Receiving Calls 15

During a Call 18

Functions and Settings 21

R320 Features 23

Using the Menus 24

Your Personal Phone Book 30

Using the Call List 39

Your Voice Mail Service 41

Personalizing Your Phone 43

Sending and Receiving Text Messages (SMS) 52

Communicating via the Built-in Modem 62

Sending and Receiving Fax, Data and E-mail 67

Business Card Exchange 70

Diverting Incoming Calls 73

Security for Your Phone and Subscription 75

Handling More than One Call Simultaneously 83

Setting Network Preferences 88

Knowing the Call Time and Call Cost 91

Using Two Voice Lines 94

Using the WAP™ Browser 95

Calendar 104

Voice Memo 109

Voice Control 112

Code Memo 115

Calling Card Calls 118

Extras 121

The Profile Concept 125

Accessories 128

Online Services 135

Ericsson R320s

Second edition (December 1999)

This User’s Guide is published by

Ericsson Mobile Communications AB,

without any warranty. Improvements and

changes to this User’s Guide necessitated

by typographical errors, inaccuracies of

current information, or improvements to

programs and/or equipment, may be made

by Ericsson Mobile Communications AB

at any time and without notice. Such

changes will, however, be incorporated into

new editions of this

User’s Guide.

©Ericsson Mobile Communications AB,

1999

Publication number: EN/LZT 108 2754 R2A

INNOVATRON PATENTS

NotforCommercialUse

EricssonMobileCommunicationsAB

Additional Information 139

Quick Keys 140

Troubleshooting 142

Ericsson Mobile Internet 144

The Online Version of this User´s Guide 145

Technical Data 146

Glossary 147

Guidelines for Safe and Efficient Use 152

Warranty 158

Declaration of Conformity 160

Index 161

NotforCommercialUse

EricssonMobileCommunicationsAB

Please note!

Some of the services in this manual are not supported by all

networks. This also applies to the GSM International Emergency

Number 112.

Please contact your network operator or service provider if you are

in doubt whether you can use a particular service or not.

Note! You should read the Guidelines for Safe and Efficient Use

and the Warranty chapters before using your mobile phone.

WAP™, W@P™ and WAP Forum™ are registered trademarks of the

WAP Forum, LTD., a registered company in the United Kingdom.

The symbol on our products signifies that they have been

certified according to the EMC directive 89/336/EEC, the

Telecommunications directive 91/263/EEC, and the Low Voltage

directive 73/23/EEC when applicable. The products fulfil the

requirements according to the following standards:

Cellular Phones and Accessories in Combination:

ETS 300 342-1 EMC for European digital cellular

telecommunications.

Accessories Without Direct Connection to a Cellular Phone:

EN 50081 Electromagnetic compatibility, Generic Emission

Standard, and EN 50082 Electromagnetic compatibility, Generic

Immunity Standard.

NotforCommercialUse

EricssonMobileCommunicationsAB

NotforCommercialUse

EricssonMobileCommunicationsAB

Preparing Your Phone for Use 6

Turning Your Phone On and Off 11

Display Information and Key Functions 13

Making and Receiving Calls 15

During a Call 18

Getting Started

NotforCommercialUse

EricssonMobileCommunicationsAB

6 Preparing Your Phone for Use

Preparing Your Phone

for Use

Front

Back

Overview

ntenna

Indicator light

Earpiece

Infrared eye

Power On/Off

Navigation keys

Volume key

Display

Keypad

Microphone

Voice Memo button

Battery

Connector for external antenna

Hole for belt clip screw

Battery release catch

Handsfree

connector

Charging connector

NotforCommercialUse

EricssonMobileCommunicationsAB

Preparing Your Phone for Use 7

You need to do the following to use your phone:

•insert the SIM card

•attach the battery to the phone

•charge the battery

When you register as a subscriber with a network operator, you get a SIM

(Subscriber Identity Module) card. The SIM card contains a computer chip

that keeps track of your phone number, the services included in your

subscription, and your Phone Book information, among other things.

SIM cards come in two sizes. One is the size of a credit card and the other is

smaller. Your phone uses the smaller card. Many credit card-sized SIM cards

have a perforated smaller card that you can take out easily. Before you can use

your phone, you must insert the SIM card as shown below.

Inserting and Removing the SIM Card

1. Remove the battery if attached. Slide the SIM card into the slot, under the

silvery holders, with the golden connectors facing down and the cut corner

to the right.

2. Raise the edge of the SIM card and slide it out.

The PIN

Most SIM cards are supplied with a security code, also known as PIN

(Personal Identity Number), which you need to access the network. Every

time you turn on your phone, you are asked to enter your PIN. You will find

your PIN in the information from your operator.

Some operators may have services that require a second PIN, your PIN2.

You should be careful with your PIN, since it is your protection against

unauthorized use of your subscription.

Assembly

The SIM Card

NotforCommercialUse

EricssonMobileCommunicationsAB

8 Preparing Your Phone for Use

If your PIN is entered incorrectly three times in a row, the SIM card is

blocked. If this happens, you can unlock it by using your PUK (Personal

Unblocking Key code), which you also get from your operator.

Your phone comes with a lithium battery. The battery is not charged when you

buy your phone, but there may be enough power to switch the phone on.

Note! We recommend that you charge the battery for up to three hours before

you use the phone for the first time.

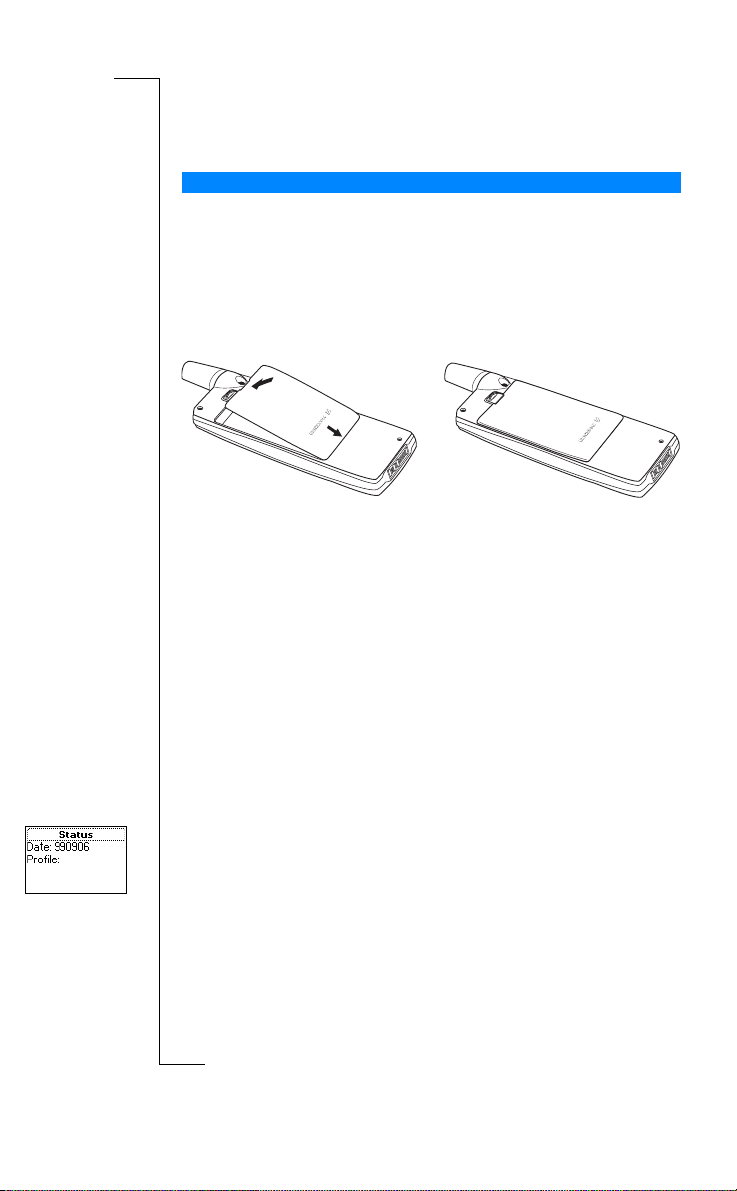

Attaching the Battery to your Phone

When to Charge the Battery

The battery that comes with your phone can be charged whenever you wish

without affecting its performance. You can also charge the battery when the

phone is off.

Toremindyouthatyouwillsoonneedtochargethebatteryorreplaceitwith

a charged one:

•an alarm signal (a short beep) sounds and the message

Attention! Battery low

appears in the display.

•the indicator light on top of the phone starts flashing red.

If you have an Ericsson-approved battery, you can check the remaining talk

and standby times in the Status menu by sliding the volume key upwards or

downwards in standby mode. The total remaining standby and talk time

depends on the type of battery you use and your position in the network.

Please note that these times are approximate and you may have 20% less time

thanisshowninthedisplay.

Note! The phone turns itself off when the battery can no longer power it

satisfactorily.

The Battery

•Place the battery on the back of the phone and push until you hear a click

NotforCommercialUse

EricssonMobileCommunicationsAB

Preparing Your Phone for Use 9

Charging the Battery

Note! The mains plug may look different depending on the mains socket in

your country. Do not connect it to any other item than your Ericsson Travel

Charger CTR-10. It must not be separated from the charger when plugged

into the mains socket.

To indicate charging:

•the battery meter in the display pulses continuously

•the indicator on top of the phone shows a steady red light (or green, if the

phone is switched on)

•the message

Optimized Charging

is shown briefly in the display (with an

Ericsson-approved battery)

Note! If you charge a new battery that is empty, or a battery that has not been

used for a long time, it may take several minutes until you get an indication of

charging in the display. Only then can you switch on and use your phone.

When the battery is fully charged, the battery meter in the display is full and

the indicator on top of the phone shows a steady green light.

Tip! You can use the phone while the battery is being charged. However, this

lengthens the charging time.

An Ericsson-approved battery is indicated by

Optimized Charging

each time you

start charging the battery. For the best charging, talk and standby times in the

long run, we recommend that you use only Ericsson-approved batteries with

your phone.

3. Connect the charger to the phone

as shown in the picture. The flash

symbol on the plug must face

upwards.

1. Make sure that the battery is

attached to the phone.

2. Connect the charger to the mains.

NotforCommercialUse

EricssonMobileCommunicationsAB

10 Preparing Your Phone for Use

Note! Batteries that are not Ericsson-approved are charged slowly for safety

reasons. These are indicated by the message ‘Alien battery - Slow charging’ in

the display during the charging process.

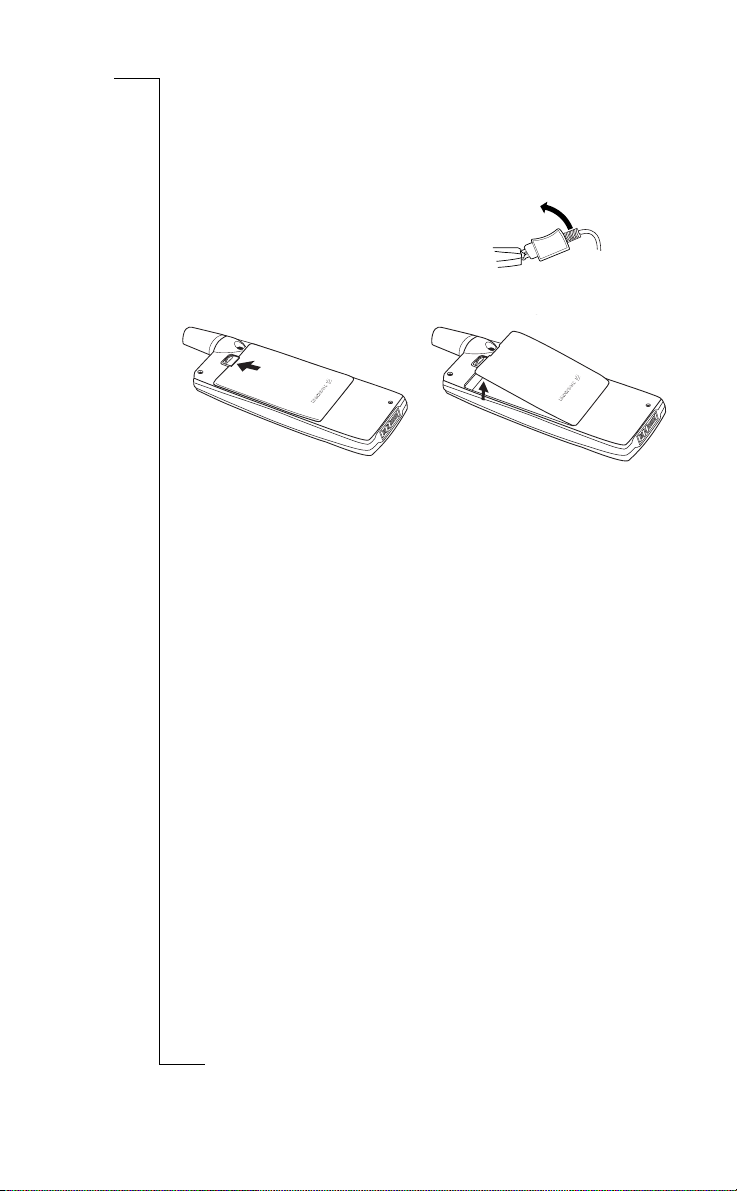

Disconnecting the Charger

Removing the Battery

•Move the plug connected to the phone

upwards to remove it, as shown in the

picture.

2. Lift the battery away from the

phone.

1. Slide the release catch upwards.
