Equipment Zone T-Jet 1 Quick start guide
1
These directions are the same for the T-Jet and the T-Jet2. The only difference is
that the T Jet 2 has more screws to remove on the front cover of the bed.

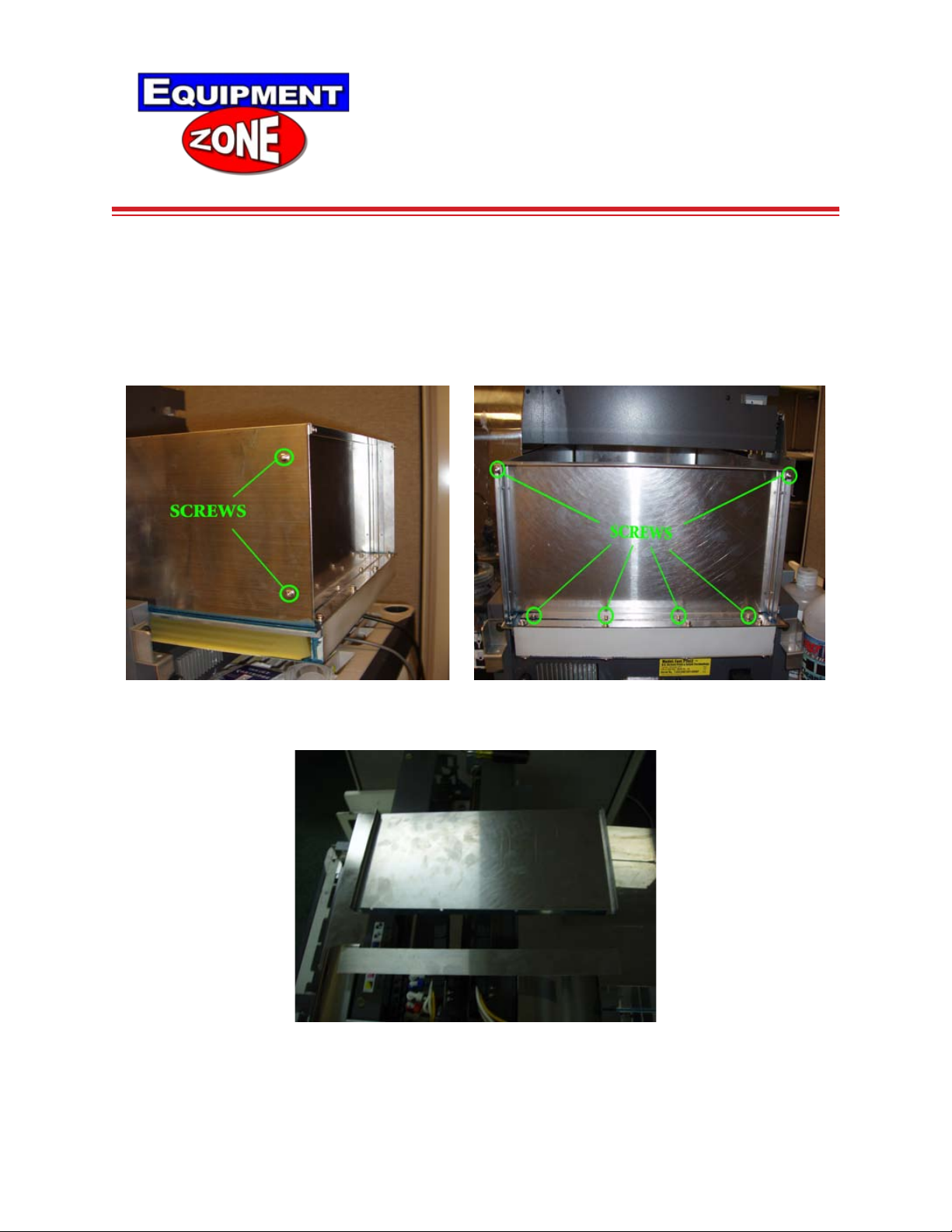

1. Take off the Back cover off the bed. (This will be the side that does NOT
have the wheel for adjusting the height on it.)
There are 10 screws that hold it on. 6 screws on the back and 4 screws on the
sides (2 on each)
(This should come out in two pieces as shown below)
Technical Guide
T-Jet 1 & 2 Print Bed Adjustment
2
2. Once the cover is off, the plate at the bottom of the bed will slide out.
Underneath you will see the scissor lift mechanism that moves the plate up and
down.

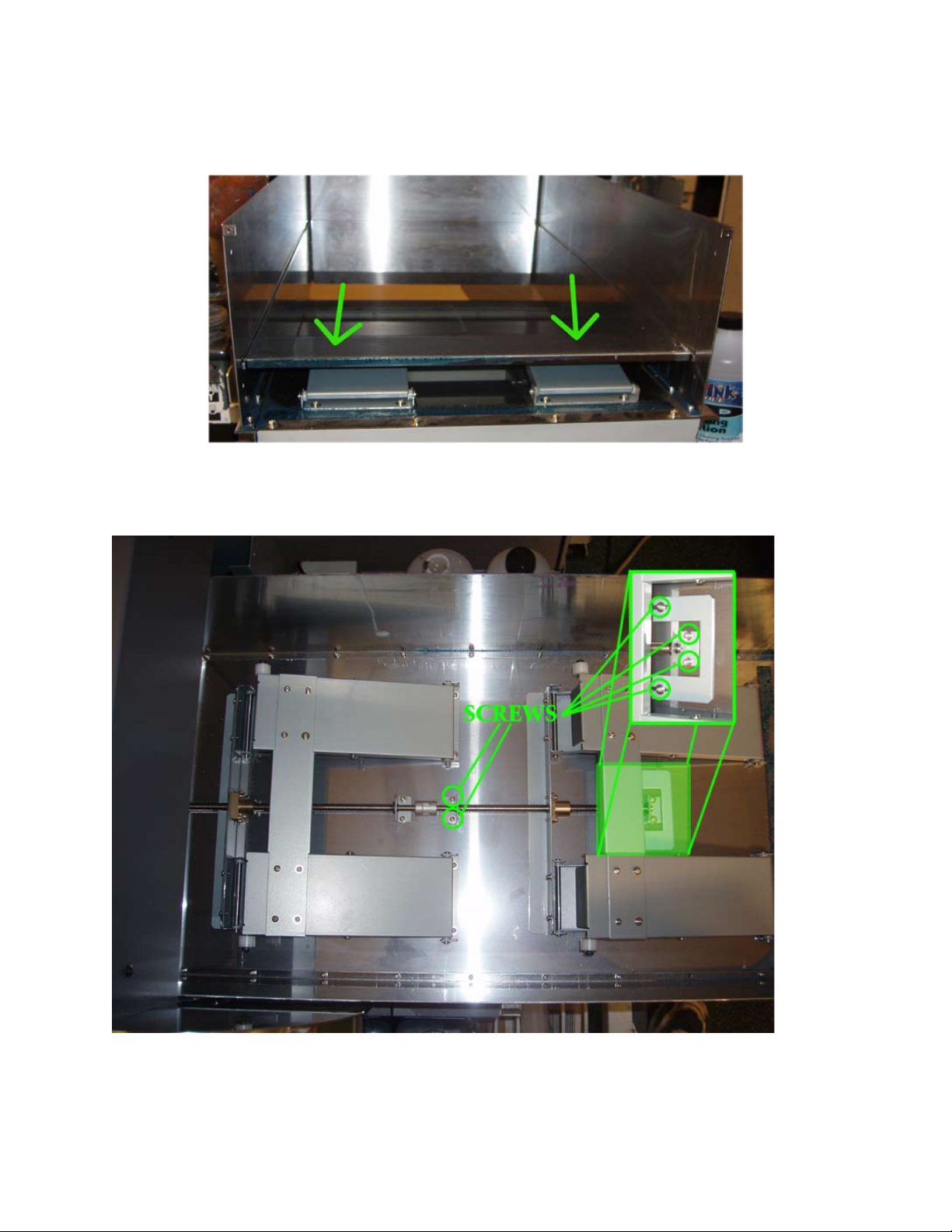

3. There are two connectors that join the adjustment rods.
Using a screw driver, remove the screws from the connector closest to you.
(There are six screws shown below.)
You can now turn the front adjustment rod without the back adjustment rod
turning.
3
4. Adjust the two scissor lifts so they are even. After they are even, tighten
the connector screws from Step 3 and reassemble the bed plate.
5. To check the level of the bed, crank the plate all the way to the up
position and make sure it is even with the lip of the bed.
6. Once the bed is level, reassemble the back cover of the bed.
If you have questions, or your problem persists after completing this guide,
please call Technical Support at 1-800-408-0040 Or (01) 201-797-1504.
Or send an e-mail to Support@equipmentzone.com.
