Epson BrightLink 450Wi - Interactive Projector User manual

BrightLink™ Wall Mount Installation Worksheets

Select a mounting option below to view the worksheet

Projecting on a Plain Wall

Projecting on a Pre-installed Wall-mounted Board

Installation Worksheet for Projecting on a Plain Wall

Use this worksheet to determine where to position the wall mount for a BrightLink™installation

on a plain wall.

(1) Measure the ceiling height (distance from the floor to the ceiling).

(2) Determine the desired aspect ratio of the image. For new computers or laptops,

this will most likely be WXGA (16:10). For older equipment, this will most likely be

XGA (4:3). You may need to consult your IT director for this information.

4:3 XGA 16:10 WXGA 16:9 Widescreen

(3) Using the tables in the Installation Guide for your aspect ratio, select the largest

image size available for your ceiling height.

Image height (h)

Image width (w)

(4) Determine the desired distance from the floor to the bottom of the image

area (f).

The recommended minimum distance is 30 inches. Images appearing less than

28 inches from the floor may be obstructed for some viewers.

(5) Find the top of the projected image area by adding distances (f) and (h).

(6) Use the tables in the Installation Guide to determine the required distance from

the top of the image area to the bottom of the wall plate (b).

(7) Add:

Required distance from top of image area to wall plate (b)

Height of image area (h)

Distance from floor to bottom of image area (f)

Height of wall plate plus cover

If the total exceeds the ceiling height, you will need to reduce the image size or

reduce the distance from the floor to the bottom of the image area.

_____

_____ (h)

_____ (w)

_____ (f)

_____

_____ (b)

_____ (h)

_____ (f)

+10 inches

_____ total

(8) After confirming your image size, use tape or a pencil to mark the distance (b) from the top of

the image area on the board to the bottom of the wall plate.

Align the line (horizontal) on the template sheet with the (b) mark, then align the center line on the

template sheet with the center of the image area. Follow the instructions in the Installation Guide to

install the projector.

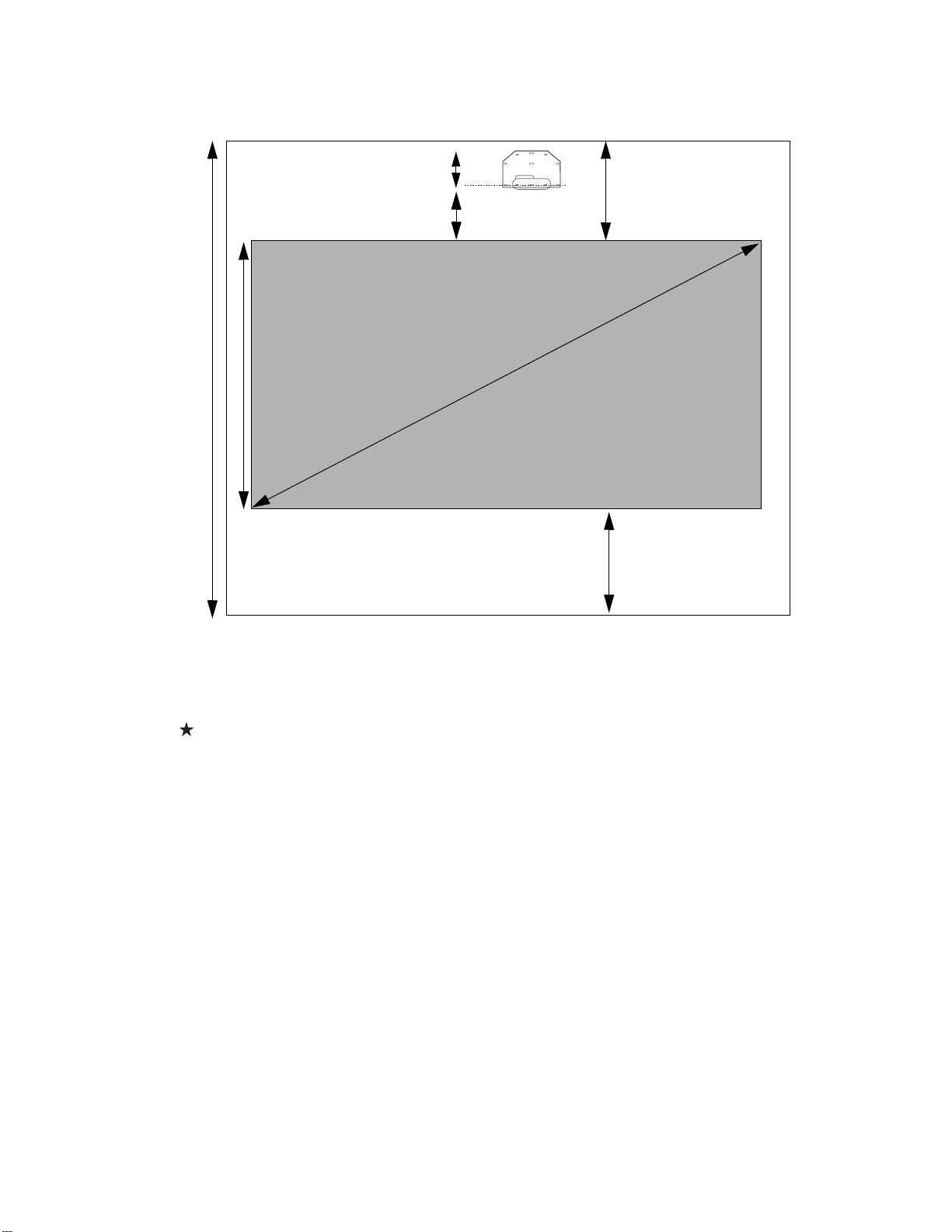

10 in. (254 mm) —height

of wall plate plus cover

Required distance from top

of image area to wall plate (b)

Diagonal image

size (S)

Ceiling

height

Distance from ceiling to

top of image area (c)

Width of image area (w)

Distance from floor to

bottom of image area (f)

Height of

image area (h)

Installation Worksheet

for Projecting on a Pre-installed Wall-mounted Board

Use this worksheet to determine where to position the wall mount for a BrightLink™installation

with a pre-existing whiteboard.

(1) Measure the ceiling height (distance from the floor to the ceiling).

(2) Measure the height of the board’s image area (h).

(3) Measure the width of the board’s image area (w).

(4) Measure the distance from the floor to the bottom of the board’s image area (f ).

(5) Measure the distance from the ceiling to the top of the board’s image area (c).

(6) Measure the thickness of the board (x).

_____

_____ (h)

_____ (w)

_____ (f)

_____ (c)

_____ (x)

10 in. (254 mm)—height of

wall plate plus cover

Required distance from top

of image area to wall plate (b)

Diagonal size of

image area (S)

Height of

image area (h)

Distance from ceiling to

top of image area (c)

Width of image area (w)

Distance from floor to

bottom of image area (f)

(7) Determine the aspect ratio of the board or of the images that will be projected.

For new computers or laptops, this will most likely be WXGA (16:10). For older

equipment, this will most likely be XGA (4:3). You may need to consult your IT

director for this information.

4:3 XGA 16:10 WXGA 16:9 Widescreen

(8) Using the tables in the Installation Guide for your aspect ratio and desired image

height (h), find the required distance between the top of the image area and the

wall plate (b).

(9) Determine the position for your projector installation by adding the values for (f),

(h), and (b), plus an additional 10 inches for the height of the wall plate plus the

cover.

If the ceiling height of your room (as noted in step 1) does not meet the

minimum ceiling height required for your board, you may need to select a

smaller image size or move the board to a lower position on the wall.

(10)After confirming your image size, use tape or a pencil to mark the distance (b)

from the top of the image area on the board to the bottom of the wall plate.

(11)Align the line (horizontal) on the template sheet with the (b) mark, then align

the center line on the template sheet with the center of the image area. Follow

the instructions in the Installation Guide to install the projector.

_____ (b)

_____ (f)

_____ (h)

_____ (b)

+10 inches

_____ total
