Epson TM-U220 Series User manual

TM-U220 Printers

User’s Manual / ユーザーズマニュアル

使用说明书 / 使用說明書

404312302

Type A Type B Type D

iii

F G

HG-a

DIP Switch Tables

Serial (DIP Switch 1)

SW Function On Off

1 Data receive error Ignored Prints “?”

2 Receive buffer capacity 40 bytes 4 KB

3 Handshaking XON/XOFF DTR/DSR

4 Word length 7 bits 8 bits

5 Parity check Yes No

6 Parity selection Even Odd

7 Transmission speed 4800 bps 9600 bps

BUSY condition Receive

buffer full

Receive

buffer full or

Offline

Serial (DIP Switch 2)

SW Function On Off

1 Print column 42/35 40/33

2 For internal use only

(autocutter)

Enabled Disabled

3 Undefined - -

4 Serial interface selection Memory

switch

DIP switch

5 Undefined - -

6 For internal use only

(flash memory rewriting)

Enabled Disabled

7 Pin 6 reset signal Used Not used

8 Pin 25 reset signal Used Not used

Parallel (DIP Switch 1)

SW Function On Off

1 Auto line feed Enabled Disabled

2 Receive buffer capacity 40 bytes 4 KB

3~7 Undefined - -

8 BUSY condition Receive

buffer full

Receive

buffer full or

Offline

Parallel (DIP Switch 2)

SW Function On Off

1 Print column selection 42/35 40/33

2 For internal use only

(autocutter)

Enabled Disabled

3~5 Undefined - -

6 For internal use only

(flash memory rewriting)

Enabled Disabled

7 Undefined - -

8 Pin 31 reset signal Used Not used

English

TM-U220 Printers

User’s Manual

Illustrations

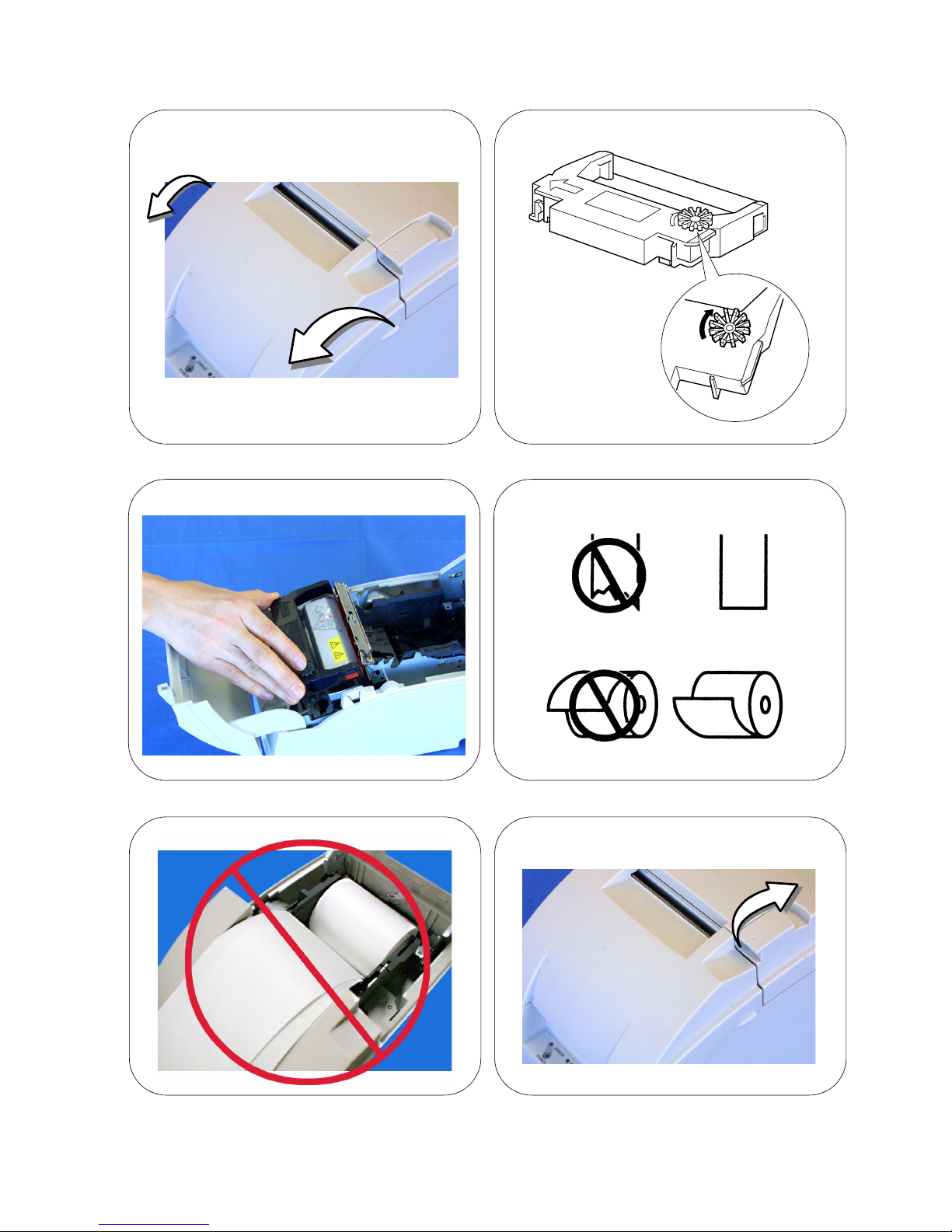

All of the illustrations are at the beginning of this manual. They are identified by letters (A, B, C . . .). In the

text the illustrations are referred to by these letters. (“See illustration A,” for example.) Some of these

illustrations have numbered arrows or lines pointing to parts of the illustration. See the list below for the

meaning of the numbers.

transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,

without the prior written permission of Seiko Epson Corporation. No patent liability is assumed with

respect to the use of the information contained herein. While every precaution has been taken in the

preparation of this book, Seiko Epson Corporation assumes no responsibility for errors or omissions.

Neither is any liability assumed for damages resulting from the use of the information contained herein.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third

parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of:

accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this

product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation’s operating and

maintenance instructions.

Seiko Epson Corporation shall not be liable against any damages or problems arising from the use of any

options or any consumable products other than those designated as Original EPSON Products or EPSON

Approved Products by Seiko Epson Corporation.

EPSON is a registered trademark of Seiko Epson Corporation.

NOTICE: The contents of this manual are subject to change without notice.

Illustration A

1. Roll paper cover

2. Ribbon cassette cover

3. Control panel

4. Power supply switch

2TM-U220 User’s Manual

English

Important Safety Information

This section presents important information intended to ensure safe

and effective use of this product. Read this section carefully and store

it in an accessible location.

Key to Symbols

The symbols in this manual are identified by their level of importance, as

defined below. Read the following carefully before handling the product.

WARNING:

Warnings must be followed carefully to avoid serious bodily injury.

CAUTION:

Cautions must be observed to avoid minor injury to yourself or damage to

your equipment.

Safety Precautions

WARNING:

Shut down your equipment immediately if it produces smoke, a strange

odor, or unusual noise. Continued use may lead to fire. Immediately unplug

the equipment and contact your dealer or a Seiko Epson service center for

advice.

Never attempt to repair this product yourself. Improper repair work can be

dangerous.

Never disassemble or modify this product. Tampering with this product may

result in injury or fire.

Be sure to use the specified power source. Connection to an improper

power source may cause fire.

Do not allow foreign matter to fall into the equipment. Penetration by

foreign objects may lead to fire.

If water or other liquid spills into this equipment, do not continue to use it.

Continued use may lead to fire. Unplug the power cord immediately and

contact your dealer or a Seiko Epson service center for advice.

CAUTION:

Do not connect cables in ways other than those mentioned in this manual.

Different connections may cause equipment damage and burning.

Be sure to set this equipment on a firm, stable, horizontal surface. Product

may break or cause injury if it falls.

Do not use in locations subject to high humidity or dust levels. Excessive

humidity and dust may cause equipment damage or fire.

TM-U220 User’s Manual 3

English

Do not place heavy objects on top of this product. Never stand or lean on

this product. Equipment may fall or collapse, causing breakage and

possible injury.

To ensure safety, unplug this product before leaving it unused for an

extended period.

Before moving the product, unplug it and unplug all cables connected to it.

Safety Label

WARNING:

Do not connect a telephone line to the drawer kick out connector;

otherwise, the printer and the telephone line may be damaged.

CAUTION:

During printing or after printing, the print head can be very hot.

Notes on Usage

❏Do not open the cover during printing or when the autocutter is

being operated.

❏Do not install the printer in a dusty place.

❏Protect the printer from impact.

❏Cords or other foreign objects must not be caught on the printer.

❏Do not apply excessive force to the printer case.

❏Do not place food or beverages such as coffee on the case of the

printer.

Notes on Installation

❏When using the printer, be sure that the printer is installed

horizontally.

❏If you are using a Type B or D printer, you can hang it on a wall,

using the optional hanging bracket set, WH-10.

Note:

To hang the printer on a wall, see the WH-10 Installation Manual for

detailed instructions.

Notes on Connecting the Power Supply Unit

Be sure to use the correct power supply unit as listed below:

TM-U220 alphanumeric model (types A, B, and D) TM-U220 multilingual* model (types A, B, and D)

“AC adapter, C” (packed with the alphanumeric

model) or “PS-180” (option)

“PS-180” (packed with the multilingual* model)

4TM-U220 User’s Manual

English

Note:

The “AC adapter, C,” which is packed with the alphanumeric model, cannot

be used with the multilingual* model. Be sure to use the “PS-180” with the

multilingual* model. If the “AC adapter, C,” packed with the alphanumeric

model, is connected to the multilingual* model by mistake, the printer might

not operate correctly. For example, printing might stop before all the lines are

printed or the printer might print the same line repeatedly.

*Multilingual means the printer model that can print any one of the following: Japanese Kanji,

Simplified Chinese, Traditional Chinese, Thai characters, or Korean characters.

Purpose of This Manual

This manual provides information to operators of the TM-U220 to

describe basic operations to enable safe and correct use of the printer.

Features of Printer Types

See illustration A.

* Multilingual means that the printer can print with any one of the following: Japanese Kanji,

Simplified Chinese, Traditional Chinese, Thai characters, or Korean characters.

Illustrations

Because this manual covers three types of the TM-U220, some of the

illustrations may be slightly different from your printer; however, the

instructions cover all types, except as noted.

Unpacking

The following items are included for the standard specification

printer. If any item is damaged, contact your dealer.

❏Printer

❏Roll paper

❏Exclusive ribbon cassette [ERC-38(B/R)]

❏AC adapter (May not be included with the printer.)

Type A Type B Type D

Two color printing Yes Yes Yes

Autocutter Yes Yes No

Take up device Yes No No

Paper width (mm) 76 76/69.5/57.5 76/69.5/57.5

Interface Serial or parallel Serial or parallel Serial or parallel

Characters supported Alphanumeric or

multilingual*

Alphanumeric or

multilingual*

Alphanumeric or

multilingual*
