Epson C11C424001 - Stylus C80 Color Inkjet Printer Dimensions

Page 1 of 1

Service required

Parts inside your printer at theendof their

servicelife. Contact your dealer for replacement.

Parts inside your printer at the

end of their service life. Contact

your dealer for replacement.

EPSON PRODUCT SUPPORT BULLETIN

Date: 1/10/2003 Originator: PH

PSB #: PSB.2003.01.001 Authorization:

Reference: TE02-442 Total Pages: 1

Product(s): Stylus C80, C82, CX5200, Stylus Photo 960, 2200

Subject: Maintenance request message

This bulletin was created to inform you of the maintenance request message. When the

following message appears, the waste ink pads inside the printer are full and need to be

replaced. You should take the unit to your local servicer to do the replacement.

For information on finding your nearest authorized servicer contact Epson at 1-800-922-8911

or go to WWW.EPSON.COM.

Page 1of 2

EPSON PRODUCT SUPPORT BULLETIN

Date: 3/14/2002 Originator: GC/DA

PSB #: PSB.2002.04.005 Authorization:

Reference:TE00-162B Total Pages: 2

Product(s): Stylus COLOR 670/ 740/ 760/ 860/ 880/ 900/ 980/ 1160, Stylus C40/ C60/ C80,

Stylus Photo 750/ 820/ 870/ 890/ 1200/ 1270/ 1280/ 2000P

Subject: Apple USB Printer Sharing

This bulletin was created to inform you of the steps to configure Apple USB printer sharing.

Check List:

§Both computers must be running Mac OS 9.x

§You must be using TCP/IP as well as AppleTalk

§USB native printers must be connected to Macintosh computers with built in USB ports

§Apple USB printer sharing must be installed on both computers

§EPSON printer driver must be installed on both host and client side computers

Configuration:

1. Verify both computers are running Mac OS 9.x, have Apple USB Printer Sharing installed and

are visible to each other on the same network

2. Connect the printer to the host computer and follow instructions for installing the software

3. Install the EPSON printer driver on the client computer

4. On the host computer, open USB Printer Sharing in the Control Panel under the Apple menu

a. Click on the Start button to turn sharing on (see Figure 1 below)

b. Open the ‘My Printers’ tab and select the printer you wish to share (see Figure 2 below)

5. On the client computer, open USB Printer Sharing in the Control Panel under the Apple menu

a. Open the ‘Start/Stop’ tab

b. Click on the Start button

c. Open the ‘Network Printers’ tab

d. Click on the Add button to view the network and available printers on the network (see

Figure 3 below)

e. Make sure you can see the printer listed that you want to print to and select it (see Figure 4

below)

f. Click on Choose

6. Close the USB Printer Sharing window

7. On the client computer, select the printer in the Chooser. The USB option should now be

available to select and you should be able to print. (Figure 5)

Page 2of 2

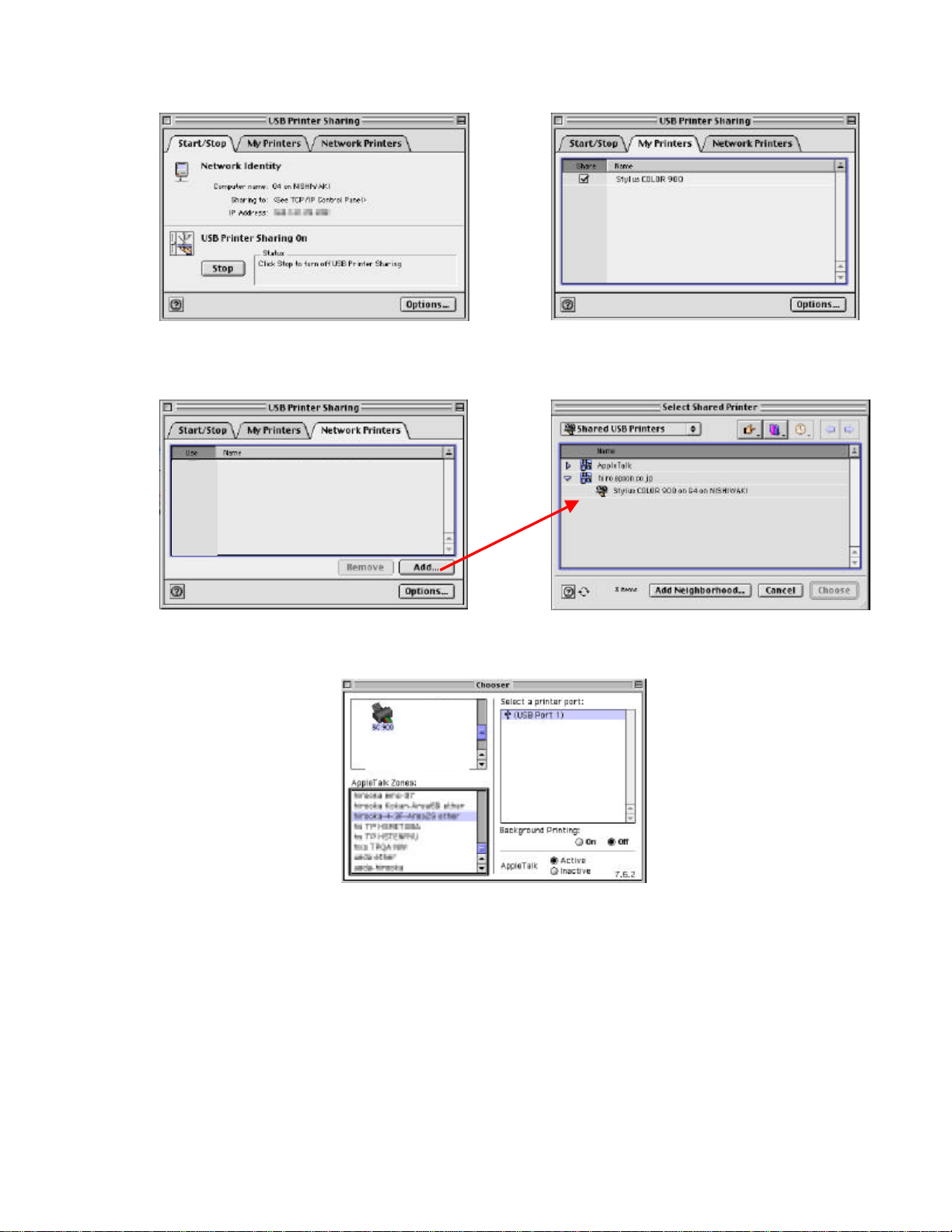

Figure 1 Figure 2

Figure 3 Figure 4

Figure 5

Page 1of 1

EPSONPRODUCT SUPPORT BULLETIN

Date: 11/29/2001 Originator: GC/DA

PSB #: PSB.2001.12.001 Authorization:

Reference: TE01-256 Total Pages: 1

Product(s): Stylus COLOR 670/ 740/ 777/ 860/ 880/ 900/ 980, Stylus C40/ C60/ C80, Stylus

Photo 780/ 785EPX/ 820/ 870/ 875DC/ 890/ 1270/ 1280/ 2000P

Subject: Available options for connecting your EPSON printer to Mac OS X 10.0

This bulletin was created to inform you of the currently available options for connecting your

EPSON printer to Mac OS X 10.0.

Choice in Directory Services

Available from : Model

USB EPSON

AppleTalk

External(1)

EPSON

AppleTalk

Internal(2)

EPSON

Firewire(3)

Stylus COLOR 670 OK

Stylus COLOR 740 OK

Stylus COLOR 777 OK

Stylus COLOR 860 OK

Core Driver version 1.0

Installed with Apple Mac

OS X 10.0 CD-ROM and

later Stylus COLOR 880 OK

Stylus COLOR 900 OK OK OK

Stylus COLOR 980 OK OK OK

Stylus Photo 780 OK

Stylus Photo 785EPX OK

Stylus Photo 870 OK OK

Stylus Photo 875DC OK

Stylus Photo 890 OK OK

Stylus Photo 1270 OK OK

Stylus Photo 1280 OK OK

Stylus Photo 2000P OK OK

Stylus C40UX OK

Stylus C60 OK

Stylus C80 OK OK

Core Driver version 1.1

Available via download

from

http://support.epson.com/

Stylus Photo 820 OK

(1) Refers to EpsonNet 10/100 Base TX External Print Server - C82378*

(2) Refers to EPSON Type-B Ethernet options

(3) Refers to EPSON Type-B Firewire option - C82372*
