Epever XTRA Series User manual

MPPT Solar Charge Controller

User Manual

Models:

XTRA1206N/XTRA2206N

XTRA1210N/XTRA2210N

XTRA3210N/XTRA4210N

XTRA3215N/XTRA4215N

XTRA3415N/XTRA4415N

Important Safety Instructions

Please keep this manual for future review.

This manual contains all safety, installation, and operation instructions for the XTRA N series

Maximum Power Point Tracking (MPPT) controller ("controller" as referred to in this manual).

General Safety Information

Read all the instructions and warnings carefully in the manual before installation.

No user-serviceable components exist inside the controller. DO NOT disassemble or attempt

to repair the controller.

Mount the controller indoors. Avoid exposure to the components and do not allow water to

enter the controller.

Install the controller in a well-ventilated place. The controller’s heat sink may become very hot

during operation.

Suggest installing appropriate external fuses/breakers.

Disconnect all PV array connections and the battery fuse/breakers before controller

installation and adjustment.

Power connections must remain tight to avoid excessive heating from a loose connection.


CONTENTS
General Information 1
1 Overview 1
2 Characteristics 2
3 Naming Rules 3
4 Product Classification 3
Installation 5
1 Attentions 5
2 PV Array Requirements 5
3 Wire Size 7
4 Mounting 9
Display units 12
1 Basic Display unit(XDB1) 12
2 Standard Display unit (XDS1) 13
3 Adanced Display unit (XDS2) 17
Parameters Setting 22
1 Battery parameters 22
1.1 Supported battery types 22
1.2 Local setting 22
1.3 Remote Setting 26
2 Load modes 29
2.1 LCD setting 29
2.2 RS485 communication setting 31

5 Others 33

5.1 Protection 33

5.2 Troubleshooting 35

5.3 Maintenance 37

6 Technical Specifications 38

Annex I Conversion Efficiency Curves 42

1 General Information

1.1 Overview

XTRA N series controller, which can carry different display units (XDB1/XDS1/XDS2), adopts the

advanced MPPT control algorithm. It can minimize the maximum power point (MPP) loss rate and

time and quickly track the MPP to obtain the maximum energy under any conditions. It can also

increase the solar system's energy utilization ratio

Limiting the charging power & current and reducing charging power functions ensure the system is

stable with over PV modules in a high-temperature environment. IP33 Ingress protection and

isolated RS485 design improve the controller’s reliability and meet the different application

requirements.

XTRA N series controller owns a three-stage charging mode, which can effectively prolong the

battery's lifespan and significantly improve the system performance. Comprehensive electronic

protection of overcharge, over-discharge, PV & battery reverse polarity, etc., ensures the solar

system is more reliable and durable. This controller can be widely used for RV, household systems,

field monitoring, and many other applications.

Features：

CE certification(LVD EN/IEC62109,EMC EN61000-6-1/3)

100% charging and discharging in the working environment temperature range

Optional LCD units (XDB1/XDS1/XDS2)

High quality and low failure rate components of ST or IR to ensure the service life

Advanced MPPT technology & ultra-fast tracking speed guarantee the tracking efficiency of up

to 99.5%

Maximum DC/DC transfer efficiency is as high as 98.5%★; full load efficiency is up to 97.2%★

Advanced MPPT control algorithm to minimize the MPP lost rate and lost time

Accurate recognizing and tracking of multi-peaks maximum power point

Wide MPP operating voltage range

Support the lead-acid and lithium batteries; voltage parameters can be set on the controller

Programmable temperature compensation

Limit charging power & current over the rated value

Real-time energy statistics function

Power reduction automatically over-temperature value

Multiple load work modes

Comprehensive electronic protection

Isolated RS485 with 5V/200mA protected output for no power devices, with Modbus protocol

Support monitoring and setting the parameters via the APP or PC software

IP33▲Ingress protection

★XTRA4415N@48V system

For the BCV, FCV, LVD, and LVR, users can modify them on the local controller when the

battery type is "USE."

▲3-protection against solid objects: protected against solid objects over 2.5mm.

3-protected against sprays to 60°from the vertical.

1.2 Characteristics

Figure 1 Product Characteristics

❶

RTS★port

❺

RS485 communication port

❷

PV Terminals

❻

Terminal protection cover

❸

Battery Terminals

❼

Display units

❹

Load Terminals

❽

Mounting Hole Φ5mm

★If the temperature sensor is short-circuited or damaged, the controller will charge or

discharge according to the setting voltage at 25 ºC (no temperature compensation).

1.3 Naming Rules

XTRA 1 2 10 N - XDS2

Display Unit(XDB1/XDS1/XDS2)

Product Series

Charge & discharge current 1-10A;2-20A;3-30A;4-40A

System Voltage 1-12VDC; 2-12/24VDC

Max. PV open circuit voltage 10-100V;15-150V

Common Negative System

1.4 Product Classification

Classify

Model


Display

Basics

XTRA****N-XDB1

LED Indicators: PV & battery working

status

Button:

In manual work mode, it switches

ON/OFF the load by pressing the

button.

Clear the error information.

Standard

XTRA****N-XDS1

LED Indicators: PV & load working

status

Buttons: View or set the parameters

or clear the error information.

LCD：PV display:voltage/current

/generated energy

Battery display:

voltage/current/temperature

Load display:

current/consumed energy/load working

mode

Advanced

XTRA****N-XDS2

LED Indicators: PV & battery & load

working status

Buttons: View or set the parameters

or clear the error information.

LCD: PV display:voltage/current

/generated energy/power

Battery display:voltage/current/

temperature/capacity

Load display: voltage/current/power

/consumed energy/load working mode

This manual suits for next models

Table of contents

Other Epever Controllers manuals

Epever

Epever Tracer 4215BN User manual

Epever

Epever LS LPLI Series User manual

Epever

Epever SolarV TRIRON Series User manual

Epever

Epever iTracer-ND Series User manual

Epever

Epever TRIRON1206N User manual

Epever

Epever LandStar EU series User manual

Epever

Epever ViewStar AU Series User manual

Epever

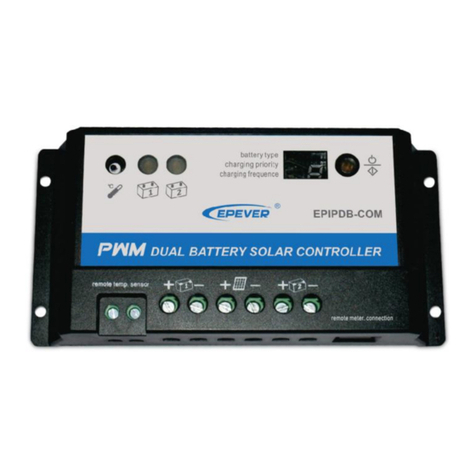

Epever EPIPDB-COM-10 User manual
