Enwork XTB4 User manual
1
XTB4 LINKED BENCHING
UN0001 Rev. A
Height Adjustable Benching
XTB4 Installation Guide
2
Table of Contents:
i. Parts & Fasteners Included ………………………………………………………………………………3
ii. Tools & Supplies Required ……………………………………………………………………………….6
iii. Rectangular Back-to-Back Benching ……………………………………………………………….7
iv. Optional Additions (Screens/End Panels) ……………………………………………………….12
v. 120 Degree Benching ………………………………………………………………………………………13
vi. Single Sided Benching …………………………………………………………………………………….16
vii. Extended Corner Benching ……………………………………………………………………………..19
viii. Handset Instructions ………………………………………………………………………………………23
1) Parts and Fasteners Included
INSTALLATION GUIDE 3

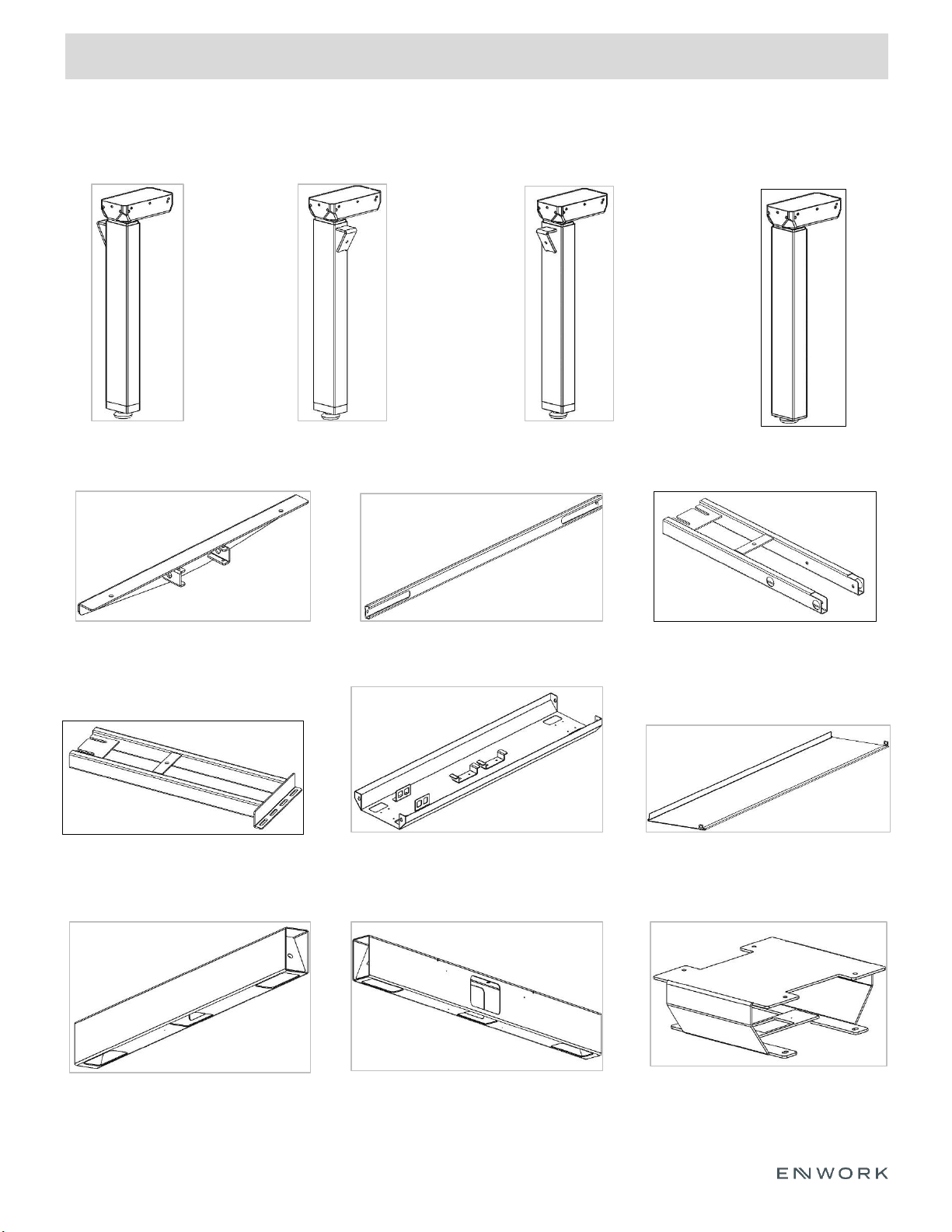

Right Leg Column Left Leg Column *120 Degree - Rear Column
Top Support Bracket Center Rail Support Frame End w/ Control Plate
*Extended Corner Frame Power Trough Trough Cover
Mid Link Connector
End Link Mid Link
*Extended Corner –3rd
Leg Column
* - Optional part included with corresponding Single Sided, 120 Degree, or Extended Corner configuration
1) Parts and Fasteners Included
INSTALLATION GUIDE 4
In-Feed Leg *120 Degree Mid Link (120
Degree)
*120 Degree Mid Link Cover
(120 Degree)
*End Link –Single sided *Mid Link –Single Sided
*Foot
*End Panel Bracket - Double Sided
*Screen Bracket -
Double Sided
*Screen Bracket -
Single Sided
*Mid Link Connector –Single Sided
* - Optional part included with corresponding Single Sided, 120 Degree, or Extended Corner configuration
*End Panel Bracket - Single Sided
*Cover –Double
Sided *Cover –Single
Sided
1) Parts and Fasteners Included
INSTALLATION GUIDE 5

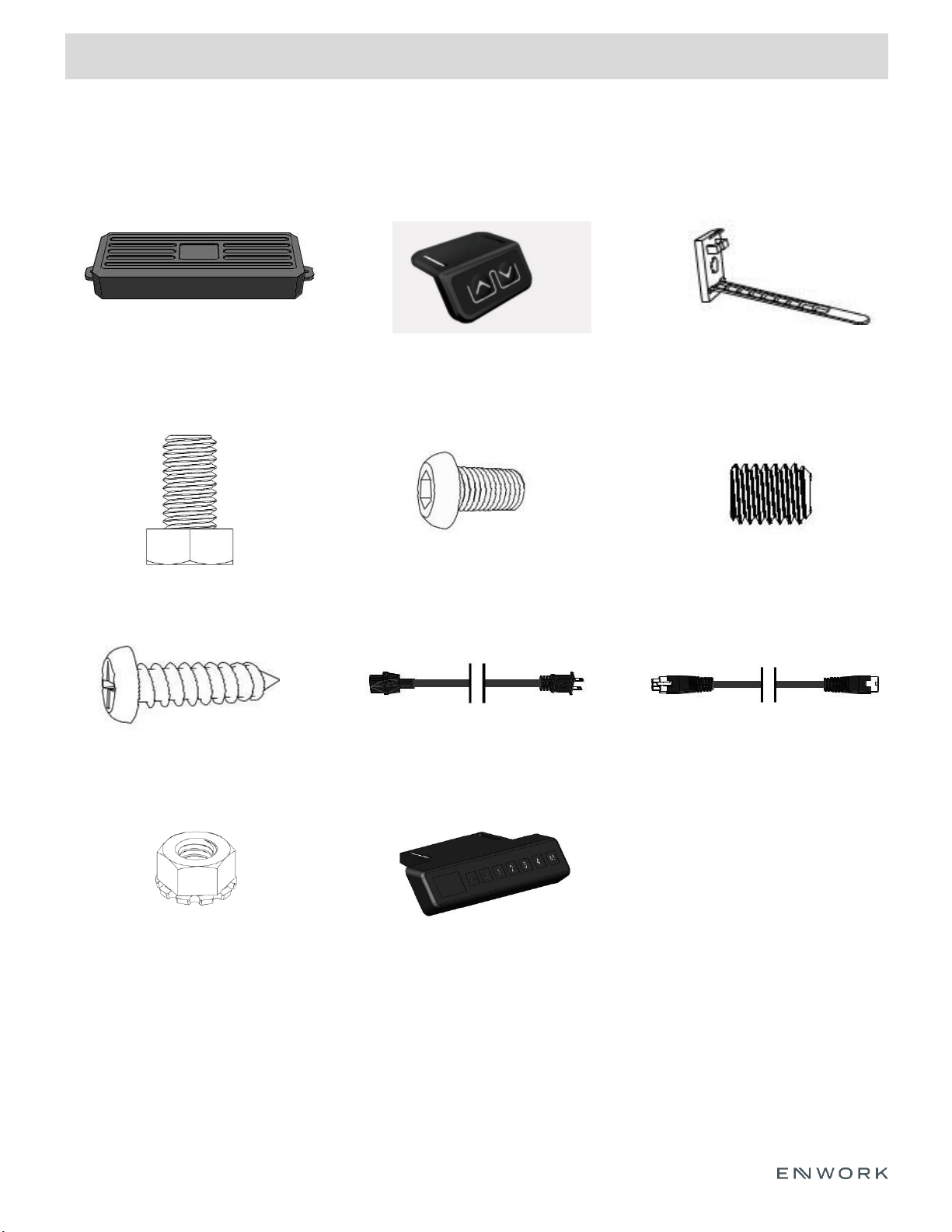

Control Box Handset Cable ties
M6 x 1.0 Button Head
Hex Screw Set Screw (pre-installed)
Wood Screw Power Cable Leg Cable
M8 x 1.25 Hex Head Bolt
M6 x 1.0 Locknut w/ external tooth
lock washer *Programmable Handset
* - Optional part
2) Tools and Supplies Required
INSTALLATION GUIDE
6

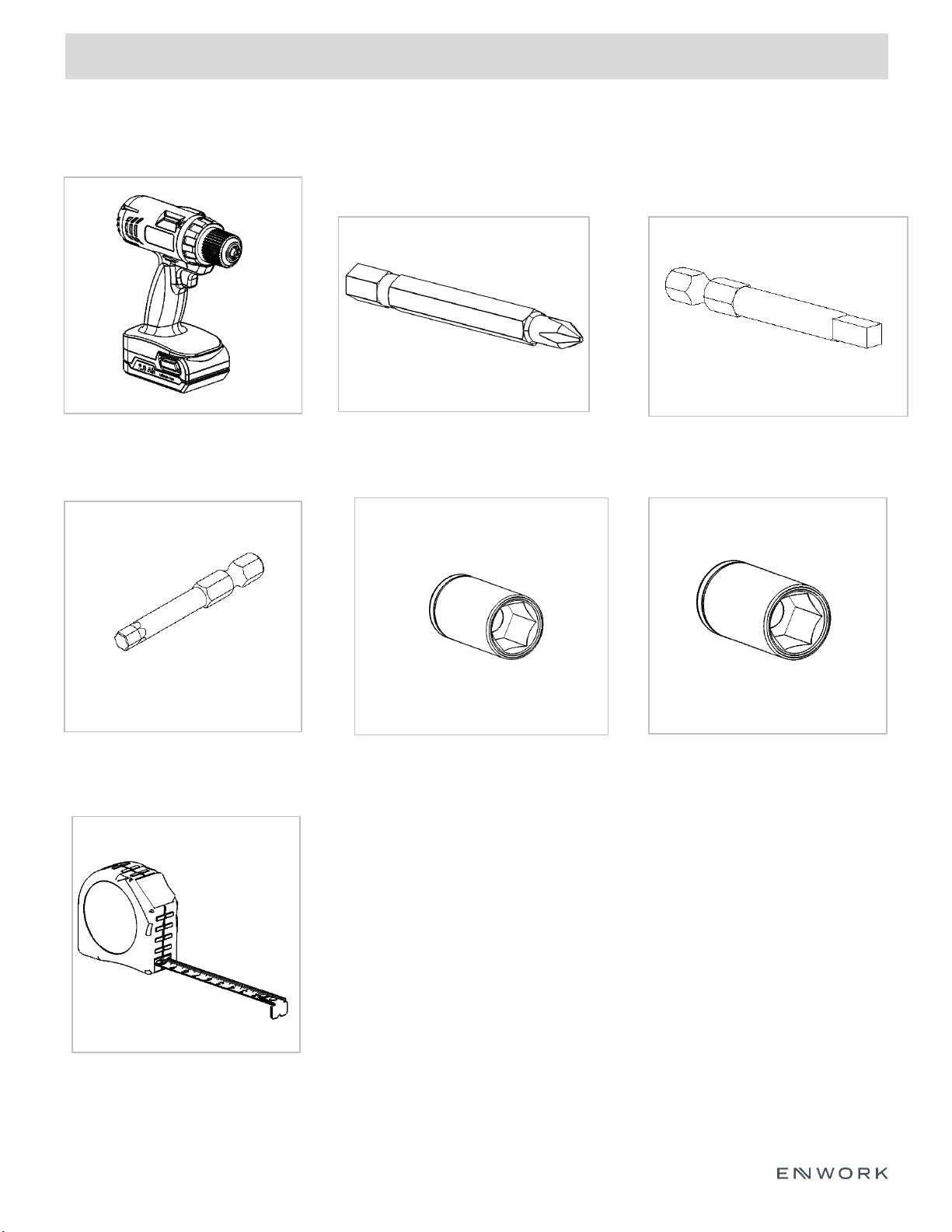

4mm Hex Bit 10mm Socket
Drill Phillips Bit Square Bit
13mm Socket
Tape Measure
3) Assembly:
INSTALLATION GUIDE
7

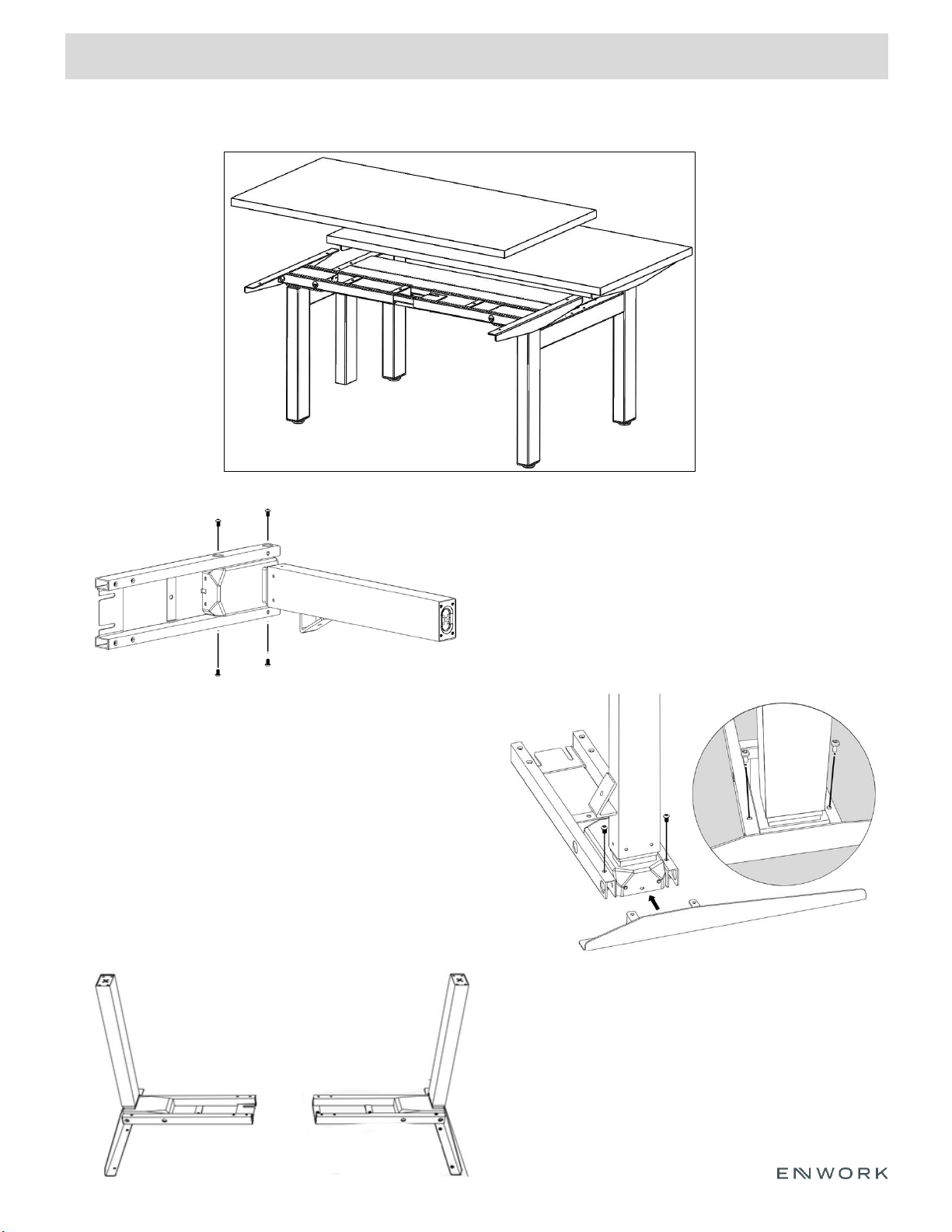

3.1.1) Insert a Right Leg Column into a Frame
End w/ Control Plate using (4) M6 x 1.0 Button
head hex screws. Do not fully tighten at this
time.
3.2.1) Attach a Top Support Arm using (2) M6 x 1.0
Button head hex screws. Do not full tighten.
3.2.2) Once Frame and Arm are in place together,
tighten all screws completely.
**Note** The two tabs on the support arm will slot
into the frame end, surrounding the leg column.
3.3.1) Repeat previous steps to assemble
remaining leg columns, frame ends, and top
support brackets.
Fig 3.1
Fig 3.2
Fig 3.3
Standard Benching
2-Pack Rectangular Bench Shown
3) Assembly:
INSTALLATION GUIDE
8

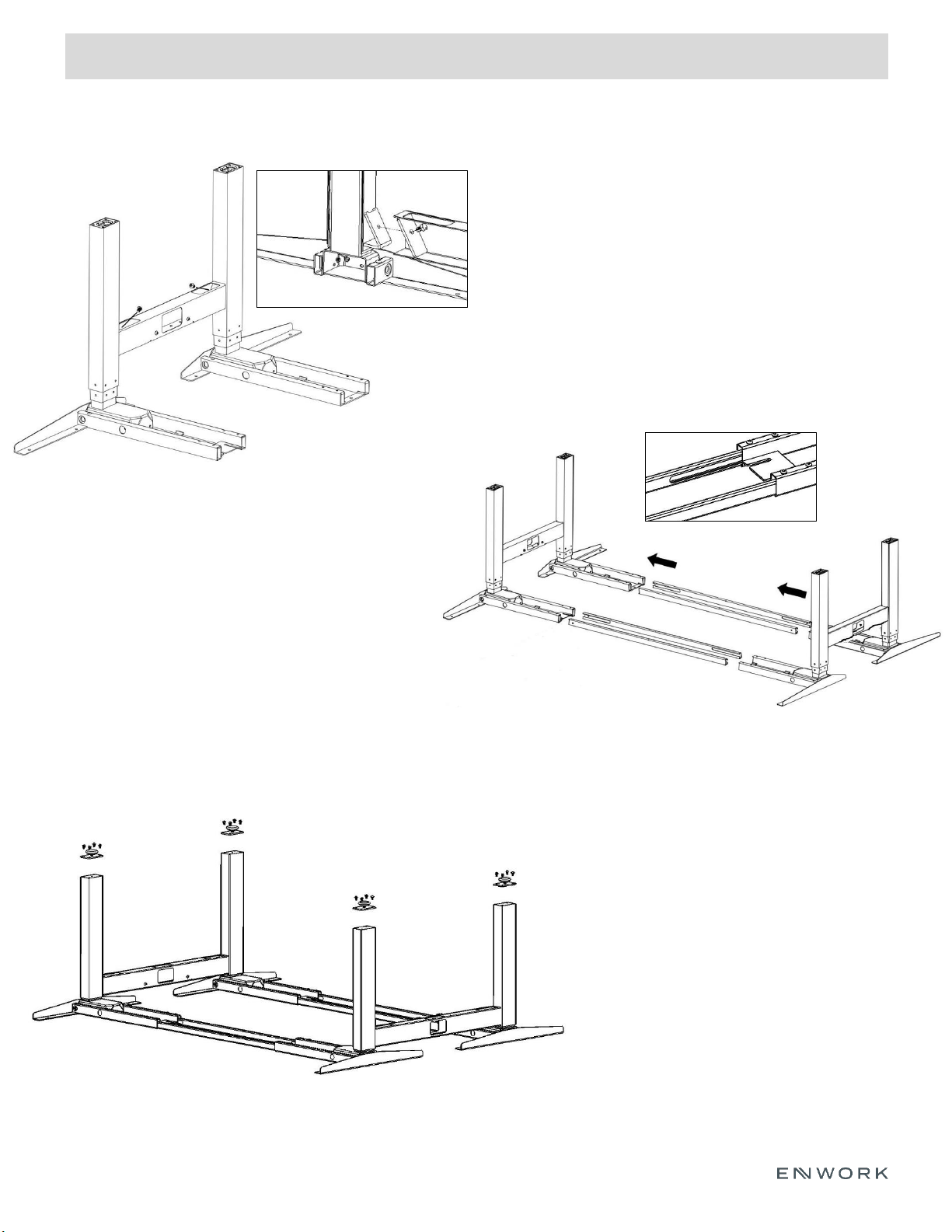

3.5.1) Slide center rail supports into leg assemblies
so that the midpoint mark is facing up and the slot-
cuts are facing inwards. Do not fully tighten set
screws at this step.
**Note** Orientation of center rail supports
3.4.1) Connect one Right leg assembly and one
Left leg assembly together using an End link and
(2) M8 x 1.25 Hex Head bolts. *See section detail
for alignment
3.4.2) Repeat previous step on left leg assembly
using a Mid link.
**Note** Mid-Link has a pass thru-hole. End-Link
will have one closed vertical face. Use the Mid-link
when additional desk pairs are needed. Use the
End-links where no additional desks will be used.
Fig 3.5
Fig 3.6
Fig 3.4
3.6.1) If not already, attach each stand-off
using (4) M6 x 1.0 Button head hex screws
3.6.2) Insert levelers if not already in place.
Standard Benching Cont.
3) Assembly:
INSTALLATION GUIDE
9
3.7.1) Double check that legs, frame, and links are tight.
**Note** Center rails to still be loose at this time.
3.7.2) With (at least) one other person, carefully flip
frame. Please note that the center rails will slide freely.
Fig 3.8
Fig 3.7

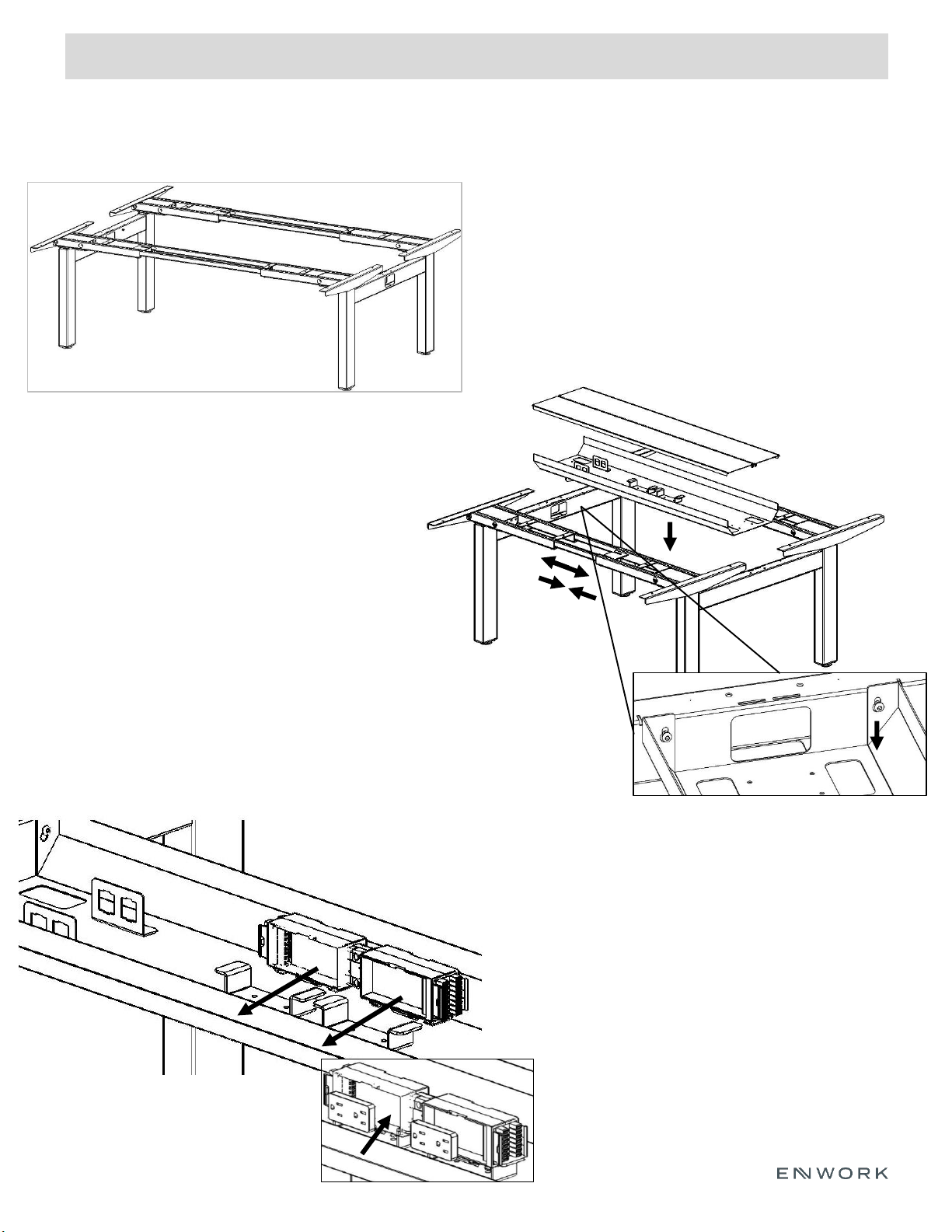

3.9.1) Attach power block to pre-installed brackets
as shown. Brackets should click into place.
3.9.2) Once power block is installed, insert the
outlets into place.
**Note** If wiring diagrams are needed, refer to
instructions from electrical components.
3.8.1) Loosely install (4) M6 x 1.0 Button head hex
screws into end and mid-links.
3.8.2) Lower power trough into place using
keyslots onto machine screws. Once it is in place,
secure all screws.
**Note** Center rails may need to slide to
accommodate for trough width.
3.8.3) After trough is in place, tighten all set
screws on the bottom of the frames to secure the
Center rails.
Standard Benching Cont.
Fig 3.9
3) Assembly:
INSTALLATION GUIDE
10

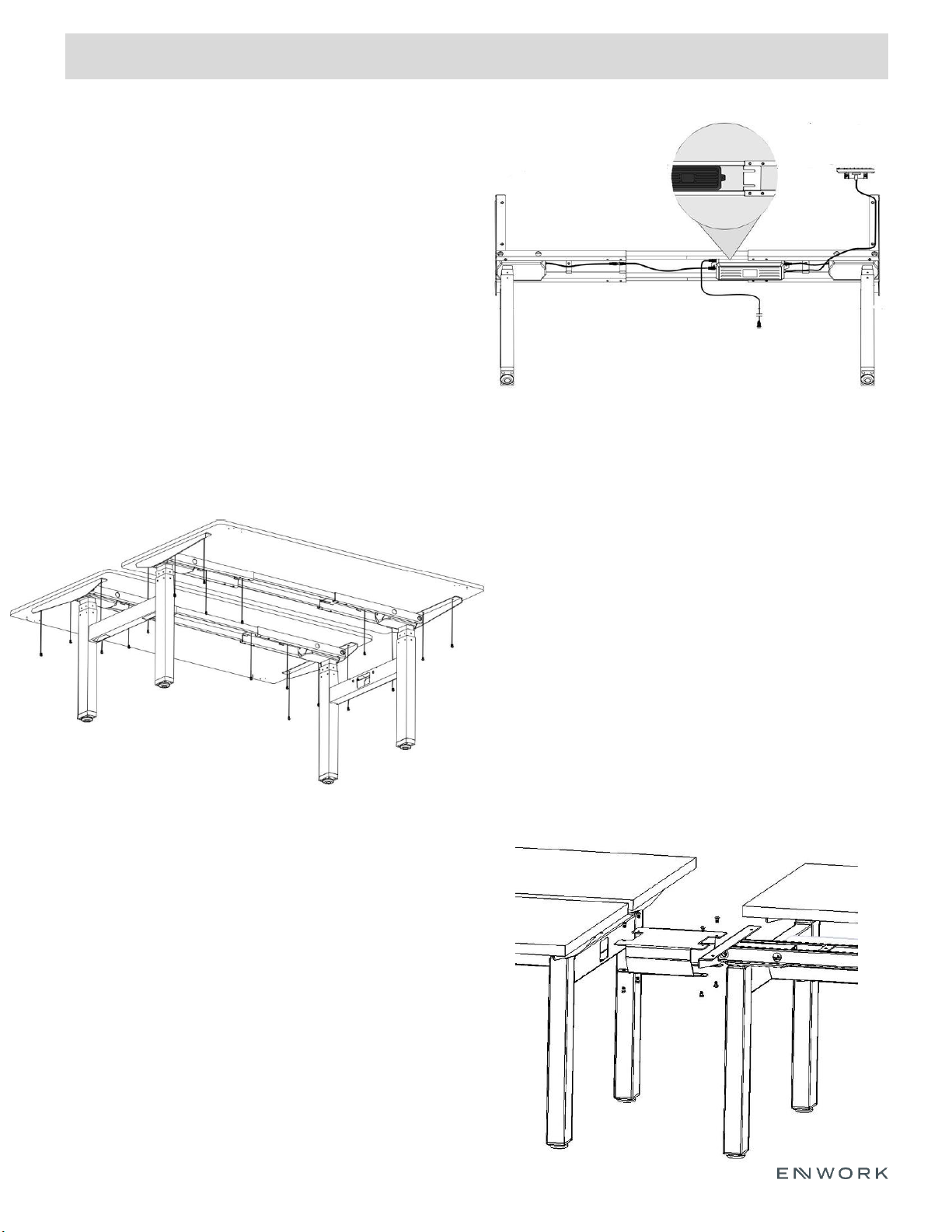

3.12.1) If attaching multiple pairs of desks, connect
them using the Mid-Link Connector and (8) M6 x
1.0 Button Head Hex Screws
Fig 3.12
3.11.1) Place worksurface(s) on top of frame.
3.11.2) Center surface so there is equal distance from
the front and back worksurface edges to the top
support arms.
3.11.3) Center surface so there is equal distance
from side to side of the worksurface edges to the
top support arms.
3.11.4) Attach worksurface to frame as shown, using
wood screws.
3.11.5) Attach Handset to underside of worksurface
using (2) wood screws.
**(Handset Instructions found near the end of this
instruction packet)**
Fig 3.11
3.10.1) Attach each control box to frame with
control pate. (See detail view in Fig. 3.9)
3.10.2) Connect the cables from the leg
columns to the control box via sockets labeled
‘M1’ and ‘M2’.
3.10.3) Connect the handset to the control box
via the socket labeled ‘HS’
3.10.4) Connect the power cable via the power
socket.
Fig 3.10
Standard Benching Cont.
