Endress+Hauser ITEMP TMT162 User manual

BA132R/24/ae/12.06

Device software

01.03.03

Operating instructions

iTEMP®HART®TMT162

Temperature field transmitter

TMT162

2Endress+Hauser

Brief overview

Using the following short form instructions you can commission your system easily and swiftly:

Safety message

Instructions and procedures in the operating instructions may require special precautions to ensure

the safety of the personnel performing the operations. Information that potentially raises safety

issues is indicated by safety pictograms and symbols. Please refer to the safety messages before

performing an operation preceded by pictograms and symbols, see chapter 1.5.

Though the information provided herein is believed to be accurate, be advised that the information

contained herein is NOT a guarantee of satisfactory results. Specifically, this information is neither

a warranty nor guarantee, expressed or implied, regarding performance; merchantability, fitness or

other matter with respect to the products; and recommendation for the use of the product / process

information in conflict with any patent. Please note that the manufacturer reserves the right to

change and / or improve the product design and specifications without notice.

#Warning!

Failure to follow these installation guidelines could result in death or serious injury.

– Make sure only qualified personnel perform the installation.

Explosions could result in death or serious injury.

– Do not remove the housing cover in explosive atmospheres when the circuit is live.

– Before connecting a Model 275/375 HART®Communicator in an explosive atmosphere, make

sure the instruments in the loop are installed in accordance with instrinsically safe or non-

incendive field wiring practices.

– Verify that the operating atmosphere of the transmitter is consistent with the appropriate

hazardous locations certifications.

– All housing covers must be fully engaged to meet explosion-proof requirements.

Process leaks could result in death or serious injury.

– Do not remove the thermowell while in operation.

– Install and tighten thermowells and sensors before applying pressure.

Electrical shock could cause death or serious injury.

– Use extreme caution when making contact with the leads and terminals.

Safety notes Page 4

Installation Page 7

Wiring Page 10

Display and operating elements Page 14

Commissioning Page 20

Quick Setup - fast entry into the unit configuration for standard

measurements

Table of contents TMT162

Endress+Hauser 3

Table of contents

1 Safety notes . . . . . . . . . . . . . . . . . . . . . 4

1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.2 Installation, commissioning and operation . . . . . . . . 4

1.3 Operational safety . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.4 Returns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.5 Safety pictograms and symbols . . . . . . . . . . . . . . . . 5

2 Identification . . . . . . . . . . . . . . . . . . . . 6

2.1 Unit identification . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.2 Delivery contents . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.3 Registered trademarks . . . . . . . . . . . . . . . . . . . . . . 7

3 Installation . . . . . . . . . . . . . . . . . . . . . . 7

3.1 Quick installation guide . . . . . . . . . . . . . . . . . . . . . 7

3.2 Installation conditions . . . . . . . . . . . . . . . . . . . . . . 8

3.3 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.4 Installation check . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4 Wiring. . . . . . . . . . . . . . . . . . . . . . . . . 10

4.1 Quick wiring guide . . . . . . . . . . . . . . . . . . . . . . . . 10

4.2 Connecting the sensor . . . . . . . . . . . . . . . . . . . . . 11

4.3 Connecting the measuring unit . . . . . . . . . . . . . . . 11

4.4 Shielding and potential equalization . . . . . . . . . . . 12

4.5 Degree of protection . . . . . . . . . . . . . . . . . . . . . . . 13

4.6 Connection check . . . . . . . . . . . . . . . . . . . . . . . . 13

5 Operation . . . . . . . . . . . . . . . . . . . . . . 14

5.1 Display and operating elements . . . . . . . . . . . . . . 14

5.2 Local operation . . . . . . . . . . . . . . . . . . . . . . . . . . 15

5.3 Communication using the HART® protocol . . . . . 16

6 Commissioning. . . . . . . . . . . . . . . . . . 20

6.1 Installation check . . . . . . . . . . . . . . . . . . . . . . . . . 20

6.2 Switch on the device . . . . . . . . . . . . . . . . . . . . . . 20

6.3 Quick Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

6.4 Device configuration . . . . . . . . . . . . . . . . . . . . . . 21

7 Maintenance. . . . . . . . . . . . . . . . . . . . 32

8 Accessories. . . . . . . . . . . . . . . . . . . . . 32

9 Trouble-shooting . . . . . . . . . . . . . . . . 33

9.1 Trouble-shooting instructions . . . . . . . . . . . . . . . . 33

9.2 Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

9.3 Application errors without messages . . . . . . . . . . . 35

9.4 Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

9.5 Returns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

9.6 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

9.7 Software history . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

10 Technical data . . . . . . . . . . . . . . . . . . 42

11 Appendix . . . . . . . . . . . . . . . . . . . . . . 51

11.1 The Callendar - van Dusen Method . . . . . . . . . . . . 51

11.2 Polynomial RTD . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Safety notes TMT162

4Endress+Hauser

1 Safety notes

Safe and secure operation of the field transmitter can only be guaranteed if the operating instructions

and all safety notes are read, understood and followed.

1.1 Designated use

• The unit is a universal, presettable temperature field transmitter for resistance temperature

detectors (RTD), thermocouple (TC) as well as resistance and voltage sensors. The unit is

constructed for mounting in field applications.

• The manufacturer cannot be held responsible for damage caused by misuse of the unit.

• Separate Ex documentation is part of this operating manual, for measurement systems in

hazardous areas. The installation conditions and connection values indicated in these instructions

must be followed!

1.2 Installation, commissioning and operation

The unit is constructed using the most up-to-date production equipment and complies with the

safety requirements of the local guidelines. The temperature transmitter is fully factory tested

according to the specifications indicated on the order. However, if it is installed incorrectly or is

misused, certain application dangers can occur. Installation, wiring and maintenance of the unit

must only be done by trained, skilled personnel who are authorized to do so by the plant operator.

This skilled staff must have read and understood these instructions and must follow them to the

letter. The plant operator must make sure that the measurement system has been correctly wired

to the connection schematics.

Electrical temperature sensors such as RTD's and thermocouples produce low-level signals

proportional to their sensed temperature. The temperature transmitter converts the low-level sensor

signal to a standard 4 to 20 mA DC signal that is relatively insensitive to lead length and electrical

noise. This current signal is then transmitted to the control room via two wires.

The transmitter can be commissioned before or after installation. It may be useful to commission it

on the bench, before installation, to ensure proper operation and to become familiar with its

functionality. Make sure the instruments in the loop are installed in accordance with intrinsically

safe or non-incendive field wiring practices before connecting a HART®communicator in an

explosive atmosphere.

The transmitter electronics module is permanently sealed within the housing, resisting moisture and

corrosive damage. Verify that the operating atmosphere of the transmitter is consistent with the

appropriate hazardous locations certifications.

#Warning!

Electrical shock could cause death or serious injury. If the sensor is installed in a high voltage

environment and a fault or installation error occurs, high voltage may be present on the transmitter

leads and terminals.

Safety Instrumented Systems (SIS)

Third party validated metrics are available for the temperature field transmitter. Testing is done per

IEC 61508 for Safety Instrumented Systems. The safety manual can be separately ordered under

order code: SD005R09EN.

For more details and download see:

www.us.endress.com

Temperature Effects

The transmitter will operate within specifications for ambient temperatures between -40 and

+185 °F (-40 and +85 °C) without display. Heat from the process is transferred from the

thermowell to the transmitter housing. If the expected process temperature is near or beyond

TMT162 Safety notes

Endress+Hauser 5

specification limits, consider the use of additional thermowell lagging, and extension nipple, or a

remote mounting configuration to isolate the transmitter from the process.

1.3 Operational safety

Hazardous areas

When installing the unit in a hazardous area, the national safety requirements must be met. Make

sure that all personnel are trained in these areas. Strict compliance with installation instructions and

ratings as stated in this documentation is mandatory.

The measurement system fulfils the safety requirements according to EN 61010 and the EMC

requirements according to EN 61326 as well as NAMUR NE 21, NE 43 and NE 89

recommendations.

#Warning!

The TMT162 must be powered by a 11 to 40 V DC power supply with a limited power according

to NEC Class 02 (low voltage, low current) limited to 8 A and 150 VA in case of a short circuit.

Technical advancement

The manufacturer reserves the right to modify technical data without prior notice. Your distributor

can supply you with current information and updates to these Operating Instructions.

1.4 Returns

Please follow the Return Authorization Policy.

1.5 Safety pictograms and symbols

Safe and reliable operation of this unit can only be guaranteed if the safety notes and warnings in

these operating instructions are followed. The safety notes in these instructions are highlighted

using the following symbols.

!Note!

This icon indicates activities and actions that, if not followed correctly, could have an indirect

influence on the unit operation or could lead to an unforeseen unit reaction.

"Caution!

This icon indicates activities and actions that, if not followed correctly, could lead to faulty device

operation or even damage to the unit.

#Warning!

This icon indicates activities and actions that, if not followed correctly, could lead to personal injury,

a safety risk or even total damage to the unit.

120

Explosion protected, type examined operating equipment!

If one of these icons is on the device’s nameplate, the device can be used in hazardous areas.

-Hazardous area!

This symbol identifies the hazardous area in the diagrams in these Operating Instructions.

– Devices that are used in hazardous areas or cables for such devices must have the corresponding

type of protection.

.Safe area (non-hazardous areas)!

This symbol identifies the non-hazardous area in the diagrams in these Operating Instructions.

– Devices in non-hazardous areas must also be certified if connection cables run through a

hazardous area.

Identification TMT162

6Endress+Hauser

2 Identification

2.1 Unit identification

2.1.1 Legend plate

CE Mark, declaration of conformity 4

The device is designed to meet state-of-the-art safety requirements, has been tested and left the

factory in a condition in which they are safe to operate. The device complies with the applicable

standards and regulations in accordance with IEC 61010 "Protection Measures for Electrical

Equipment for Measurement, Control, Regulation and Laboratory Procedures" and with the EMC

requirements of IEC 61326. The measuring system described in these Operating Instructions

complies with the statutory requirements of the EC Directives. The manufacturer confirms

successful testing of the device by affixing the CE mark.

UL recognized component to UL 3111-1 â

CSA GP approved

GL German Lloyd marine approval Ó

GL Type Approval for temperature measurements in hazardous locations on GL Classed Vessels,

Marine and Offshore Installations.

2.2 Delivery contents

The scope of delivery of the field transmitter is as follows:

• Temperature field transmitter

•Entryblank

• Mulitlanguage Brief Operating Instructions as hard copy

• Operating instructions on CD-ROM

• Control drawing for use in hazardous areas

!Note!

Please take note of the field transmitter accessories in chapter 8 "Accessories".

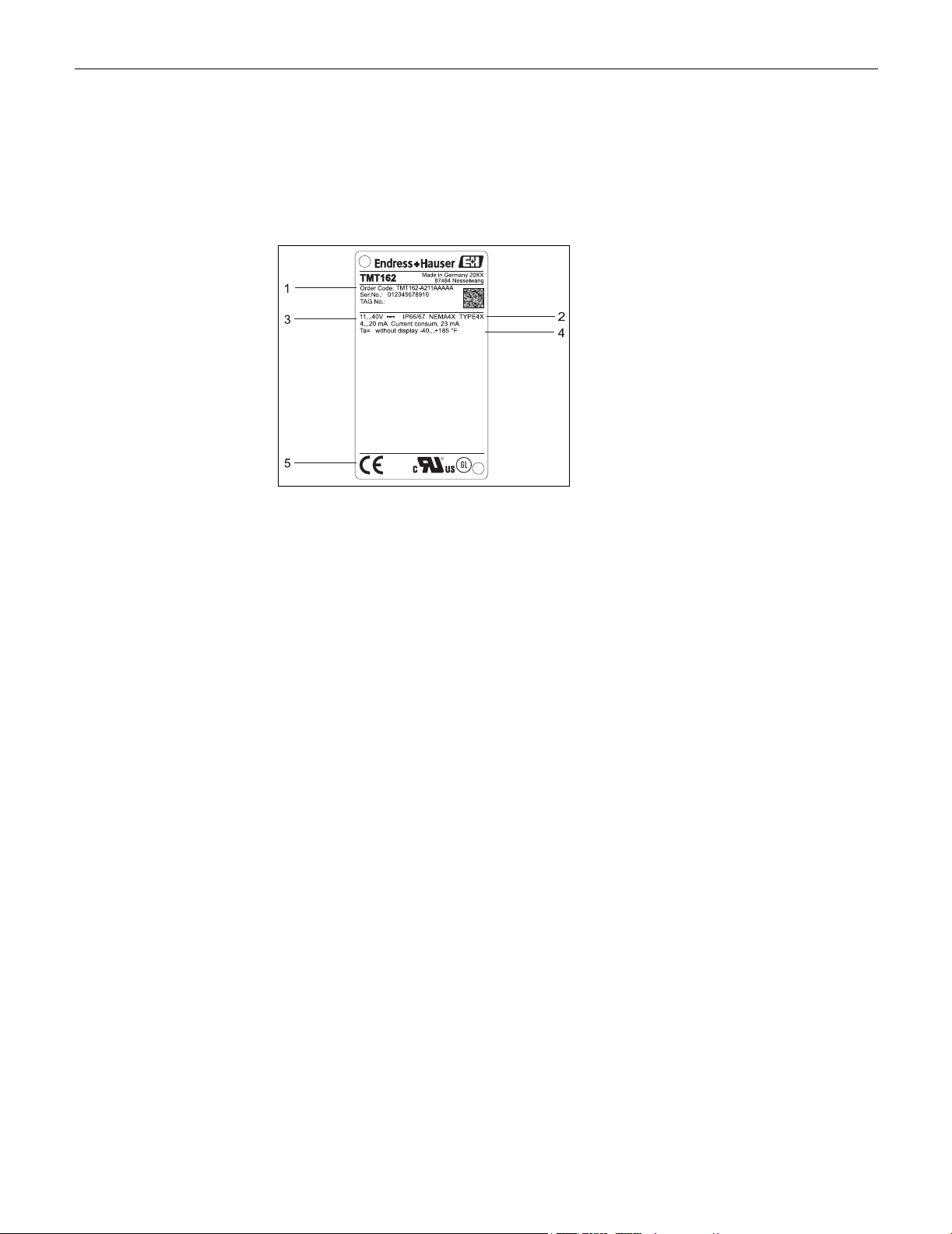

Fig. 1: Example: Field transmitter legend plate

1 Order code and series number of the device

2 Protection and approvals

3 Power supply and output signal

4 Ambient temperature; for Ex area,

see Ex-certification or Control Drawing

5 Approvals with symbols

TMT162 Installation

Endress+Hauser 7

2.3 Registered trademarks

•HART

Registered trademarks of HART®Communication Foundation, Austin, TX, USA

•Microsoft

®Windows NT®, Windows®2000 and Windows®XP

Registered trademarks of Microsoft Corporation, Redmond, USA

•iTEMP

®and ReadWin®2000

Registered trademarks of Endress+Hauser Wetzer GmbH + Co. KG, Nesselwang, Germany

3 Installation

3.1 Quick installation guide

If the sensor is fixed then the unit can be fitted directly to the sensor. For remote mounting to a wall

or stand pipe, two mounting kits are available (→Fig. 4). The illuminated display can be mounted

in four different positions (→Fig. 2):

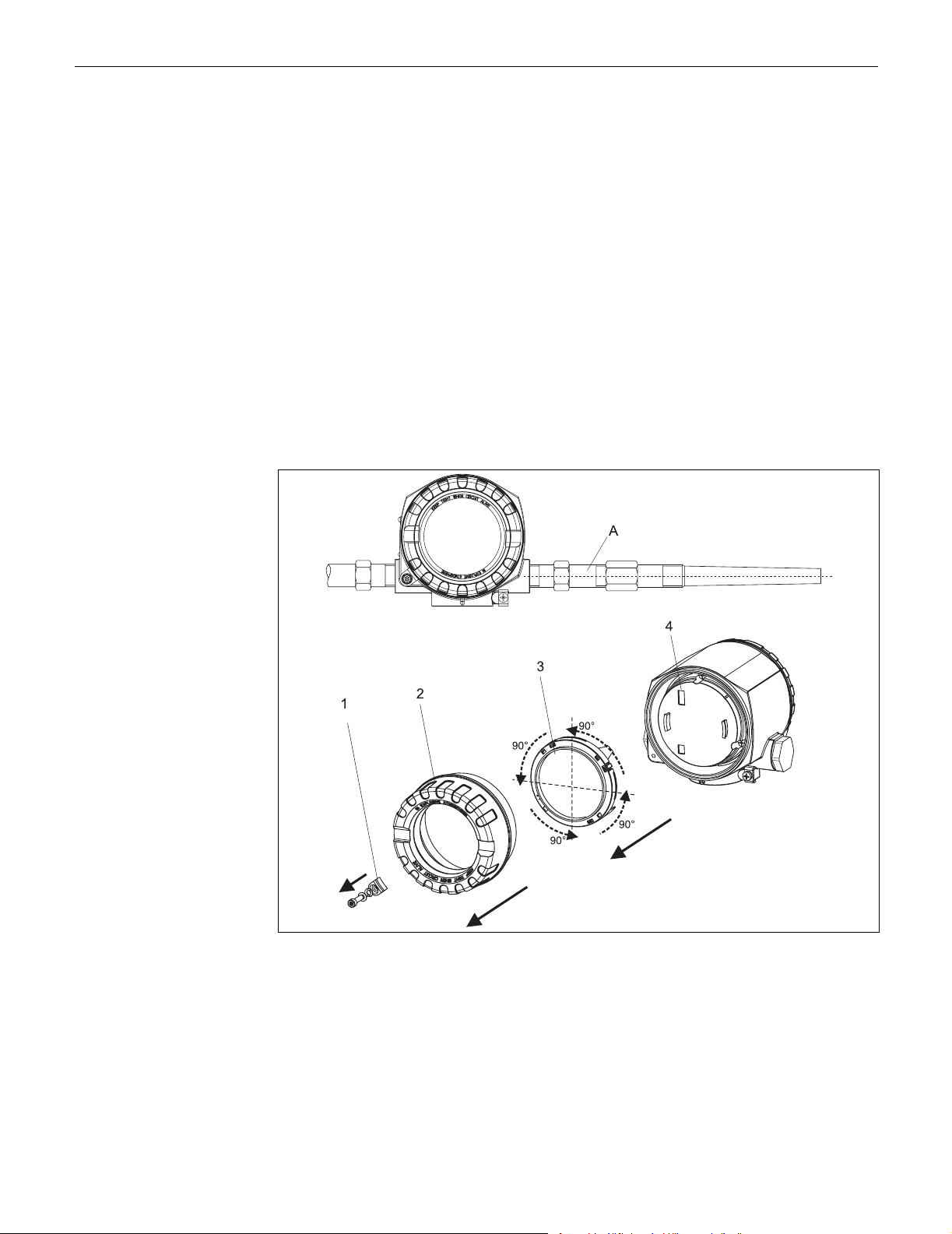

Fig. 2: Temperature field transmitter with sensor, 4 display positions, can be plugged-in in 90° steps

Pos. A: Sensor

Pos. 1: Cover clamp

Pos. 2: Housing cover with O-ring

Pos. 3: Display with retainer

Pos. 4: Electronics compartment

1. Remove the cover clamp (Pos. 1).

2. Unscrew the housing cover together with the O-ring (Pos. 2).

Installation TMT162

8Endress+Hauser

3. Remove the display with retainer (Pos. 3) from the electronics compartment (Pos. 4). Adjust

the display with retainer in 90°-stages to the desired position and rearrange it on the particular

slot in the electronics compartment.

4. Screw on the housing cover together with the O-ring. Mount the cover clamp.

3.2 Installation conditions

3.2.1 Dimensions

The dimensions of the device can be found in chapter 10 ''Technical data''.

3.2.2 Installation point

Information on installation conditions, such as ambient temperature, protection

classification, climatic class, etc., can be found in chapter 10 "Technical data".

3.3 Installation

3.3.1 Direct installation to a sensor

If the sensor is fixed to the process installation, the transmitter can be fitted directly to the sensor.

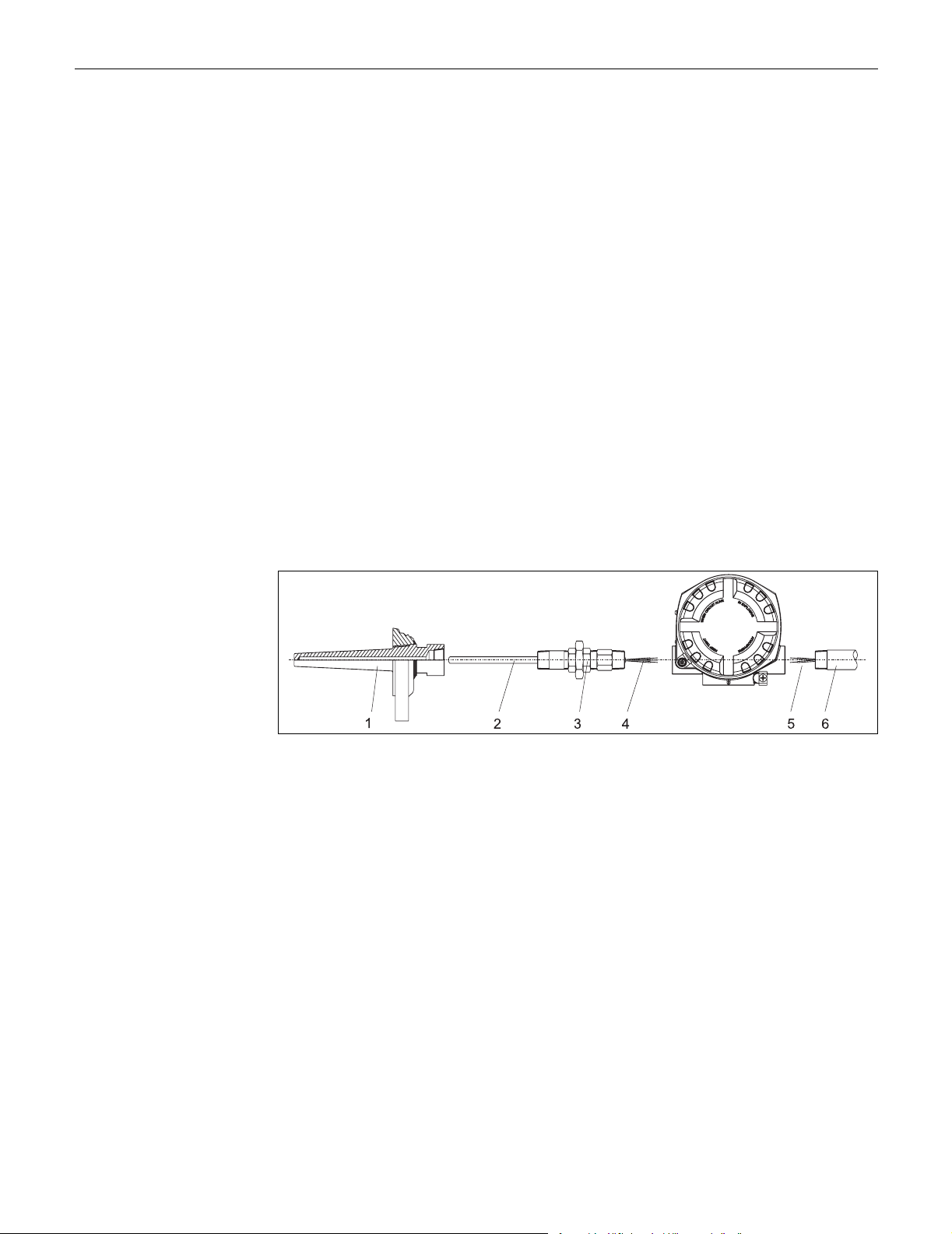

Fig. 3: Installation of the field transmitter directly to a sensor

Pos. 1 Thermowell

Pos. 2 Measuring inset

Pos. 3 Extension nipples and adapters

Pos. 4 Sensor leads

Pos. 5 Field wiring leads

Pos. 6 Field wiring conduit

For installation proceed as follows:

1. Install and tighten thermowell (Pos. 1). Screw the measuring inset (Pos. 2) into the

thermowell.

2. Attach necessary extension nipples and adapters (Pos. 3) to the thermowell. Seal the nipple and

adapter threads with silicone tape.

3. Pull sensor leads (Pos. 4) through the extensions and adapters into the terminal side of the

transmitter housing.

4. Install field wiring conduit (Pos. 6) to the remaining transmitter conduit entry.

5. Pull field wiring leads (Pos. 5) into the terminal side of the transmitter housing.

6. Attach and tighten both transmitter covers. Both transmitter covers must be fully engaged to

meet explosion-proof requirements.

TMT162 Installation

Endress+Hauser 9

3.3.2 Remote installation

a0003586-ae

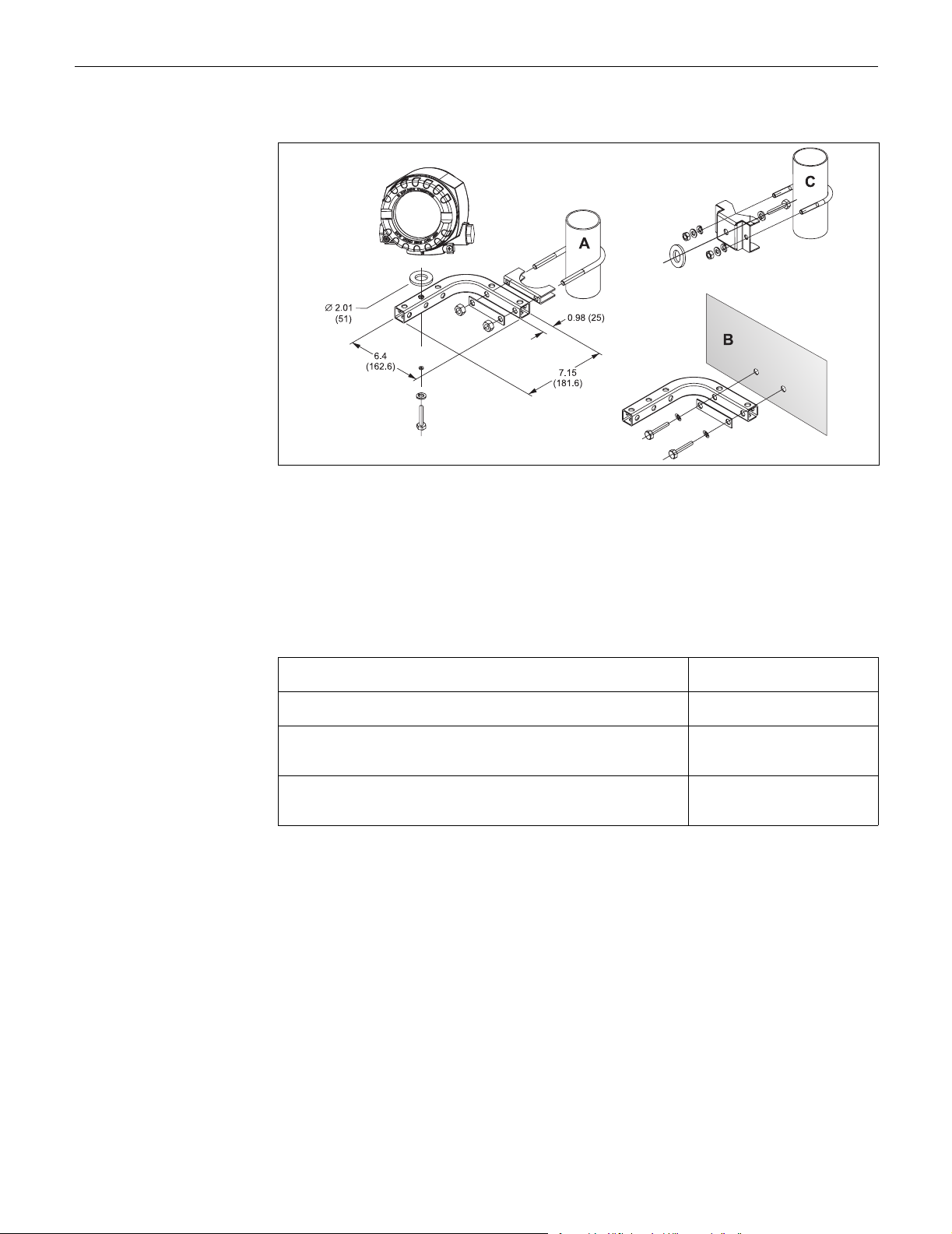

Fig. 4: Installation of the field transmitter using the mounting kit, see chapter 'Accessories' (dimensions in inches;

mm)

Pos. A, B Mounting with combined wall/pipe mounting kit

Pos. C Mounting with pipe mounting kit 2"/V4A

3.4 Installation check

After installing the device, always run the following final checks:

Device condition and specification Hint

Is the device visibly damaged (visual check)? -

Does the device comply with the measurement point specifications, such as

ambient temperature, measurement range, etc.?

See chapter 10 "Technical data"

Make sure that the transmitter covers are tight. Both transmitter covers must be

fully engaged to meet explosion-proof requirements.

Wiring TMT162

10 Endress+Hauser

4 Wiring

"Caution!

When installing Ex-approved devices in a hazardous area, please take special note of the instructions

and connection schematics in the respective Ex documentation added to this operating manual. The

local Endress+Hauser representative is available for assistance if required.

For wiring the device proceed as follows:

1. Open the conduit entry of the device.

2. Feed the leads through the opening in the cable gland or through the conduit entry.

3. Connect the leads as shown in Fig. 5.

4. Ensure the terminal screws are tight. Re-seal the cable gland or conduit by screwing the cover

back on.

5. In order to avoid connection errors, always take note of the hints given in the section

’Connection check’!

4.1 Quick wiring guide

Terminal layout

Fig. 5: Wiring the field transmitter

"Caution!

Protect the terminals from electrostatic discharge. Failure to observe this may result in destruction

of parts of the electronics.

Other manuals for iTEMP TMT162

Table of contents

Other Endress+Hauser Transmitter manuals

Endress+Hauser

Endress+Hauser PROFIBUS DP Proline 100 Technical specifications

Endress+Hauser

Endress+Hauser Proline 300 PROFIBUS PA User manual

Endress+Hauser

Endress+Hauser Proline Promass O 100HART Technical specifications

Endress+Hauser

Endress+Hauser iTEMP TMT82 User manual

Endress+Hauser

Endress+Hauser Proline Promag 50 User manual

Endress+Hauser

Endress+Hauser Prosonic S FMU90 User manual

Endress+Hauser

Endress+Hauser Cerabar S PMP71 User manual

Endress+Hauser

Endress+Hauser tmt142 User manual

Endress+Hauser

Endress+Hauser Proline 200 HART Technical specifications

Endress+Hauser

Endress+Hauser iTEMP HART DIN rail TMT112 Operating instructions

Endress+Hauser

Endress+Hauser CM14 User manual

Endress+Hauser

Endress+Hauser iTEMP TMT82 Technical specifications

Endress+Hauser

Endress+Hauser Mycom S CPM 153 User manual

Endress+Hauser

Endress+Hauser iTEMP TMT31 User manual

Endress+Hauser

Endress+Hauser TMT122 User manual

Endress+Hauser

Endress+Hauser Cerabar M PMP51 User manual

Endress+Hauser

Endress+Hauser easytemp TSM 470 G User manual

Endress+Hauser

Endress+Hauser Proline 500 digital EtherNet/IP Technical specifications

Endress+Hauser

Endress+Hauser TMD1000 User manual

Endress+Hauser

Endress+Hauser iTEMP TMT71 Technical specifications

Endress+Hauser

Endress+Hauser Commubox FXA291 User manual

Endress+Hauser

Endress+Hauser cerabar M PMP 46 Manual

Endress+Hauser

Endress+Hauser HART Flowmeter Proline 400 Technical specifications

Endress+Hauser

Endress+Hauser iTEMP PCP TMT 121 User manual

Popular Transmitter manuals by other brands

NIVELCO

NIVELCO EasyTREK SCA-300 Series Programming manual

Honeywell

Honeywell 5816WMBR installation instructions

Kamstrup

Kamstrup READy MTU Installation and operation guide

Omega

Omega ZW Series user guide

ABB

ABB Field 264H Instructions for installation

Alinco

Alinco DJ-V17T Service manual

Dejero

Dejero EnGo 3x manual

Rosemount

Rosemount 4600 Reference manual

Speaka Professional

Speaka Professional 2342740 operating instructions

trubomat

trubomat GAB 1000 instruction manual

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 instructions

Rondish

Rondish UT-11 quick start guide

MG 10JRE instruction manual

Burkert

Burkert 8177 operating instructions

Firetide

Firetide HotPort 3203 Hardware installation guide

Tele Radio

Tele Radio T9-02 User instructions

Rotronic

Rotronic HygroFlex HF3 Series user guide

Jamara

Jamara FCX6 Pro Tel Instruction

Endress+Hauser iTEMP TMT162 User manual

Popular Transmitter manuals by other brands
