Operating Instructions

iTEMP TMT31

Temperature transmitter

BA02157T/09/EN/01.21

71543167

2021-10-29

Valid as of version

01.01 (device version)

iTEMP TMT31 Table of contents

Endress+Hauser 3

Table of contents

1 About this document ................ 4

1.1 Document function ..................... 4

1.2 Safety Instructions (XA) .................. 4

1.3 Symbols used .......................... 4

1.4 Tool symbols .......................... 6

1.5 Documentation ........................ 6

2 Basic safety instructions ............ 7

2.1 Requirements for the personnel ............ 7

2.2 Intended use .......................... 7

2.3 Operational safety ...................... 7

3 Incoming acceptance and product

identification ....................... 8

3.1 Incoming acceptance .................... 8

3.2 Product identification .................... 8

3.3 Scope of delivery ....................... 9

3.4 Certificates and approvals ................ 9

3.5 Transport and storage ................... 9

4 Mounting ......................... 10

4.1 Mounting requirements ................. 10

4.2 Mounting the device ................... 10

4.3 Post-mounting check ................... 12

5 Electrical connection .............. 13

5.1 Connecting requirements ................ 13

5.2 Quick wiring guide ..................... 13

5.3 Connecting the sensor input .............. 14

5.4 Connecting the transmitter .............. 14

5.5 Post-connection check .................. 15

6 Operation options ................. 16

6.1 Overview of operation options ............ 16

6.2 Structure and function of the operating

menu .............................. 16

6.3 Access to the operating menu via the

operating tool ........................ 17

7 System integration ................ 20

7.1 Overview of device description files ......... 20

8 Commissioning .................... 21

8.1 Post-installation check .................. 21

8.2 Switching on the transmitter ............. 21

8.3 Configuring the measuring device .......... 21

8.4 Protecting settings from unauthorized access .22

9 Diagnostics and troubleshooting ... 23

9.1 General troubleshooting ................. 23

9.2 Diagnostic information via communication

interface ............................ 24

9.3 Active diagnostics ..................... 24

9.4 Overview of diagnostic events ............. 24

9.5 Firmware history ...................... 25

10 Maintenance ...................... 25

11 Repair ............................ 26

11.1 General notes ........................ 26

11.2 Spare parts .......................... 26

11.3 Return .............................. 26

11.4 Disposal ............................ 26

12 Accessories ....................... 26

12.1 Device-specific accessories ............... 26

12.2 Communication-specific accessories ........ 27

12.3 Service-specific accessories ............... 27

12.4 System components .................... 28

13 Technical data .................... 29

13.1 Input ............................... 29

13.2 Output ............................. 29

13.3 Power supply ......................... 30

13.4 Performance characteristics .............. 30

13.5 Environment ......................... 32

13.6 Mechanical construction ................ 33

13.7 Certificates and approvals ............... 33

13.8 Documentation ....................... 34

About this document iTEMP TMT31

4 Endress+Hauser

1 About this document

1.1 Document function

These Operating Instructions contain all the information that is required in various phases

of the life cycle of the device: from product identification, incoming acceptance and

storage, to mounting, connection, operation and commissioning through to

troubleshooting, maintenance and disposal.

1.2 Safety Instructions (XA)

When using in hazardous areas, compliance with national regulations is mandatory.

Separate Ex-specific documentation is provided for measuring systems that are used in

hazardous areas. This documentation is an integral part of these Operating Instructions.

The installation specifications, connection data and safety instructions it contains must be

strictly observed! Make sure that you use the right Ex-specific documentation for the right

device with approval for use in hazardous areas! The number of the specific Ex

documentation (XA...) is provided on the nameplate. If the two numbers (on the Ex

documentation and the nameplate) are identical, then you may use this Ex-specific

documentation.

1.3 Symbols used

1.3.1 Safety symbols

DANGER

This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in

serious or fatal injury.

WARNING

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

serious or fatal injury.

CAUTION

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

minor or medium injury.

NOTICE

This symbol contains information on procedures and other facts which do not result in

personal injury.

1.3.2 Electrical symbols

Symbol Meaning

Direct current

Alternating current

Direct current and alternating current

iTEMP TMT31 About this document

Endress+Hauser 5

Symbol Meaning

Ground connection

A grounded terminal which, as far as the operator is concerned, is grounded via a

grounding system.

Protective Earth (PE)

A terminal which must be connected to ground prior to establishing any other

connections.

The ground terminals are situated inside and outside the device:

• Inner ground terminal: Connects the protectiv earth to the mains supply.

• Outer ground terminal: Connects the device to the plant grounding system.

1.3.3 Symbols for certain types of information

Symbol Meaning

Permitted

Procedures, processes or actions that are permitted.

Preferred

Procedures, processes or actions that are preferred.

Forbidden

Procedures, processes or actions that are forbidden.

Tip

Indicates additional information.

Reference to documentation.

Reference to page.

Reference to graphic.

Notice or individual step to be observed.

… Series of steps.

Result of a step.

Help in the event of a problem.

Visual inspection.

1.3.4 Symbols in graphics

Symbol Meaning Symbol Meaning

1, 2, 3,... Item numbers

… Series of steps

A, B, C, ... Views A-A, B-B, C-C, ... Sections

Hazardous area

Safe area (non-hazardous area)

About this document iTEMP TMT31

6 Endress+Hauser

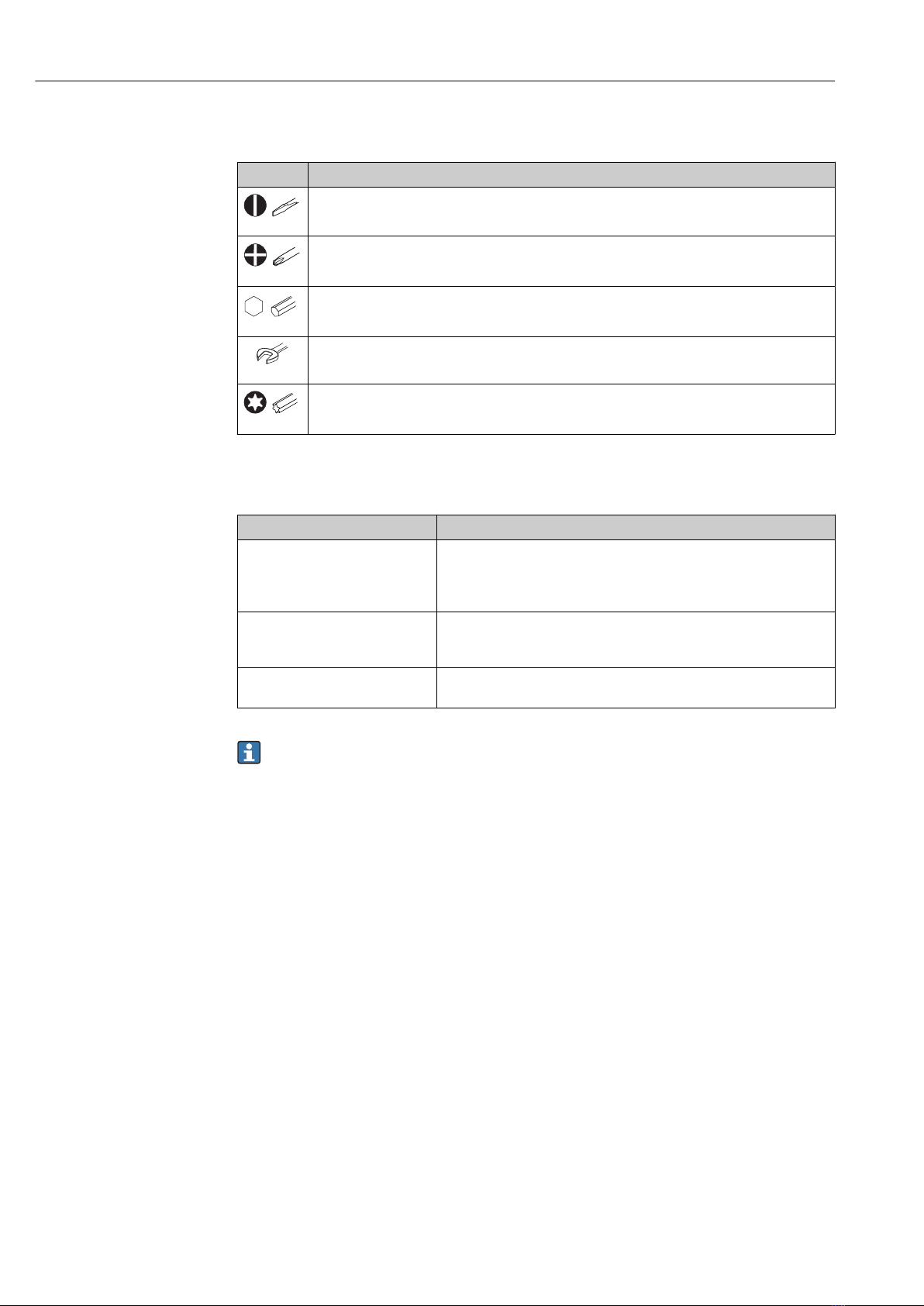

1.4 Tool symbols

Symbol Meaning

A0011220

Flat-blade screwdriver

A0011219

Phillips head screwdriver

A0011221

Allen key

A0011222

Open-ended wrench

A0013442

Torx screwdriver

1.5 Documentation

Document Purpose and content of the document

Technical Information

TI01613T

Planning aid for your device

The document contains all the technical data on the device and provides

an overview of the accessories and other products that can be ordered for

the device.

Brief Operating Instructions

KA01540T

Guide that takes you quickly to the 1st measured value

The Brief Operating Instructions contain all the essential information

from incoming acceptance to initial commissioning.

Description of Device Parameters

GP01182T

The document serves as a reference for parameters: it provides a detailed

explanation for each individual parameter in the operating menu.

The document types listed are available:

In the Download Area of the Endress+Hauser Internet site: www.endress.com →

Download

iTEMP TMT31 Basic safety instructions

Endress+Hauser 7

2 Basic safety instructions

2.1 Requirements for the personnel

The personnel performing installation, commissioning, diagnostics and maintenance must

satisfy the following requirements:

‣Trained, qualified specialists must be suitably qualified to perform this function and

task

‣Are authorized by the plant owner/operator

‣Are familiar with federal/national regulations

‣They must have read and understood the instructions in the manual, supplementary

documentation and certificates (depending on the application) prior to starting work

‣They must follow instructions and comply with basic conditions

The operating personnel must satisfy the following requirements:

‣They must be suitably trained and authorized by the plant operator to meet the

requirements of the task

‣They must follow the instructions in this manual

2.2 Intended use

The device is a universal and configurable temperature transmitter with a sensor input for

resistance thermometers (RTD). The head transmitter version of the device is intended for

mounting in a terminal head (flat face) as per DIN EN 50446. It is also possible to mount

the device on a DIN rail using the optional DIN rail clip.

If the device is used in a manner not specified by the manufacturer, the protection

provided by the device may be impaired.

The manufacturer is not liable for damage caused by using the device incorrectly or for

purposes for which it was not intended.

2.3 Operational safety

‣Operate the device only if it is in proper technical condition, free from errors and faults.

‣The operator is responsible for interference-free operation of the device.

Hazardous area

To eliminate a danger for persons or for the facility when the device is used in the

hazardous area (e.g. explosion protection or safety equipment):

‣Based on the technical data on the nameplate, check whether the ordered device is

permitted for the intended use in the hazardous area. The nameplate can be found on

the side of the transmitter housing.

‣Observe the specifications in the separate supplementary documentation that is an

integral part of these instructions.

Electromagnetic compatibility

The measuring system complies with the general safety requirements as per EN 61010-1,

the EMC requirements as per the IEC/EN 61326 series and the NAMUR recommendations

NE 21.

NOTICE

‣The device must be powered only by a power unit that operates using a limited-energy

circuit in accordance with UL/EN/IEC 61010-1, Section 9.4 and the requirements in

Table 18.

Incoming acceptance and product identification iTEMP TMT31

8 Endress+Hauser

3 Incoming acceptance and product

identification

3.1 Incoming acceptance

1. Unpack the temperature transmitter carefully. Is the packaging or content free from

damage?

 Damaged components must not be installed as the manufacturer can otherwise

not guarantee compliance with the original safety requirements or the material

resistance, and can therefore not be held responsible for any resulting damage.

2. Is the delivery complete or is anything missing? Check the scope of delivery against

your order.

3. Does the nameplate match the ordering information on the delivery note?

4. Are the technical documentation and all other necessary documents provided? If

applicable: are the Safety Instructions (e.g. XA) for hazardous areas provided?

If one of these conditions is not satisfied, contact your Sales Center.

3.2 Product identification

The following options are available for identification of the device:

• Nameplate specifications

• Extended order code with breakdown of the device features on the delivery note

• Enter the serial number from the nameplate in the W@M Device Viewer

(www.endress.com/deviceviewer): all data relating to the device and an overview of the

Technical Documentation supplied with the device are displayed.

• Enter the serial number on the nameplate into the Endress+Hauser Operations App or

scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser

Operations App: all the information about the device and the technical documentation

pertaining to the device is displayed.

3.2.1 Nameplate

The right device?

Compare and check the data on the nameplate of the device against the requirements of

the measuring point:

11-42V Ser.no.:

FW:

Input:

12345678ABCDEFGH

Dev.Rev: x

Ext. ord. cd.:

A0046937

 1 Nameplate of the head transmitter (example, Ex version)

1 Power supply, current consumption, ambient temperature

2 Firmware version, logos

3 Data Matrix 2D code

4 2 lines for the TAG name

5 Approval information in hazardous area with number of the relevant Ex documentation

6 Serial number and extended order code

7 Manufacturer identification

8 Optional approval symbols

9 Manufacturer name and order code

iTEMP TMT31 Incoming acceptance and product identification

Endress+Hauser 9

3.2.2 Name and address of manufacturer

Name of manufacturer: Endress+Hauser Wetzer GmbH + Co. KG

Address of manufacturer: Obere Wank 1, D-87484 Nesselwang or www.endress.com

3.3 Scope of delivery

The scope of delivery of the device comprises:

• Temperature transmitter

• Mounting material (head transmitter), optional

• Printed copy of Brief Operating Instructions in English

• Additional documentation for devices which are suitable for use in the hazardous area

(ATEX, CSA) , such as Safety Instructions (XA...)

3.4 Certificates and approvals

The device left the factory in a safe operating condition. The device complies with the

requirements of the standards EN 61010-1 "Safety Requirements for Electrical Equipment

for Measurement, Control, and Laboratory Use" and with the EMC requirements as per the

IEC/EN 61326 21 series + NAMUR recommendation NE 21.

3.5 Transport and storage

Carefully remove all the packaging material and protective covers that are part of the

transported package.

For dimensions and operating conditions, see "Mechanical construction" section.

When storing and transporting the device, pack it so that it is reliably protected

against impact. The original packaging offers the best protection.

Storage temperature

Head transmitter: –50 to +100 °C (–58 to +212 °F)

Mounting iTEMP TMT31

10 Endress+Hauser

4 Mounting

4.1 Mounting requirements

4.1.1 Dimensions

The dimensions of the device are provided in the "Technical data" section .

4.1.2 Mounting location

In the terminal head, flat face, as per DIN EN 50446, direct mounting on insert with cable

entry (middle hole 7 mm).

Make sure there is enough space in the terminal head!

It is also possible to mount the head transmitter on a DIN rail as per IEC 60715 using

the DIN rail clip accessory.

Information about the conditions (such as the ambient temperature, degree of protection,

climate class etc.) that must be present at the installation point so that the device can be

mounted correctly is provided in the "Technical data" section .

When using the device in hazardous areas, the limit values of the certificates and

approvals must be observed (see Ex Safety Instructions).

4.2 Mounting the device

A Phillips head screwdriver is required to mount the head transmitter:

• Maximum torque for securing screws = 1 Nm (¾ foot-pound), screwdriver: Pozidriv Z2

• Maximum torque for screw terminals = 0.35 Nm (¼ foot-pound), screwdriver: Pozidriv

12 3 4 5

A0046845

 2 Head transmitter mounting

A Mounting in a terminal head (terminal head flat face as per DIN 43729)

1 Terminal head

2 Circlips

3 Insert

Table of contents

Other Endress+Hauser Transmitter manuals

Endress+Hauser

Endress+Hauser iTEMP TMT162 User manual

Endress+Hauser

Endress+Hauser Levelflex FMP 232 Specification sheet

Endress+Hauser

Endress+Hauser iTEMP TMT85 User manual

Endress+Hauser

Endress+Hauser Proline 300 Technical specifications

Endress+Hauser

Endress+Hauser Levelflex M FMP41C User manual

Endress+Hauser

Endress+Hauser CM14 User manual

Endress+Hauser

Endress+Hauser Cerabar PMC71B User manual

Endress+Hauser

Endress+Hauser cerabar S User manual

Endress+Hauser

Endress+Hauser Proline 300 PROFIBUS PA User manual

Endress+Hauser

Endress+Hauser Proline Promag 50 User manual

Endress+Hauser

Endress+Hauser smartgrad TMD833 User manual

Endress+Hauser

Endress+Hauser FHX50 User manual

Endress+Hauser

Endress+Hauser CM14 User manual

Endress+Hauser

Endress+Hauser iTEMP Pt TMT180 User manual

Endress+Hauser

Endress+Hauser Liquiline M CM42 User manual

Endress+Hauser

Endress+Hauser HART Proline 400 Technical specifications

Endress+Hauser

Endress+Hauser iTEMP TMT125 Technical specifications

Endress+Hauser

Endress+Hauser tmt142 Technical specifications

Endress+Hauser

Endress+Hauser RMA 422 User manual

Endress+Hauser

Endress+Hauser iTEMP PA TMT184 User manual

Endress+Hauser

Endress+Hauser Micropilot S FMR540 Manual

Endress+Hauser

Endress+Hauser Liquisys M CCM223 User manual

Endress+Hauser

Endress+Hauser iTEMP TMT84 Technical specifications

Endress+Hauser

Endress+Hauser Proline 500 digital Modbus RS485 Technical specifications

Popular Transmitter manuals by other brands

NIVELCO

NIVELCO EasyTREK SCA-300 Series Programming manual

Honeywell

Honeywell 5816WMBR installation instructions

Kamstrup

Kamstrup READy MTU Installation and operation guide

Omega

Omega ZW Series user guide

ABB

ABB Field 264H Instructions for installation

Alinco

Alinco DJ-V17T Service manual

Dejero

Dejero EnGo 3x manual

Rosemount

Rosemount 4600 Reference manual

Speaka Professional

Speaka Professional 2342740 operating instructions

trubomat

trubomat GAB 1000 instruction manual

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 instructions

Rondish

Rondish UT-11 quick start guide

MG 10JRE instruction manual

Burkert

Burkert 8177 operating instructions

Firetide

Firetide HotPort 3203 Hardware installation guide

Tele Radio

Tele Radio T9-02 User instructions

Rotronic

Rotronic HygroFlex HF3 Series user guide

Jamara

Jamara FCX6 Pro Tel Instruction

Endress+Hauser iTEMP TMT31 User manual

Popular Transmitter manuals by other brands
