Emerson HD8110 User manual

PERSONALCD,CD-R/RWPLAYER

with40 SECOND ELECTRONIC

ANTI-SKIPPROTECTION,

and FMDIGITALTUNER

HD8110

OWNER’SMANUAL

Visitourweb siteatwww.emersonradio.com

HD8110_052404.p65 25/5/2004, 12:2122

Thankyou.........

Forpurchasing thisEmerson PersonalCD PlayerwithFMdigitaltuner.

The CD playerhasa20 track programmablememorysoyou can listen to

the songson yourfavoriteCD'sinanyorderyou choose.Oryou can use

the Randomplayback featureand letthe playerselectthe playback order

foryou.Usethe 3-wayRepeatfeaturetorepeatasingletrack,the entire

disc,oraprogrammed sequenceoftracks,indefinitely.We'vealsoincluded

40 second ElectronicSkipProtection whichmakesthisplayervirtuallyskip-

free during mostactiveuses.

Pleaseread thisinstruction manualcompletelyand carefullytomakesure

you understand the properoperation ofthisproduct, and getthe maximum

enjoymentoutofall the featuresofthisstate-of-the-artCD player.

Onceagain,thanks forpurchasing thisEmerson product.

The serialnumberofyourCD playercan be found on the bottomcabinet.

Wesuggestthatyou recordthe serialnumberofyourunitinthe space

belowforfuturereference.

ModelNumber:HD8110

SerialNumber:

HD8110_052404.p65 25/5/2004, 12:211

WARNING: TOPREVENTFIREORSHOCKHAZARD,

DONOTEXPOSETHISUNITTORAINORMOISTURE.

Thisdevicecomplieswithpart15 ofthe FCC rules.Operation issubjecttothe

condition thatthisdevicedoesnotcauseharmfulinterference.

CLASS 1LASERPRODUCT

APPAREILÁLASERDECLASSE 1

PRODUCTOLASERDECLASE 1

CAUTION

INVISIBLELASERRADIATION

WHENOPENAND INTERLOCKS

DEFEATED.

AVOIDEXPOSURETOBEAM

ThisproductcontainsalowpowerLaserDevice.

•Placesexposed todirectsunlightor

closetoheatradiatingappliancessuch

aselectricheaters.

Avoidinstalling theunitinlocationsdescribedbelow:

•Dustyplaces.

•Placessubjecttoconstant

vibration.

•Humidormoistplaces.

CAUTION

THISLASERCOMPACTDISCPLAYERFUNCTIONSBY HELPOFINVISIBLE

LASERLIGHTAND ISEQUIPPEDWITHSAFETYSWITCHES TOAVOID

EXPOSUREWHENDOORISOPENAND SAFETYINTERLOCKS ARE

DEFEATED.ITISDANGEROUSTODEFEATORBYPASS SAFETYSWITCHES.

IMPORTANTNOTES

DANGEROUSVOLTAGE

Uninsulated DangerousVoltage,thatmaybe ofsufficient

magnitude toconstitutearisk ofelectricshock topersonsis

presentwithinthisproduct'senclosure.

ATTENTION

The Owner'sManualcontainsimportantoperating and

maintenanceinstructions.

Foryoursafety,itisnecessarytorefertothe manual.

HD8110_052404.p65 25/5/2004, 12:212

PREPARATIONFORUSE

REMOVE THE TRANSIT CARD

This personal CD player is shipped with a dummy CD ‘transit card’ inside the CD

compartment. The purpose of this card is to prevent the laser from moving during

shipment of the product. This card must be removed before using the CD player.

Slide the OPEN switch to the right to unlock the CD door. Remove the ‘transit card’

from the player and discard it.

POWER SOURCES

This personal CD player is designed to operate on two “AA” batteries, not included.

Use a well known brand of alkaline batteries for longest life and best performance.

This player can also be operated by an optional AC/DC converter/adapter, not

included. If you decide to purchase an optional AC/DC adapter the specification

must be as follows:

Input: 120V 60Hz AC

Output: 4.5V DC, 500 mA.

Plug: 1.7 mm Female Type with Positive Center, UL Listed.

You may also purchase a “Universal” type AC/DC adapter which allows you to

select the required output voltage and plug polarity, and normally includes multiple

plug sizes to fit most brands of equipment. Always look for the “UL” listing mark

when you purchase an adapter.

Positive(+)Negative(–)

HD8110_052404.p65 25/5/2004, 12:213

INSTALLING THE BATTERIES

Note: The battery compartment is located inside the CD compartment.

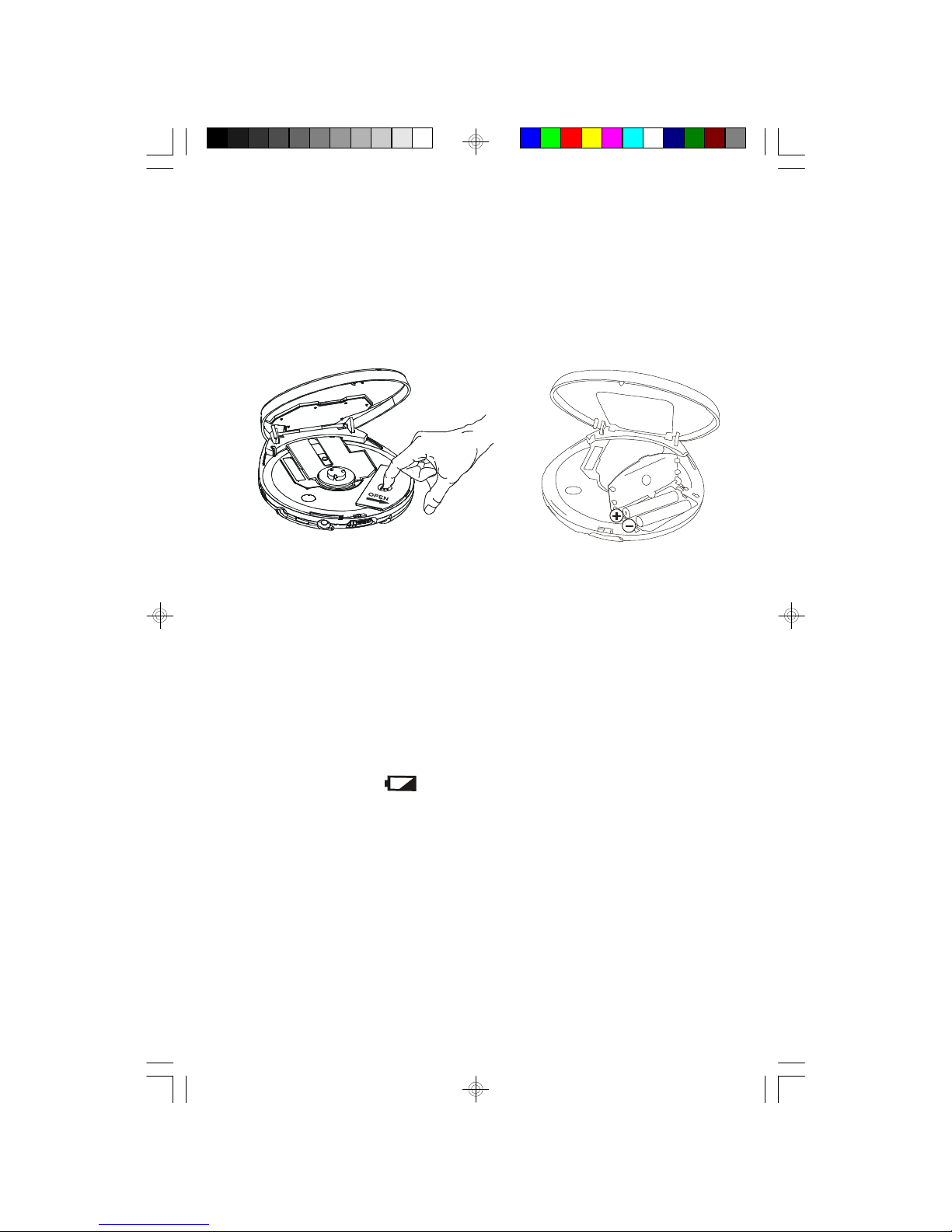

1.) Slide the OPEN switch to the right to open the CD door. If you have not already

done so, remove the dummy CD ‘transit card’ and discard it.

2.) Press down on the “Arrow” mark in the center of the battery door and slide the

door outward as shown until the door ‘pops’ open.

3.) Inserttwoalkaline“AA”batteriesin the battery compartment. Be suretoobserve

the polarity markings engraved in the battery compartment. If the batteries are

inserted incorrectly the unit will not work.

4.) Fold the battery removal ribbon over the top of the batteries, close the battery

door, and slide the door inward into it is fully locked again.

5.) Close the CD door.

REPLACING THE BATTERIES

When the battery symbol flashes in the display the batteries are becoming

weak and should be replaced.Always replace both batteries at the same time with

new fresh alkaline batteries. Do not mix old and new batteries or different types of

batteries together.

If the display remains blank when you press thePLAY/PAUSE button, the batteries

are completely dead. Replace them immediately. If dead batteries are left inside

the battery compartment for a long period of time they may leak and cause damage

to the unit, and such damage or corrosion from leaking batteries is not covered by

your warranty.

HD8110_052404.p65 25/5/2004, 12:214

CONNECTING THE OPTIONAL AC ADAPTER (NOT INCLUDED)

1.) Connect the small female plug of the optionalAC adapter to the “DC IN 4.5 V”

jack on the right side of the CD player.

2.) Connect the adapter housing to your 120V AC 60Hz outlet.

Notes:

• Never connect or disconnect the adapter from the AC outlet while your hands

are wet.

• The housing of the AC adapter may become warm during operation. This is

normal.

• The female plug of the AC adapter must be completely disconnected from the

CD player in order to operate the player on batteries.

PRESET MODE RADIO

PLAY/

PAUSE

STOP SKIP REV./

TUN. DOWN

SKIP FWD./

TUN. UP

DC 4.5V INPUT JACK

TO 120V/60Hz AC OUTLET

OPTIONAL AC/DC ADAPTER

BATTERYPRECAUTIONS

Followtheseprecautionswhen using batteriesinthisdevice:

1.Useonlythe sizeand type ofbatteriesspecified.

2.Besuretofollowthe correctpolaritywhen installing the batteriesasindicated inthe battery

compartment. Reversed batteriesmaycausedamage tothe device.

3.Donotmixdifferenttypesofbatteriestogether(e.g.Alkaline and Carbon-Zinc)oroldbatteries

withfreshones.

4. If the deviceisnottobe used foralong period oftime,removethe batteriestoprevent

damage orinjuryfrompossiblebatteryleakage.

5.Donottrytorecharge batteriesnotintended tobe recharged;theycan overheatand rupture

(Followbatterymanufacturer’s directions.)

HD8110_052404.p65 25/5/2004, 12:215

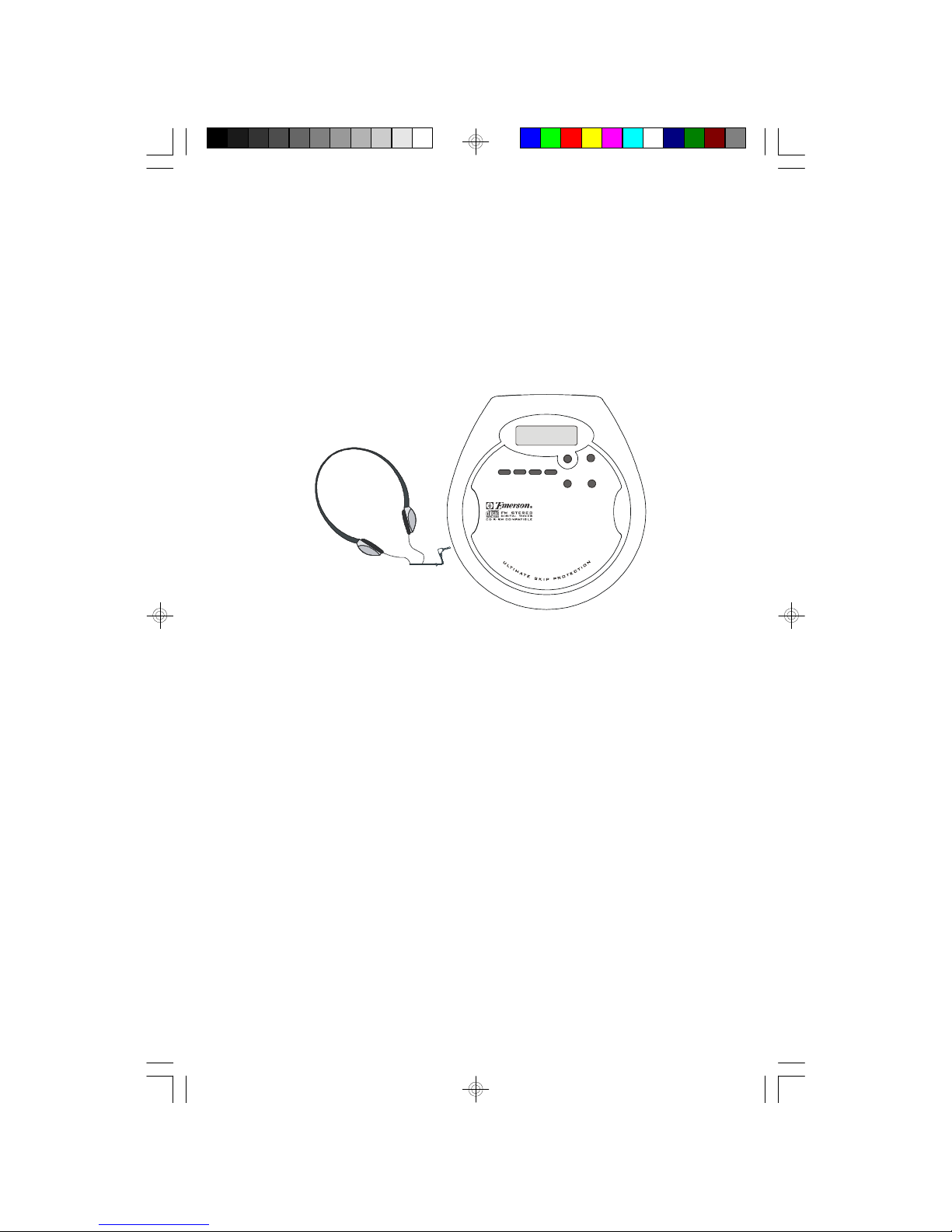

CONNECTING THE STEREO HEADPHONES

Connect the plug of the supplied stereo headphones to the green-coloredPHONES

jack on the left side of the cabinet.

NOTE: Make sure the headphone plug is inserted into the PHONES jack as

far as it will go. If the plug is not fully inserted, you may only hear sound from

one side of the headphones.

IMPORTANT!

Always set the VOLUME control to a low level before you put the headphones on

and begin playing a CD. Then start playback and gradually increase the volume to

a comfortable listening level. Do not play the CD at loud volume levels that might

prevent you from hearing warning sounds such as car horns, etc.

PRESET MODE MEMORY RADIO

PLAY/

PAUSE

STOP

SKIP REV./

TUN. DOWN

SKIP FWD./

TUN. UP

HD8110_052404.p65 25/5/2004, 12:216

PRESET MODE MEMORY RADIO

PLAY/

PAUSE

STOP

SKIP REV./

TUN. DOWN

SKIP FWD./

TUN. UP

LOCATIONOFCONTROLSAND INDICATORS

HD8110_052404.p65 25/5/2004, 12:217

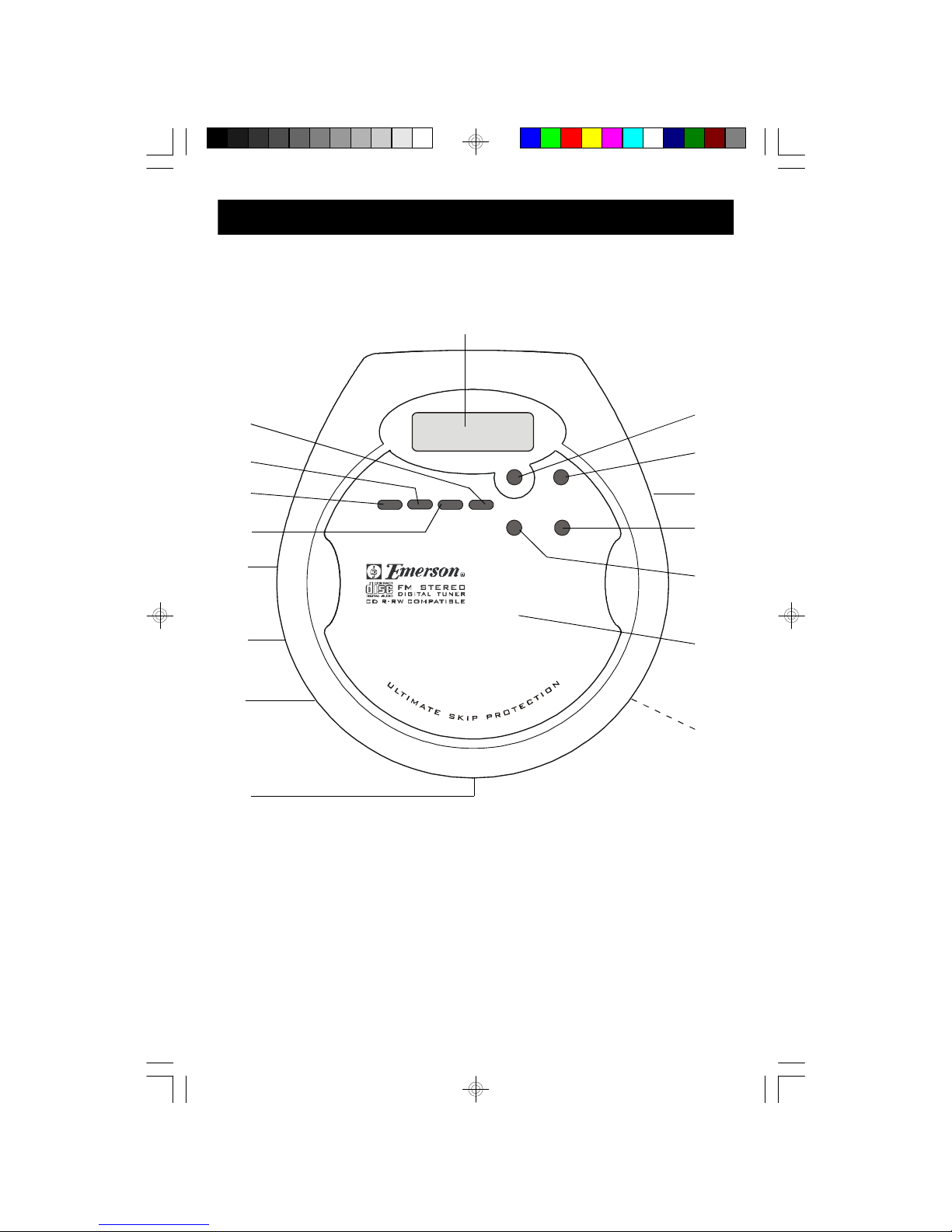

1.)OPENSwitch–Slide tothe righttounlock and open the CDdoor..

2.)VOLUMEControl–Raisesorlowersthe volume.

3.)PHONES Jack –Connectstereo headphones,included,tothisjack.

4.)HOLDSwitch.

5.)MEMORYButton.

6.)PRESETButton.

7.)MODEButton.

CD -Selectsthe playback mode:Repeat1/All,Shuffle,orIntro.

FMRadio-SelectFMSTEREO/MONO.

8.)RADIO Button.

9.)LCDDisplay–ShowsTrack number,Playing time,Anti-Skipstatus,

Program,Repeat, Shuffle,and Intromodes.

10.)PLAY/PAUSE Button.

11.)SKIPFWD./TUN.UPButton.

12.)DC IN4.5VInputJack –ConnectanACadapter(notincluded)tothis

jack touse120V60Hzhousecurrent.

13.)SKIPREV./TUN.DOWNButton.

14.)STOPButton.

15.)CDDoor.

16.)BatteryCompartment(Inside CD Compartment).

HD8110_052404.p65 25/5/2004, 12:218

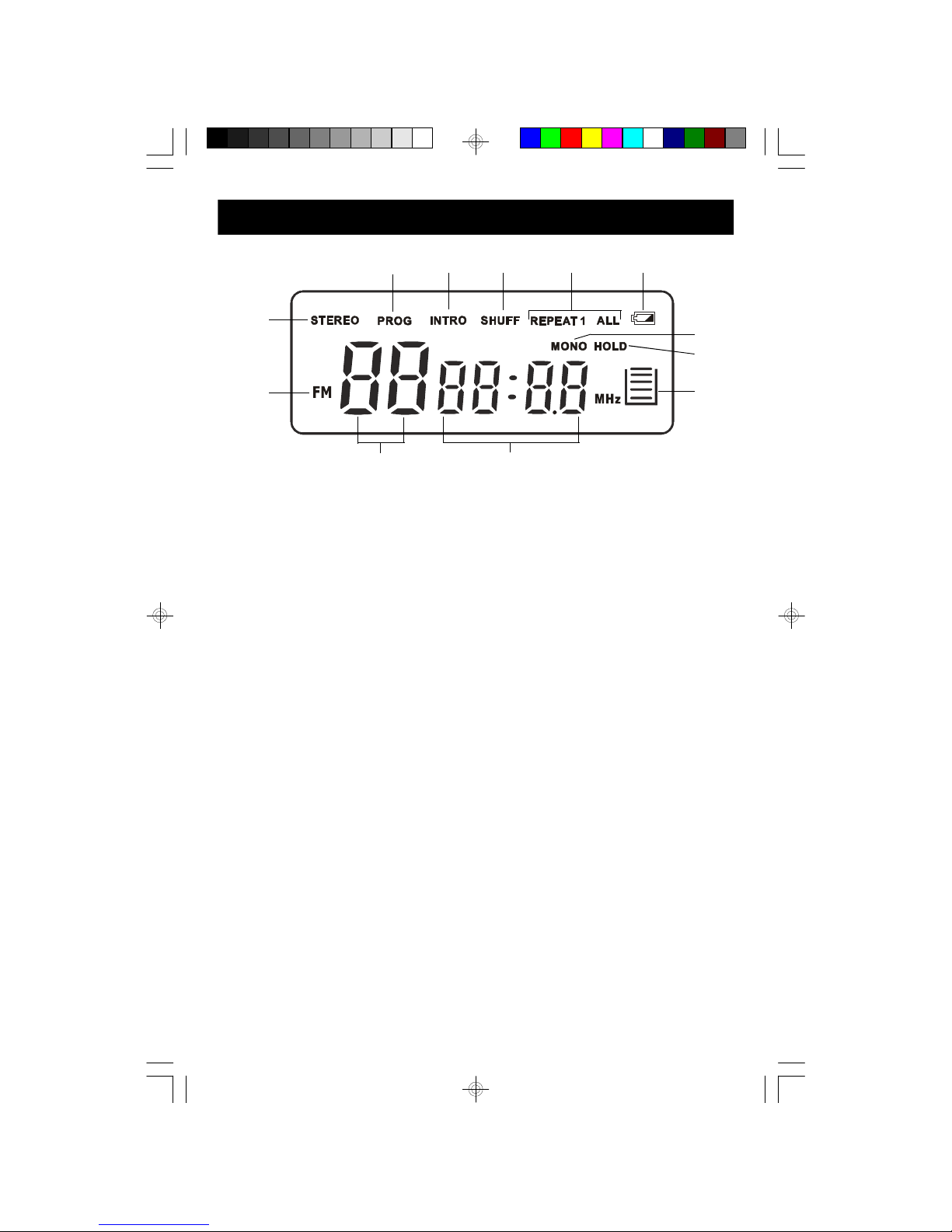

1.)FMRadioIndicator.

2.)FMSTEREOIndicator.

3.)PROG (Program) Indicator–Appearswhen programming tracks /FM

presetstations,orplaying programmed tracks.

4.)INTROIndicator–Appearswhen Introplayback mode isselected.

5.)SHUFF (Shuffle)Indicator–Appearswhen Randomplayback mode

isselected.

6.)REPEAT1/ALL Indicators–Appearswhen theRepeatplayback mode

isselected.

7.)BatteryStatusIndicator–Flasheswhen batterylevelbecomeslow.

8.)FMMONOIndicator.

9.)HOLDIndicator–Appearswhen HOLDswitchissetto‘On’position.

10.)Anti-Shock BarIndicator–IndicatesESP Protection isactivated.

11.)CD Elapsed Time/FMFrequency Display.

12.)CDTrack Number/FMpresetstation numberindicator.

LCD DISPLAYINDICATORS

3 4 5 6 7

12 11

HD8110_052404.p65 25/5/2004, 12:219
