Elo TouchSystems 4 I-Series User manual

Revision A

P/N E232026

www.elotouch.com

Quick Installation Guide

I-Series 4 Slate

The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Afﬁliates (collectively “Elo”) makes no

representations or warranties with respect to the contents herein, and speciﬁcally disclaims any implied warranties of merchantability or ﬁtness for a

particular purpose. Elo reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation

of Elo to notify any person of such revisions or changes.

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer

language, in any form or by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior

written permission of Elo Touch Solutions, Inc.

Elo and the Elo logo are either trademarks or registered trademarks of Elo Touch Solutions, Inc..

America

800-ELO-TOUCH

Tel +1 408 597 8000

[email protected]

Europe (EMEA)

Tel +32 16 930 136

[email protected]

Asia Paciﬁc

Tel +86 (21) 3329 1385

[email protected]

Elo Technical Support

Online self-help: www.elotouch.com/support

Kit Contents

I-Series 4 USB-C Display

I/O Hub

DC Power Supply

Cable lock bracket and screw

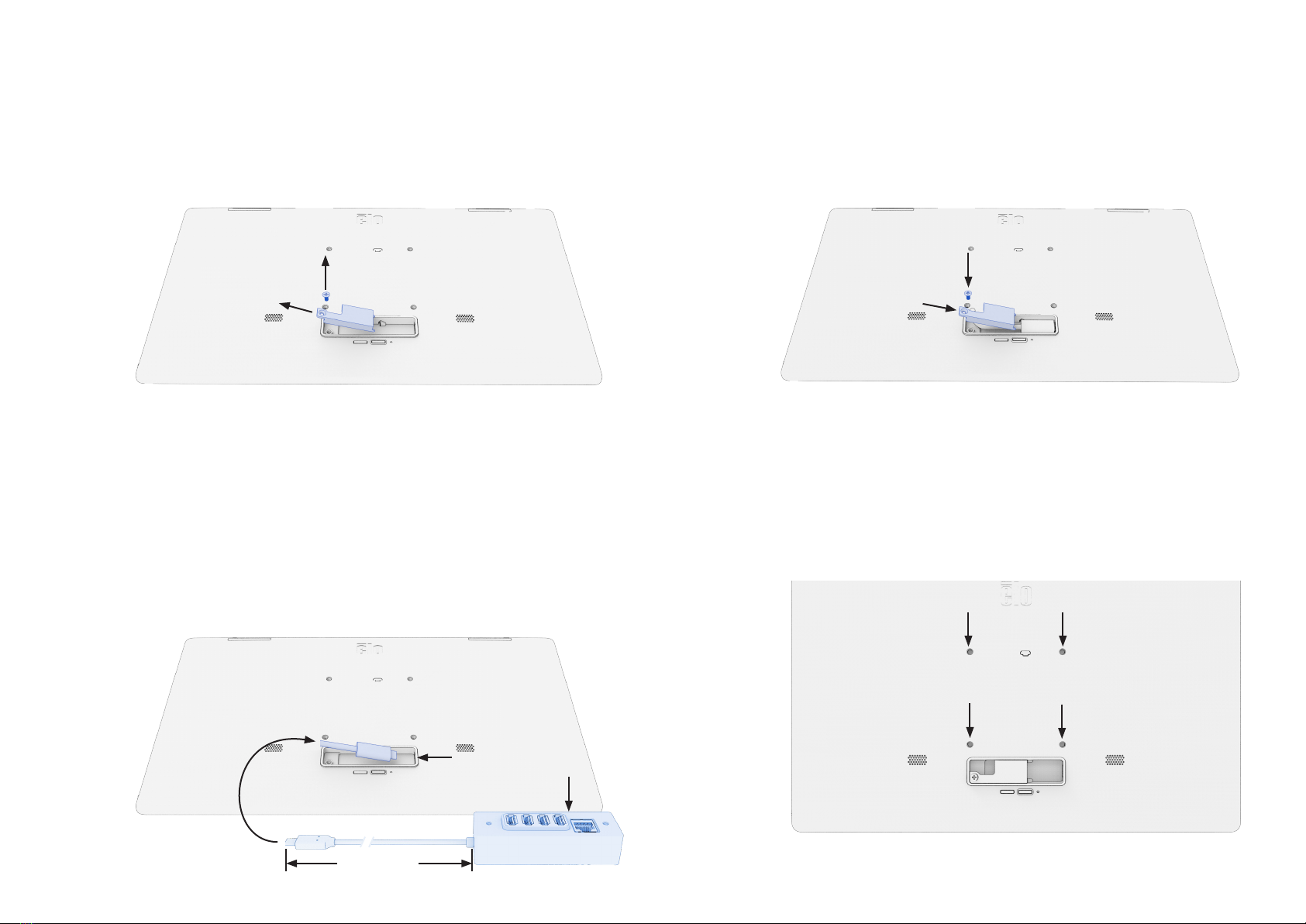

Remove the cable locking screw and bracket from the rear of the I-Series4 Slate display to access

the USB-C connection.

Plug the USB-C cable from the I/O hub to the rear of the I-Series 4 Slate display.

Reinstall the cable locking screw and bracket on the rear of the I-Series 4 Slate display. The bracket

slides in at an angle and has two small hooks that engage with slots inside the cable cavity. The bracket

must be secured with the included screw.

Secure the USB-C cable on the back of the I-Series 4 Slate display with the cable security bracket. The

I/O hub has two threaded mounting holes which allow it to be mounted out of site. See dimensional

drawing for mounting hole details.

See detailed user guide at www.elotouch.com for additional infomation on mounting Elo I-Series 4 Slate

dIsplay to Elo stands or wallmounts.

1.2 meters

I/O Hub
