Elo TouchSystems 1541L User manual
User Manual

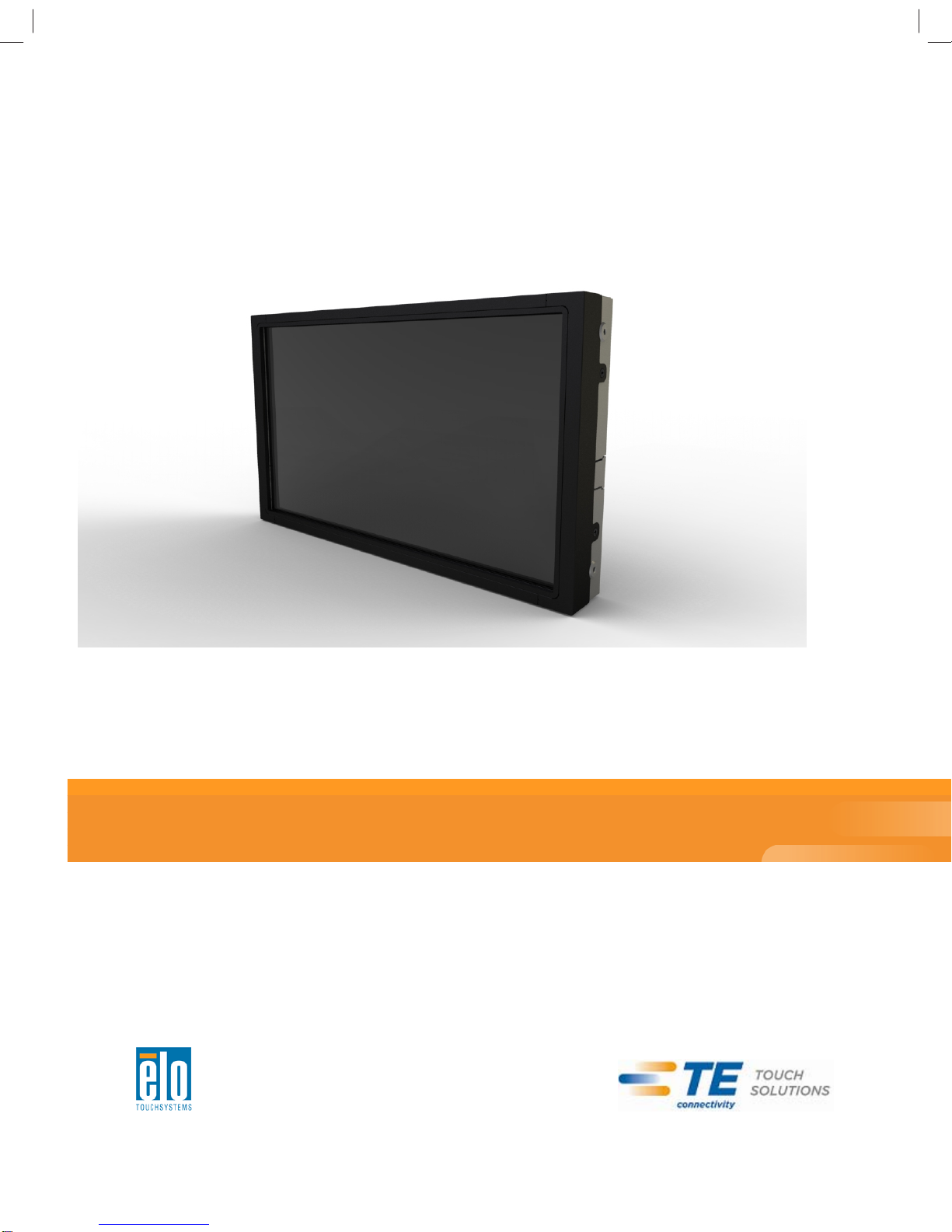

Elo TouchSystems 1541L Touchmonitor
User Manual – 1541L
SW601635 Rev A - Page 1 of 27
User Manual – 1541L
SW601635 Rev A - Page 2 of 27
Copyright © 2011 Tyco Electronics Corporation, TE Connectivity
Ltd. Company. All Rights Reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a
retrieval system, or translated into any language or computer language, in any form
or by any means, including, but not limited to, electronic, magnetic, optical,
chemical, manual, or otherwise without prior written permission of Tyco Electronics.
Disclaimer
The information in this document is subject to change without notice. Tyco
Electronics Corporation and its Affiliates in the TE Touch Solutions business unit in
the TE Connectivity Ltd. family of companies (collectively "TE") makes no
representations or warranties with respect to the contents herein, and specifically
disclaims any implied warranties of merchantability or fitness for a particular
purpose. TE reserves the right to revise this publication and to make changes from
time to time in the content hereof without obligation of TE to notify any person of
such revisions or changes.
Trademark Acknowledgments
AccuTouch, Elo (logo), Elo TouchSystems, IntelliTouch, TE Connectivity and TE
(logo) are trademarks of the TE Connectivity Ltd. family of companies. Windows is
a trademark of the Microsoft group of companies. Other product names mentioned
herein may be trademarks or registered trademarks of their respective companies.
Tyco Electronics claims no interest in trademarks other than its own.
User Manual – 1541L
SW601635 Rev A - Page 3 of 27
Table of Contents
Chapter 1 - Introduction.................................................................... 4
Chapter 2 – Installation.....................................................................5
Chapter 3 – Mounting........................................................................14
Chapter 4 – Operation.......................................................................16
Chapter 5 – Technical Support.......................................................22
Chapter 6 – Safety & Maintenance................................................23
Chapter 7 – Regulatory Information.............................................24
Chapter 8 – Warranty Information.................................................27
User Manual – 1541L
SW601635 Rev A - Page 4 of 27
Chapter 1 - Introduction
Product Description
Your new touchmonitor combines Elo TouchSystems’ reliable performance
with the latest developments in touch technology and display design. This
combination of features creates a natural flow of information between a user
and the touchmonitor.
This widescreen touchmonitor incorporates a 24-bit color, active matrix
thin-film-transistor LCD panel to provide high quality display performance. Its
HD resolution of 1366x768 is suitable for displaying graphics and images. Its
LED backlight significantly reduces power consumption and eliminates
mercury (compared to CCFL-backlit panels). Other features that enhance
this LCD monitor’s performance are Plug & Play compatibility and on-screen
display (OSD) controls.
Precautions
Follow all warnings, precautions and maintenance as recommended in this
user manual to maximize the life of your unit and prevent risks to user safety.
See the Safety & Maintenance chapter for more information.
This manual contains information that is important for the proper setup and
maintenance of the unit. Before setting up and powering on your new
touchmonitor, read through this manual, especially the Installation, Mounting,
and Operation chapters.
Chapter 2 –Installation
Unpacking the Touchmonitor
Open the carton and verify the following items are present:
Touchmonitor with protective sheet for its face
Elo TouchTools CD & User Manuals CD
Quick Install Guide
Japanese language regulatory information pamphlet
DVI cable
VGA cable
USB cable
REMOTE OSD controller

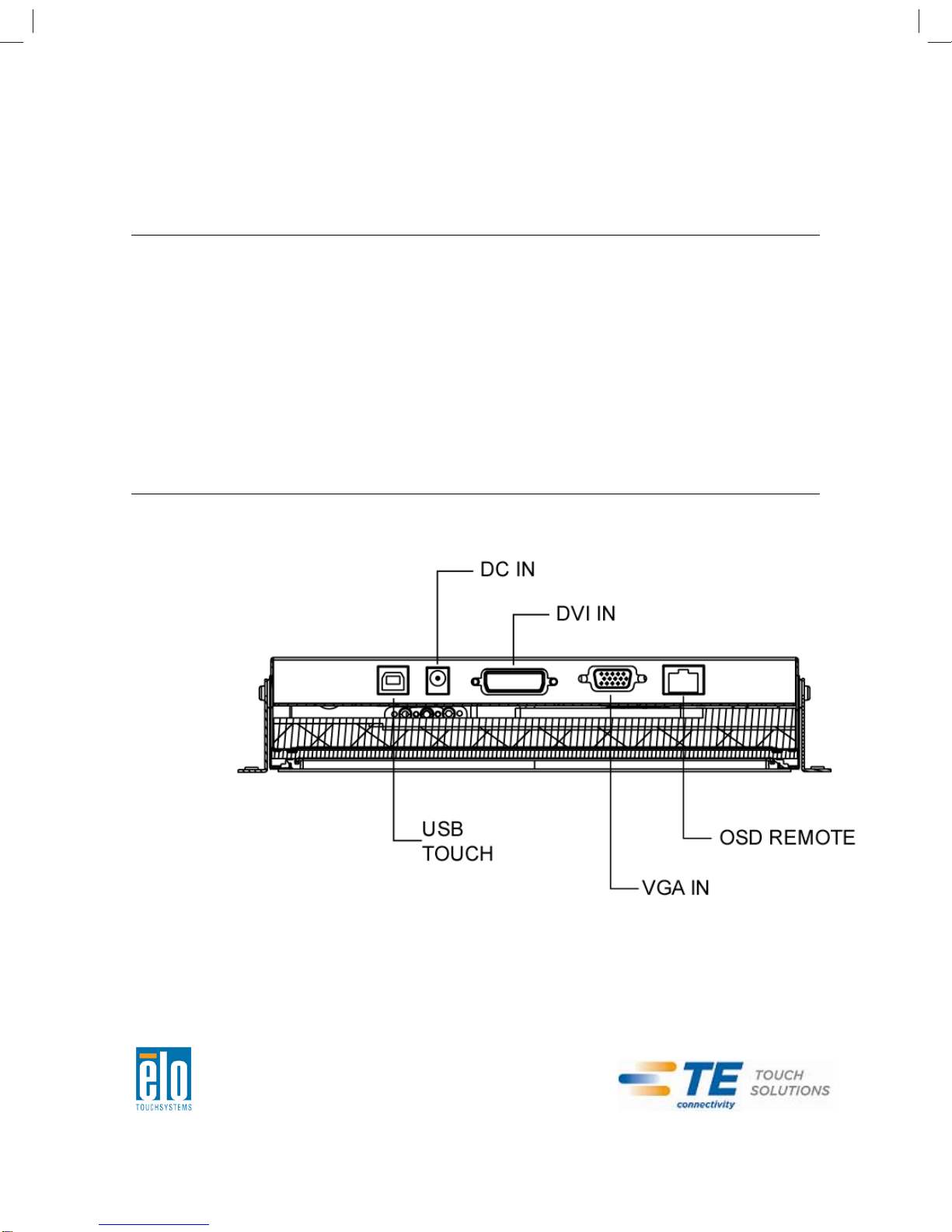

Connector Panel & Interfaces
User Manual – 1541L
SW601635 Rev A - Page 5 of 27
User Manual – 1541L
SW601635 Rev A - Page 6 of 27
Touchmonitor Connections
1. Connect the DVI or VGA video cables between the monitor’s DVI/VGAinput
connectors and your DVI/VGA video source respectively. Tighten the video
cable’s screws with the best performance.
2. Connect the USB touch cable between the monitor’s USB connector & your
PC’s USB port.
3. Connect a 12VDC power supply to the monitor’s input power jack.
4. The touchmonitor ships in an ON state, video should be displayed on your
monitor already.
Installing the Tocuh Driver-AccuTouch Technology
Software Drivers
Some software installation is required for your touchmonitor to work with
your computer.
The drivers for the Windows 7, XP, Vista, WePOS, and 32-bit Server 2003
and 2008 operating systems are provided with your touchmonitor on a CD.
Visit the Elo TouchSystems website www.elotouch.com for:
The most up-to-date touch driver versions
Additional touch driver information
Detailed touch driver installation guides
Touch drivers for other operating systems

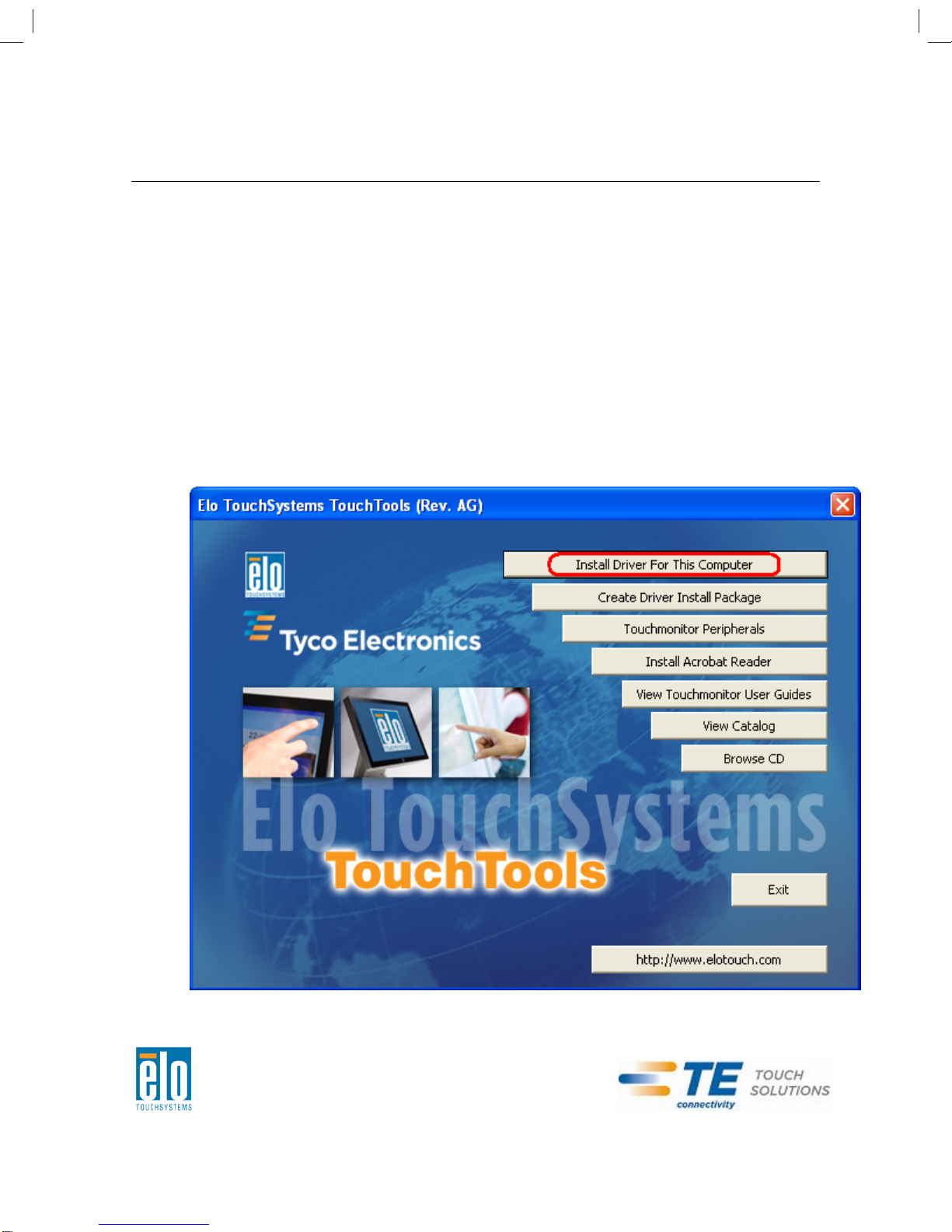

Insert the Elo TouchTools CD into your computer’s CD-ROM drive. The CD
should automatically run the Elo TouchTools application. Select “Install
Driver for This computer”:
User Manual – 1541L
SW601635 Rev A - Page 7 of 27

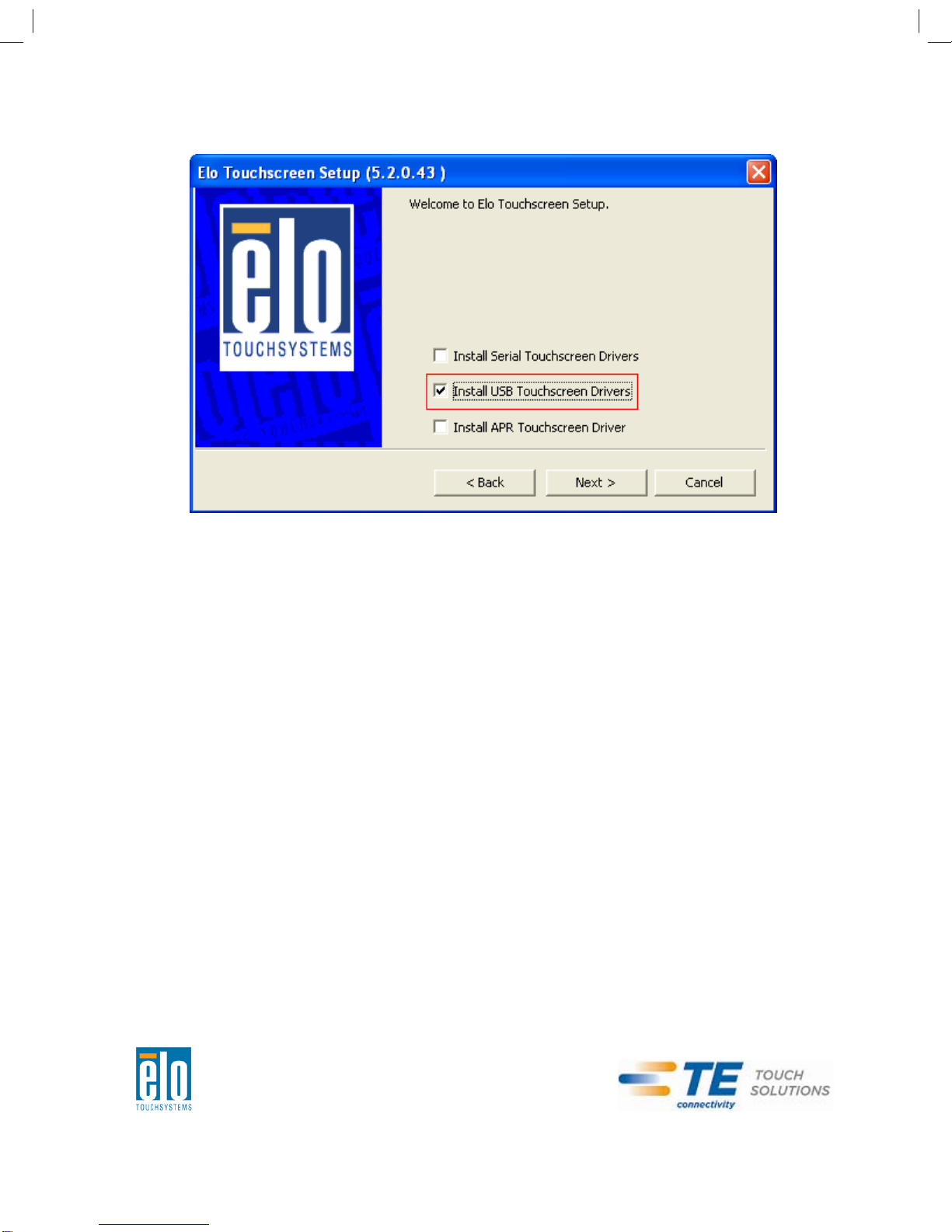

For Windows XP, Vista, Server 2003, Server 2008, and WEPOS installations, install
the “USB Touchscreen Drivers” when prompted:

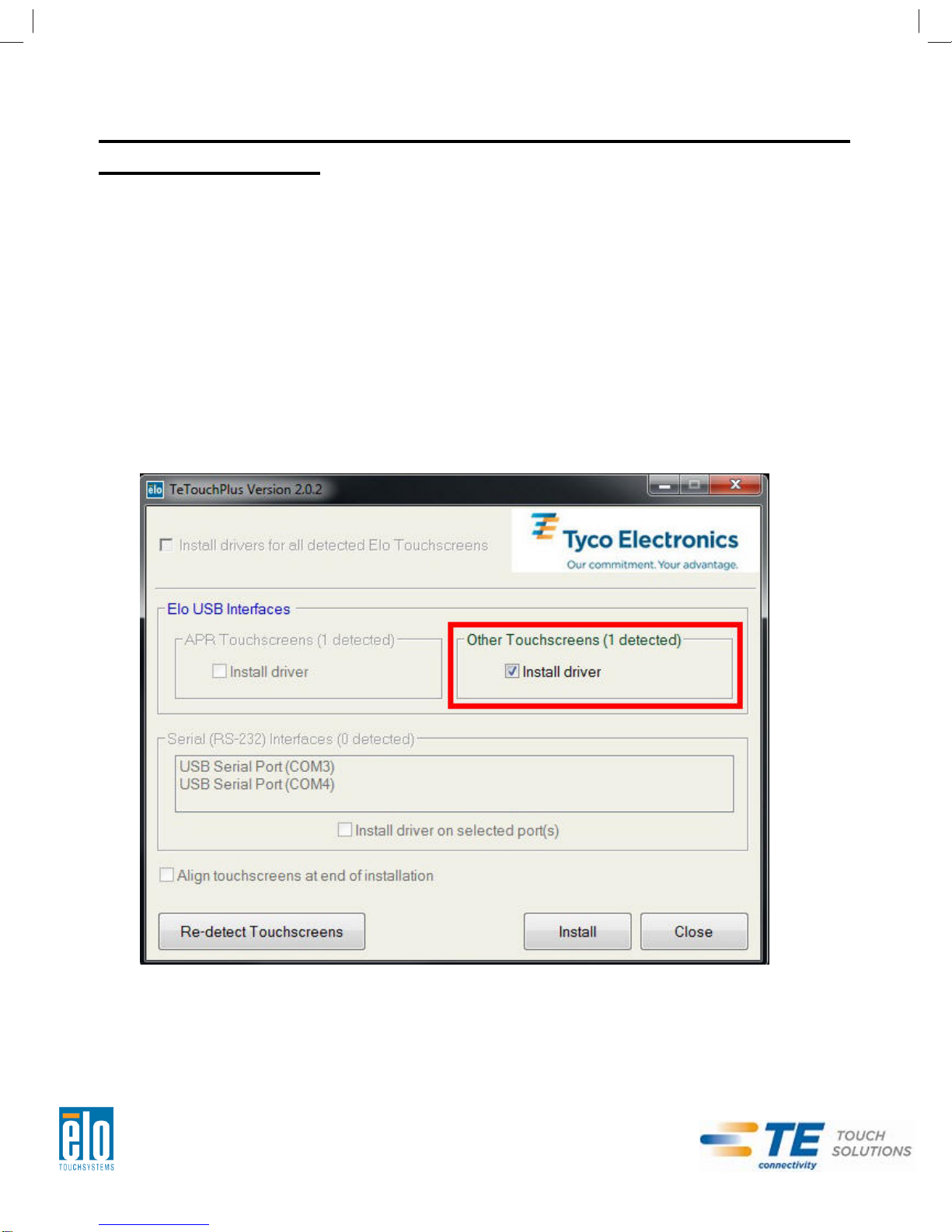

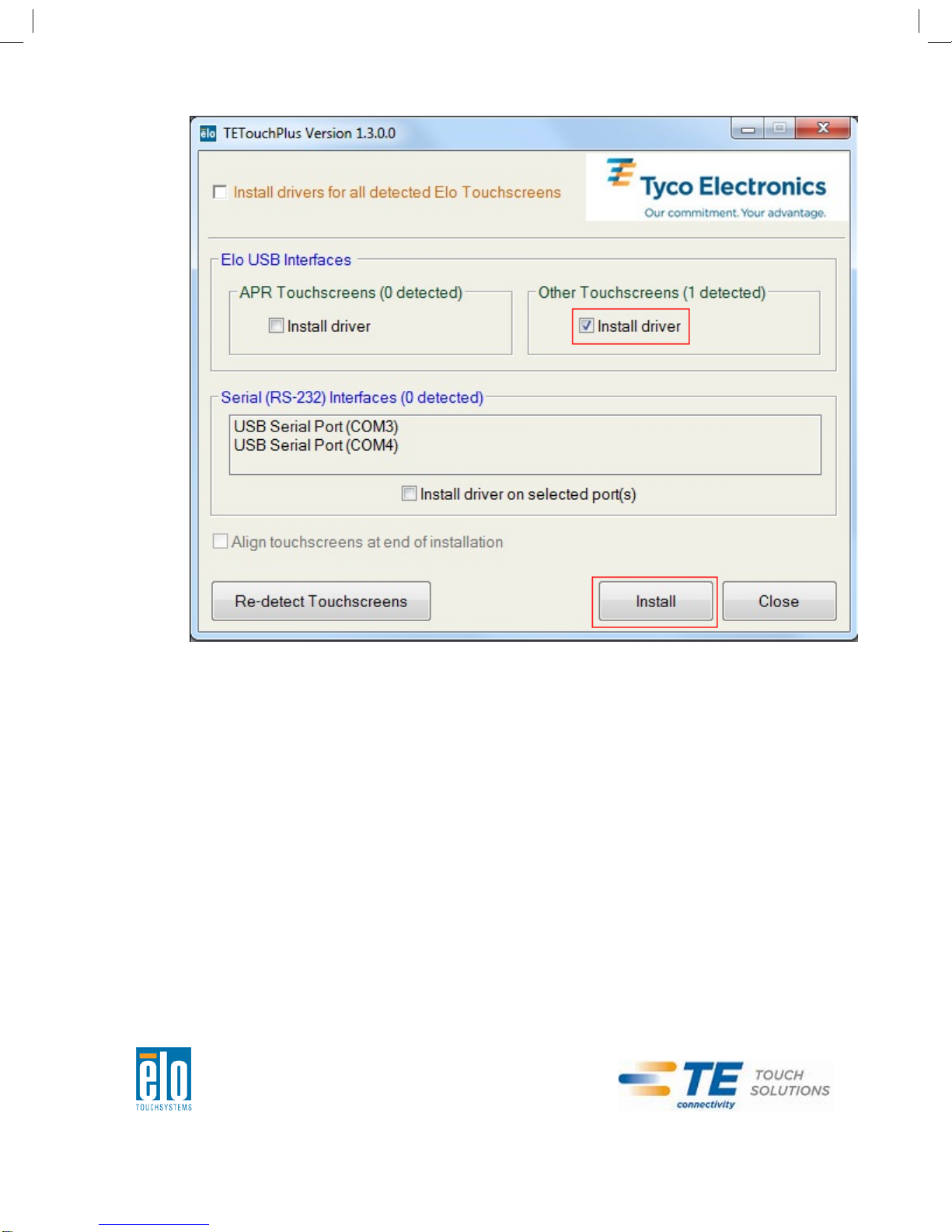

For Windows 7 installations, check the “Install driver” box under “Elo USB
Interfaces – Other Touchscreens”
User Manual – 1541L
SW601635 Rev A - Page 8 of 27
After accepting the end-user license agreement, the drivers will finish installing.
Reboot your computer after the install is complete.
User Manual – 1541L
SW601635 Rev A - Page 9 of 27
Installing the Touch Driver-IntelliTouch Plus Technology
Software Drivers
*Multi-Touch Support
*USB
*Single monitor *Windows 7
ONLY
Follow the directions on the screen to complete the driver setup
for
your Windows 7
system.
1. Insert the Elo CD-ROM in your computer’s CD-ROM
drive.
2. EloSetup
launches.
3. Click “Install Driver for This
Computer.”
4. Click “Install drivers for all other Elo USB
interfaces.”
5. Click the “Install”
button.
User Manual – 1541L
SW601635 Rev A_Template - Page 10 of 27
