Elo TouchSystems Entuitive 1247L Series User manual

Elo Entuitive Touchmonitor

User Guide

For 12.1" LCD Kiosk Touchmonitors

1247L Series

Revision A

Elo Entuitive Touchmonitor

User Guide

12.1"LCD Kiosk Touchmonitor

1247L Series

Revision A

P/N 008570

Elo TouchSystems, Inc.

1-800-ELOTOUCH

www.elotouch.com

iii

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system,

or translated into any language or computer language, in any form or by any means, including, but not

limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written

permission of Elo TouchSystems.

Disclaimer

The information in this document is subject to change without notice. Elo TouchSystems makes no

representations or warranties with respect to the contents hereof, and specifically disclaims any

implied warranties of merchantability or fitness for a particular purpose. Elo TouchSystems reserves

the right to revise this publication and to make changes from time to time in the content hereof

without obligation of Elo TouchSystems to notify any person of such revisions or changes.

Trademark Acknowledgments

IntelliTouch, SecureTouch, AccuTouch, Entuitive, and MonitorMouse are trademarks of Elo

TouchSystems, Inc.

Other product names mentioned herein may be trademarks or registered trademarks of their

respective companies. Elo TouchSystems claims no interest in trademarks other than its own.

Chapter 1

Introduction 1

Product Description . . . . . . . . . . . . . . . . 1

Precautions . . . . . . . . . . . . . . . . . . . . 1

About the Product . . . . . . . . . . . . . . . . . 2

Chapter 2

Installation and Setup 3

Unpacking Your Touchmonitor. . . . . . . . . . . 3

Product Overview . . . . . . . . . . . . . . . . . 4

Main Unit . . . . . . . . . . . . . . . . . . . . 4

Rear View . . . . . . . . . . . . . . . . . . . 4

Touch Interface Connection . . . . . . . . . . . . 5

Installing the Driver Software . . . . . . . . . . . 6

Installing the Serial Touch Driver. . . . . . . . 7

Installing the Serial Touch Driver for Windows

XP, 2000, Me, 95/98 and NT 4.0 . . . . . . 7

Installing the Serial Touch Driver for MS-DOS

and Windows 3.1 . . . . . . . . . . . . . . 8

Chapter 3

Operation 9

About Touchmonitor Adjustments . . . . . . . . . 9

Controls and Adjustment . . . . . . . . . . . . 12

OSD Menu Functions . . . . . . . . . . . . 12

OSD Control Options. . . . . . . . . . . . . 13

Brightness. . . . . . . . . . . . . . . . . 13

Contrast . . . . . . . . . . . . . . . . . 13

Color

Auto Tune . . . . . . . . . . . . . . . . . 13

Frequency . . . . . . . . . . . . . . . . 14

Horizontal . . . . . . . . . . . . 15

Vertical . . . . . . . . . . . . . . 15

Phase . . . . . . . . . . . . . . . . . . . 14

Track . . . . . . . . . . . . . . . . . . . 14

Text/GRP . . . . . . . . . . . . . . . 14

Save Exit . . . . . . . . . . . . . . . . . 15

Cancel Exit . . . . . . . . . . . . 15

Recall . . . . . . . . . . . . . . . . 15

Chapter 4

Troubleshooting 17

Solutions to Common Problems . . . . . . . . 17

Appendix A

Native Resolution 19

Appendix B

Touchmonitor Safety 21

Care and Handling of Your Touchmonitor . . . . 22

Appendix C

Technical Specifications 23

Display Modes . . . . . . . . . . . . . . . . . 23

To u ch m o ni tor Specifications . . . . . . . . . . 24

AccuTouch Touchscreen Specifications . . . 25

Mounting Options . . . . . . . . . . . . . . . . 26

Regulatory Information 31

Warranty 35

Index 37

Table of Contents

. . . . . . . . . . . . . . . . . . . 13

. ..

. . .

Language . . . . . . . . . . . . . . . . . 15

. . .

Hoizontal Mount 26. . . . . . . . . . . . . . .

Vertical Mount 27. . . . . . . . . . . . . . .

No BracketMount 28. . . . . . . . . . . . . . .

1-1

CHAPTER

HAPTER

NTRODUCTION

Product Description

Congratulations on your purchase of an Elo TouchSystems Entuitive

touchmonitor. Your new touchmonitor combines the reliable performance of

Elo’s touch technology with the latest advances in LCD display design. This

combination of features creates a natural flow of information between a user

and your touchmonitor.

This LCD monitor incorporates 12.1” color active matrix thin-film-transistor

(TFT) liquid crystal display to provide superior display performance. A

maximum resolution of SVGA 800x600 is ideal for displaying graphics and

images. Other outstanding designs that enhance this LCD monitor’s

performance are Plug & Play compatibility, and OSD (On Screen Display)

controls.

OTE

Some monitors do not have the touchscreen capability.

Precautions

Follow all warnings, precautions and maintenance as recommended in this

user’s manual to maximize the life of your unit. See Appendix B for more

information on touchmonitor safety.

1-2 Elo Entuitive Touchmonitor User Guide

About the Product

Your LCD Desktop Touchmonitor is a 12.1” SVGA TFTcolor displaywiththe

following features:

• High contrast color TFT LCD display support resolution up to SVGA

800x600. Compatible with IBM VGA and VESA.

• Power management system conforms to VESA DPMS standard.

• Universal power adapter.

• Supports DDC1/2B for Plug & Play compatibility.

• Advanced OSD control for picture quality adjustment.

•VESA lat panel monitor physical mounting inerface(75mm)

• Optional touch screen function.

For full Product Specifications refer to Appendix C.

2-3

CHAPTER

HAPTER

NSTALLATION AND

ETUP

This chapter discusses how to install your LCD touchmonitor and how to install

Elo TouchSystems driver software.

Unpacking Your Touchmonitor

Check that the following 9 items are present and in good condition:

Power cable US/Canada

VGA cable

Brick power supply European power cable

Serial cable

CD and Quick Install

Guide

OSD Remote

2-4 Elo Entuitive Touchmonitor User Guide

Product Overview

Main Unit

Rear View

2-5

Touch Interface Connection

OTE

Before connecting the cables to your touchmonitor and PC, be sure that the computer

and touchmonitor are turned off.

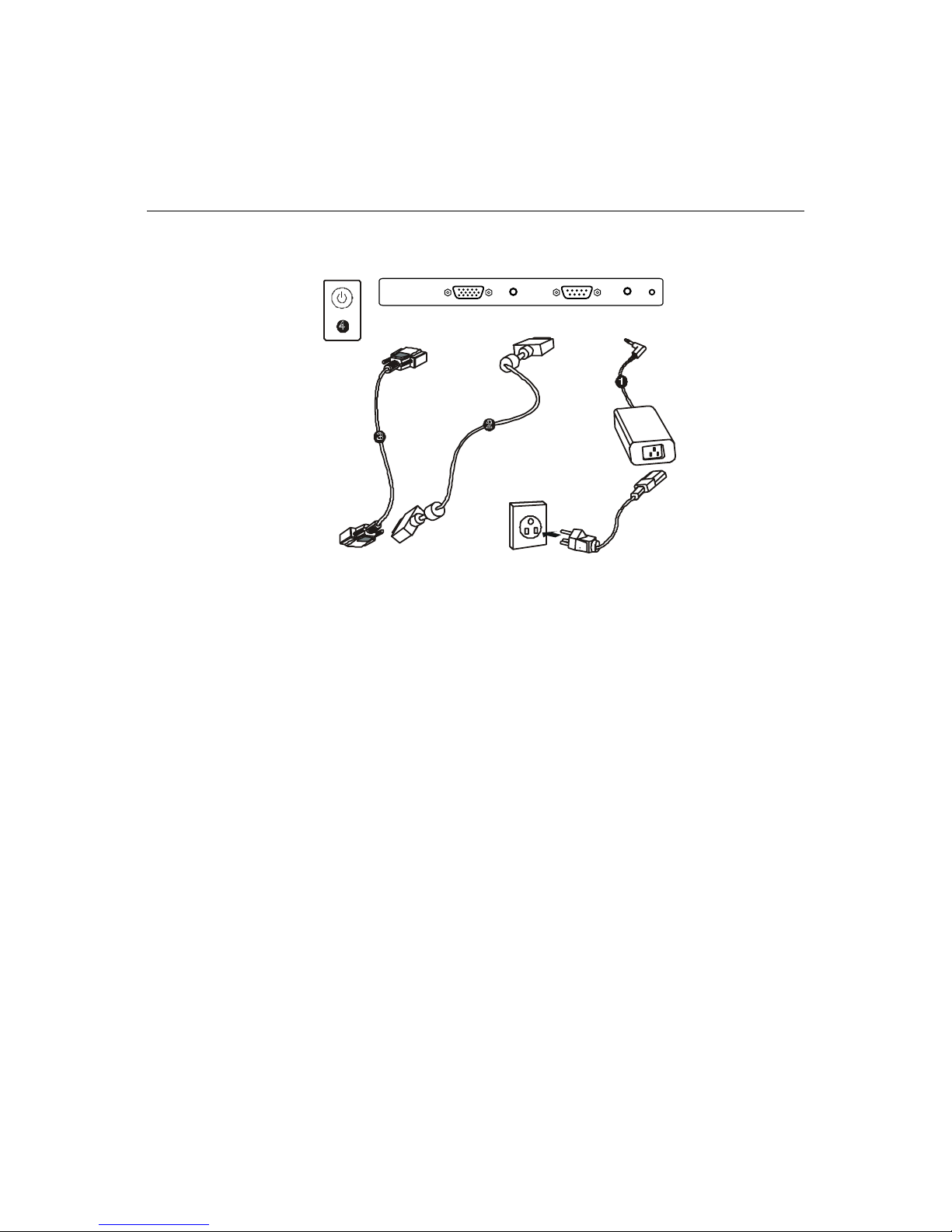

1Connect one end of the power adapter to the monitor and the other end to

the connector of the power cord.

2Connect one end of the video cable to the rear side of computer and the other

to the LCD monitor. Tighten by turning the two thumb screws clockwise to

ensure proper grounding.

3Connect one end of the touchscreen (RS232) cable to the rear side of

computer and the other to the LCD monitor. Tighten by turning the two

thumb screws clockwise to ensure proper grounding. (optional module)

4Press the power button on rear panel to turn the monitor power on.
