Elmo PTC-200C User manual

Please read this instruction manual carefully before using this PTC-200C

and keep it for future reference.

PAN • TILT • ZOOM COLOR CAMERA

PTC-200C

INSTRUCTION MANUAL

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus outdoors.

6. Do not use this apparatus near water.

7. Clean only with dry cloth.

8. Do not install near heat sources such as radiators, heat registers,

stoves or other apparatus (including amplifiers) that produce heat.

9. Do not touch this apparatus during lightning storms.

10.Unplug when unused for long periods of time.

11.Refer all servicing to qualified personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord

or plug is damaged, liquid has been spilled or objects have been fallen

onto the apparatus, the apparatus has been exposed to rain or

moisture, does not operate normally, or has been dropped.

- 1 -

IMPORTANT SAFETY INSTRUCTIONS

- 2 -

CAUTION

• Do not use any power supply other

than specified.

WARNING

TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT

EXPOSE THIS APPLIANCE TO RAIN

OR MOISTURE.

* The CAUTION label is attached on

the base of product.

INFORMATION

This equipment has been tested

and found to comply with the

limits for Class A digital device,

pursuant to Part 15 of the FCC

Rules. These limits are designed

to provide reasonable protection

against harmful interference

when the equipment is operated

in a commercial environment.

This equipment generates, use,

and can radiate radio frequency

energy and, if not installed and

used in accordance with the

instruction manual, may cause

harmful interference to radio

communications. Operation of

this equipment in a residential

area is likely to cause harmful

interference in which case the

user will be required to correct

the interference at his own

expense.

USER-INSTALLER

CAUTION: Your authority to

operate this FCC verified

equipment could be voided if you

make changes or modifications

not expressly approved by the

party responsible for compliance

to Part of the FCC Rules.

CAUTION

CAUTION : TO REDUCE THE RISK OF

ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

RISK OF ELECTRIC

SHOCK DO NOT OPEN

The lightning flash with arrowhead

symbol, within an equilateral

triangle, is intended to alert the

user to the presence of

uninsulated "dangerous voltage"

within the product's enclosure that

may be of sufficient magnitude to

constitute a risk of electric shock

to persons.

The exclamation point within an

equilateral triangle is intended to

alert the user to the presence of

important operating and

maintenance (servicing)

instructions in the literature

accompanying the appliance.

Be sure to use the provided AC adapter.

Do not leave the Camera under direct sunlight or by heater, or the

Camera may be discolored, or damaged.

Do not place the Camera in any humid, dusty, windy or vibrating

location. Use the Camera in the following environmental condition:

Temperature: 0 °C ~ 40 °C (32 ° ~ 104 °F)

Humidity: 30% ~ 85% (No condensation)

Use a soft, dry cloth for cleaning. Do not use any volatile solvent, such

as thinner or benzine.

Do not directly point the camera lens into the sun, or the camera may be

damaged.

Caring for the batteries:

• If the Camera is not used for long time, remove the batteries from the

remote controller.

• Do not use rechargeable Ni-Cd batteries.

• Do not use new and old batteries, or batteries of different type

together.

• Do not try to recharge or short-circuit the batteries.

Do not operate the PAN/TILT motion continuously for a long time, or the

life of the Camera will be shortened.

- 3 -

HANDLING PRECAUTIONS

- 4 -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS .........................................1

HANDLING PRECAUTIONS............................................................3

1. PART NAMES AND FUNCTIONS....................................................5

2. WIRELESS REMOTE CONTROLLER.............................................7

3. SETTING UP....................................................................................9

4. OPERATION PROCEDURES........................................................14

[1] Power supply to the Camera.....................................................14

[2] Turning ON/OFF of the Camera power.....................................14

[3] Operating PAN/TILT..................................................................15

[4] Lens operation...........................................................................16

[5] BLC (Back Light Control)...........................................................17

[6] Preset operation........................................................................17

5. THE ID NUMBER SETTING...........................................................18

6. OSD (On-Screen Display) ..............................................................19

7. ALARM IN/OUT TERMINALS ........................................................22

[1] Alarm input ................................................................................22

[2] Alarm output..............................................................................22

8. ALL CLEAR SWITCH.....................................................................23

9. RS-485 ...........................................................................................24

10. TERMINATING RESISTANCE AND ID ADDRESS SETTINGS ....25

[1] Setting the terminating resistance.............................................25

[2] Setting the ID address...............................................................25

11. TROUBLESHOOTING HINTS........................................................28

12. SPECIFICATIONS..........................................................................29

13 SUPPLIED ACCESSORIES...........................................................30

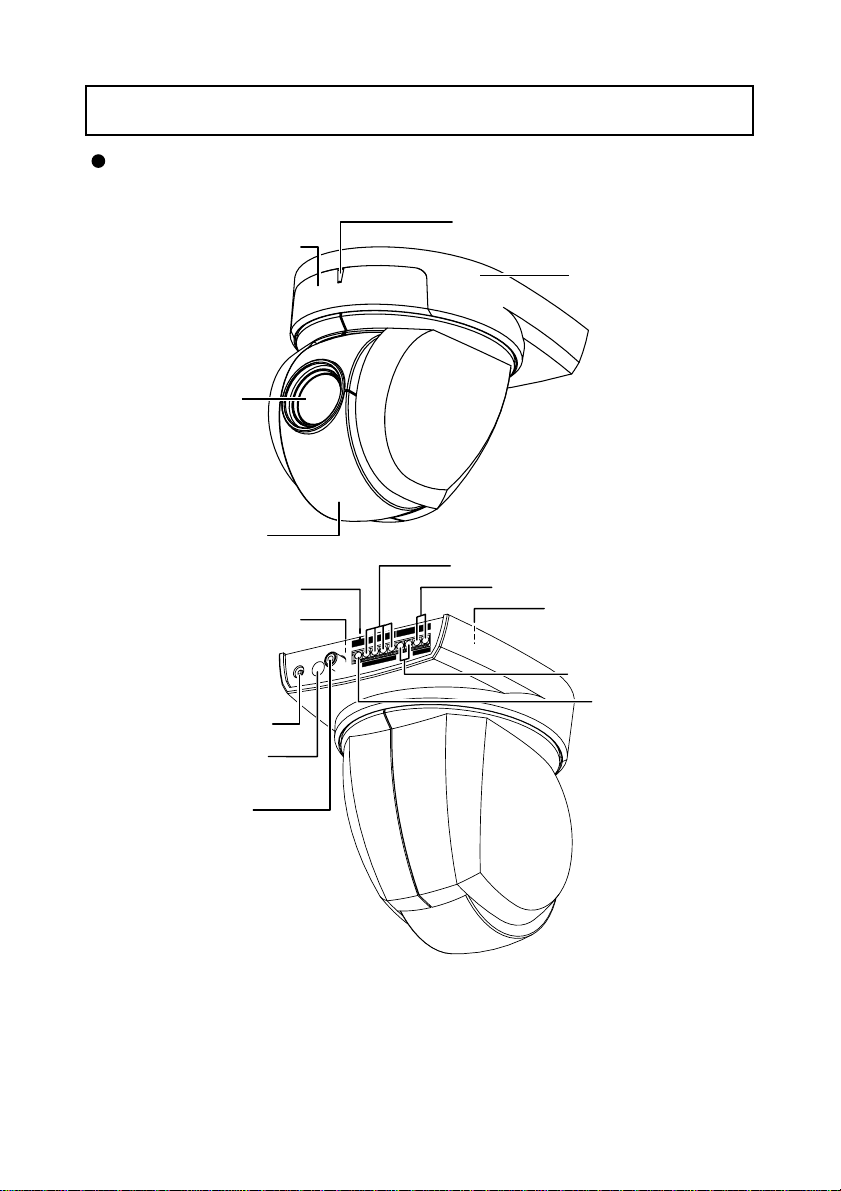

Overall View

- 5 -

1. PART NAMES AND FUNCTIONS

CAMERAHEAD

INFRAREDSENSOR

LED

BASE

LENS

TERMINALBLOCK

COMPOSITE-VIDEOOUT

(RCApinjack)

DCIN

DIPSwitch(10) DIPSwitch(4)

RS-485INTERMINAL

ALARMINTERMINAL

RS-485OUTTERMINAL

ALARMOUTTERMINA

INFRAREDSENSOR

This camera is designed to mount on ceiling panels only.

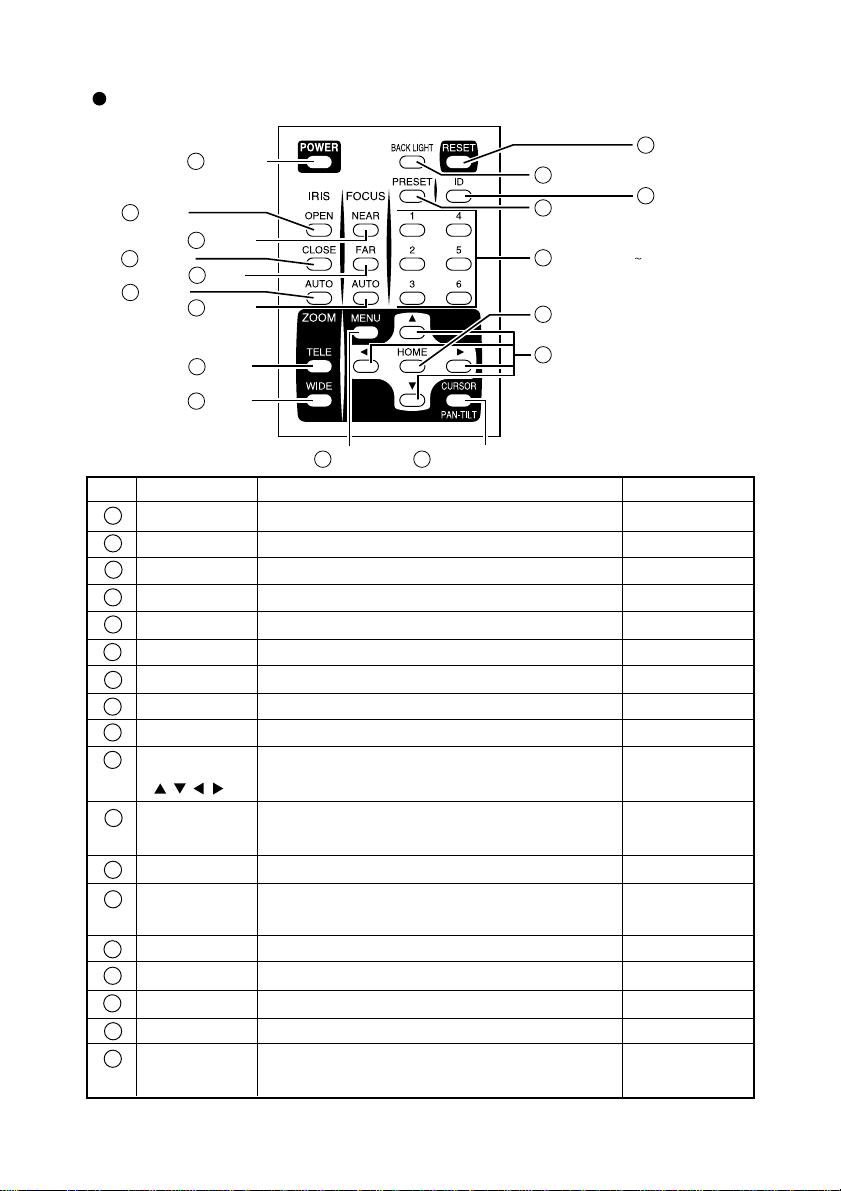

Wireless Remote Controller

- 6 -

POWER

OPEN

AUTO

NEAR

FAR

AUTO

TELE

WIDE

12 CURSOR/PAN-TILT

Directions

HOME

RESET

BACK LIGHT

PRESET

NUMBER (1 6)

Function

To turn ON/OFF the Camera power.

To open the iris manually.

To close the iris manually.

To iris automatically.

To move the focus near.

To move the focus far.

To focus automatically.

To zoom in.

To zoom out.

To change the Camera head direction.

To operate the OSD*1 cursor.

To turn the Camera head to the front.

To operate the OSD*1 cursor.

To turn ON/OFF the OSD*1 display.

To switch the operation mode between the menu

operation and the PAN-TILT operation.

Back light control.

To readjust the Camera head and LENS position.

To register the preset.

To operate multiple Cameras individually.

To set the preset position and the ID No.

Reference Page

P.19

P.16

P.15

P.19, P.20, P.21

P.15

P.19, P.20, P.21

P.18,P.19,P.20,P.21

P.19

P.17, P.20

P.15

P.17

P.14, P.18

P.17, P.18

Button Name

POWER

OPEN

AUTO

NEAR

FAR

AUTO

TELE

WIDE

Direction

()

HOME

CURSOR/

PAN-TILT

BACK LIGHT

RESET

PRESET

NUMBER

(1~6)

No.

*1 OSD (On-Screen Display)

Point the infrared emitting window of the wireless remote controller at the infrared sensor

of the Camera, located at the front, and the rear panel, and select the desired function.

Receivable range

- 7 -

2. WIRELESS REMOTE CONTROLLER

Note: The infrared sensors may receive the infrared rays only within a narrower

receivable range or may not receive them at all depending on the ambient

environment, such as being placed under the sunlight or near an inverter

fluorescent lamp. In such case, relocate the installation place of the

receiving side or block off the sunlight.

- 8 -

Preparation

Remove the battery case cover by pressing downward on the [ ] mark part in the

direction as indicated by the arrow.

Install 2 pcs. of batteries (type R03,AAA) into the case in the direction as indicated

there.

Note: Install the batteries with the proper to and to polarity.

Note: For dry cells, be sure to use the size AAA.

Note: Change the batteries at least once a year or when even nesessary.

Note: The batteries supplied with the Camera are only for use in initially

confirming the operation of the Camera.

It is not guaranteed that these batteries will work effectively for the

indicated period.

When multiple Cameras are operated through the wireless remote

controller

Refer to "5. THE ID NUMBER SETTING" on P. 18.

- 9 -

3. SETTING UP

Note: When carrying the Camera, be sure to hold the base.

Note: Do not turn the Camera head in the PAN-TILT direction by hand, or

the Camera head may be broken.

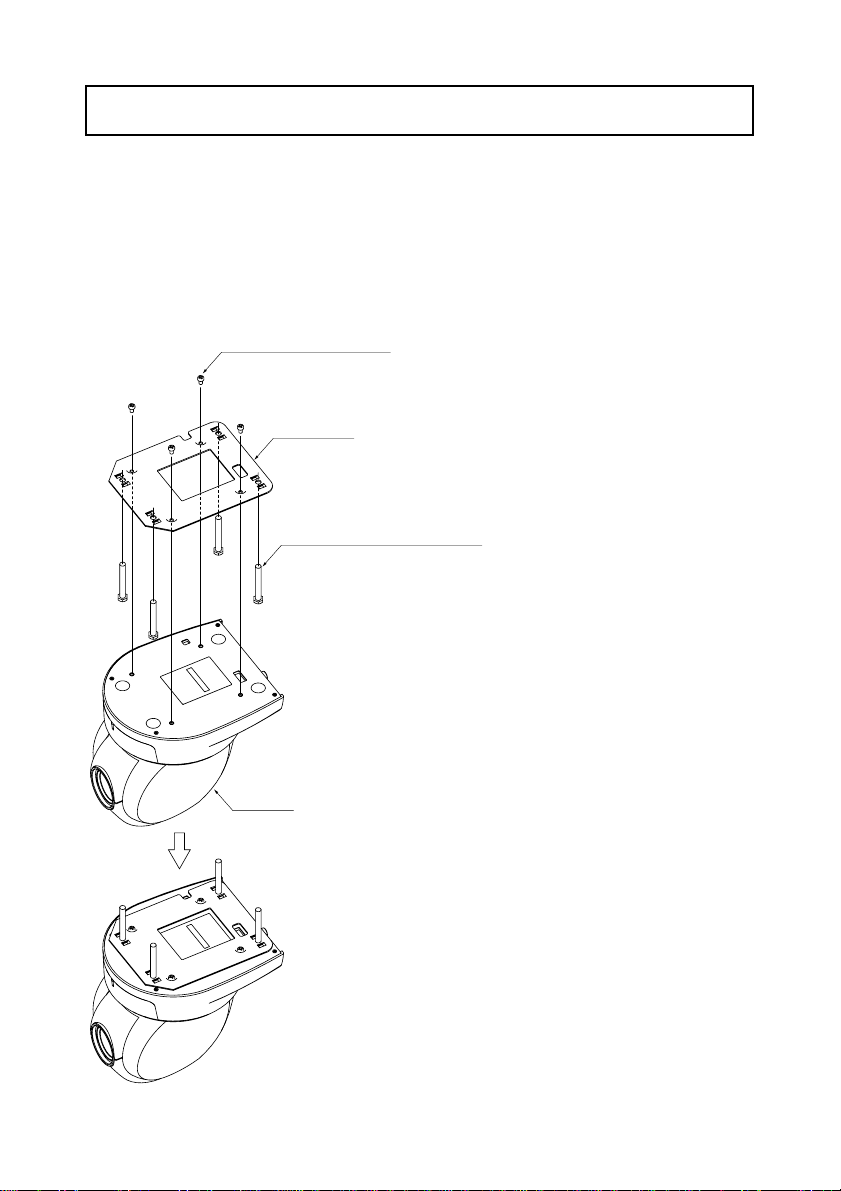

HEXAGONHEADBOLTM5x40,4PCS

MAINUNIT



FIXINGPLATE

SCREWM3x5(attached),4PCS

•Put 4 Hexagon Head Bolts M5x40 (supplied)

through the Fixing Plate, and screw the Fixing

Plate to the Main Unit with 4 Screws M3x5

(supplied).

Note: For fastening the Fixing Plate, be

sure to use the 4 Phillips-head

Screw M3x5 (supplied). Be careful

that using any screws other than

the supplied may damage the

inside of the Main Unit. (Do not use

longer screws)

(1) Mounting the Fixing Plate

[1] Installation
