Thank you for purchasing an Electrolux appliance. You’ve chosen a product that

brings with it decades of professional experience and innovation. Ingenious and

stylish, it has been designed with you in mind. So whenever you use it, you can be

safe in the knowledge that you’ll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following

data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

www.electrolux.com2

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

responsible if an incorrect installation and use causes

injuries and damages. Always keep the instructions with

the appliance for future reference.

1.1 Children and vulnerable people safety

•This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved.

•Do not let children play with the appliance.

•Children of less than 3 years should be kept away

unless continuously supervised.

•Keep all packaging away from children.

•Keep all detergents away from children.

•Keep children and pets away from the appliance door

when it is open.

•If the appliance has a child safety device, we

recommend you activate it.

•Cleaning and user maintenance shall not be made by

children without supervision.

1.2 General Safety

•Do not change the specification of this appliance.

•Obey the maximum load volume of 8 kg (refer to the

“Programme chart” chapter).

•The operating water pressure (minimum and maximum)

must be between 0,5 bar (0,05 MPa) and 8 bar (0,8

MPa).

•The ventilation openings in the base (if applicable) must

not be obstructed by a carpet.

ENGLISH 3

•The appliance is to be connected to the water mains

using the new supplied hose-sets. Old hose sets must

not be reused.

•If the supply cord is damaged, it must be replaced by

the manufacturer, its Authorised Service Centre or

similarly qualified persons in order to avoid a hazard.

•Before maintenance, deactivate the appliance and

disconnect the mains plug from the mains socket.

•Do not use water spray and steam to clean the

appliance.

•Clean the appliance with a moist soft cloth. Only use

neutral detergents. Do not use abrasive products,

abrasive cleaning pads, solvents or metal objects.

2. SAFETY INSTRUCTIONS

2.1 Installation

• Remove all the packaging and the

transit bolts.

• Keep the transit bolts. When you move

the appliance again you must block the

drum.

• Always be careful when you move the

appliance because it is heavy. Always

wear safety gloves.

• Do not install or use a damaged

appliance.

• Obey the installation instruction

supplied with the appliance.

• Do not install or use the appliance

where the temperature is less than 0

°C or where it is exposed to the

weather.

• Make sure that the floor where you

install the appliance is flat, stable, heat

resistant and clean.

• Make sure that there is air circulation

between the appliance and the floor.

• Adjust the feet to have the necessary

space between the appliance and the

carpet.

• Do not install the appliance where the

appliance door can not be fully

opened.

2.2 Electrical connection

• The appliance must be earthed.

• Always use a correctly installed

shockproof socket.

• Make sure that the electrical

information on the rating plate agrees

with the power supply. If not, contact

an electrician.

• Do not use multi-plug adapters and

extension cables.

• Make sure not to cause damage to the

mains plug and to the mains cable.

Should the mains cable need to be

replaced, this must be carried out by

our Authorised Service Centre.

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

installation.

• Do not touch the mains cable or the

mains plug with wet hands.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• Only for UK and Ireland: The appliance

has a 13 amp mains plug. If it is

necessary to change the fuse in the

mains plug, use a 13 amp ASTA (BS

1362) fuse.

• This appliance complies with the E.E.C.

Directives.

www.electrolux.com4

2.3 Water connection

• Make sure not to cause damage to the

water hoses.

• Before you connect the appliance to

new pipes or pipes not used for a long

time, let the water flow until it is clean.

• The first time you use the appliance,

make sure that there is no leakage.

2.4 Use

WARNING!

Risk of injury, electrical

shock, fire, burns or damage

to the appliance.

• Use this appliance in a household only.

• Obey the safety instructions on the

detergent packaging.

• Do not put flammable products or

items that are wet with flammable

products in, near or on the appliance.

• Make sure that you remove all metal

objects from the laundry.

• Do not put a container to collect

possible water leakage under the

appliance. Contact the Authorised

Service Centre to ensure which

accessories can be used.

• Do not touch the glass of the door

while a programme operates. The

glass can be hot.

2.5 Service

• To repair the appliance contact an

Authorised Service Centre.

• Use original spare parts only.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent

children and pets to get closed in the

appliance.

3. PRODUCT DESCRIPTION

3.1 Appliance overview

1Worktop

2Detergent dispenser

3Control panel

4Door handle

5Rating plate

6Drain pump filter

7Feet for the appliance level

ENGLISH 5

3.2 How to activate the child

safety device

This device prevents children or pets to be

closed in the drum.

Turn the device clockwise, until the groove

is horizontal.

You cannot close the door.

To close the door, turn the device

anticlockwise until the groove is vertical.

3.3 Available from your

authorized dealer

Only appropriate accessories

approved by Electrolux

ensure the safety standards

of the appliance. If

unapproved parts are used,

any claims will be invalidated.

Fixing plate kit (4055171146)

Available from your authorized dealer.

If you install the appliance on a plinth,

secure the appliance in the fixing plates.

Read carefully the instructions supplied

with the accessory.

4. CONTROL PANEL

4.1 Control panel description

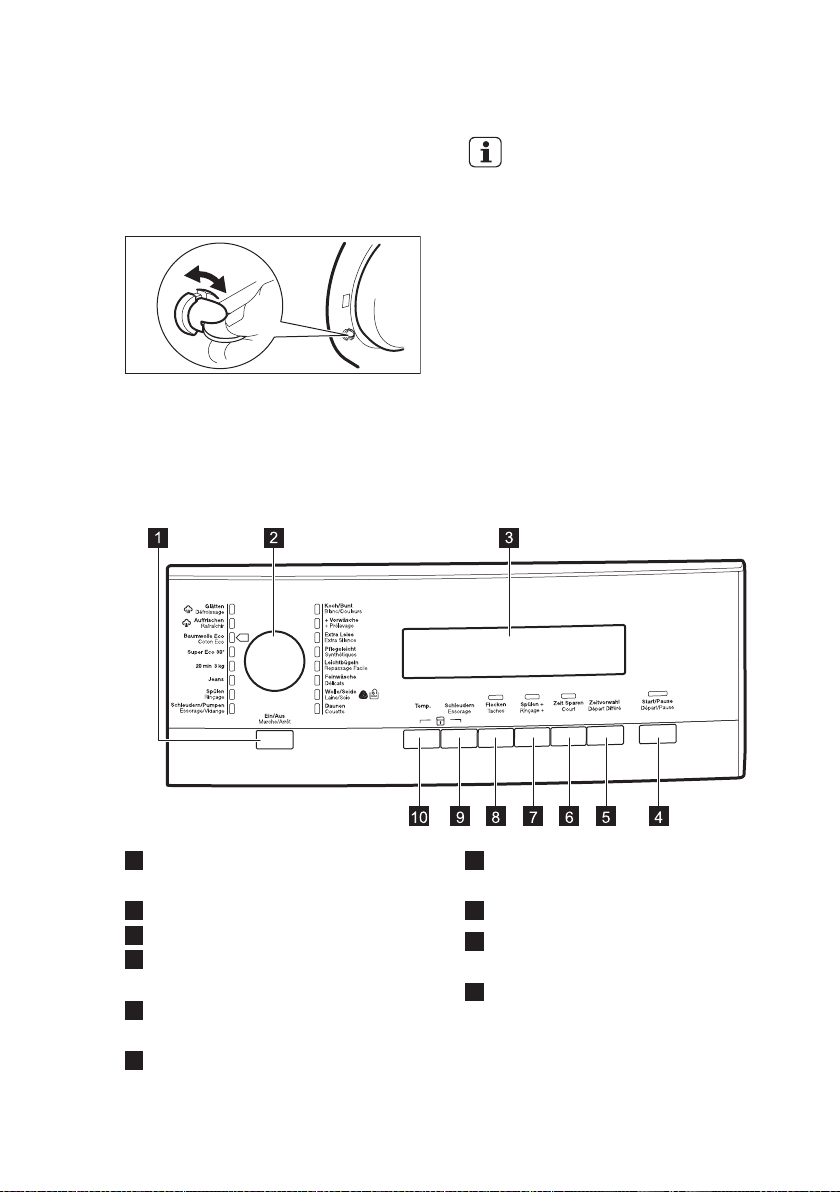

1On/Off button (Ein/Aus - Marche/Arrêt)

2Programme knob

3Display

4Start Pause button (Start/Pause -

Départ/Pause)

5Delay start button (Zeitvorwahl -

Départ Différé)

6Time save button (Zeit Sparen - Court)

7Extra rinse button (Spülen + - Rinçage

8Stain button (Flecken - Taches)

9Spin reduction button (Schleudern -

Essorage)

10 Temperature button (Temp.)

www.electrolux.com6

4.2 Display

A B C D

Temperature area:

Temperature indicator

Cold water indicator.

Spin area:

Spin speed indicator

No Spin indicator1)

Rinse Hold indicator

1) Only available for Spin/Drain programme.

Display indicators:

Washing phase

Rinses phase

Spin phase

Child safety lock

Door locked

You cannot open the appliance door when the symbol is on.

You can open the door only when the symbol goes off.

Delay start

Time area:

Programme duration

Delay start

Alarm codes

Message of error

Programme is completed

ENGLISH 7

5. PROGRAMMES

5.1 Programme Chart

Programme

Temperature

range

Maximum

load

Maximum

spin speed

Programme description

(Type of load and soil level)

Washing programmes

Koch/Bunt -

Blanc/Couleurs

95°C - Cold

8 kg

1600 rpm White cotton and coloured cotton. Normal soil

and light soil.

Koch/Bunt +

Vorwäsche -

Blanc/Couleurs +

Prélavage

95°C - Cold

8 kg

1600 rpm White cotton and coloured cotton. Heavy soil

and normal soil.

Extra Leise - Ex-

tra Silence

95°C - Cold

8 kg White and coloured cotton. Normal soil and light

soil. The programme eliminates all spinning phase

to perform a silent cycle. The cycle stops with wa-

ter in the tub.

Pflegeleicht -

Synthétiques

60°C - Cold

4 kg

1200 rpm Synthetic items or mixed fabric items. Normal

soil.

Leichtbügeln -

Repassage Fac-

ile

60°C - Cold

4 kg

800 rpm Synthetic items to be gentle washed. Normal

and light soil.1)

Feinwäsche -

Délicats

40°C - Cold

4 kg

1200 rpm

Delicate fabrics as acrylics, viscose, polyester

items. Normal soil.

Wolle/Seide -

Laine/Soie

40°C - Cold

2 kg

1200 rpm

Machine washable wool, hand washable wool

and delicate fabrics with «hand washing» care

symbol.2)

Daunen - Cou-

ette

60°C - 30°C

3 kg

800 rpm

Special programme for one synthetic blanket,

duvet, bedspread and so on.

www.electrolux.com8

Programme

Temperature

range

Maximum

load

Maximum

spin speed

Programme description

(Type of load and soil level)

Schleudern/

Pumpen - Essor-

age/Vidange3)

8 kg

1600 rpm

To spin the laundry and to drain the water in the

drum. All fabrics.

Spülen - Rinçage

8 kg

1600 rpm

To rinse and spin the laundry. All fabrics.

Jeans

60°C - Cold

8 kg

1200 rpm Items in denim and jersey. Also for dark col-

oured items.

20 min.-3 kg

40°C - 30°C

3 kg

1200 rpm

Cottons and synthetics items with light soil

level or worn only once.

Super Eco 30°

30°C - Cold

3 kg

1200 rpm Cottons, synthetics and mixed fabrics. Normal

soil4).

Baumwolle Eco -

Coton Eco5)

60°C - 40°C

8 kg

1600 rpm White cotton and colour-fast cotton. Normal

soil. The energy consumption decreases and the

time of the washing programme is extended.

Steam programmes6)

Steam can be used for dried, washed or worn once laundry. These programmes can

reduce creases and odours and make your laundry more soft.

Do not use any detergent. If necessary, remove stains by washing or using localized

stain removal.

Steam programmes do not perform any hygienic cycle.

Do not set a Steam programme with these types of items:

• items where it is not specified on the care label as being suitable for tumble drying.

• all items with plastic, metal, wooden parts or alike.

Auffrischen - Ra-

fraîchir

40°C

1.5 kg Steam programme for cotton and synthetic

items. This cycle removes odours from the laun-

dry.7)

ENGLISH 9

Programme

Temperature

range

Maximum

load

Maximum

spin speed

Programme description

(Type of load and soil level)

Glätten - Défrois-

sage

40°C

1.5 kg Steam programme for cotton and synthetic

items. This cycle helps to dewrinkle the laundry.

1) To reduce the creases of the laundry, this cycle regulates the water temperature and per-

forms a soft wash and spin phase. The appliance adds some rinses.

2) During this cycle the drum rotates slowly to ensure a gentle washing. It can seem that the

drum doesn't rotate or doesn't rotate properly. Consider this as a normal functioning of the ap-

pliance.

3) Set the spin speed. Make sure it agrees with the laundry. If you set No Spin option the only

drain phase is available.

4) Set this programme to decrease the energy and water consumption maintaining a good

washing performance.

5) Standard programmes for the Energy Label consumption values. According to regu-

lation 1061/2010, these programmes are respectively the «Standard 60°C cotton programme»

and the «Standard 40°C cotton programme». They are the most efficient programmes in terms

of combined energy and water consumption for washing normally soiled cotton laundry.

The water temperature of the washing phase may differ from the temperature de-

clared for the selected programme.

6) If you set a Steam programme with dried laundry, at the end of the cycle the laundry could

be humid. It is better to expose the items to the fresh air for about 10 minutes to let the humid-

ity dry. When the programme is completed, quickly remove the laundry from the drum. After a

steam cycle, items may to be ironed anyway, but with less effort!

7) Steam does not remove animal odours.

Programme options compatibility

Programme

Schleudern - Essorage

Flecken - Taches1)

Spülen + - Rinçage + 2)

Zeit Sparen - Court 3)

Zeitvorwahl - Départ Différé

Koch/Bunt - Blanc/

Couleurs ■ ■ ■ ■ ■ ■

www.electrolux.com10

Table of contents

Languages:

Other Electrolux Washer manuals

Electrolux

Electrolux AWT 6020 W User manual

Electrolux

Electrolux EWP 107100 W User manual

Electrolux

Electrolux RWP 127109 W User manual

Electrolux

Electrolux EWF 672 User manual

Electrolux

Electrolux EWF 8040 W - EWF 10040 W User manual

Electrolux

Electrolux EWP10742 User manual

Electrolux

Electrolux Swissline L EWF 1090 User manual

Electrolux

Electrolux EWS 126510 W User manual

Electrolux

Electrolux EWG 12450 W User manual

Electrolux

Electrolux EWS 1054NDU User manual

Electrolux

Electrolux EW 560F User manual

Electrolux

Electrolux EWS 1052 NDU User manual

Electrolux

Electrolux EW 1232 F User manual

Electrolux

Electrolux EWM 11044 EDU User manual

Electrolux

Electrolux EWT2276ELW User manual

Electrolux

Electrolux EWT654XW User manual

Electrolux

Electrolux EW6F6449Q4 User manual

Electrolux

Electrolux EWF 1487 HDW2 User manual

Electrolux

Electrolux EWFLW65H - 27'' Front-Load Washer User manual

Electrolux

Electrolux EWF 1062 ECU User manual

Electrolux

Electrolux AQUALUX EW1006 F Quick guide

Electrolux

Electrolux EWF 771 User manual

Electrolux

Electrolux EWF9025DQWA User manual

Electrolux

Electrolux EWB 85105 W User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide

Beko

Beko WKB 51231 PTMA manual
