Electrolux EW 957 F User manual

MANUAL DE USO

INSTRUCTION BOOKLET

MANUAL DE UTILIZAÇÃO

EW 957 F

132 999 791 P

LAVADORA

WASHING MACHINE

MÁQUINA DE LAVAR ROUPA

132999791 EW957F-EGBP.qxd 1/10/02 10:45 AM Pagina 1 (Nero/Process Black pellicola)

Dear customer,

Please read these operating instructions carefully

and pay particular attention to the safety notes

indicated in the first pages. We recommend that you

keep this instruction booklet for future reference and

pass it on to any future owners.

Transport damages

When unpacking the appliance, check that it is not

damaged. If in doubt, do not use it and contact the

Service Centre.

The symbols you will see on some paragraphs of this booklet have the following meaning:

The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly

important for your safety or correct functioning of the appliance.

The information marked with this symbol provides additional instructions and practical tips on the use of

the appliance.

Tips and information about economical and ecological use of the machine are marked with this symbol.

Our contribution to the protection of the

environment: we use recycled paper.

132999791 EW957F-EGBP.qxd 1/10/02 10:45 AM Pagina 22 (Nero/Process Black pellicola)

ENGLISH

Maintenance 38

Bodywork 38

Detergent dispenser drawer 38

Drain filter 38

Water inlet filter 38

Emergency emptying out 39

Frost precautions 39

Something not working? 40-41

Warnings 24-25

Disposal 25

Tips for environmental protection 25

Technical specifications 26

Installation 27

Unpacking 27

Positioning 27

Water inlet 27

Water drainage 28

Electrical connection 28

Your new washing machine 29

Description of the appliance 29

Detergent dispenser drawer 29

Use 30

Control panel 30

Controls 30

Washing hints 31

Sorting the laundry 31

Temperatures 31

Before loading the laundry 31

Maximum loads 31

Laundry weights 31

Removing stains 31

Detergents and additives 32

International wash code symbols 33

Operating sequence 34-35

Washing programmes 36-37

Contents

132999791 EW957F-EGBP.qxd 1/10/02 10:45 AM Pagina 23 (Nero/Process Black pellicola)

Installation

• All internal packing must be removed before using

the appliance. Serious damage may be caused to

the machine or adjacent furniture if the protective

transit devices are not removed or are not

completely removed. Refer to the relevant

paragraph in the instruction book.

• Any electrical work required to install this appliance

must be carried out by a qualified electrician.

• Any plumbing work required to install this

appliance must be carried out by a qualified

plumber.

• After having installed the machine, check that it is

not standing on its electrical supply cable.

• If the appliance is placed on a carpeted floor,

ensure that air can circulate freely between the feet

and the floor.

Use

• This appliance is designed for domestic use. It

must not be used for purposes other than those for

which it was designed.

• Only wash fabrics which are designed to be

machine washed. Follow the instructions on each

garment label.

• Do not overload the appliance. Follow the

instructions in the instruction book.

• Make sure that all pockets are empty. Objects such

as coins, safety pins, pins and screws can cause

extensive damage.

• Do not machine wash garments saturated with

petroleum, methylated spirits, trichlorethylene, etc.

If such fluids have been used to remove stains

prior to washing, wait until they have completely

evaporated from the fabric before placing garments

in the appliance.

• Place small items such as socks, belts, etc. in a

cloth bag or pillowcase to prevent them getting

trapped between the drum and the tub.

• Use only the recommended quantities of fabric

softener. An excessive amount could damage the

laundry.

Warnings

• Leave the porthole door slightly ajar when the

appliance is not in use. This preserves the door

seal and prevents the formation of musty smells.

• Always check that water has emptied out before

opening the door. If not, drain the water following

the instructions in the instruction book.

• Always unplug the appliance and shut the water

tap after use.

General safety

• Repairs to the machine must be carried out only by

qualified personnel. Repairs carried out by

inexperienced persons could cause serious

danger. Contact your local Service Centre.

• Never pull the power supply cable to remove the

plug from the socket; always take hold of the plug

itself.

• During high temperature wash programmes the

door glass may get hot. Do not touch it!

The following warnings are provided in the interests of overall safety. You must read them carefully before

installing or using the appliance.

132999791 EW957F-EGBP.qxd 1/10/02 10:45 AM Pagina 24 (Nero/Process Black pellicola)

ENGLISH

Disposal

Tips for environmental protection

Packaging materials

The materials marked with the symbol are

recyclable.

>PE<=polyethylene

>PS<=polystyrene

>PP<=polypropylene

This means that they can be recycled by disposing of

them properly in appropriate collection containers.

Machine

Use authorised disposal sites for your old appliance.

Help to keep your country tidy!

To save water, energy and to help protect the

environment, we recommend that you follow these

tips:

• Normally soiled laundry may be washed without

prewashing in order to save detergent, water and

time (the environment is protected too!).

• The machine works more economically if it is fully

loaded.

• With adequate pre-treatment, stains and limited

soiling can be removed; the laundry can then be

washed at a lower temperature.

• Measure out detergent according to the water

hardness, the degree of soiling and the quantity of

laundry being washed.

Child safety

• Children are often not aware of how dangerous

electrical appliances can be. When the machine is

working, children should be carefully supervised

and not be allowed to play with the appliance.

• The packaging components (e.g. plastic film,

polystyrene) can be dangerous to children - danger

of suffocation! Keep them out of children’s reach.

• Keep all detergents in a safe place out of children’s

reach.

• Make sure that children or pets do not climb into

the drum.

• When the appliance is to be scrapped, cut off the

electrical supply cable and destroy the plug with

the remaining cable. Disable the door catch in

order to prevent children from becoming trapped

inside while playing.

132999791 EW957F-EGBP.qxd 1/10/02 10:45 AM Pagina 25 (Nero/Process Black pellicola)

DIMENSIONS Height 85 cm

Width 60 cm

Depth 57 cm

MAXIMUM LOAD Cotton 6 kg

Synthetics 3 kg

Delicates 3 kg

Woollens 2 kg

SPIN SPEED 900 rpm max.

POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz

TOTAL POWER ABSORBED 2200 W

MINIMUM FUSE PROTECTION 10 A

WATER PRESSURE Minimum 50 kPa

Maximum 800 kPa

This appliance complies with the following EEC Directives:

73/23/EEC of 19/02/73 relating to low voltage

89/336/EEC of 03/05/89 relating to electromagnetic compatibility.

Technical specifications

132999791 EW957F-EGBP.qxd 1/10/02 10:45 AM Pagina 26 (Nero/Process Black pellicola)

ENGLISH

Unpacking

All transit bolts and packing must be removed

before using the appliance.

You are advised to keep all transit devices so that

they can be refitted if the machine ever has to be

transported again.

1. Using a spanner, unscrew and remove the rear

right-hand bolt and lay the machine on its back,

taking care not to squash the hoses. This can be

avoided by placing one of the corner packing

pieces between the machine and the floor.

2. Remove the polystyrene block from the bottom of

the machine and release the two plastic bags.

3. Carefully remove the right-hand bag (1) then the

left-hand bag (2) by pulling them towards the

centre of the machine.

4. Set the machine upright and remove the two

remaining bolts from the back.

5. Pull out the three plastic spacers from the holes

into which the bolts were fitted.

6. Plug all the holes with the plugs which you will

find at the back of the appliance or in the

envelope containing this manual.

P0020

P0256

P1066

P1068

P0255

Positioning

Install the machine on a flat hard floor.

Make sure that air circulation around the machine is

not impeded by carpets, rugs etc. Check that the

machine does not touch the wall or other kitchen

units.

Carefully level by screwing the adjustable feet in or

out. Never place cardboard, wood or similar

materials under the machine to compensate for any

unevenness in the floor.

Water inlet

Connect the water inlet hose to a tap with a 3/4"

thread.

The other end of the inlet hose which connects to the

machine can be turned in any direction. Simply

loosen the fitting, rotate the hose and retighten the

fitting, making sure there are no water leaks.

The inlet hose must not be lengthened. If it is too

short and you do not wish to move the tap, you will

have to purchase a new, longer hose specially

designed for this type of use.

P0021

P1088

P1051

Installation

132999791 EW957F-EGBP.qxd 1/10/02 10:45 AM Pagina 27 (Nero/Process Black pellicola)

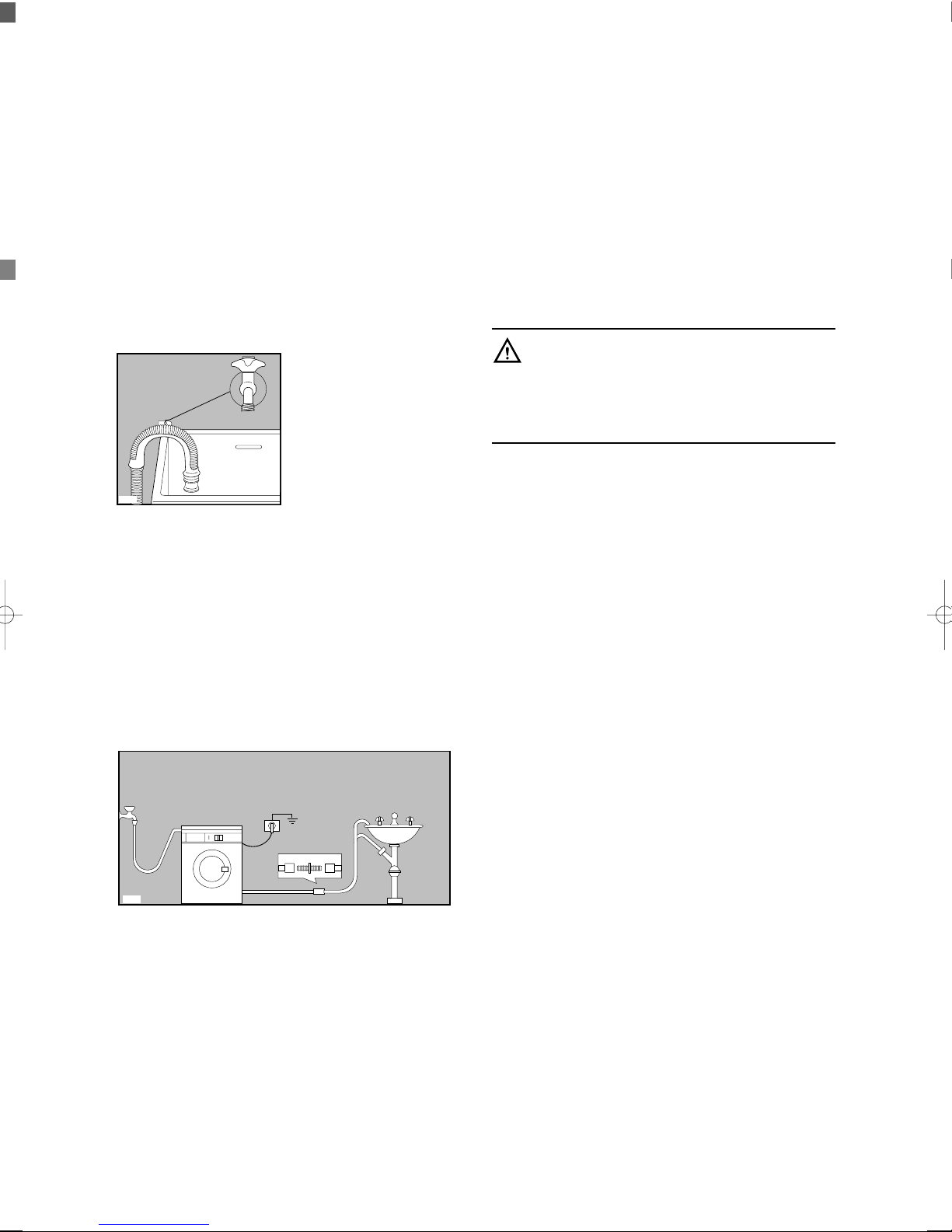

Water drainage

The end of the drain hose can be positioned in three

ways:

Hooked over the edge of a sink using the plastic

hose guide supplied with the machine. In this

case, make sure the end cannot come unhooked

when the machine is emptying.

This could be done by tying it to the tap with a piece

of string or attaching it to the wall.

In a sink drain pipe branch. This branch must be

above the trap so that the bend is at least 60 cm

above the ground.

Directly into a drain pipe at a height of not less

than 60 cm and not more than 90 cm.

The end of the drain hose must always be

ventilated, i.e. the inside diameter of the drain pipe

must be larger than the outside diameter of the drain

hose.

The drain hose must not be kinked. Run it along the

floor; only the part near the drainage point must be

raised.

P0023

P0022

Electrical connection

This machine is designed to operate on a 220-230 V,

single-phase, 50 Hz supply.

Check that your domestic electrical installation can

take the maximum load required (2.2 kW), also

taking into account any other appliances in use.

Connect the machine to an earthed socket.

The manufacturer declines any responsibility

for damage or injury through failure to comply

with the above safety precaution.

Should the appliance power supply cable

need to be replaced, this should be carried

out by our Service Centre.

Important!

When the appliance is installed the power supply

cable must be easily accessible.

132999791 EW957F-EGBP.qxd 1/10/02 10:45 AM Pagina 28 (Nero/Process Black pellicola)

ENGLISH

This new machine meets all modern requirements for effective treatment of laundry with low water, energy and

detergent consumption.

•The temperature selector dial will allow you to choose the most suitable temperature for your laundry.

• The automatic cooling of the washing water from 90° to 60°C before draining will prevent old drain pipes

from being deformed.

•The balance control device ensures the machine is stable during the spin.

1 Detergent dispenser drawer

2 Programme chart

3 Control panel

4 Door handle

5 Drain filter

6 Adjustable feet

Detergent dispenser drawer

Prewash

Main wash

Fabric softener, starch

Bleaching agent

Your new washing machine

Description of the appliance

P0909

132999791 EW957F-EGBP.qxd 1/10/02 10:45 AM Pagina 29 (Nero/Process Black pellicola)

Use

1 Programme chart

It will help you to choose the most suitable washing

programme for your laundry.

2 Spin speed selector dial

This dial allows you to select the spin speed or the

following options:

●●= no spin. All the spinning phases are

suppressed. To be used for items that tend to

wrinkle. If selected on programmes Aand B the

machine will perform an extra rinse (4 instead of

3).

●●= anti-crease (water in tub). The water of the

last rinse is not emptied out to avoid any creasing

in the laundry.

The spin speeds on the dial refer to cottons,

synthetics, mixed fabrics, wool and “handwash”.

For delicates, position 900 corresponds to 650 rpm.

Position 300 corresponds to 300 rpm for all

programmes.

3 Quick wash button

By depressing this button on cotton and synthetics

programmes the washing time will be reduced by

approx. 35 mins for cotton from COLD to 60°C

and by 20 mins for synthetics.

Max. recommended temperature 60°C.

To be used for lightly soiled laundry.

4 Extra rinse button

By depressing this button on programmes A-Bfor

cotton and linen the machine will perform 4 rinses

instead of 3.

To be used in areas where the water is very soft or

for people allergic to detergents or who have very

delicate skin.

5 On/Off button

Press this button to start the machine. The same

button is used to switch the machine off.

Before selecting a programme or changing an

ongoing programme the machine must be

switched off by depressing the On/Off button.

6 Mains-on light

It comes on when the machine starts operating and

goes out by depressing ON/OFF button to switch the

machine off.

7 Temperature selector dial

(thermostat)

To select the washing temperature turn the dial to

the required value.

Position corresponds to COLD WASH.

To be used for delicate items such as curtains.

Position corresponds to HAND WASH at 30°C.

To be used for items bearing the “hand wash” label.

8 Programme selector dial

To select the required washing programme turn the

dial clockwise.

1234567 8

Control panel

132999791 EW957F-EGBP.qxd 1/10/02 10:45 AM Pagina 30 (Nero/Process Black pellicola)

This manual suits for next models

Table of contents

Other Electrolux Washer manuals

Electrolux

Electrolux WAGL4E300 User manual

Electrolux

Electrolux EW7F7649U2 User manual

Electrolux

Electrolux EW6S427BI User manual

Electrolux

Electrolux EIFLS60LT Installation instructions

Electrolux

Electrolux Swissline L EWF 1090 User manual

Electrolux

Electrolux EWF 1083 User manual

Electrolux

Electrolux E784F303BI User manual

Electrolux

Electrolux EWF10746 User manual

Electrolux

Electrolux EWF 605 User manual

Electrolux

Electrolux EWP 1464 TDW User manual

Electrolux

Electrolux EWT800 User manual

Electrolux

Electrolux EWF695 User manual

Electrolux

Electrolux EW6T5226C5 User manual

Electrolux

Electrolux EN7F4722AN User manual

Electrolux

Electrolux EW7F348W User manual

Electrolux

Electrolux EWT9074N5SA User manual

Electrolux

Electrolux EWM 1000 AEG User manual

Electrolux

Electrolux EWS 103417 A User manual

Electrolux

Electrolux EWF 10570 W User manual

Electrolux

Electrolux EWF9042Q7WB User manual

Electrolux

Electrolux EWF 14380 W User manual

Electrolux

Electrolux EW6T5061FU User manual

Electrolux

Electrolux EW7F348AWC User manual

Electrolux

Electrolux EW 770 F User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide

Beko

Beko WKB 51231 PTMA manual
