Electrolux EWF 167320 W User manual

EWF 167320 W

................................................ .............................................

EN WASHING MACHINE USER MANUAL 2

DE WASCHMASCHINE BENUTZERINFORMATION 26

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

CONTENTS

Safety information 2

Safety instructions 3

Product description 4

Control panel 5

Washing programmes 9

Consumption values 11

Helpful hints and tips 11

First use 13

Personalization 13

Daily use 13

Care and cleaning 16

What to do if… 19

Technical data 21

Installation 21

Environment concerns 24

Subject to change without notice.

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read

the supplied instructions. The manufacturer is not responsible

if an incorrect installation and use causes injuries and dam-

ages. Always keep the instructions with the appliance for fu-

ture reference.

CHILDREN AND VULNERABLE PEOPLE SAFETY

Warning! Risk of suffocation, injury or permanent disability.

• Do not let persons, children included, with reduced physical

sensory, reduced mental functions or lack of experience and

knowledge use the appliance. They must have supervision

or instruction for the operation of the appliance by a person

who is responsible for their safety.

• Do not let children play with the appliance.

• Keep all packaging away from children.

• Keep all detergents away from children.

• Keep children and pets away from the appliance door when

it is open.

• If the appliance has a child safety device, we recommend

you activate it.

GENERAL SAFETY

• Before maintenance, deactivate the appliance and discon-

nect the mains plug from the mains socket.

• Do not change the specification of this appliance.

2 electrolux

• Obey the maximum load volume of 7 kg (refer to the “Pro-

gramme chart” chapter).

• If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons

in order to avoid a hazard.

• The operating water pressure (minimum and maximum)

must be between 0,5 bar (0,05 MPa) and 8 bar (0,8 MPa)

• The ventilation openings in the base (if applicable) must not

be obstructed by a carpet.

• The appliance is to be connected to the water mains using

the new supplied hose-sets. Old hose sets must not be

reused.

SAFETY INSTRUCTIONS

INSTALLATION

• Remove all the packaging and the transit

bolts.

• Keep the transit bolts. When you move

the appliance again you must block the

drum.

• Do not install or use a damaged appli-

ance.

•Donotinstalloruse the appliance where

the temperature is less than 0 °C or

where it is exposed to the weather.

• Obey the installation instruction supplied

with the appliance.

• Make sure that the floor where you install

the appliance is flat, stable, heat resistant

and clean.

• Do not install the appliance where the ap-

pliance door can not be fully opened.

• Always be careful when you move the

appliance because it is heavy. Always

wear safety gloves.

• Make sure that there is air circulation be-

tween the appliance and the floor.

• Adjust the feet to have the necessary

space between the appliance and the

carpet.

Electrical connection

Warning! Risk of fire and electrical

shock.

• The appliance must be earthed.

• Make sure that the electrical information

on the rating plate agrees with the power

supply. If not, contact an electrician.

• Always use a correctly installed shock-

proof socket.

• Do not use multi-plug adapters and ex-

tension cables.

• Make sure not to cause damage to the

mains plug and to the mains cable. Con-

tact the Service or an electrician to

change a damaged mains cable.

• Connect the mains plug to the mains

socket only at the end of the installation.

Make sure that there is access to the

mains plug after the installation.

• Do not pull the mains cable to disconnect

the appliance. Always pull the mains

plug.

• Do not touch the mains cable or the

mains plug with wet hands.

• This appliance complies with the E.E.C.

Directives.

Water connection

• Make sure not to cause damage to the

water hoses.

• The appliance is to be connected to the

water mains using the new supplied

hose-sets. Old hose sets must not be

reused.

electrolux 3

• Before you connect the appliance to new

pipes or pipes not used for a long time,

let the water flow until it is clean.

• The first time you use the appliance,

make sure that there is no leakage.

USE

Warning! Risk of injury, electrical

shock, fire, burns or damage to the

appliance.

• Use this appliance in a household envi-

ronment.

• Obey the safety instructions on the deter-

gent packaging.

• Do not put flammable products or items

that are wet with flammable products in,

near or on the appliance.

• Do not touch the glass of the door while

a programme operates. The glass can be

hot.

• Make sure that you remove all metal ob-

jects from the laundry.

• Do not put a container to collect possible

water leakage under the appliance. Con-

tact the Service to ensure which acces-

sories can be used.

CARE AND CLEANING

Warning! Risk of injury or damage to

the appliance.

• Do not use water spray and steam to

clean the appliance.

• Clean the appliance with a moist soft

cloth. Only use neutral detergents. Do

not use abrasive products, abrasive

cleaning pads, solvents or metal objects.

DISPOSAL

Warning! Risk of injury or suffocation.

• Disconnect the appliance from the mains

supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent chil-

dren and pets to get closed in the appli-

ance.

PRODUCT DESCRIPTION

Your new appliance meets all modern requirements for effective treatment of laundry

with low water, energy and detergent consumption. Its new washing system allows

total use of detergent and reduces water consumption so saving energy.

1Detergent dispenser drawer

2Control panel

3Door opening handle

4Rating Plate

5Drain pump

6Adjustable feet

FIXING PLATE KIT (4055171146)

Available from your authorized dealer.

4 electrolux

If you install the appliance on a plinth, se-

cure the appliance in the fixing plates. Follow the instructions supplied with the kit.

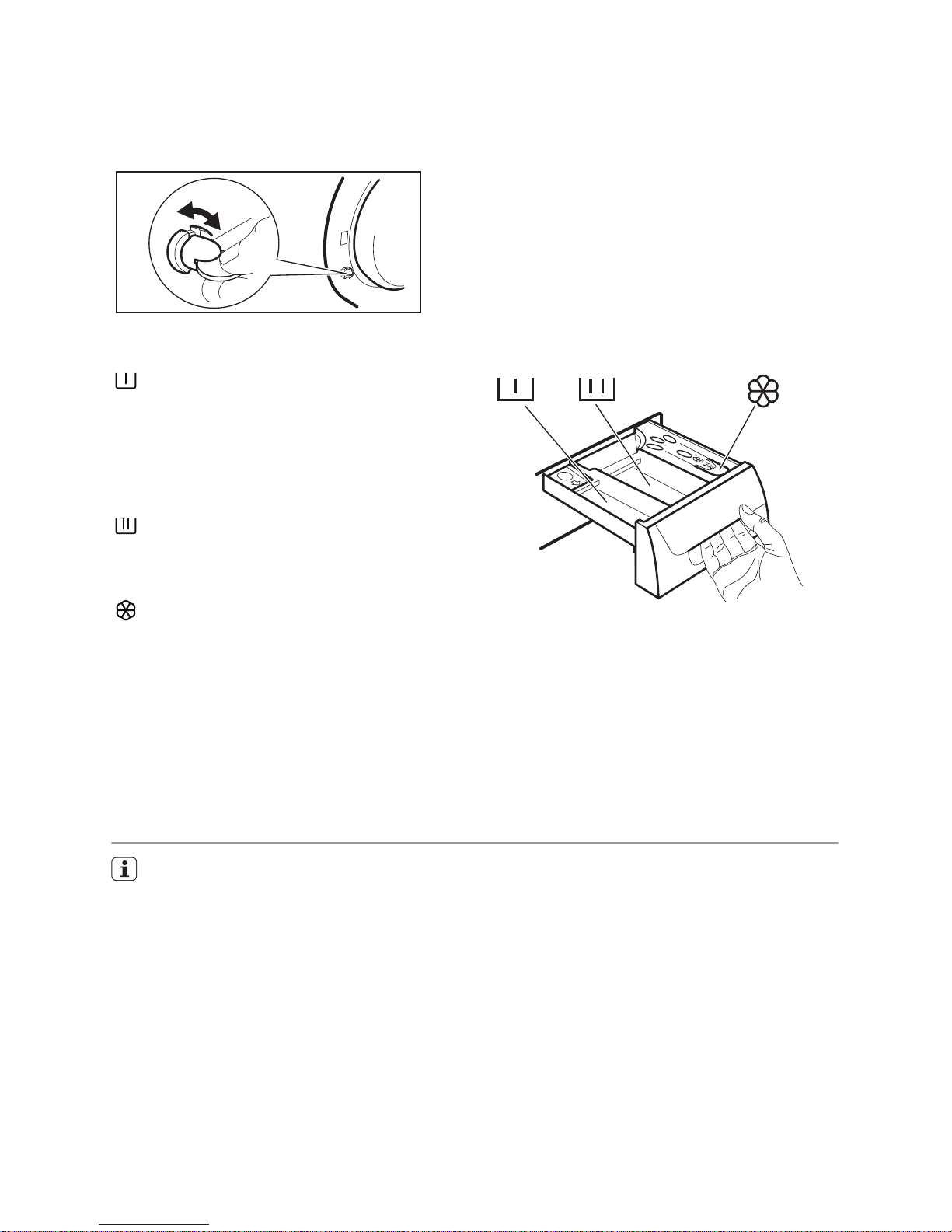

CHILD SAFETY DEVICE

When you activate this device, you cannot

close the door. This prevents children or

pets to be closed in the drum. To activate

the device, turn it clockwise, until the

groove is horizontal. To deactivate the de-

vice, turn it counter-clockwise, until the

groove is vertical.

DETERGENT DISPENSER DRAWER

Compartment for detergent used for

prewash and soak phase or for stain re-

mover used during the stain action phase (if

available). The prewash and soak detergent

is added at the beginning of the wash pro-

gramme. The stain remover is added dur-

ing the stain action phase.

Compartment for powder or liquid de-

tergent used for main wash. If using liquid

detergent pour it just before starting the

programme.

Compartment for liquid additives (fabric

softener, starch).

Follow the product manufacturer’s recom-

mendations on quantities to use and do not

exceed the «MAX» mark in the detergent

dispenser drawer. Any fabric softener or

starching additives must be poured into the

compartment before starting the wash pro-

gramme.

CONTROL PANEL

Henceforth the programme selector dial, the buttons and the display will be indicated

with the numbers given in this table.

electrolux 5

1 2 3 4 5 6 7 8

1Programme selector dial

2SPIN button (Centrif. - Essorage)

3OPTIONS button (Opties - Options)

– Prewash

– Daily

–SuperQuick

4EXTRA RINSE button(Extra spoelen -

Rinçage plus)

5Display

6START/PAUSE button(Start/Pauze -

Départ/Pause )

7DELAY START button(Startuitstel -

Départ Différé )

8Indicator pilot light

TABLE OF SYMBOLS

= Cold Wash

= Night Cycle

= Rinse Hold

= Prewash

= Daily

= Super Quick

= Child Lock

/ = Prewash/Wash

/ = Rinse/Spin

= End Cycle

PROGRAMME SELECTOR DIAL

It allows you to switch the appliance on/off

and/or to select a programme.

SPIN SPEED REDUCTION

By pressing this button you can reduce the

maximum spin speed allowed for the selec-

ted programme or to select the available

option(s).

NIGHT CYCLE

By selecting this function the machine will

not drain the water of the last rinse and all

spinning phases will be suppressed, so as

not to wrinkle the laundry. This washing cy-

cle is very quiet and it can be selected at

night or in times with a more economical

power rate. On some programmes the rin-

ses will be performed with more water. Be-

fore opening the door it will be necessary to

empty out the water. To empty out the wa-

ter, please read the paragraph «At the end

of the programme».

RINSE HOLD

By selecting this function the water of the

last rinse is not emptied out to prevent the

fabrics from creasing. Before opening the

door it will be necessary to empty out the

water. To empty out the water, please read

6 electrolux

the paragraph «At the end of the pro-

gramme».

PREWASH

By selecting this option the machine per-

forms a prewash cycle before the main

wash phase. The washing time will be pro-

longed. This option is recommended for

heavily soiled laundry.

DAILY

A cycle to be used for daily soiled cotton,

synthetic or delicate items in order to obtain

good washing performance in a short time.

SUPER QUICK

Short cycle for lightly soiled items or for

laundry which needs only freshening up.

We recommend you to reduce the fabrics

EXTRA RINSE

This appliance is designed to save energy.

If it necessary to rinse the laundry using an

extra quantity of water (extra rinse), select

this option. Some additional rinses will be

performed. This option is recommended for

people who are allergic to detergents, and

in areas where the water is very soft.

START PAUSE

This button allows you to start or to inter-

rupt the selected programme.

DELAY START

The programme can be delayed from 30

min - 60 min - 90 min, 2 hours and then by

1 hour up to a maximum of 20 hours by

means of this button.

INDICATOR PILOT LIGHTS

8.1

8.2

8.3

After having pressed the button 6, the

WASHING pilot light (8.1) illuminates. When

the pilot light 8.1 illuminates this means that

the machine is operating.

The DOOR pilot light (8.2) illuminates when

the programme starts and indicates if the

door can be opened:

• light on: the door cannot be opened. The

machine is working or has stopped with

water left in the tub.

• light off: the door can be opened. The

programme is finished or the water has

been emptied out.

• light flashing: the door is opening in a few

minutes.

When the programme has finished the END

CYCLE pilot light (8.3) comes on.

electrolux 7

DISPLAY

5.1:

•Duration of selected programme

After selecting a programme, the duration

is displayed in hours and minutes (for ex-

ample ). The duration is calculated

automatically on the basis of the maxi-

mum recommended load for each type of

fabric. After the programme has started,

the time remaining is updated every mi-

nute.

•Alarm codes

In the event of operating problems, some

alarm codes can be displayed, for exam-

ple (see chapter «What to do if...»).

•End of programme

When the programme has finished three

blinking zeros ( ) are displayed, the

Door pilot light (8.2), the Washing pilot

light (8.1) and the pilot light of button 6

go out and the door can be opened.

•Incorrect option selection

If an option which is not compatible with

the set wash programme is selected, the

message Err is displayed for a few sec-

onds and the red pilot light of button 6

light starts blinking.

•Delay Start

The selected delay set by means of the

relevant button appears on the display for

a few seconds. The delay time value de-

creases by one unit every hour. When

only 1 hour remains, the time decreases

every minute.

5.2:

•Heating Phase

During the washing cycle the display

shows a temperature icon (5.2) to indi-

cate that the appliance has started the

heating phase of the water in the tub.

5.3:

•Child safety lock

This device permits you to leave the ap-

pliance unsupervised without having the

worry that children might be injured by or

cause damage to the appliance. This

function remains able also when the

washing machine is not working.

There are two different ways to set this

option:

– before pressing button 6: it will be im-

possible to start the machine;

– after having pressed the button 6: it will

be impossible to change any other

programme or option.

To enable (disable) this option press si-

multaneously for about 6 seconds 3and

4buttons until the symbol 5.3 appears

(disappears) on the display.

8 electrolux

WASHING PROGRAMMES

Programme

Maximum and Minimum Temperature

Cycle Description

Maximum Spin Speed

Maximum Fabrics Load

Type of Laundry

Options Detergent

Compartment

Katoen - Coton

90°-60°

Main wash - Rinses

Maximum spin speed 1600 rpm

Max. load 7 kg - Reduced load 3.5 kg

For white cottons (heavily soiled items).

CENTRIFUGEREN

- ESSORAGE

NIGHT CYCLE

RINSE HOLD

PREWASH

DAILY

SUPER QUICK

EXTRA SPOELEN -

RINÇAGE PLUS

Katoen Eco - Coton Eco

60°- 40°

Main wash - Rinses

Maximum spin speed 1600 rpm

Max. load 7 kg

For white and fast coloured cotton

This programme can be selected for slightly or normally

soiled cotton items. The temperature will decrease and the

washing time will be extended. This allows to obtain a

good washing efficiency so saving energy.

CENTRIFUGEREN

- ESSORAGE

NIGHT CYCLE

RINSE HOLD

PREWASH

EXTRA SPOELEN -

RINÇAGE PLUS

Katoen - Coton

40°- Cold

Main wash - Rinses

Maximum spin speed 1600 rpm

Max. load 7 kg - Reduced load 3.5 kg

For coloured cottons (lightly soiled items).

CENTRIFUGEREN

- ESSORAGE

NIGHT CYCLE

RINSE HOLD

PREWASH

DAILY

SUPER QUICK

EXTRA SPOELEN -

RINÇAGE PLUS

Synthetisch - Synthétique

60°- Cold

Main wash - Rinses

Maximum spin speed 900 rpm

Max. load 3.5 kg - Reduced load 2 kg

Synthetic or mixed fabrics: underwear, coloured gar-

ments, non-shrink shirts, blouses.

CENTRIFUGEREN

- ESSORAGE

NIGHT CYCLE

RINSE HOLD

PREWASH

DAILY

SUPER QUICK

EXTRA SPOELEN -

RINÇAGE PLUS

Fijne was - Délicats

40°-30°

Main wash - Rinses

Maximum spin speed 700 rpm

Max. load 3.5 kg - Reduced load 2 kg

Delicate fabrics: acrylics, viscose, polyester.

NIGHT CYCLE

RINSE HOLD

PREWASH

DAILY

SUPER QUICK

EXTRA SPOELEN -

RINÇAGE PLUS

electrolux 9

Programme

Maximum and Minimum Temperature

Cycle Description

Maximum Spin Speed

Maximum Fabrics Load

Type of Laundry

Options Detergent

Compartment

Wol - Laine

Handwas - Lavage à la main

40°- Cold

Main wash - Rinses

Maximum spin speed 900 rpm

Max. load 2 kg

Washing programme for machine washable wool as well

as for hand washable woollens and delicate fabrics with

«hand washing» care symbol. Note: a single or bulky item

may cause imbalance. If the appliance doesn’t perform the

final spin phase, add more items, redistribute the load

manually and then select the spinning programme.

CENTRIFUGEREN

- ESSORAGE

NIGHT CYCLE

RINSE HOLD

Spoelen - Rinçage

Rinse - Long spin

Maximum spin speed 1600 rpm

Max. load 7 kg

With this programme it is possible to rinse and spin cotton

garments which have been washed by hand. To intensify

the rinsing action, select the extra rinse option. The appli-

ance will add some additional rinses.

CENTRIFUGEREN

- ESSORAGE

NIGHT CYCLE

RINSE HOLD

EXTRA SPOELEN -

RINÇAGE PLUS

Pompen - Vidange

Draining of water

Max. load 7 kg

For emptying out the water of the last rinse in programmes

with the Night Cycle and Rinse Hold option selected.

Centrifugeren - Essorage

Drain and long spin

Maximum spin speed 1600 rpm

Max. load 7 kg

Separate spin for hand washed garments and after pro-

grammes with the Rinse Hold and Night Cycle option se-

lected. You can choose the spin speed by pressing the

relevant button to adapt it to the fabrics to be spun.

CENTRIFUGEREN

- ESSORAGE

Mini 30

30°

Main wash - Rinses

Maximum spin speed 700 rpm

Max. load 3 kg

Ideal for laundry which is lightly soiled or which only needs

freshening up.

= OFF

For cancelling the programme which is running or to switch the machine off .

1) If you select the Super Quick option by pressing button 3, we recommend that you reduce the maximum load as

indicated. Full loading is possible however with somewhat reduced cleaning results.

2) If using liquid detergents, a programme without PREWASH must be selected.

3) STANDARD PROGRAMMES for the Energy Label consumption values. According to regulation 1061/2010,

these programmes are respectively the «standard 60° C cotton programme» and the «standard 40° C cotton

10 electrolux

Table of contents

Languages:

Other Electrolux Washer manuals

Electrolux

Electrolux EWS 14971 W User manual

Electrolux

Electrolux EWP 0864 TDW User manual

Electrolux

Electrolux EW 705 F Quick guide

Electrolux

Electrolux EW 441 F Quick guide

Electrolux

Electrolux EWF 1486 GDW User manual

Electrolux

Electrolux EWS 31276 SU User manual

Electrolux

Electrolux EWF 10160 W User manual

Electrolux

Electrolux EIFLS20QS Series User manual

Electrolux

Electrolux EWC 1350 User manual

Electrolux

Electrolux EWF9024D3WB User manual

Electrolux

Electrolux WA 1668 User manual

Electrolux

Electrolux EWT 11730 W User manual

Electrolux

Electrolux EW2F3068R8 User manual

Electrolux

Electrolux EIFLW55HIW0 User manual

Electrolux

Electrolux EWF 1476 GDW User manual

Electrolux

Electrolux EW 869 F User manual

Electrolux

Electrolux EW 559 F User manual

Electrolux

Electrolux W355H Technical manual

Electrolux

Electrolux WWS833FS2 User manual

Electrolux

Electrolux EWF 128500 W User manual

Electrolux

Electrolux EWG 147540 W User manual

Electrolux

Electrolux WH 1075 User manual

Electrolux

Electrolux EWS 106410 W User manual

Electrolux

Electrolux WH823 Instruction Manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide

Beko

Beko WKB 51231 PTMA manual
