Thank you for purchasing an Electrolux appliance. You’ve chosen a product that

brings with it decades of professional experience and innovation. Ingenious and

stylish, it has been designed with you in mind. So whenever you use it, you can

be safe in the knowledge that you’ll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com/webselfservice

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the

following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

www.electrolux.com2

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

responsible for any injuries or damages that are the

result of incorrect installation or usage. Always keep the

instructions in a safe and accessible location for future

reference.

1.1 Children and vulnerable people safety

•This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning the use of the appliance in a

safe way and understand the hazards involved.

•Do not let children play with the appliance.

•Children aged 3 years and under must be kept away

from this appliance when it is in operation at all times.

•Keep all packaging away from children and dispose of

it appropriately.

•Keep detergents away from children.

•Keep children and pets away from the appliance when

the door is open.

•If the appliance has a child safety device, this should

be activated.

•Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.2 General Safety

•Do not change the specification of this appliance.

•Do not exceed the maximum load of 8 kg (refer to the

"Programme chart" chapter).

•The operating water pressure at the water entry point

from the outlet connection must be between 0.5 bar

(0.05 MPa) and 8 bar (0.8 MPa).

•The ventilation opening in the base must not be

covered by a carpet, mat, or any floor covering.

ENGLISH 3

•The appliance must be connected to the water mains

using the new supplied hose sets, or other new hose

sets supplied by the Authorised Service Centre.

•Old hose sets must not be reused.

•If the mains power supply cable is damaged, it must

be replaced by the manufacturer, its Authorised

Service Centre or similarly qualified persons to avoid

an electrical hazard.

•Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the

socket.

•Do not use high pressure water sprays and/or steam

to clean the appliance.

•Clean the appliance with a moist cloth. Use only

neutral detergents. Do not use abrasive products,

abrasive cleaning pads, solvents or metal objects.

•If a tumble dryer is stacked on the top of the washing

machine, make sure to use the correct stacking kit

approved by ELECTROLUX (see more details in

chapter "Accessories - Stacking kit").

2. SAFETY INSTRUCTIONS

2.1 Installation

• Remove all the packaging and the

transit bolts.

• Keep the transit bolts in a safe place.

If the appliance is to be moved in

future they must be reattached to lock

the drum to prevent internal damage.

• Always take care when moving the

appliance as it is heavy. Always use

safety gloves and enclosed footwear.

• Do not install or use a damaged

appliance.

• Follow the installation instruction

supplied with the appliance.

• Do not install or use the appliance

where the temperature can be less

than 0°C or where it is exposed to the

weather.

• The floor area where the appliance is

to be installed must be flat, stable,

heat resistant and clean.

• Make sure that there is air circulation

between the appliance and the floor.

• Do not install the appliance directly

over the floor drain.

• Adjust the feet to have the necessary

space between the appliance and the

flooring.

• Do not install the appliance where the

appliance door cannot be fully

opened.

• Do not put a container to collect

possible water leakage under the

appliance. Contact the Authorised

Service Centre to ensure which

accessories can be used.

2.2 Electrical connection

• The appliance must be earthed.

• Always use a correctly installed

shockproof socket.

• Make sure that the parameters on the

rating plate are compatible with the

www.electrolux.com4

electrical ratings of the mains power

supply.

• Do not use multi-plug adapters and

extension cables.

• Make sure not to cause damage to

the mains plug and to the mains

cable. Should the mains cable need to

be replaced, this must be carried out

by our Authorised Service Centre.

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

installation.

• Do not touch the mains cable or the

mains plug with wet hands.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• This appliance complies with the

E.E.C. Directives.

2.3 Water connection

• Do not cause damage to the water

hoses.

• Before connection to new pipes, pipes

not used for a long time, where repair

work has been carried out or new

devices fitted (water meters, etc.), let

the water flow until it is clean and

clear.

• Ensure that there are no visible water

leaks during and after the first use of

the appliance.

• Do not use an extension hose if the

inlet hose is too short. Contact the

service centre for the replacement of

the inlet hose.

• You can extend the drain hose to

maximum 400 cm. Contact the

service centre for the other drain hose

and the extension.

2.4 Use

WARNING!

Risk of injury, electrical

shock, fire, burns or damage

to the appliance.

• This appliance is for household use

only.

• Follow the safety instructions on the

detergent packaging.

• Do not put flammable products or

items that are wet with flammable

products in, near or on the appliance.

• Make sure that all metal objects are

removed from the laundry.

• Do not wash fabrics which are heavily

soiled with oil, grease or other greasy

substances. It can damage rubber

parts of the washing machine.

Prewash such fabrics by hand before

loading them into the washing

machine.

• Do not touch the glass door while a

programme is in operation. The glass

can get hot.

2.5 Service

• To repair the appliance contact an

Authorised Service Centre.

• Use original spare parts only.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains electrical and water supplies.

• Cut off the mains electrical cable

close to the appliance and dispose of

it.

• Remove the door catch to prevent

children or pets from becoming

trapped in the drum.

• Dispose of the appliance in

accordance with local requirements

for the disposal of Waste Electrical

and Electronic Equipment (WEEE).

3. INSTALLATION

WARNING!

Refer to Safety chapters.

ENGLISH 5

3.1 Unpacking

1. Remove the external film. If necessary,

use a cutter.

2. Remove the cardboard top and the

polystyrene packaging materials.

3. Open the door. Remove all the items from

the drum .

4. Put the front polystyrene packaging

element on the floor under the appliance.

5. Carefully put down the appliance onto its

rear side.

6. Remove the polystyrene protection from

the bottom.

7. Put the appliance back into an upright

position.

8. Remove the power supply cable and the

drain hose from the hose holders.

It is possible to see water flowing from the

drain hose. This is because the washing

machine has been tested at the factory.

www.electrolux.com6

9. Remove the three transit bolts and pull out

the plastic spacers.

10. Put the plastic caps, that you find in the

user manual bag, in the holes.

We recommend that you

keep the packaging and

the transit bolts for any

movement of the

appliance.

3.2 Information for installation

1. Positioning and levelling

Correctly adjusting the appliance so that

it is level prevents vibration, noise and

movement of the appliance when in

operation.

1. Install the appliance on a flat hard

floor. The appliance must be level and

stable. Make sure that the appliance

does not touch the wall or other units and

there is air circulation below the

appliance.

2. Loosen or tighten the feet to adjust the

level. All feet must rest firmly on the floor.

WARNING!

Do not put cardboard, wood

or equivalent materials

below the appliance feet to

adjust the level.

Refer to Stacking kit chapter.

When the machine is

installed on a plinth or if a

washer dryer is stacked on

the washing machine, use

the accessories described in

chapter 'Accessories'. Read

carefully the instructions

supplied with the appliance

and with the accessory.

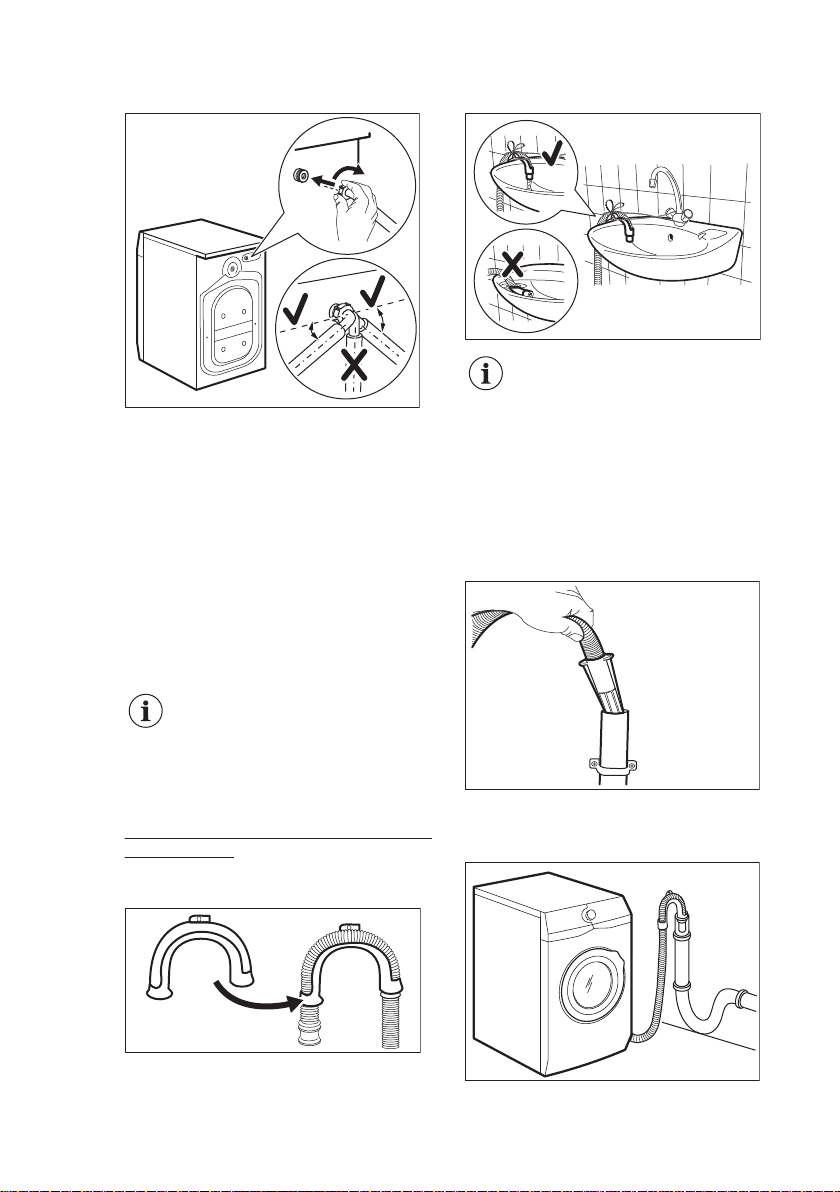

2. The inlet hose

CAUTION!

Make sure there is no

damage to hoses and there

are no leaks from the

couplings. Do not use an

extension hose if the inlet

hose is too short. Contact

the service centre for a

replacement inlet hose.

ENGLISH 7

1. Connect the water inlet hose to the

back of the appliance.

20O

45O

2. Position it toward left or right

depending on the positon of the water

tap. Make sure that the inlet hose is not

in vertical position.

3. If necessary, loosen the ring nut to set

it in the correct position.

4. Connect the water inlet hose to the

cold water tap with 3/4'' thread.

3. Water drainage

The drain hose should stay at a height of

not less than 60 cm and not more than

100 cm.

You can extend the drain

hose to maximum 400 cm.

Contact the authorized

service centre for the other

drain hose and the

extension.

It is possible to connect the drain hose in

different ways:

1. Make a U shape with the drain hose

and put it around the plastic hose guide.

2. On the edge of a sink - Fasten the

guide to the water tap or to the wall.

Make sure that the plastic

guide cannot move when the

appliance drains and the

drain hose end is not

immersed in the water.

There may be a return of

dirty water into the

appliance.

3. If the end of the drain hose looks like

this (see the picture), you can push it

directly into the stand pipe.

4. To a stand pipe with vent-hole -

Insert the drain hose directly into a drain

pipe. Refer to the illustration.

www.electrolux.com8

The end of the drain hose

must always be ventilated ,

i.e. the inner diameter of the

drain pipe (min. 38 mm -

min. 1.5") must be larger

than the external diameter of

the drain hose.

5.Without the plastic hose guide, to a

sink spigot- Put the drain hose in the

spigot and tighten it with a clamp. Refer

to the illustration.

Make sure that the drain hose makes a

loop to prevent particles going into the

appliance from the sink.

6. Position the hose directly to a built-in

drain pipe in the room wall and tighten

it with a clamp.

4. PRODUCT DESCRIPTION

4.1 Appliance overview

1 2 3 9

11 12

1Worktop

2Detergent dispenser

3Control panel

4Door handle

5Rating plate

6Drain pump filter

7Feet for levelling the appliance

8Drain hose

9Inlet hose connection

10 Mains cable

ENGLISH 9

11 Transit bolts 12 Hose support

5. CONTROL PANEL

5.1 Special features

Your new washing machine meets all

modern requirements for an effective

treatment of laundry with low water,

energy and detergent consumption and

respectful of fabric care.

• The steam has a quick and easy way

to refresh the clothes. The gentle

steam programmes remove odours

and reduce creases in dry fabrics so

they need little ironing.

• Thanks to the Soft Plus option, the

fabric softener is uniformly spread out

in the laundry and deeply penetrates

the fabric fibres favouring a perfect

softness.

• The SensiCare System adjusts

automatically the programme duration

to the laundry in the drum to achieve

perfect washing results in the

minimum possible time.

5.2 Control panel description

On/Oﬀ

400

800

1200

23 4 5

11 10 7

1Programme dial

2Display

3Delay Start touch button

4Time Manager touch button

5Start/Pause touch button

6Soft Plus touch button

7Extra Rinse touch button

8Prewash touch button

9Spin reduction options touch button

• No Spin option

• Rinse Hold option

• Night option

10 Temperature touch button

11 On/Off push button

www.electrolux.com10

Table of contents

Other Electrolux Washer manuals

Electrolux

Electrolux EWT1574M7SA User manual

Electrolux

Electrolux EWT113 User manual

Electrolux

Electrolux 300 Series User manual

Electrolux

Electrolux EWT 805 User manual

Electrolux

Electrolux EW 510 F Quick guide

Electrolux

Electrolux W4240H User manual

Electrolux

Electrolux EWF1141AEWA User manual

Electrolux

Electrolux EWF 1408 WDL User manual

Electrolux

Electrolux EWT 719 User manual

Electrolux

Electrolux EW 1170 C User manual

Electrolux

Electrolux EW6T5621AF User manual

Electrolux

Electrolux EW6F3844BB User manual

Electrolux

Electrolux EWF 8586 User manual

Electrolux

Electrolux EWI1235 User manual

Electrolux

Electrolux WH1018 Instruction Manual

Electrolux

Electrolux EWP 1272 TDW User manual

Electrolux

Electrolux EWS 126510 W User manual

Electrolux

Electrolux 134700400 User manual

Electrolux

Electrolux EWF 1470 User manual

Electrolux

Electrolux W455H User manual

Electrolux

Electrolux EW7F3944LV User manual

Electrolux

Electrolux EWF12932 User manual

Electrolux

Electrolux EW 1267 F User manual

Electrolux

Electrolux EWM1000 Setup guide

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide

Beko

Beko WKB 51231 PTMA manual
