1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

responsible if an incorrect installation and use causes in-

juries and damages. Always keep the instructions with

the appliance for future reference.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and

knowledge if they are supervised by an adult or a per-

son who is responsible for their safety.

• Do not let children play with the appliance.

• Keep all packaging away from children.

• Keep children and pets away from the appliance when

it operates or when it cools down. Accessible parts are

hot.

• If the appliance has a child safety device, we recom-

mend that you activate it.

• Cleaning and user maintenance shall not be made by

children without supervision.

1.2 General Safety

• Internally the appliance becomes hot when in opera-

tion. Do not touch the heating elements that are in the

appliance. Always use oven gloves to remove or put in

accessories or ovenware.

• Do not use a steam cleaner to clean the appliance.

• Before maintenance cut the power supply.

ENGLISH 3

• Do not use harsh abrasive cleaners or sharp metal

scrapers to clean the glass door since they can scratch

the surface, which may result in shattering of the glass.

• Only use the core temperature sensor recommended

for this appliance.

• To remove the shelf supports first pull the front of the

shelf support and then the rear end away from the side

walls. Install the shelf supports in the opposite se-

quence.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must in-

stall this appliance.

• Remove all the packaging.

• Do not install or use a damaged appli-

ance.

• Obey the installation instruction sup-

plied with the appliance.

• Always be careful when you move the

appliance because it is heavy. Always

wear safety gloves.

• Do not pull the appliance by the handle.

• Keep the minimum distance from the

other appliances and units.

• Make sure that the appliance is installed

below and adjacent safe structures.

• The sides of the appliance must stay

adjacent to appliances or to units with

the same height.

Electrical connection

WARNING!

Risk of fire and electrical shock.

• All electrical connections should be

made by a qualified electrician.

• The appliance must be earthed.

• Make sure that the electrical information

on the rating plate agrees with the pow-

er supply. If not, contact an electrician.

• Always use a correctly installed shock-

proof socket.

• Do not use multi-plug adapters and ex-

tension cables.

• Make sure not to cause damage to the

mains plug and to the mains cable.

Contact the Service or an electrician to

change a damaged mains cable.

• Do not let mains cables to come in

touch with the appliance door, specially

when the door is hot.

• The shock protection of live and insula-

ted parts must be fastened in such a

way that it cannot be removed without

tools.

• Connect the mains plug to the mains

socket only at the end of the installa-

tion. Make sure that there is access to

the mains plug after the installation.

• If the mains socket is loose, do not

connect the mains plug.

• Do not pull the mains cable to discon-

nect the appliance. Always pull the

mains plug.

• Use only correct isolation devices: line

protecting cut-outs, fuses (screw type

fuses removed from the holder), earth

leakage trips and contactors.

• The electrical installation must have an

isolation device which lets you discon-

nect the appliance from the mains at all

poles. The isolation device must have a

contact opening width of minimum 3

mm.

4www.electrolux.com

2.2 Use

WARNING!

Risk of injury, burns or electric

shock or explosion.

• Use this appliance in a household envi-

ronment.

• Do not change the specification of this

appliance.

• Make sure that the ventilation openings

are not blocked.

• Do not let the appliance stay unatten-

ded during operation.

• Deactivate the appliance after each

use.

• Be careful, when you open the appli-

ance door while the appliance is in op-

eration. Hot air can release.

• Do not operate the appliance with wet

hands or when it has contact with wa-

ter.

• Do not apply pressure on the open

door.

• Do not use the appliance as a work

surface or as a storage surface.

• Always keep the appliance door closed

when the appliance is in operation.

• Open the appliance door carefully. The

use of ingredients with alcohol can

cause a mixture of alcohol and air.

• Do not let sparks or open flames to

come in contact with the appliance

when you open the door.

• Do not put flammable products or items

that are wet with flammable products

in, near or on the appliance.

WARNING!

Risk of damage to the appliance.

• To prevent damage or discoloration to

the enamel:

– Do not put ovenware or other objects

in the appliance directly on the bottom.

– Do not put aluminium foil directly on

the bottom of the appliance.

– do not put water directly into the hot

appliance.

– do not keep moist dishes and food in

the appliance after you finish the cook-

ing.

– be careful when you remove or install

the accessories.

• Discoloration of the enamel has no ef-

fect on the performance of the appli-

ance. It is not a defect in the sense of

the warranty law.

• Use a deep pan for moist cakes. Fruit

juices cause stains that can be perma-

nent.

Steam Cooking

WARNING!

Risk of burns and damage to the

appliance.

• Do not open the appliance door during

steam cooking. Steam can release.

2.3 Care and Cleaning

WARNING!

Risk of injury, fire or damage to

the appliance.

• Before maintenance, deactivate the ap-

pliance and disconnect the mains plug

from the mains socket.

• Make sure the appliance is cold. There

is the risk that the glass panels can

break.

• Replace immediately the door glass

panels when they are damaged. Con-

tact the Service.

• Be careful when you remove the door

from the appliance. The door is heavy!

• Clean regularly the appliance to prevent

the deterioration of the surface material.

• Remaining fat or food in the appliance

can cause fire.

• Clean the appliance with a moist soft

cloth. Only use neutral detergents. Do

not use abrasive products, abrasive

cleaning pads, solvents or metal ob-

jects.

• If you use an oven spray, obey the safe-

ty instructions on the packaging.

• Do not clean the catalytic enamel (if ap-

plicable) with any kind of detergent.

2.4 Internal light

• The type of light bulb or halogen lamp

used for this appliance, is only for

household appliances. Do not use it for

house lighting.

ENGLISH 5

WARNING!

Risk of electrical shock.

• Before replacing the lamp, disconnect

the appliance from the power supply.

• Only use lamps with the same specifi-

cations.

2.5 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent chil-

dren and pets to get closed in the ap-

pliance.

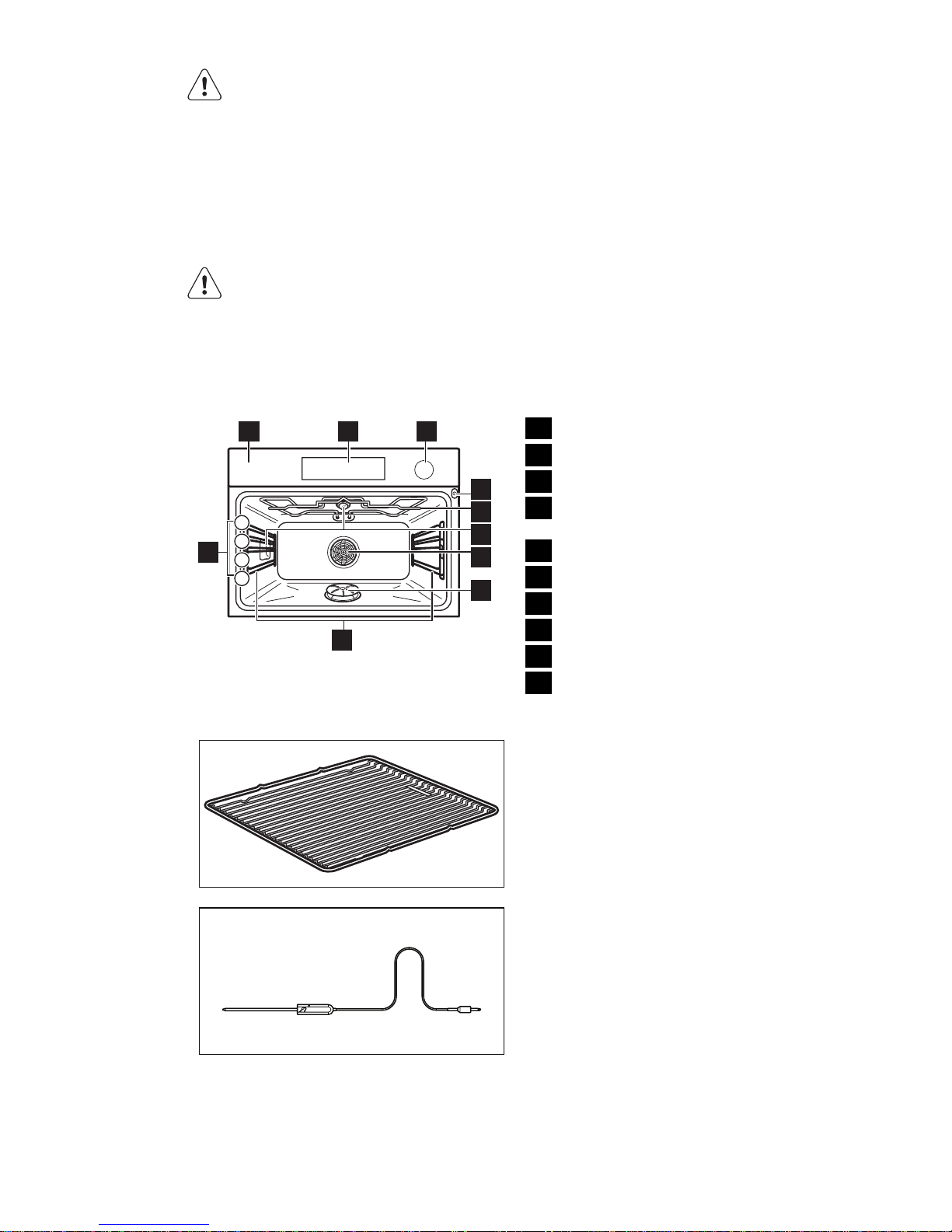

3. PRODUCT DESCRIPTION

1 2

1Control panel

2Electronic programmer

3Water drawer

4Socket for the core temperature sen-

sor

5Grill and heating element

6Oven lamp

7Fan and heating element

8Steam generator with cover

9Shelf support, removable

10 Shelf positions

3.1 Accessories

Wire shelf

For cookware, cake tins, roasts.

Core temperature sensor

To measure how far the food is cooked.

6www.electrolux.com

Sponge

For absorbing the remaining water from

the steam generator.

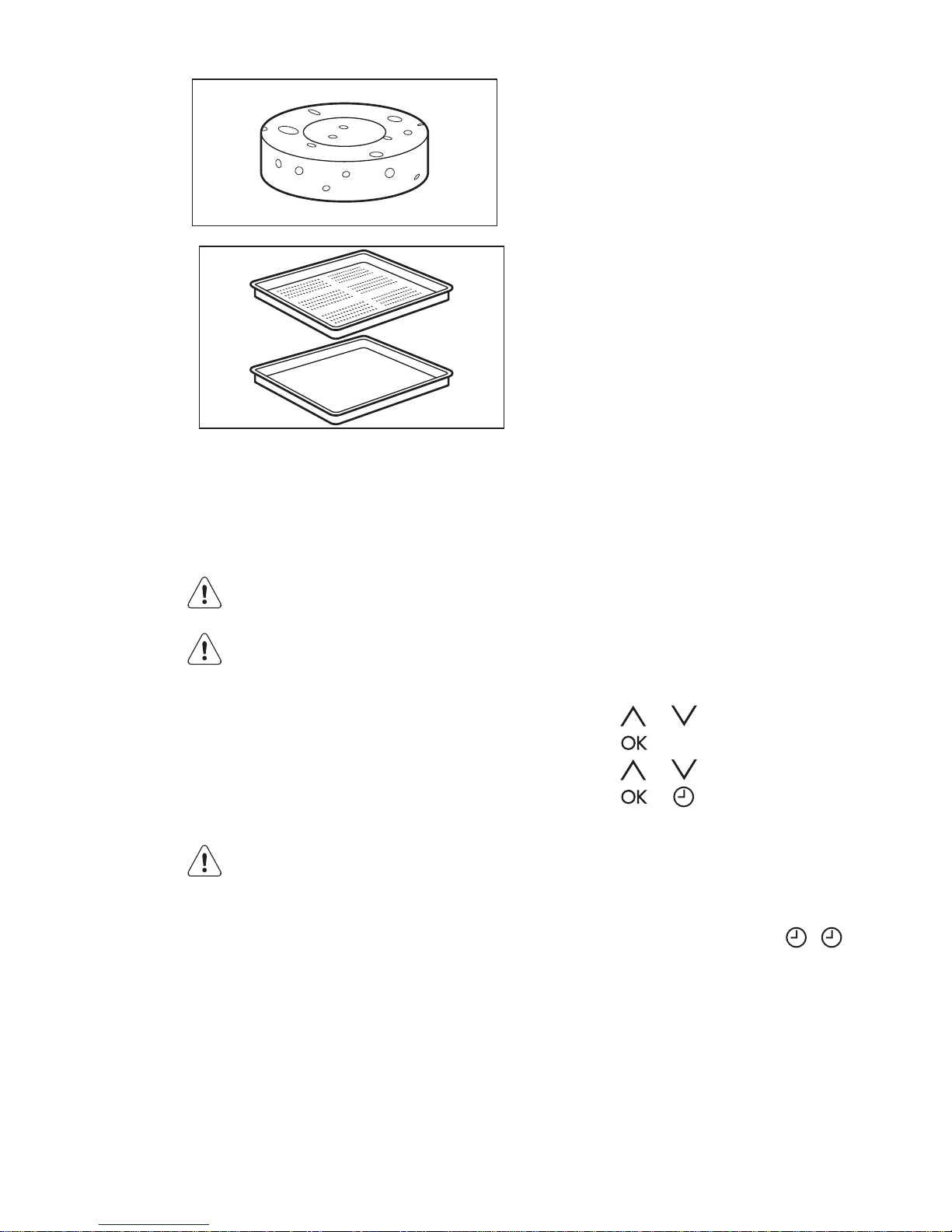

Steam set

One unperforated and one perforated

food container.

The steam set drains the condensing wa-

ter away from the food during steam

cooking. Use it to prepare food that

should not be in the water during the

cooking (e.g. vegetables, pieces of fish,

chicken breast). The set is not suitable for

food that needs to soak in the water (e.g.

rice, polenta, pasta).

4. BEFORE FIRST USE

WARNING!

Refer to the Safety chapters.

If the heating element hangs

down, push it to the top of the ap-

pliance above the supports which

are on the inner walls of the appli-

ance.

4.1 Initial Cleaning

• Remove all parts from the appliance.

• Clean the appliance before first use.

Refer to chapter "Care and Clean-

ing".

4.2 Setting and changing the

time

After the first connection to the mains, all

symbols in the display are on for some

seconds. For the subsequent few sec-

onds the display shows the software ver-

sion.

After the software version goes off, the

display shows h and 12:00.

Setting the time of day:

1. Touch or to set the hours.

2. Touch .

3. Touch or to set the minutes.

4. Touch or .

The Temperature / Time display shows

the new time.

Changing the time of day

You can change the time of day only

when the appliance is off. Touch .

flashes in the display. To set the new time

of day, use the above procedure.

ENGLISH 7

5. CONTROL PANEL

5.1 Electronic programmer

1112 3 4 65 7 8 9 10

Use the sensor fields to operate the appli-

ance.

Sensor

Field

Function Description

ON/OFF To activate and deactivate the appliance.

OPTIONS To set an oven function, an automatic

programme or a cleaning function.

OVEN LIGHT To activate or deactivate the oven lamp.

TEMPERATURE /

FAST HEAT UP To set and examine the cavity tempera-

ture or the core temperature sensor tem-

perature. If you press it and hold for

three seconds, it turns the Fast heat up

function ON and OFF.

MY FAVOURITE

PROGRAMME To store your favourite programme. Use

it to access your favourite programme

directly, also when the appliance is off.

-DISPLAY Shows the current settings of the appli-

ance.

UP To move up in the menu.

DOWN To move down in the menu.

CLOCK To set the clock functions.

MINUTE MINDER To set the Minute Minder.

OK To confirm the selection or setting. To

move down in the menu.

8www.electrolux.com

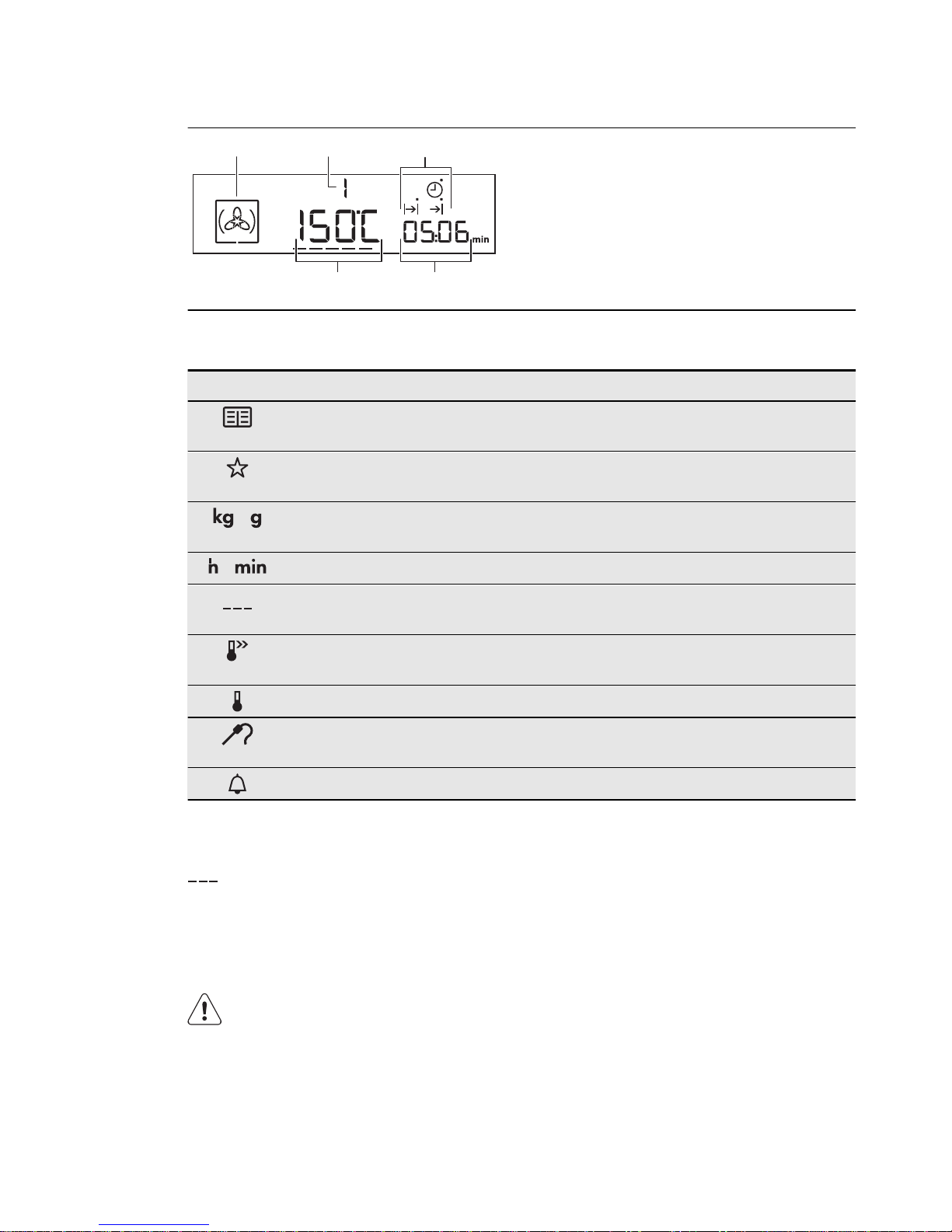

5.2 Display

AB C

A) Oven function symbol

B) Number of the oven function / pro-

gramme

C) Indicators for the clock functions (refer

to the table "Clock functions")

D) Clock / residual heat display (also Mi-

nute Minder and Time of Day)

E) Temperature / time display

5.3 Other indicators in the display

Symbols Name Description

Automatic pro-

gramme

You can choose an automatic programme.

My favourite pro-

gramme

The favourite programme operates.

/ kg / g An automatic programme with a weight in-

put operates.

/ h / min A clock function operates.

Heat-up / residual

heat indicator

Shows the temperature level in the appli-

ance.

Temperature / fast

heat up

The function operates.

Temperature You can see or change the temperature.

Core temperature

sensor

The core temperature sensor is in the core

temperature sensor socket.

Minute minder The minute minder function operates.

5.4 Heat up indicator

If you activate an oven function, the bars

come on in the display. The bars

show that the temperature in the appli-

ance increases or decreases.

When the appliance is at the set tempera-

ture, the bars go off the display.

6. DAILY USE

WARNING!

Refer to the Safety chapters.

To operate the appliance you can use:

•The manual mode - to set a heating

function, the temperature and the cook-

ing time manually.

•automatic programmes - to prepare

a dish when you do not have knowl-

edge or experience in cooking.

ENGLISH 9

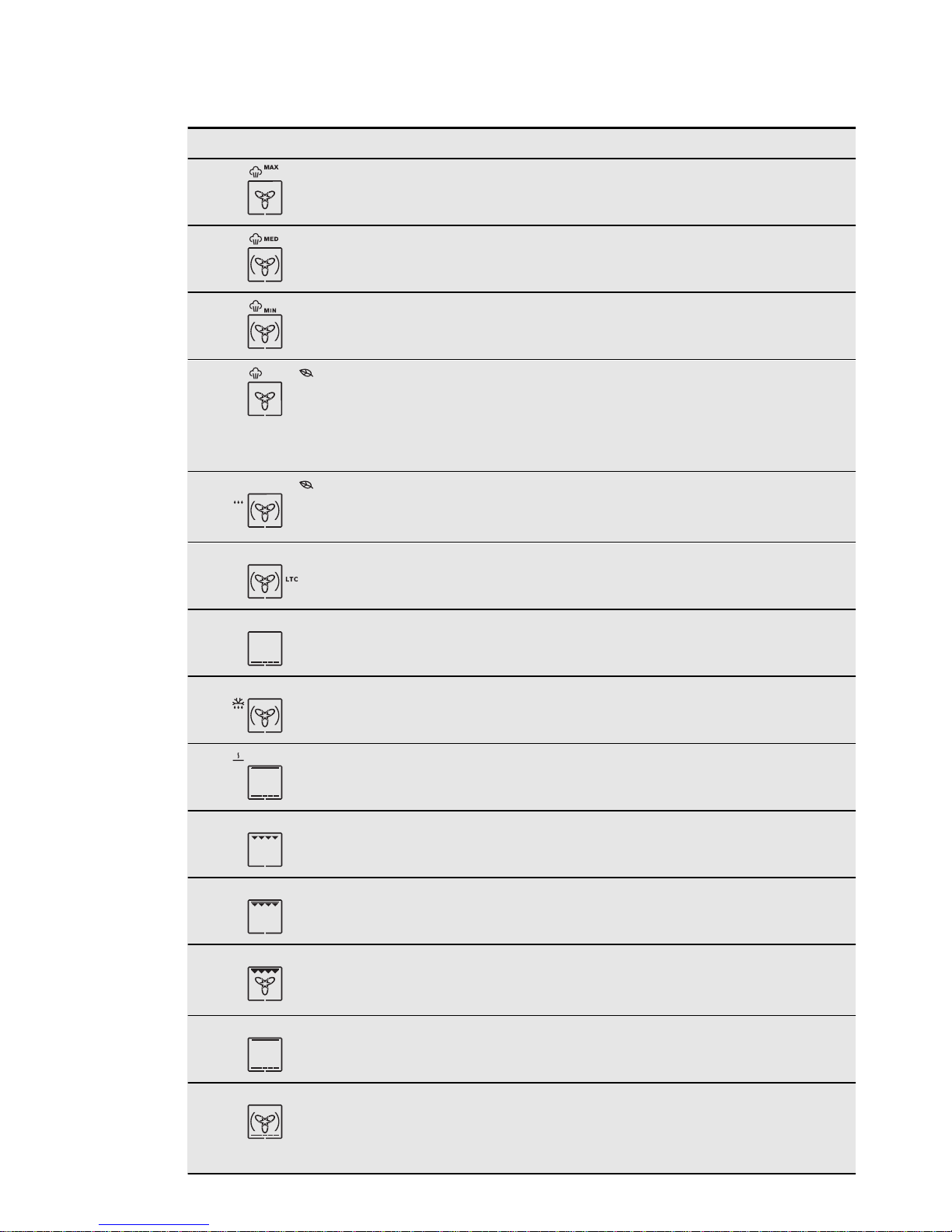

6.1 Oven functions

Oven function Application

1Full Steam For vegetables, fish, potatoes, rice, pasta or

special side dishes.

2Half Steam +

Heat For dishes with a high moisture content and for

poaching fish, custard royale and terrines.

3Quarter Steam

+ Heat To bake bread, roast large pieces of meat or to

warm up chilled and frozen meals.

4ECO Steam To optimize the energy consumption during

cooking. It is necessary to set the cooking time

first. To get more information about the recom-

mended settings, refer to the cooking tables

with the equivalent oven function.

5Moist Fan

Baking For energy-saving baking and cooking of mainly

dry bakery items as well as for baking in tins on

one shelf position.

6Slow Cook To prepare very lean and tender roasted food.

7Bottom Heat To bake cakes with crispy bottoms and to pre-

serve food.

8Defrost To defrost frozen food.

9Keep Warm To keep cooked food warm.

10 Grilling To grill flat food in the middle of the shelf. To

make toast.

11 Fast Grilling To grill flat food in large quantities. To make

toast.

12 Turbo Grilling To roast larger meat joints or poultry with bones

on one shelf position. Also to make gratins and

to brown.

13 Conventional

Cooking To bake and roast food on one shelf position.

14 Pizza Setting To bake food on one shelf position for a more

intensive browning and a crispy bottom. Set the

temperature 20 - 40 °C lower than for Conven-

tional Cooking.

10 www.electrolux.com

Other manuals for EVY9741AAX

This manual suits for next models

Table of contents

Other Electrolux Oven manuals

Electrolux

Electrolux EOD985W User manual

Electrolux

Electrolux EOB3400BOR User manual

Electrolux

Electrolux EOB3410DAX User manual

Electrolux

Electrolux EOC66800 User manual

Electrolux

Electrolux EIKG5546 User manual

Electrolux

Electrolux EI27MO45GSA Operating manual

Electrolux

Electrolux E30EW75GPS - Icon 30" Professional Series Single Electric Wall... User manual

Electrolux

Electrolux EOE8P31V User manual

Electrolux

Electrolux e:line EOEM61AS User manual

Electrolux

Electrolux air-o-convect Natural Gas Hybrid Convection Oven... How to use

Electrolux

Electrolux e:line EOEM61AS User manual

Electrolux

Electrolux EOB65300 User manual

Electrolux

Electrolux EOC5851FAX User manual

Electrolux

Electrolux EPSOP User manual

Electrolux

Electrolux E30EW75EPS - Icon Professional Series User manual

Electrolux

Electrolux EOC617 User manual

Electrolux

Electrolux COP826V User manual

Electrolux

Electrolux EON3637 User manual

Electrolux

Electrolux EB6L20CN User manual

Electrolux

Electrolux KOFDP76X User manual

Electrolux

Electrolux EON 6630 User manual

Electrolux

Electrolux KCF4P61TX User manual

Electrolux

Electrolux KODGS20TX User manual

Electrolux

Electrolux EOC633 User manual

Popular Oven manuals by other brands

Bosch

Bosch HVA531NS0 instruction manual

NEFF

NEFF B44S32 5GB Series instruction manual

Combi

Combi BLODGETT BC142GDS Specifications

AEG

AEG COMPETENCE 311704300 Installation and operating instructions

Falcon

Falcon DOMINATOR PLUS G3106 Series Servicing instructions

Rational

Rational SCC WE 61G installation manual

Smeg

Smeg DOSPA38X User manuals

Miele

Miele HR 1954-2 operating instructions

KHIND

KHIND OT50 instruction manual

Henny Penny

Henny Penny Smoker Box installation manual

Lang

Lang ECOD-AP Installation and operation instructions

AEG

AEG BEK455310M user manual

Frigidaire

Frigidaire FNGE90JGR user manual

Hotpoint

Hotpoint FE9 S831 JSH IX user manual

GE Advantium SCB2000 owner's manual

AEG

AEG DE401301DM user manual

DeLonghi

DeLonghi XA660 Directions for use

AEG

AEG BEB331010M user manual
