Electrolux EOG 21302 X User manual

electrolux 1

Gas built-in oven

EOG 21302 X

User manual

electrolux 3

Welcome to the world of Electrolux

Thank you for choosing a first class product from Electrolux, which hopefully will

provide you with lots of pleasure in the future.

The Electrolux ambition is to offer a wide variety of quality products that make

your life more comfortable.

You find some examples on the cover in this manual.

Please take a few minutes to study this manual so that you can take advantage

of the benefits of your new machine.

We promise that it will provide a superior User Experience delivering Ease-of-

Mind.

Good luck!

4electrolux

For the User

Important safety information ............................................................................... 5

Description of the appliance ............................................................................... 8

Controls ............................................................................................................. 9

Before using the oven for the first time ............................................................. 11

Using the oven ................................................................................................ 12

Using the gas oven .......................................................................................... 13

Cooking chart-Gas oven .................................................................................. 15

Using the fan oven ........................................................................................... 16

Cooking chart-Fan oven .................................................................................. 17

Grilling ............................................................................................................ 18

Cooking chart-Grilling ...................................................................................... 19

Turnspit ........................................................................................................... 20

Cleaning and Maintenance .............................................................................. 21

Something not working .................................................................................... 24

Service and spare parts ................................................................................... 36

European guarantee ........................................................................................ 37

For the Installer

Technical data ................................................................................................. 25

Important safety requirements .......................................................................... 26

Gas connection ............................................................................................... 27

Adaptation to different types of gas .................................................................. 29

Instructions fo building In ................................................................................. 31

Electrical connection ....................................................................................... 34

Safety instructions

Step by step instructions

Hints and Tips

Environmental Information

Guide to use the instructions

)

Contents

electrolux 5

Important safety information

These warnings are provided for the safety of the users and those living

with them. So read them carefully before connecting and/or using the

appliance.

Always keep these user instructions with the appliance. Should the

appliance be passed on to third persons or sold, or if you leave this

appliance behind when you move house, it is very important that the new

user has access to these user instructions and the accompanying

information.

Installation

• This oven must be installed by qualified

personnel in accordance with existing

rules and regulations.

• This oven is heavy. Take care when

moving it.

• Remove all packaging, both inside and

outside the oven, before using the oven.

• Do not attempt to modify the oven in

any way.

• This appliance is not connected to a

combustion products evacuation

device. It must be installed and

connected in accordance with current

installation regulations. Particular

attention shall be given to the relevant

requirements regarding ventilation.

• The use of a gas cooking appliance

results in the production of heat and

moisture in the room in which it is

installed. Ensure that the kitchen is

well ventilated: keep natural

ventilation holes open or install a

mechanical ventilation device

(mechanical extractor hood).

• Prolonged intensive use of the

appliance may call for additional

ventilation, for example opening a

window, or more effective ventilation,

for example increasing the level of

mechanical ventilation where present.

People safety

• This oven is designed to be operated by

adults. Do not allow children to play

near or with the oven.

•This appliance is not intended for use

by children or other persons whose

physical, sensory or mental capabili-

ties or lack of experience and knowl-

edge prevents them from using the

appliance safely without supervision

or instruction by a responsible per-

son to ensure that they can use the

appliance safely.

• The oven gets hot when it is in use.

Children should be kept away until it

has cooled.

During use

• This oven is intended for domestic

cooking only. It is not designed for

commercial or industrial purposes.

• Appliances become very hot with use,

and retain their heat for a long period

after use. Care should be taken to

avoid touching heating elements inside

the oven.

ENGLISH

6electrolux

•Always stand back from the oven

when opening the oven door

during cooking or at the end of it

to allow any build up of steam or

heat to release.

• Do not block any of the oven vents.

Never line any part of the oven with

aluminium foil.

• Do not allow heatproof cooking

material, e.g. roasting bags, to come

into contact with oven elements.

• Never place plastic or any other

material which may melt in or on the

oven.

• Do not place sealed cans or aerosols

inside the oven. They may explode if

they are heated.

• Do not hang towels, dishcloths or

clothes from the oven or its handle.

• Do not use this oven if it is in contact

with water and never operate it with

wet hands.

• Take great care when heating fats and

oils as they will ignite if they become

too hot.

• Always use oven gloves to remove and

replace food in the oven.

• The forks and the spit of the turnspit

are pointed and sharp. When using,

manipulate them with caution to avoid

any injury.

• Ensure that all control knobs are in the

OFF position when not in use.

• Do not leave cookware containing

foodstuffs, e.g. fat or oil in or on the

oven in case it is inadvertently switched

ON.

• When using other electrical appliances,

ensure the cable does not come into

contact with the hot surfaces of the

oven.

electrolux 7

MANUFACTURER:

ELECTROLUX ITALIA S.p.A.

C.so Lino Zanussi 30

33080 Porcia (PN) - Italy

This appliance conforms with the following ECC Directives:

- 2006/95 (Low Voltage Directive);

- 2004/108 (EMC Directive);

- 90/396 (Gas Appliances);

and subsequent modifications.

•Do not use harsh abrasive cleaners or

sharp metal scraper to clean the oven

door glass since they can scratch the

surface, which may result in shattering

of the glass.

Maintenance and cleaning

• Only clean this oven in accordance

with the instructions.

• This appliance cannot be cleaned

with steam or with a steam cleaning

machine.

•Do not use abrasive cleaners or

sharp metal scrapers. These can

scratch the glass in the oven door,

which may result in the shattering

of the glass.

• The oven should be kept clean at all

times. A build-up of fats or other

foodstuffs could result in a fire,

especially in the grill pan.

• Always allow the oven to cool down

and switch off the electrical supply

before carrying out any cleaning or

maintenance work.

Service

• This oven should only be repaired or

serviced by an authorised Service

Engineer and only genuine approved

spare parts should be used.

• The manufacturer disclaims any

responsibility should these safety

measures not be carried out.

Environmental information

• After installation, please dispose of

the packaging with due regard to

safety and the environment.

• When disposing of an old appliance,

make it unusable, by cutting off the

cable. Remove any door catches, to

prevent small children being trapped

inside.

• The symbol on the product or

on its packaging indicates that this

product may not be treated as

household waste. Instead it shall be

handed over to the applicable col-

lection point for the recycling of elec-

trical and electronic equipment. By

ensuring this product is disposed of

correctly, you will help prevent po-

tential negative consequences for the

environment and human health,

which could otherwise be caused by

inappropriate waste handling of this

product. For more detailed informa-

tion about recycling of this product,

please contact your local city office,

your household waste disposal serv-

ice or the shop where you purchased

the product.

8electrolux

Description of the appliance

1. Control panel

2. Minute minder

3. Oven function (Light, Grill & Fan) control knob

4. Gas oven control knob

5. Grill control light

6. Mains on light

7. Grill

8. Oven lamp

9. Turnspit hole

10. Oven fan

11. Oven cavity bottom plate

12. Rating plate

electrolux 9

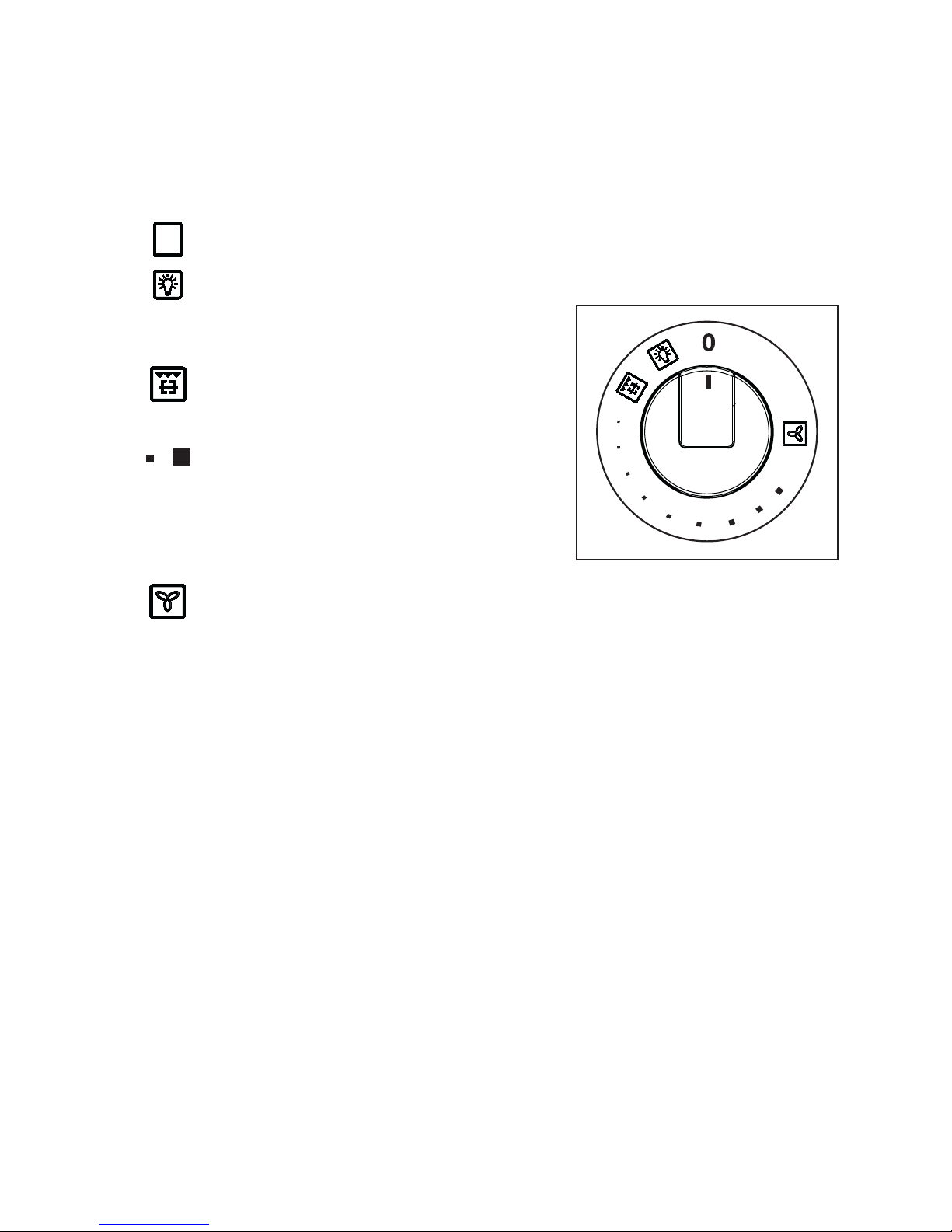

Controls

Oven function control knob

(Light, Grill & Fan)

The oven is off.

Oven Light - The oven light

will be on without any cooking

function.

Electric grill and rotisserie

operation

-Range of temperature

adjustment for the electric

grill (from a minimum of about

50ºC to a maximum of about

200°C).

Fan cooking - It can be used

in combination with the gas

oven burner (“Fan cooking”

function).

The oven gas burner can also be used

without the fan.

Mains on light

The mains on light will come on when the

“Light-Grill & Fan” control knob is set.

Grill control light

The grill control light will come on when

the grill cooking function has been

selected. The light will remain on until the

correct temperature is reached. It will

then cycle on and off to show the tempe-

rature is being maintained.

10 electrolux

Gas oven control knob

Oven burner off

min. - 240 Range of temperature

adjustment for conventional cooking

Minute minder

The minute minder will mark the end of

a timed period with an acoustic alarm.

The maximum timing is 60 minutes.

Turn the minute minder knob clockwise

to the maximum time position, then turn

it back to the required time.

The minute minder will not affect in any

way the oven operation, if it is in use.

The cooling fan

The cooling fan switches off automatically

after a few minutes of cooking.The

cooling fan operates during cooking.

Air is expelled through vents between the

oven door and the control panel, as

shown in the diagram.

The cooling fan may run on after the

oven is switched off to keep the

controls cool.

min.

Table of contents

Other Electrolux Oven manuals

Electrolux

Electrolux EOB9958VAX User manual

Electrolux

Electrolux EON6001S Operation manual

Electrolux

Electrolux U33024 EOB31010X User manual

Electrolux

Electrolux KOIHH00K User manual

Electrolux

Electrolux KDFGE40TX User manual

Electrolux

Electrolux E3000-5 User manual

Electrolux

Electrolux EOE8P31V User manual

Electrolux

Electrolux B3191-5 User manual

Electrolux

Electrolux EOH3H54X User manual

Electrolux

Electrolux EOB98001 User manual

Electrolux

Electrolux EOR3420 User manual

Electrolux

Electrolux U02353 EOB944 Manual

Electrolux

Electrolux EOK7837 Operation manual

Electrolux

Electrolux COMPETENCE E3101-4 User manual

Electrolux

Electrolux EOC68200 User manual

Electrolux

Electrolux EOV5700BAX User manual

Electrolux

Electrolux E30EW85EPS - Icon 30" Professional Series Electric Double... User manual

Electrolux

Electrolux EOK9837 User manual

Electrolux

Electrolux EOK68600X User manual

Electrolux

Electrolux EOT1513X User manual

Electrolux

Electrolux EB6L80SP User manual

Electrolux

Electrolux EOB990 Specification sheet

Electrolux

Electrolux EOB974 Specification sheet

Electrolux

Electrolux EOD63142 User manual

Popular Oven manuals by other brands

Bosch

Bosch HVA531NS0 instruction manual

NEFF

NEFF B44S32 5GB Series instruction manual

Combi

Combi BLODGETT BC142GDS Specifications

AEG

AEG COMPETENCE 311704300 Installation and operating instructions

Falcon

Falcon DOMINATOR PLUS G3106 Series Servicing instructions

Rational

Rational SCC WE 61G installation manual

Smeg

Smeg DOSPA38X User manuals

Miele

Miele HR 1954-2 operating instructions

KHIND

KHIND OT50 instruction manual

Henny Penny

Henny Penny Smoker Box installation manual

Lang

Lang ECOD-AP Installation and operation instructions

AEG

AEG BEK455310M user manual

Frigidaire

Frigidaire FNGE90JGR user manual

Hotpoint

Hotpoint FE9 S831 JSH IX user manual

GE Advantium SCB2000 owner's manual

AEG

AEG DE401301DM user manual

DeLonghi

DeLonghi XA660 Directions for use

AEG

AEG BEB331010M user manual
