Electrolux GL30CAE User manual

Product No. GL30CAEC GL30LBEC GL30LKEC GL30NBEC GL30NKEC

Series 30" elec/ign 30" elec/ign 30" elec/ign 30" elec/ign 30" elec/ign

Market North America North America North America North America North America

Color stainless stainless stainless stainless stainless

Owner's Guide gl30en gl30en gl30en gl30en gl30en

GL30LKEC.eps GL30-A.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995435806

05/04/28

(EN/SERVICE/BJH)

099

GAS GRILL

Model No.

GL30CAE / GL30LBE /

GL30LKE / GL30NBE /

GL30NKE

Publication No: 5995435806 GL30CAE / GL30LBE / GL30LKE / GL30NBE / GL30NKE

04/05 2

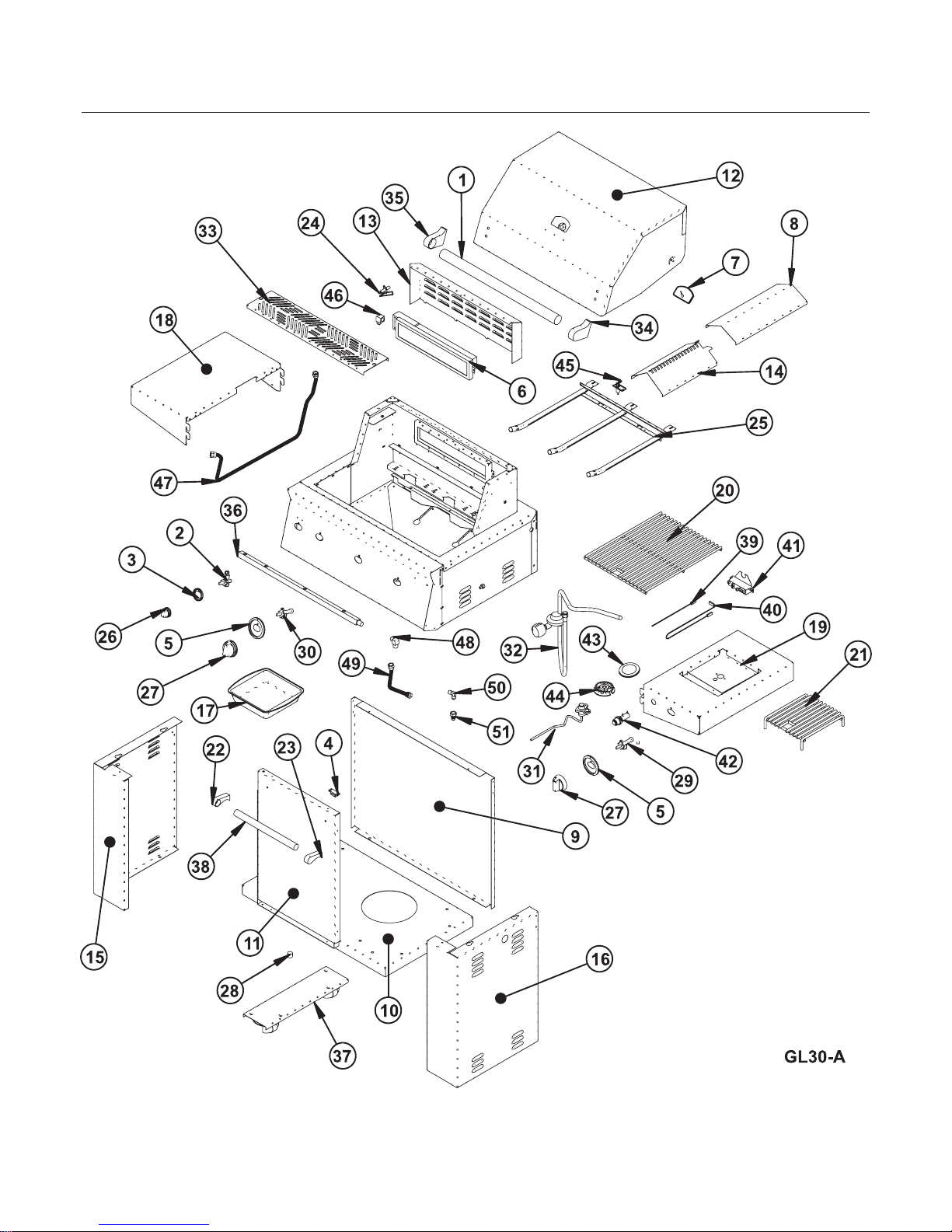

RECOMMENDED SPARE PARTS

GL30CAE / GL30LBE / GL30LKE / GL30NBE / GL30NKE Publication No: 5995435806

# Functional Parts 3 04/05

* Non-Illustrated Parts

RECOMMENDED SPARE PARTS

Model Index: AGL30LKE (GL30LKEC)

BGL30NKE (GL30NKEC)

CGL30LBE (GL30LBEC)

DGL30NBE (GL30NBEC)

EGL30CAE (GL30CAEC)

POS. NO PART NO. DESCRIPTION

1 5304444452 A B C D - Handle, hood

2 5304444433 A - C - - Valve, IR burner, back, LP

2 5304444434 - B - D - Valve, IR burner, back, NG

3 5304444429 A B C D - Bezel, infrared knob

4 5304444391 A B - - E Magnet, door

5 5304444406 A B C D E Bezel, knob

6 # 5304444453 A B C D - Burner, infrared, back

7 # 5304444392 A B C D - Guage, temperature

8 5304444399 A B C D - Flavor Grid, burner cover, top, angle

9 5304444454 A B - - E Panel, cart, back

10 5304444455 A B - - E Base, cart

11 5304444456 A B - - E Door, cart

12 5304444457 A B C D - Hood, grill

13 5304444458 A B C D - Cover, infrared burner

14 5304444398 A B C D - Flavor Grid, igniter cover, bottom, angle

15 5304444427 A B - - E Panel, cart, left side

16 5304444416 A B - - E Panel, cart, right side

17 5304444438 A B C D - Tray, drip pan

18 5304444437 A B - - E Shelf, left side

19 5304444401 A B - - E Shelf, side burner

20 5304444459 A B C D - Grate, main burner

21 5304444400 A B - - E Grate, side burner

22 5304444425 A B - - E Handle End, door, left

23 5304444426 A B - - E Handle End, door, right

24 # 5304444393 A B C D - Electrode, infrared burner, back

25 # 5304444460 A B C D - Burner, main, 3 cell

26 5304444428 A B C D - Knob, infrared burner

27 5304444405 A B C D E Knob, burner

28 5304444419 A B - - E Door Stop

29 5304444412 A - - - E Valve, burner, side, LP

29 5304444413 - B - - E Valve, burner, side, NG

30 5304444435 A - C - - Valve, burner, main/side, LP

30 5304444436 - B - D - Valve, burner, main/side, NG

31 5304444410 A - - - E Base, orifice, side burner, LP

31 5304444411 - B - - E Base, orifice, side burner, NG

31* 5304444423 - B - - E Tubing, burner, side

32 5304444422 A - C - - Regulator, LP gas, dual hose

32 # 5304444424 - B - D - Regulator, NG

33 5304444461 A B C D - Shelf, warming rack

34 5304444390 A B C D - Handle End, hood, right

35 5304444388 A B C D - Handle End, hood, left

36 # 5304444462 A B C D - Manifold

37 5304444418 A B - - E Channel, wheel, swivel

38 5304444463 A B - - E Handle, door, 12.525 inch

39 # 5304444431 A B - - E Wire, igniter, positive

40 # 5304444432 A B - - E Wire, igniter, negative

Publication No: 5995435806 GL30CAE / GL30LBE / GL30LKE / GL30NBE / GL30NKE

04/05 4

RECOMMENDED SPARE PARTS

GL30CAE / GL30LBE / GL30LKE / GL30NBE / GL30NKE Publication No: 5995435806

# Functional Parts 5 04/05

* Non-Illustrated Parts

RECOMMENDED SPARE PARTS

Model Index: AGL30LKE (GL30LKEC)

BGL30NKE (GL30NKEC)

CGL30LBE (GL30LBEC)

DGL30NBE (GL30NBEC)

EGL30CAE (GL30CAEC)

POS. NO PART NO. DESCRIPTION

41 5304444409 A B - - E Module, ignitor spark

42 5304444404 A B - - E Housing, igniter battery

43 5304444402 A B - - E Cap, side burner

44 5304444403 A B - - E Burner Head, side burner

45 # 5304444439 A B C D - Electrode, main burner

46 # 5304447641 A - C - - Elbow, LP, IR burner rear, with orifice

46 # 5304447642 - B - D - Elbow, NG, IR burner rear, with orifice

47 # 5304447646 A B C D - Hose, gas, infrared burner, rear

48 5304447621 A B C D - Elbow, gas fitting, manifold/hose

49 # 5304446174 A B C D - Hose, gas, 10", main supply

50 # 5304447623 A B C D - Elbow, main connection

51 # 5304447624 A B C D - Fitting, main connection

* 5304444464 A B C D - Wire, ignitor, IR valve

* 5304444465 A B C D - Wire, ignitor, LH, main burner

* 5304444466 A B C D - Wire, ignitor, RH, main burner

* 5304444467 A B - - E Wire, ignitor, side burner

* 5304444445 A B C D E Screw, bezel to valve

* 5304444447 A B C D E Screw, self-tapping

* 5304444441 A B C D - Bolt, valve/manifold

* 5304444442 A B - - E Bolt, wheel & cart

* 5304444443 A B - - E Nut, door, bottom pivot

* 5304444444 A B - - E Screw, door, bottom pivot

* 5304444446 A B - - E Screw, hood handle end
